HYPERFLEX 5 MeP Painestore

HYPERFLEX 5 MeP Painestore

M&P How to install the connector

HYPERFLEX 5 MeP

Code: HYPERFLEX 5 MeP
Brand : Messi e Paoloni

Secure payments

Find out more

€ 6,00

Maximum order quantity: 100

quantity

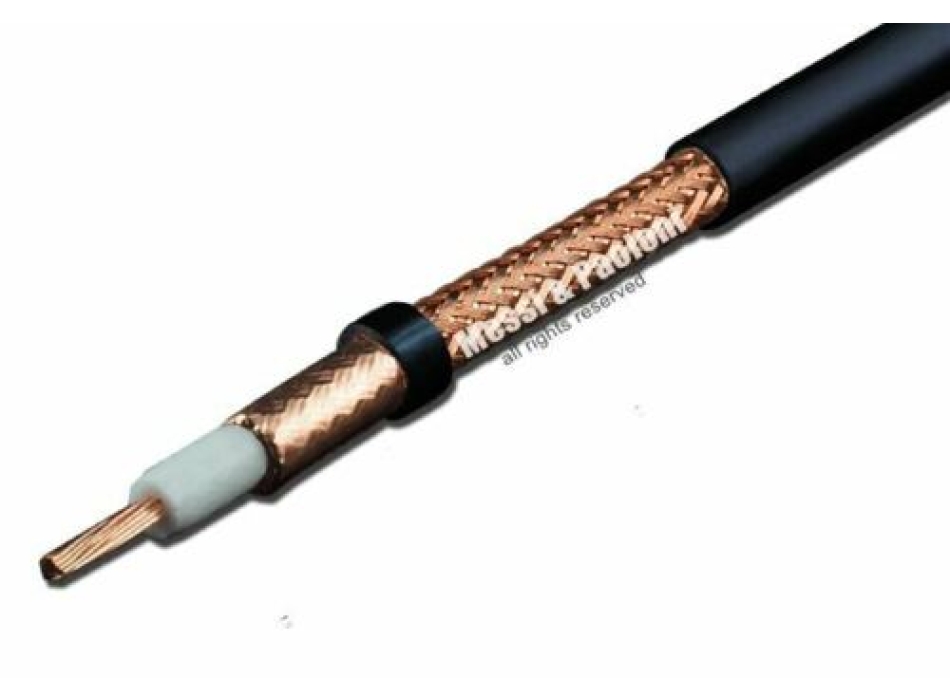

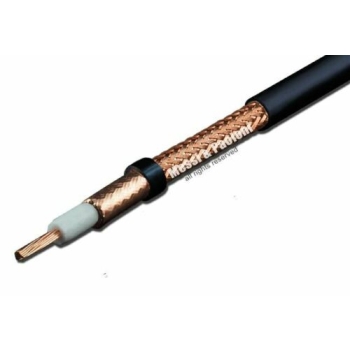

MeP HYPERFLEX 5

[5.4mm cable]

WHY CHOOSE THIS CABLE:

- Extreme flexibility: a sophisticated central conductor stranded in copper, (19 wires instead of 7) guarantees a perfect connection between cable and motorized antennas.

- Shielding efficiency:> 105 dB (SA) and greater robustness, obtained by adding 24 more wires to the braid, for a total of 120 wires (88% coverage + 100% shielding tape). This leads to a noticeable reduction in background noise . Furthermore, the braiding machines used are with 24 spindles, instead of 16, guaranteeing 50% more crossings .

- Lightweight: 4.4 Kg / 100m, for less stress on the cable connected to the motorized antenna in the "hanging and oscillating" section.

ELECTRICAL FEATURES
Impedance @ 200Mhz: 50 Ohm ± 3
Minimum bending radius: up to 15 bends: 50mm
single fold: 25mm
Temperatures: from -45 ° C to + 70 ° C
Capacitance: 74 pF / m ± 2
Propagation speed: 87%
Shielding efficiency: 100-2000 MHz> 105 dB
Shielding class: A ++
Internal conductor resistance: 14 Ohm / Km
External conductor resistance: 11 Ohm / Km
Sheath voltage test: 4 kV Net weight (100m): 4.4 Kg
MAX peak power: 2,900 WATT
Connectors: UHF (PL), N, BNC, SMA, TNC

HYPERFLEX 5 (501,81 KB)
