ULTRAFLEX 7 MeP

€ 8,00
Maximum order quantity: 100

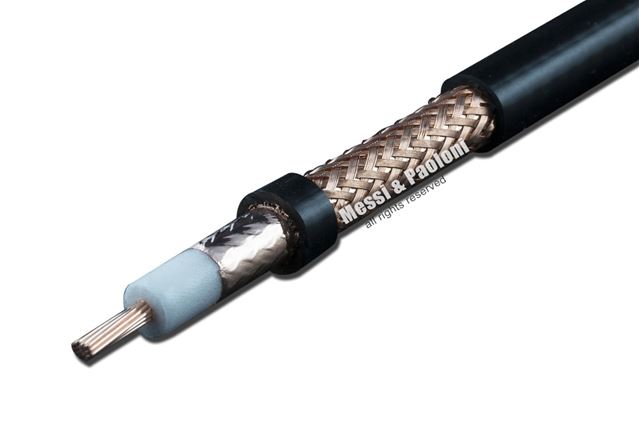

MeP ULTRAFLEX 7

[7.3mm Cable]

WHY CHOOSE THIS CABLE:

OFFICIAL CABLE OF THE 2018 WRTC WORLD CHAMPIONSHIPS IN GERMANY and 2022 WRTC IN ITALY!

- Despite its limited size (7.3 mm) its performance is so high that it outperforms the RG 213/U (10.2 mm).

- Extraordinary flexibility: also thanks to a sophisticated stranded copper conductor, with 19 strands instead of 7, perfect for tight bends and connection to motorized antennas.

- Shielding efficiency: > 105 dB (SA), and increased robustness, achieved by adding 24 more wires to the braid, for a total of 144 wires,   (83% coverage + 100% shielding tape). This leads to a significant reduction in background noise . Furthermore, the braiders used have 24 spools, instead of 16, guaranteeing 50% more crossovers than competing cables.

-   Lightweight: 6.9 kg/100m instead of 13.8 kg   of our RG 213/U , for less stress on the cable connected to the motorized antenna in the "hanging and oscillating" section.

The ULTRAFLEX 7 is the best-selling MeP coaxial cable in Europe!

*PVC sheaths are more flexible, but are NOT suitable for burial.

ELECTRICAL CHARACTERISTICS
Impedance @200Mhz: 50 Ohm ± 3
Minimum bending radius: up to 15 bends: 68mm
single fold: 34mm
Temperatures: -40°C to +60°C
Capacitance: 75 pF/m ± 2
Propagation speed: 83%
Shielding efficiency: 100-2000 MHz >105 dB
Shielding class: A++
Int. conductor resistance: 7.3 Ohm/Km
External conductor resistance: 9.8 Ohm/Km
Sheath voltage test: 4 kV
Net weight (100m): 6.9 kg
MAX peak power: 8,000 WATTS
Connectors: UHF (PL), N, BNC, SMA, TNC
