Icom IC-M510BB Nautical VHF 25W Black Box

(0)
  • Code: IC-M510BB
  • Brand : icom
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 769,00 € 1.024,80 -25%

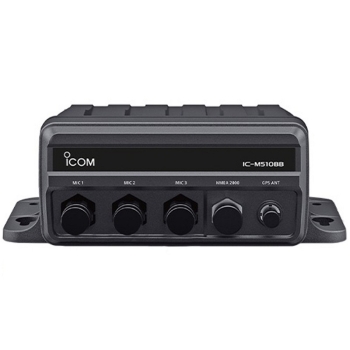

Icom IC-M510BB – Black Box VHF Transceiver with Class D DSC, AIS Receiver, ANC and GNSS Receiver
The Black Box, made of polycarbonate, is extremely resistant to shock and vibration. Its compact size allows it to be installed anywhere.

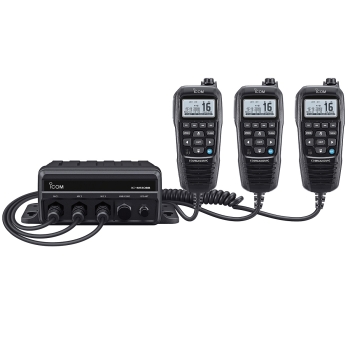

Three remote stations. Up to three Commandmic remote stations can be connected to the Black Box.
AIS Receiver . The integrated AIS receiver allows you to receive and display information transmitted by AIS transponders directly on the Commandmic display and monitor marine traffic in your navigation area.
GNSS receiver. The integrated GNSS receiver provides position, heading, and velocity with extreme speed and precision.
DSC Class D. The integrated Class D DSC receiver constantly monitors channel 70 and is independent of the main receiver.
Active Noise Cancelling. Active Noise Cancelling (ANC) technology digitally removes background noise during both reception and transmission, ensuring maximum communication clarity.
Compact and small in size, the IC-M510BB can be installed anywhere and is the best solution when space is limited.

IC-M510BB consists of two units; the Black Box in
extremely resistant polycarbonate and the remote unit
Commandmic HM-195G through which it will be possible
carry out any type of operation including calls
DSC via the Distress button located on the back.




With its large, high-brightness display and backlit function keys, the Commandmic can also be used as an intercom. Up to three Commandmics can be connected to the Black Box, available in black (HM-195GB) or white (HM-195GW).
The IC-M510BB is equipped with a GNSS receiver, but an external antenna is required (UX-241 supplied as standard). The user interface allows you to control the various functions of the radio in a simple, intuitive and immediate way.

The IC-M510BB is equipped with an AIS receiver, which allows you to receive information transmitted by AIS transponders and GNSS receivers. The Voice recording function, which allows you to record two minutes of the last call, is also very useful.

The various operations are displayed at the bottom of the Commandmic display and can be activated simply by using the appropriate directional keys and function keys.

Excellent audio performance thanks to the ANC (Active Noise Cancelling) digital signal processing technology which digitally removes background noise both during reception and transmission, ensuring clear communications even in particularly noisy environments.
The IC-M510BB is the high-performance, reliable, durable on-board radio.

Technical Features

Frequency range (MHz): Tx: 156.025 – 161.425 Rx: 156.050 – 162.000
Power supply: 12V DC (10.8–15.6V DC)
DSC in class D
Integrated GNSS receiver (GPS-GLONASS-SBAS), with UX-241 GNSS antenna with 5 m cable supplied
Integrated AIS receiver
Ability to connect up to three Commandmics
NMEA 0183-HS/NMEA 2000 connectivity
ANC (Active Noise Cancelling) function for suppressing background noise
Dual and tri watch function
TAG function, allows you to identify your favorite channels during scanning
Voice recording
AquaQuake function for draining water from the speaker (referring to the Commandmic)
Intuitive user interface
Possibility to connect an external speaker
Audio Output: 15W for Public Address (PA) and fog siren
Dimensions: 216 × 79 × 113 mm (Black Box), 67.5 × 144.5 × 37 mm (Commandmic)
Weight: 890g (Black Box), 400g (Commandmic)
Protection rating: IPX7 (IC-M510BB and Commandmic)
RF Power: 25W

Equipment
Commandmic HM-195GB (Black)* with Stand
6m OPC-1540 cable
DC Power Cable
UX-241 GNSS antenna with 5 m cable
Mounting bracket
User manual

Optional accessories
HM-195GB Commandmic Black with Distress Key and White Backlight
HM-195GW White Commandmic with Distress Button and White Backlight
OPC-1541 6m Extension Cable for Commandmic
MA-510TR Class B AIS transponder with GNSS antenna and color display with white backlight
SP-37 Horn Speaker 40W
UX-241 GNSS Antenna with 5m Cable
OPC-478UD USB Programming Cable (requires OPC-980 adapter)
OPC-980 Adapter for OPC-478UD
DG-3727 MMSI Reset Dongle
CS-M510BB Programming Software
D buongiorno, il prezzo e riferito solo alla black box o anche il maik ?, prezzo totale, grazie e buona giornata
R Salve, questo articolo viene già proposto al massimo sconto consentito, l'offerta che vede oggi sarà proposta fino al 1 Dicembre. Confermo, il package include sia la Black Box che una "cornetta" Commandmic. Cordiali saluti. Luigi Bianchi
