Icom IC-M85E Portable VHF

(0)
  • Code: IC-M85E
  • Brand : icom
€ 379,00 € 472,14 -20%

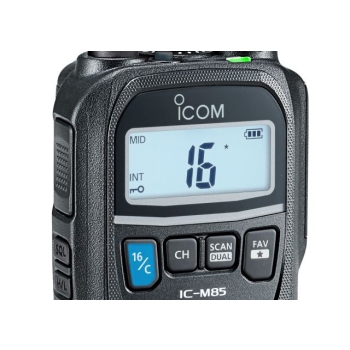

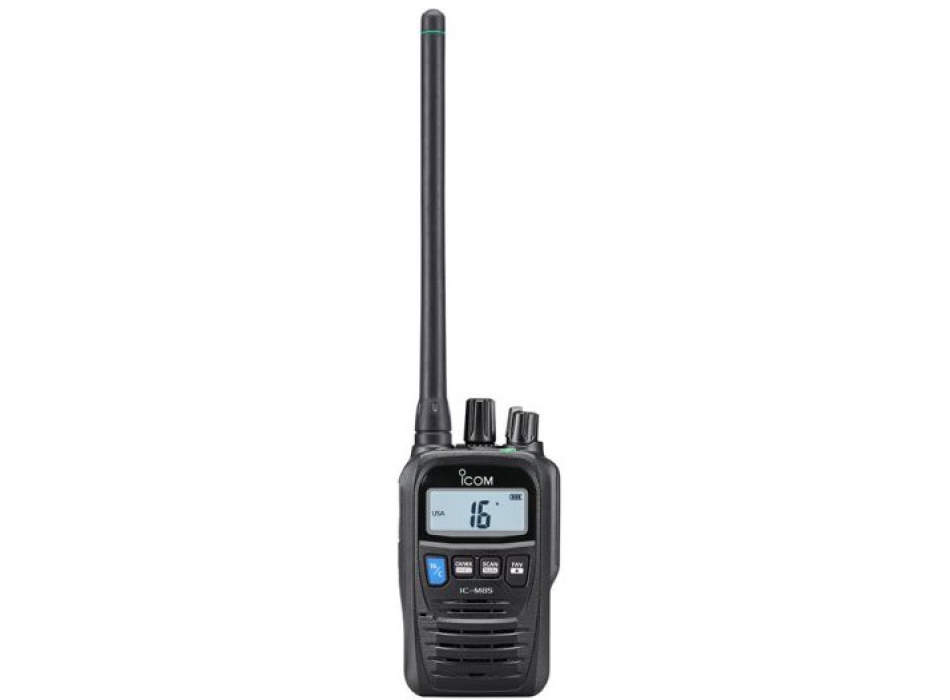

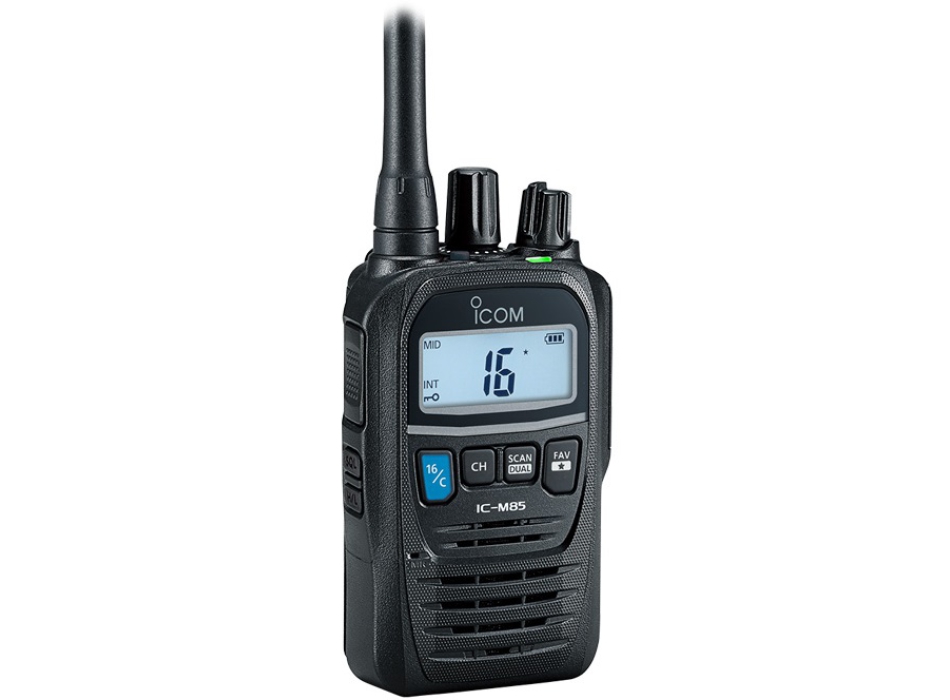

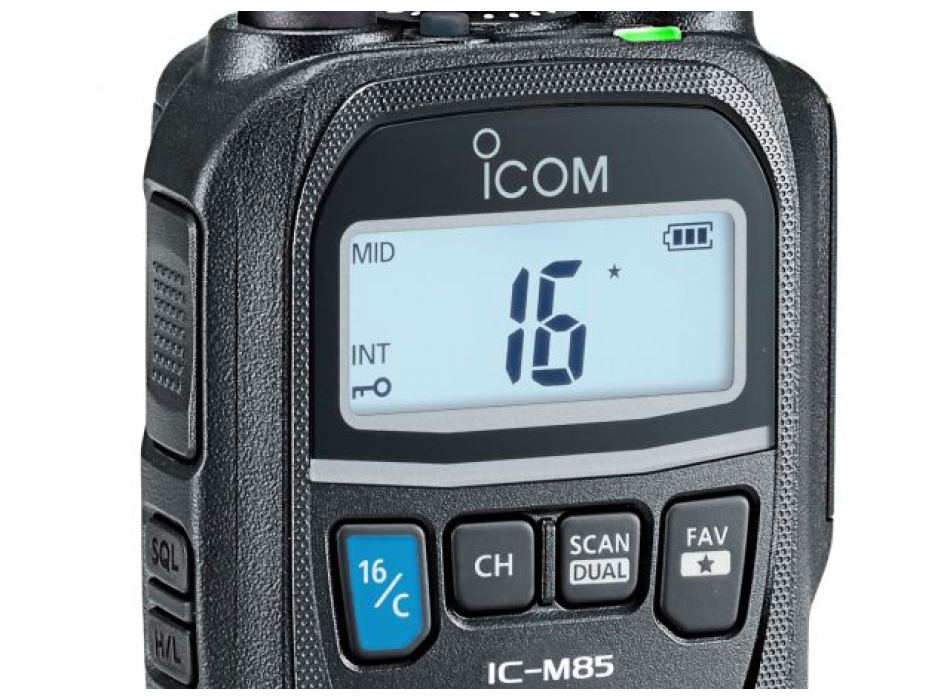

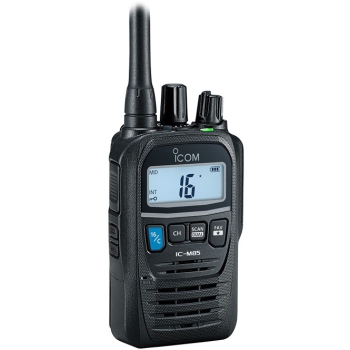

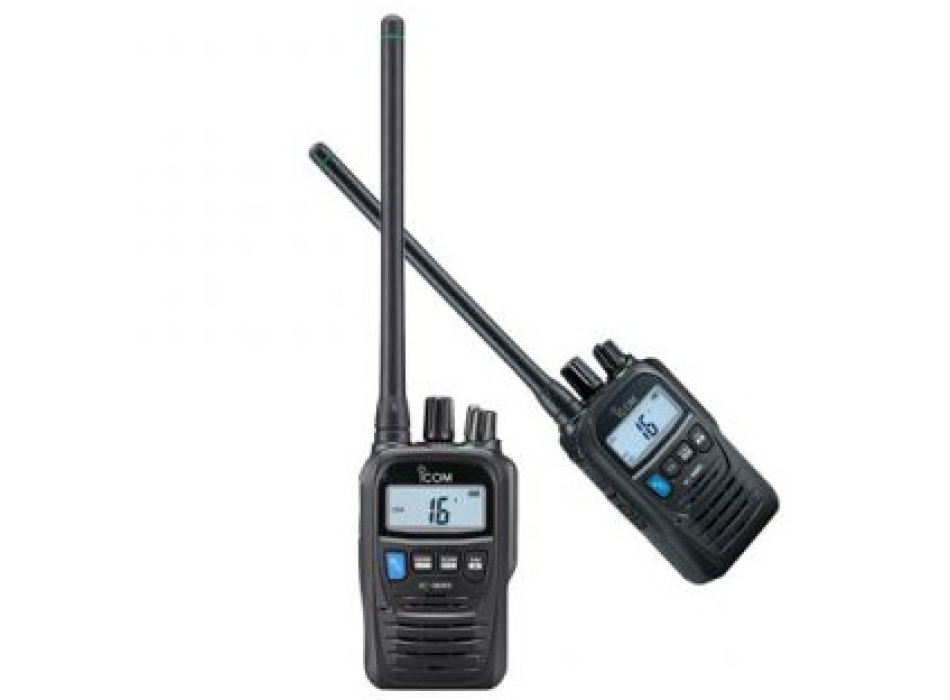

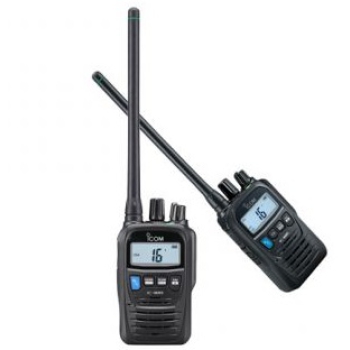

Icom IC-M85E Portable VHF

The IC-M85E is a compact , rugged radio that operates on the marine VHF band and can be programmed to professional PMR frequencies. It's ideal for onboard communications or port operations.

The IC-M85E is a miniature marine radio that can also be programmed on VHF/PMR terrestrial channels (136-174 MHz) with 12.5kHz channel spacing and CTCSS/DTCS tones.
Due to its features, it is undoubtedly the ideal radio for on-board communications, for activities within construction sites or in ports.
Compliant with MIL-STD-810 and rated IP67, the IC-M85E is designed for the most extreme uses.
It integrates three very important emergency management functions: MOB (Man Overboard), Man Down, and Lone Worker. If one of these functions is activated, the radio automatically sounds an emergency alarm.
Other features include confidentiality of communications thanks to the integrated Voice Scramble and the Vox function, particularly useful for communicating without having to press the PTT button, thus allowing hands-free operation.

Main Functions:

Lone Worker
The Lone Worker feature constantly monitors the device for movement and vibration. When a lack of movement or vibration is detected after a preset time, the radio automatically sends an alarm.
Man Down
The Man Down function constantly monitors the device's inclination relative to a preset standard (vertical) position. When a device inclination different from the preset one is detected, the radio automatically sends an alarm.
AquaQuake
When water enters the speaker grille, Icom's exclusive AquaQuake function emits a buzzing sound to drain the water from the speaker. This function, activated by pressing two buttons simultaneously, ensures crisp, clear audio at all times.
TECHNICAL CHARACTERISTICS

Frequency range (MHz): 156,000 – 163,425 and 136,000 – 174,000 (PMR)
100 programmable channels in PMR band with 12.5 kHz channel spacing
Operating voltage: 7.2V DC (standard 2010mAh Li-Ion BP-290 battery)
Battery life 14 hours
Operating temperature: -15° + 55° and -25° + 55° (PMR)
Dimensions (W × H × D): 56 x 92 x 29 mm
Weight (approx.): 246g (with BP-290 battery, antenna and clip)
Transmitting power: 5W / 1W
Audio output: 700mW
Backlit display and function keys
AquaQuake function for draining water from the speaker
Dual and tri watch function
MOB (Man Over Board) function
Man Down Function
Lone Worker Function
Integrated voice scrambler
TAG function, allows you to identify your favorite channels during scanning
Vox function for hands-free use
Instant access to channel 16
TAG function: allows you to identify your favorite channels during scanning
Resistant to MIL-STD 810G standards
IP67 protection rating

Equipment
BP-290 Li-Ion Battery (7.2V/2010 mAh)
BC-227 Quick Charger
BC-123SE AC Adapter
FA-SC58V Antenna
MBB-3 Belt Clip
Wrist strap
Operation manual

Optional accessories
BP-290 Li-Ion Battery 7.2V/2010mAh
BP-291 IP54 Enclosure for 5 AA Batteries
BC-219N Desktop Rapid Charger incl. AC adapter BC-123SE
BC-225 Intelligent Desktop Rapid Charger, including BC-123SE AC adapter (for use with RS-BC225 software)
RS-BC225 Windows software for the BC-225. Monitors battery status, the number of battery charge cycles, and provides an indication of when to replace batteries.
BC-226 Desktop rapid charger with provision for connecting multiple BC-226s together (maximum 6 units). Requires BC-123SE#62/#82 or BC-228#33
BC-227 Desktop Rapid Charger including BC-123SE AC Adapter
BC-123SE AC Adapter Replacement for BC-227
BC-123SE #62 AC adapter for BC-226
BC-123SE #82 AC adapter for BC-226
BC-228 #33 AC adapter for BC-226 to be used when connecting multiple chargers together (maximum 6 units)
BC-214#63 6-bay multi-battery charger with AD-132N including BC-157S AC adapter
BC-157S AC Adapter Replacement for BC-214
AD-132N Replacement BC-214 Adapter
CP-23L Cigarette lighter plug cable for use with BC-219N, BC-225 or BC-227
OPC-515L DC Power Cord for use with the BC-219/BC-225/BC-227
OPC-656 DC Power Cable for use with the BC-214
HM-163MC Clip-on Microphone with 2.5mm Jack
HM-222H Microphone/Speaker with 3.5mm Jack
HM-236 IP67 Microphone/Speaker
EH 15B Earphone with 2.5mm jack (for use with HM-163MC)
HS-94 Microphone/Headset (requires VS-5MC)
HS-95 Neckband Headset Microphone (requires VS-5MC)
HS-97 Earphone/Thoraryphone (requires VS-5MC)
VS-5MC Adapter Cable for HS-94/95/97 with PTT for VOX function
SP-26 Air Earphone with 2.5mm Jack (for use with HM-163MC)
SP-27 Air Earphone with 3.5mm Jack (for use with AD-135 or HM-222H)
SP-28 Earphone with 2.5mm jack (for use with HM-163MC)
SP-29 Earphone with 3.5mm jack (for use with AD-135 or HM-222H)
SP-32 Clear Acoustic Tube (for use with EH-15B)
SP-40 Earphone with 3.5mm jack (for use with AD-135 or HM-222H)
AD-135 Audio adapter with 3.5 mm jack socket
FA-SC58V Replacement Antenna
MT74H52A-111 3M Peltor CH-3 Headband Headset with PTT, Dynamic Noise-Cancelling Microphone, Fluorescent Yellow (Requires FLX2 Series Adapter)
MT74H52P3E- 111 3M Peltor CH-3 Helmet Mount Headset with PTT, Dynamic Noise Cancelling Microphone, Fluorescent Yellow (Requires FLX2 Series Adapter)
FLX2-M85 Cable to connect 3M Peltor CH-3 earmuffs to IC-M85
AD-98FSC BNC Antenna Adapter
MBB-3 Replacement Belt Clip
MB-96F Leather Belt Attachment for use with MBB-3
MB-96FL Long Leather Belt Attachment for use with MBB-3
MB-96N Leather belt attachment with rotating system
MB-136 Rotating Belt Clip
LC-187 Leather case with transparent front (possibility of charging the radio with case)
LC-188 Leather Case (can charge the radio with the case)
CS-M85 Programming Software
OPC-2338 USB Programming Cable
PIB-LACCI-CH016 Helical fall arrest strap
