-19%

Icom IC-M94DE Portable VHF Radio with AIS

  • Code: IC-M94DE
  • Brand : icom
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 389,00 € 478,24 -19%

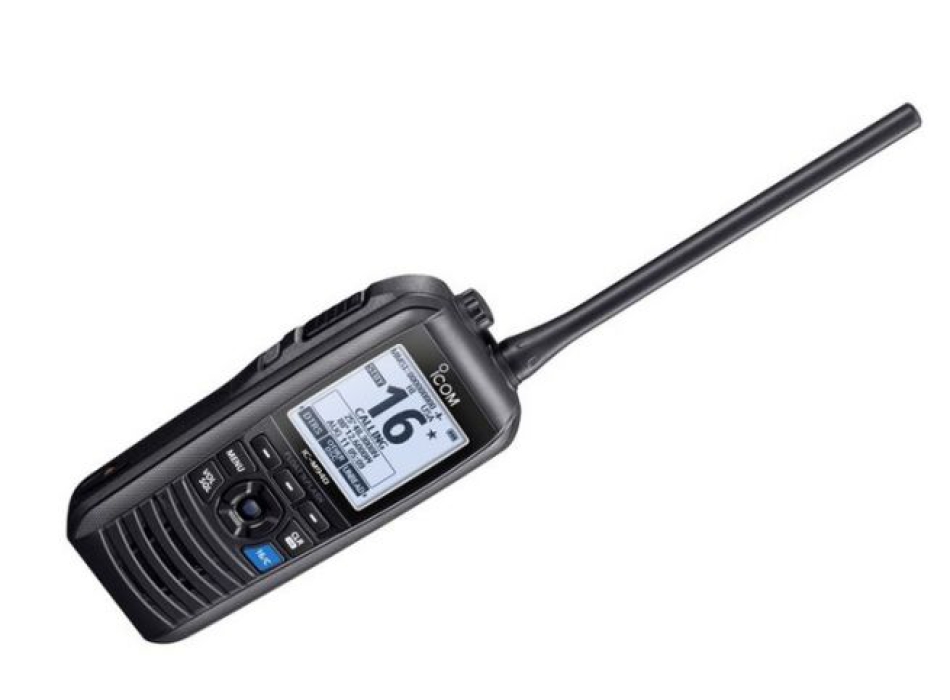

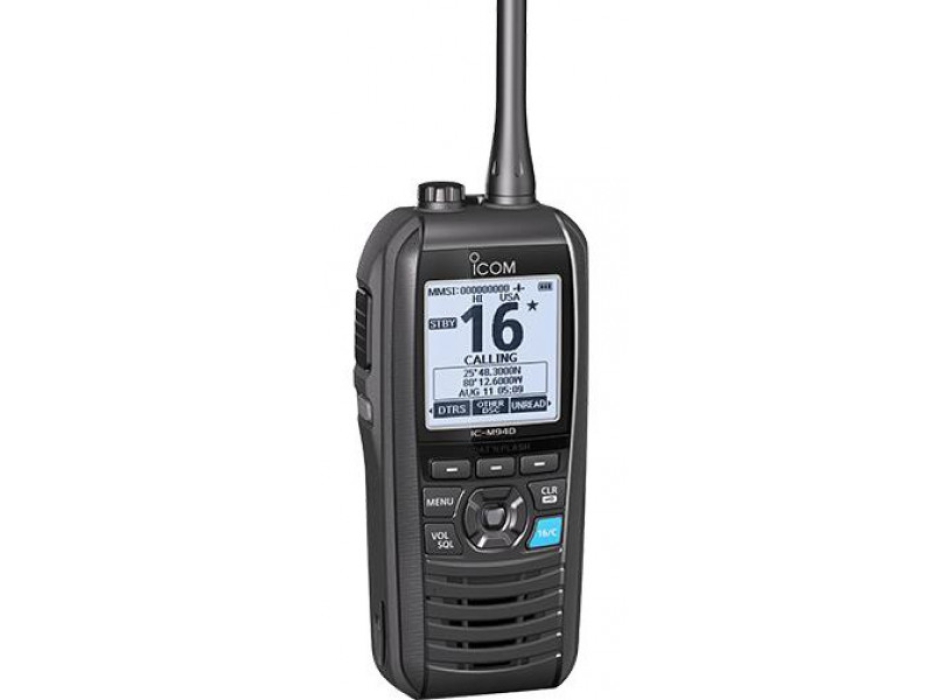

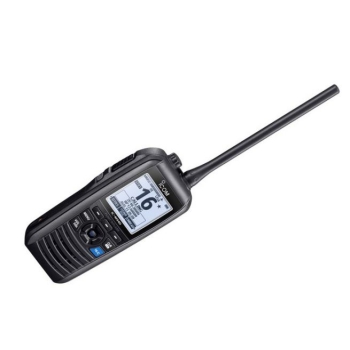

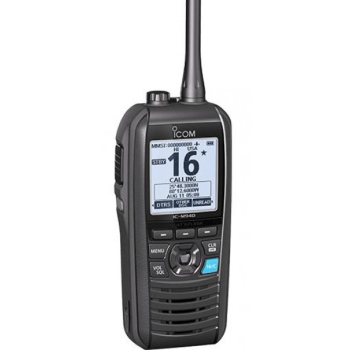

Icom IC-M94DE Portable VHF Radio with AIS

The IC-M94DE is the world's first marine VHF handheld transceiver with a built-in AIS receiver. Designed and built to Icom's high standards, lightweight, extremely rugged to MIL-STD 810G standards, IPX7 waterproof, and floatable, the IC-M94DE is a versatile, innovative, and feature-rich radio, ensuring high-performance operation for maximum safety at sea.

Always at the forefront of technology, with its long engineering experience of over 60 years, Icom has developed the IC-M94DE, the latest addition to the marine handheld transceivers, with the aim of creating a portable VHF with an intuitive user interface and high performance, to take advantage of the highest safety standards available today.

This result was achieved by integrating all the most important advanced functions into this top-of-the-range transceiver, including an AIS (Automatic Identification System) receiver, DSC (Digital Selective Calling) in class H , a GNSS (Global Navigation Satellite System) receiver based on GPS, GLONASS, Galileo, BeiDou and ANC (Active Noise Cancelling) systems, making it possible to call for help via the Distress button, which allows the geographical coordinates and MMSI of the vessel in distress to be automatically sent.

This ergonomically designed handheld VHF fits comfortably in the palm of your hand and features a large, high-contrast LCD display that allows clear, well-defined characters and icons to be read in any condition, even in bright sunlight.

The user interface with white backlit function keys has been designed to ensure simple and intuitive use of the device. The combined use of the navigation keys and function keys ensures quick access to all available functions.
Furthermore, this new device has an RF power of 6W and a battery life of 10 hours (with a 5-5-90 operating cycle) thanks to a lithium-ion battery with a capacity of 2400mAh.

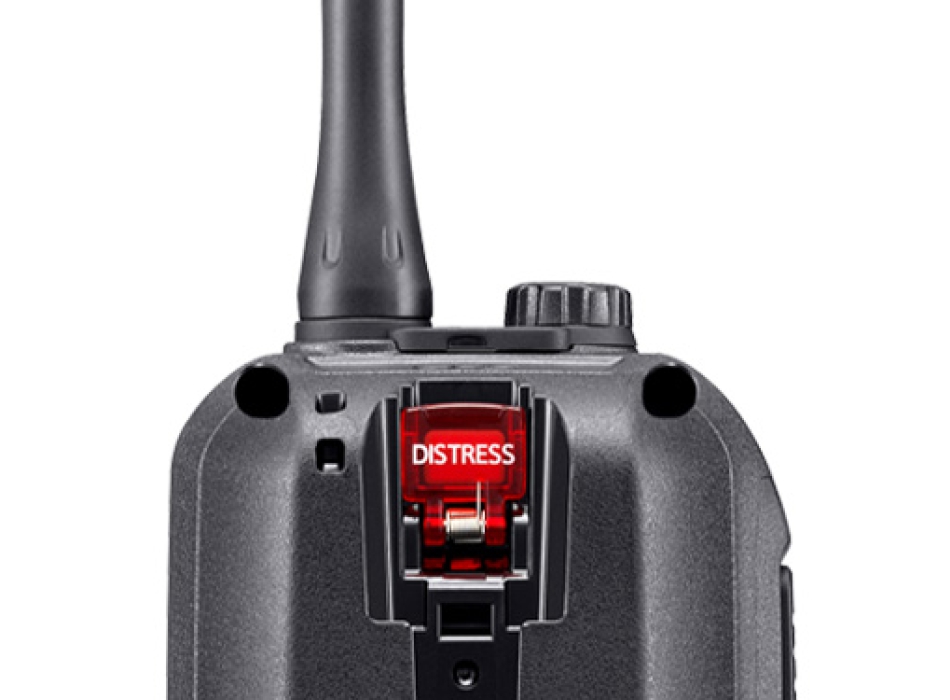

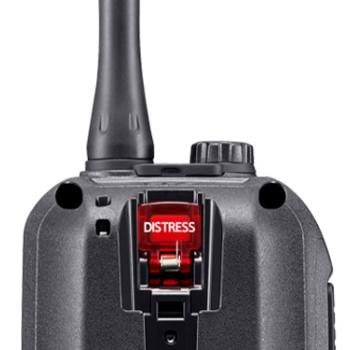

Among its many features, the MOB (Man Over Board) function is also worth highlighting. If the IC-M94DE falls into water, it floats, and the LCD screen, buttons, and emergency button on the rear panel flash, helping you recover it. Pressing the emergency button while the Float'n Flash is active will transmit the MOB distress signal.

TECHNICAL CHARACTERISTICS

• Frequency range (MHz): 156.000 – 163.425 / DSC (CH70) 156.525 / RX (AIS) 162.025
• Operating voltage: 7.2V DC (standard 2400mAh Li-Ion battery BP-306)
• Battery life 10 hours
• TX consumption (6W/1W): 1500mA/700mA
• Audio RX consumption (Int. Alt./Ext. Alt.): 700mA/350mA
• Operating temperature: -20° +60°
• Dimensions (W × H × D): 60.9 x 145.8 x 43.8 mm
• Weight (approx.): 357g (with BP-306 battery, antenna and clip)
• Transmission power: 6W / 1W
• Audio output: 1500mW with internal speaker / 350mW with external speaker
• Large, high-visibility display and white backlit function keys
• Intuitive user interface
• Slim and easy to handle
• DSC in class H

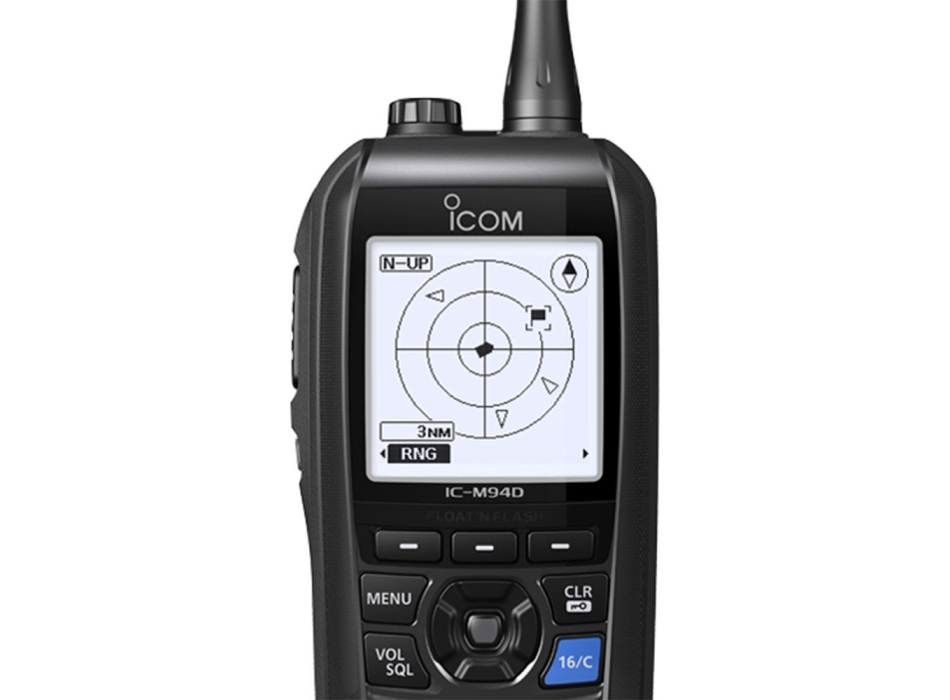

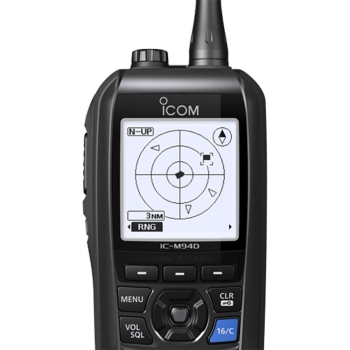

• Integrated AIS receiver
• Integrated GNSS receiver
• Floating and flashing: If accidentally dropped into water, the IC-M94DE floats and the display, keypad and Distress button start flashing
• AquaQuake function for draining water from the speaker
• ANC (Active Noise Cancelling) function for suppressing background noise
• Dual and tri watch function
• MOB (Man Over Board) function
• Instant access to channel 16
• TAG function: allows you to identify your favorite channels during scanning
• Battery saving function and low battery warning
• Resistant to MIL-STD 810G standards
• IPX7 protection rating

Equipment
• BP-306 Li-Ion battery (7.2 V/2400 mAh)
• BC-251 desktop rapid charger
• AC adapter BC-242, antenna FA-SC59V
• Belt clip MB-133
• Wrist strap
• User manual

Optional accessories
• BP-306 Li-Ion Battery 7.2V/2400mAh
• BC-251 Desktop Rapid Charger (requires BC-242 AC adapter)
• BC-242 AC adapter for BC-251
• CP-25H Cigarette lighter plug cable for use with BC-251
• HM-165 IPX7 Microphone/Speaker (floats when connected to radio)
• HM-228 IPX7 Microphone/Speaker
• MB-133 Replacement Belt Clip
• MB-96F Leather Belt Attachment for use with MB-133
• MB-96FL Long leather belt attachment for use with MB-133
• FA-SC59V Replacement Antenna
• CS-M94D Programming Software
• OPC-478UC USB Programming Cable (requires OPC-1655)
• OPC-1655 Adapter for OPC-478UC Cable
• PIB-LACCI-CH016 Anti-fall helical strap
D Salve, capisco bene che la ricetrasmittente funziona anche come apparato AIS? Sia come ricevitore che come trasmettitore? È sufficiente avere il codice MMSI, oppure occore anche fare qualche tipo di installazione? Grazie 1000. Saluti. Marco
R 13-01-25 Buonasera, il VHF in oggetto ha la funzione AIS solo ricevente, pertanto non è necessario nessun inserimento di codice MMSI. Cordiali saluti. Luigi Bianchi
D Buona sera , Abbiamo acquistato 4 apparati Ic- m94de . Non abbiamo inserito il codice mmsi . Dopo circa 10 min che è acceso ( lo fanno tutti 4 ) Scatta l’allarme pericolo collisione Come posso eliminare questo inconveniente ? Grazie
R 17-09-24 Buongiorno, anche se non avete inserito il codice MMSI è normale che i VHF ricevano i bersagli AIS, quindi corretto che riceviate l'allarme anticollisione. Si può entrare nel menù delle impostazioni e modificare eventualmente la distanza dell'arme. Cordiali saluti. Luigi Bianchi
D Posso usare un IC-M94DE senza inserire il codice MMSI ? Faccio parte di una associazione di protezione civile e lo adopererei per comunicare con una imbarcazione da terra .
R 17-08-24 Buonasera, sì certamente non vi è alcun vincolo sull'utilizzo senza inserire il codice MMSI. Cordiali saluti. Luigi Bianchi
D Mi interessa il prodotto. Tuttavia, se fosse disponibile, opterei per soluzione che avesse anche la possibilità di comunicare via satellite, in assenza di rete. Esiste questo prodotto? Grazie
R 01-07-24 Buonasera, non esiste, dovrebbe valutare l'acquisto di un telefono satellitare. Cordiali saluti. Luigi Bianchi
D Per utilizzo ais è richiesto MSI? O si può usare senza? Immagino sia solo passivo
R 14-06-24 Buonasera conferma si tratta di solo ricevente, quindi non serve il codice MMSI. Cordiali saluti. Luigi Bianchi
D Buongiorno, vorrei sapere se l'MMSI è reversibile Grazie
R 13-04-23 Buon pomeriggio, sì certo, andrà resettato e impostato il nuovo MMSI, procedura però che può essere fatta solo re inviandolo a noi. Cordiali saluti. Luigi Bianchi
