General |
|
| Warranty | 3 years |
|---|---|
| Dimensions | 6.5"/7.7" |
| Colors | Classic high-gloss white, sporty high-gloss white, sporty metallic grey |
| Physical dimensions (diameter) | 6.5" (Classic/Sport): 175mm (6.90") 7.7" (Classic/Sport): 196mm (7.70") |

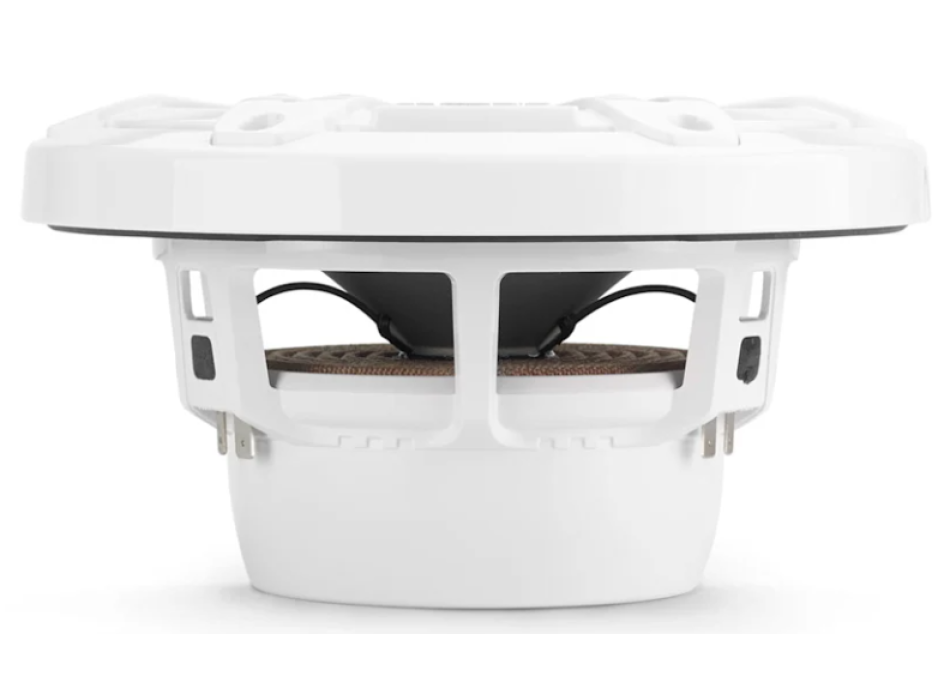

| Physical Dimensions (Depth) | 6.5" (Classic): 95 mm (3.75") 6.5" (Sport): 96 mm (3.79") 7.7" (Classic): 106mm (4.19") 7.7" (Sport): 108 mm (4.27") |
| Speaker type | Coaxial |
| Continuous power management (RMS) | 6.5": 60 W 7.7": 70 W |
| Sensitivity (SPL at 1 W/1 m) | 6.5": 89.5 dB 7.7": 90.5 dB |
| Frequency response (+/- 3 dB) | 6.5": 55 Hz-25 kHz 7.7": 45Hz-25kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5": 20-120 W/Channel 7.7": 20-140 W/Channel |

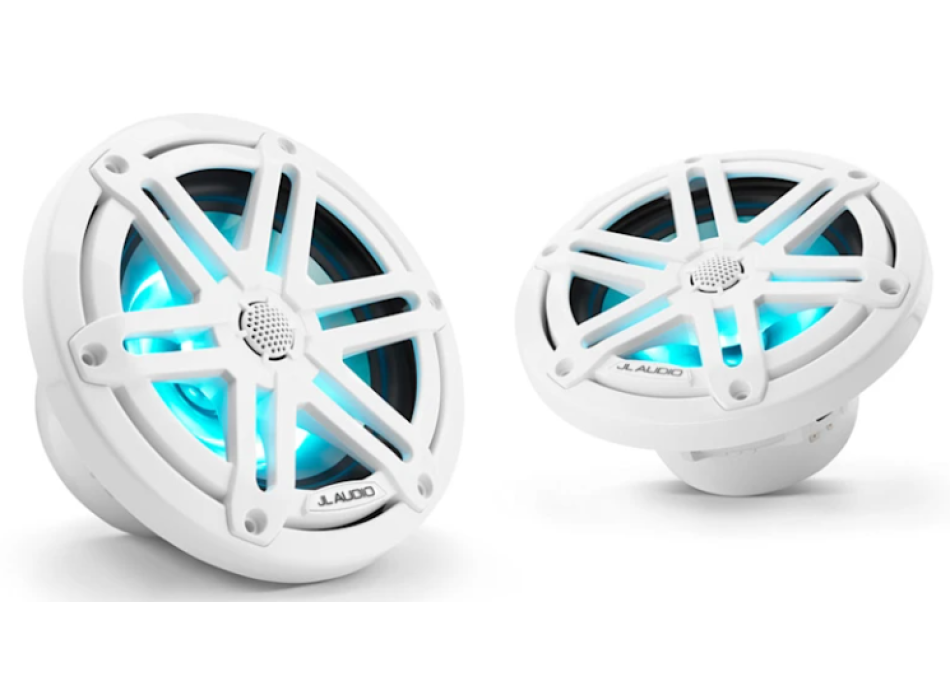

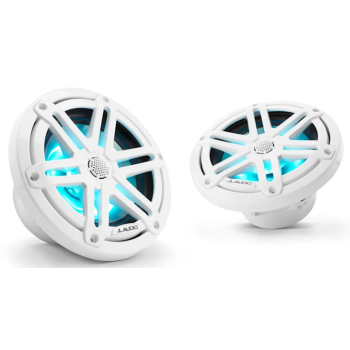

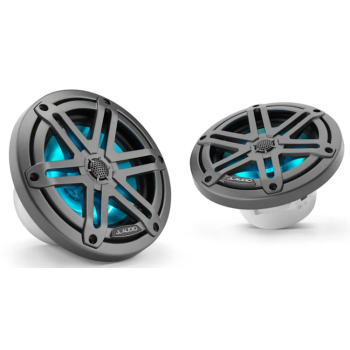

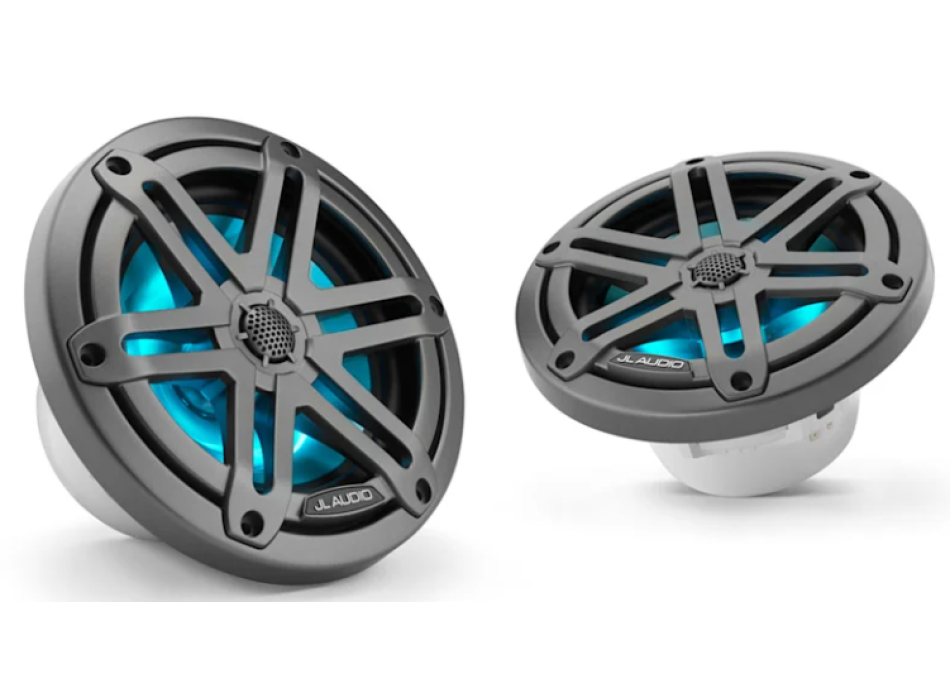

| LED lighting | Yes - RGB (select Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED load current at 14.4V DC (max) | 108 mA |
| Cone material | Injection-molded polypropylene, mica-filled |
| Tweeter type | Silk Dome |
| Tweeter dimensions | 19 mm (0.75") |
Connections |
|
| Speaker connections | Fork connectors |
|---|---|
| LED connection | Flying lead with 22 AWG 4-conductor wire (select sport models only) |
Mounting dimensions |
|
| Mounting depth | 6.5" (Classic/Sport): 71mm (2.78") 7.7" (Classic/Sport): 81mm (3.17") |
|---|---|
| Front grille protrusion | 6.5" (Classic): 25 mm (0.97") 6.5" (Sport): 26 mm (1.01") 7.7" (Classic): 26 mm (1.02") 7.7" (Sport): 28 mm (1.10") |
| Mounting hole | 6.5": 127-133 mm (5"-5.25") 7.7": 59 mm (6.25") |
| Bolt hole circle | 6.5": 156 mm (6.125") 7.7": 176 mm (6.92") |
Additional Features |
|
| Additional Features | The enclosure recommendations above are external dimensions assuming 19mm (0.75") thick material. If using 16mm (0.625") thick material, subtract 6.5mm (0.25") from each measurement. Do not use material thinner than 16mm (0.625"), as this may compromise enclosure rigidity. All enclosure volumes above are net internal volumes. To find the final gross internal volume, add the driver, light, and binding offset. All enclosure dimensions above already account for this. When mounting multiple units in a single shared enclosure, you will need to recalculate the enclosure and port dimensions. For assistance, contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend use in a bi-amped system using high-quality satellites and a premium amplifier. However, we do not recommend using this device with a passive crossover (voice coil), as this type of device may negatively affect performance. |
|---|---|
