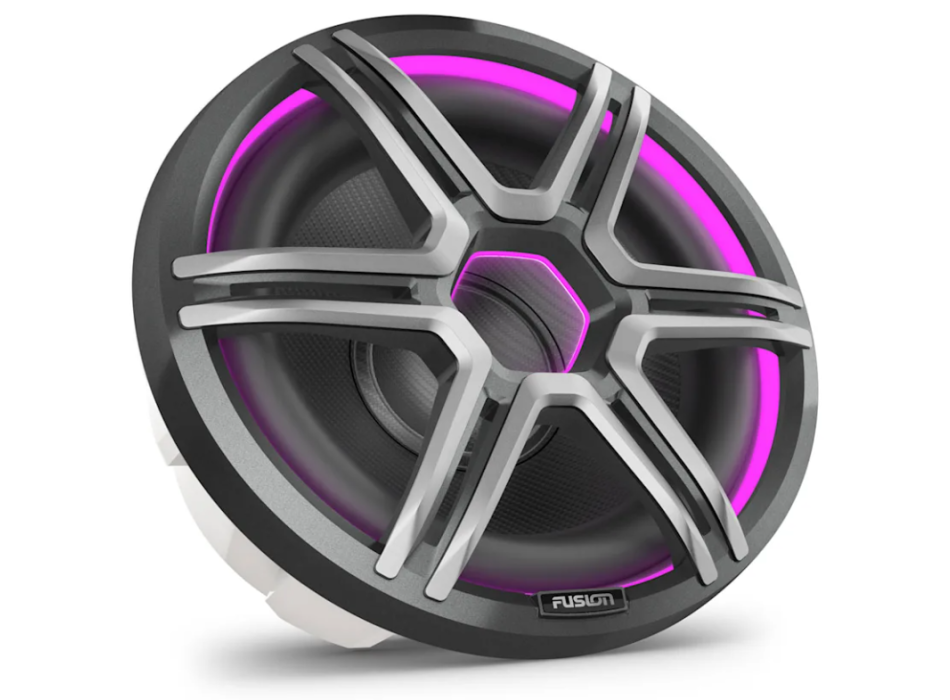

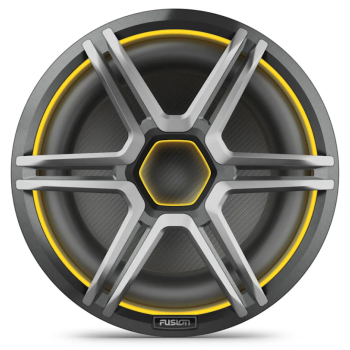

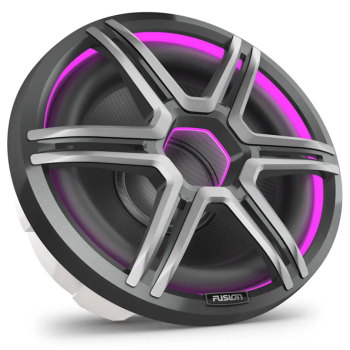

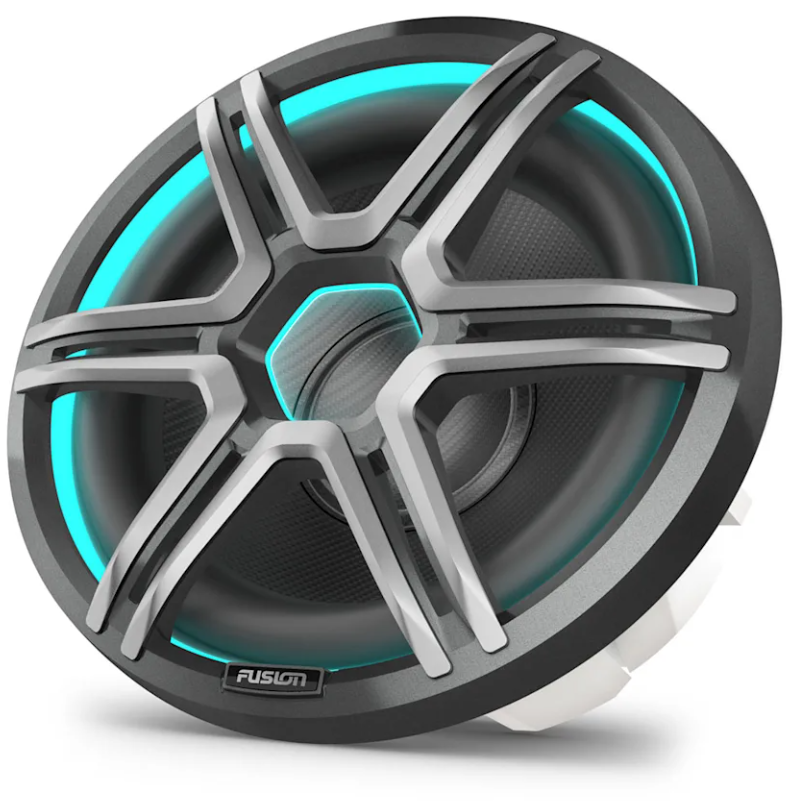

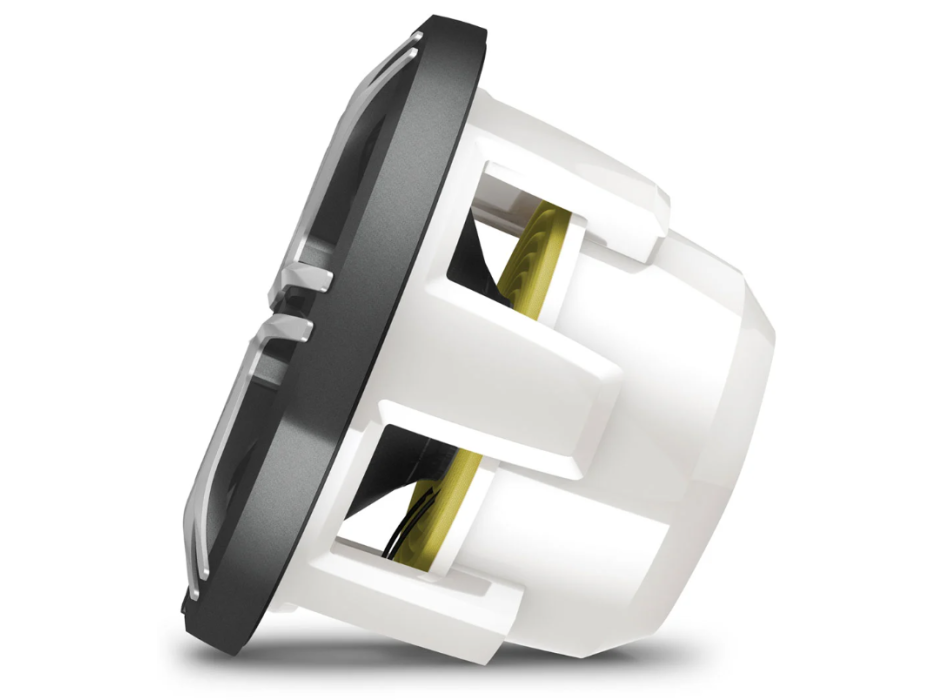

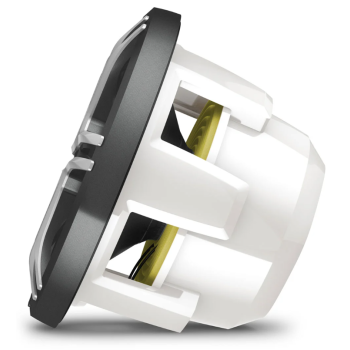

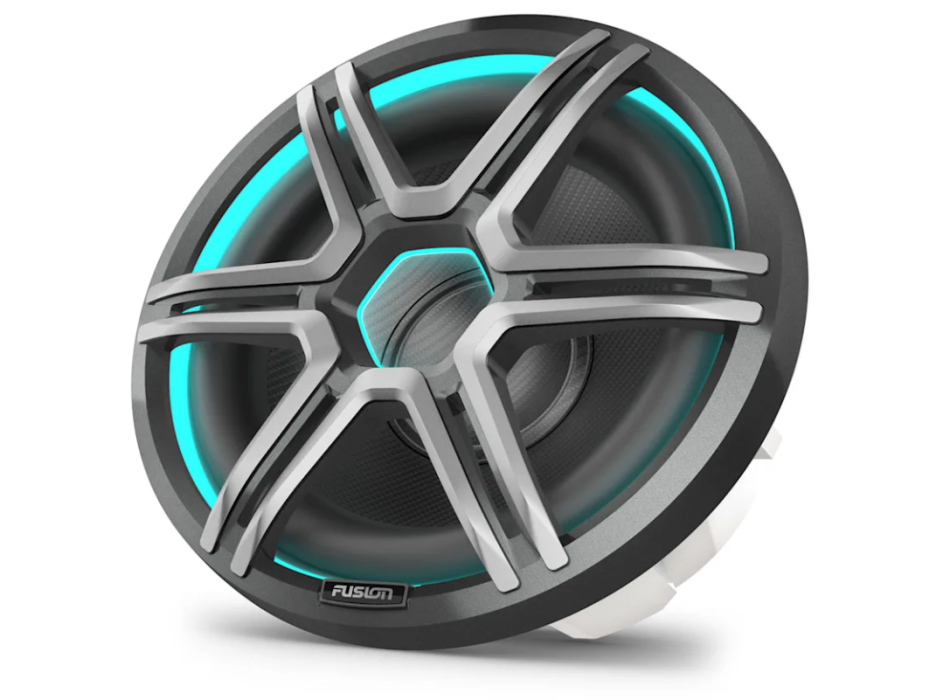

Fusion AP-SL12SPG Apollo 12" Subwoofer with Sport Gray LED

New APOLLO line, Garmin Fusion marine subwoofers, for an excellent audio experience.
  • Code: 010-02918-53
  • Brand : Fusion
€ 855,00 € 950,00 -10%
Fusion Apollo AP-SL12SPG 12" Subwoofer with Sport Gray LED

LET YOURSELF BE CAPTIVATED BY THE SOUND

Fusion Apollo marine subwoofers deliver immersive, high-fidelity bass and are designed to withstand the harshest marine conditions.

CLEAR, HIGH-QUALITY BASS

INTERCHANGEABLE WHITE OR GREY SPORTS STYLE GRILLE INCLUDED

ALWAYS CREATE THE PERFECT ATMOSPHERE THANKS TO LED LIGHTING

AVAILABLE IN 10″ AND 12″

SPECIALLY DESIGNED MARINE DESIGN


WHAT YOU WILL LIKE

HIGH QUALITY BASS
Enjoy immersive bass even at higher volumes, thanks to the updated design that reduces distortion for an excellent audio experience.

LED LIGHTS
Always ensure maximum style with LED lighting that gives your boat a unique look. Choose from a wide range of colors to match the atmosphere or music.

INTERCHANGEABLE GRIDS
Personalize your subwoofers with the included interchangeable sporty grilles in white or gray. For added protection, purchase the Sport Plus grille (also available in gray or white).


Made for life at sea


INTEGRATION


FUSION AUDIO SYSTEM
Control your in-car entertainment system from your compatible smartwatch or with the Fusion Audio smartphone app.

SYSTEM INTEGRATION
Pair the subwoofer with Fusion head units and amplifiers (sold separately) for an optimal listening experience with minimal distortion.

MARINE CONNECTORS
Integrated water-resistant connectors simplify the design and make installation easy. They also meet ABYC requirements.

LIVE THE RHYTHM
Pair the subwoofer with Fusion Apollo speakers for immersive, high-fidelity audio.


FUNCTIONAL


SUBWOOFER GRILLES
All types of subwoofer grilles offer a distinctive look and integrate seamlessly with LED lighting.

Easy to install
The grilles are simple to install without the need for tools, and the concealed mounting holes ensure a clean, elegant finish.

SUITABLE FOR ANY CONDITION
Fusion Apollo subwoofers are the most rugged on the market, built to withstand use in harsh marine environments (compliant with IP67 ratings and ISO 12216 standards).
General
Dimensions
10″/12″
Colors
White Sport or Grey Sport
Physical dimensions (diameter)
10": 10.83" (275 mm)
12": 14.02" (356 mm)
Physical Dimensions (Depth)
10″: 275 mm (10.83″)
12″: 356 mm (14.02″)
Weight
10″: 6.1 kg (13.4 lbs)
12″: 12.63 kg (27.8 lbs)
Waterproof and dustproof rating
IP66/IP67
Speaker type
Subwoofer
Continuous power management (RMS)
10″: 300 W
12″: 700 W
Sensitivity (SPL at 1 W/1 m)
86 dB
Frequency response (+/- 3 dB)
10″: 30 Hz-2 kHz
12″: 20 Hz-2 kHz
Nominal impedance
4 Ω
Recommended amplifier power (RMS)
10″: 50-300 W
12″: 200-700 W
LED lighting
Yes - CRGBW (5 colors)
LED supply voltage
10.8-16 VDC
LED load current at 14.4V DC (max)
10″: 190 mA per color
12″: 270 mA per color
Operating temperature
0 to 50°C (32 to 122°F)
Cone material
Polypropylene cone with rubber coating
Warranty
3 years
Electrical characteristics
Safe distance from the compass
10″: 410 cm (13.45 ft)
12″: 580 cm (19.03 ft)
Connections
Speaker connections
2-way (2-pin, audio positive and negative), waterproof, 150mm (5.9") connector or 6.3mm (0.25") positive and 6.3mm (0.25") negative male spade connectors
LED connection
150mm (5.9") 6-Way Waterproof Connector (6-Pin, CRGBW & Ground)
Mounting dimensions
Assembly template
10″: 223 mm (8.78″)
12″: 301 mm (11.85″)
Mounting depth
10″: 135 mm (5.31″)
12″: 198 mm (7.80″)
Front grille protrusion
10″: 45 mm (1.77″)
12″: 55 mm (2.17″)
