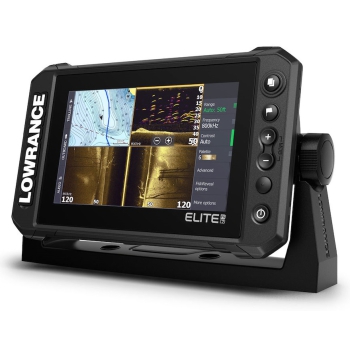

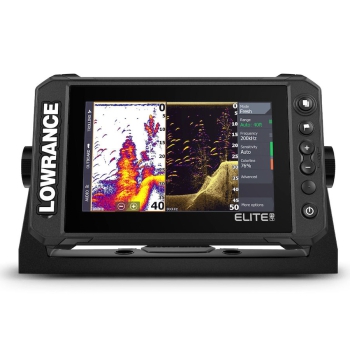

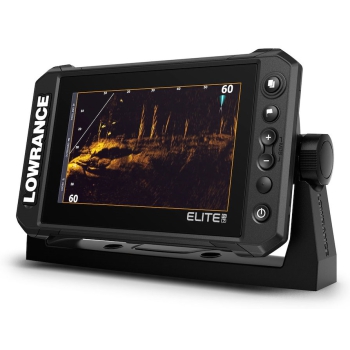

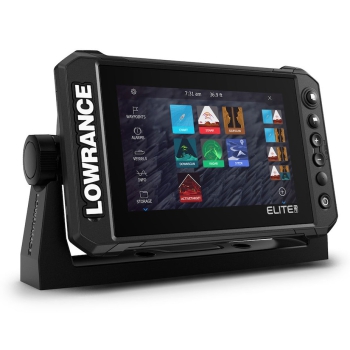

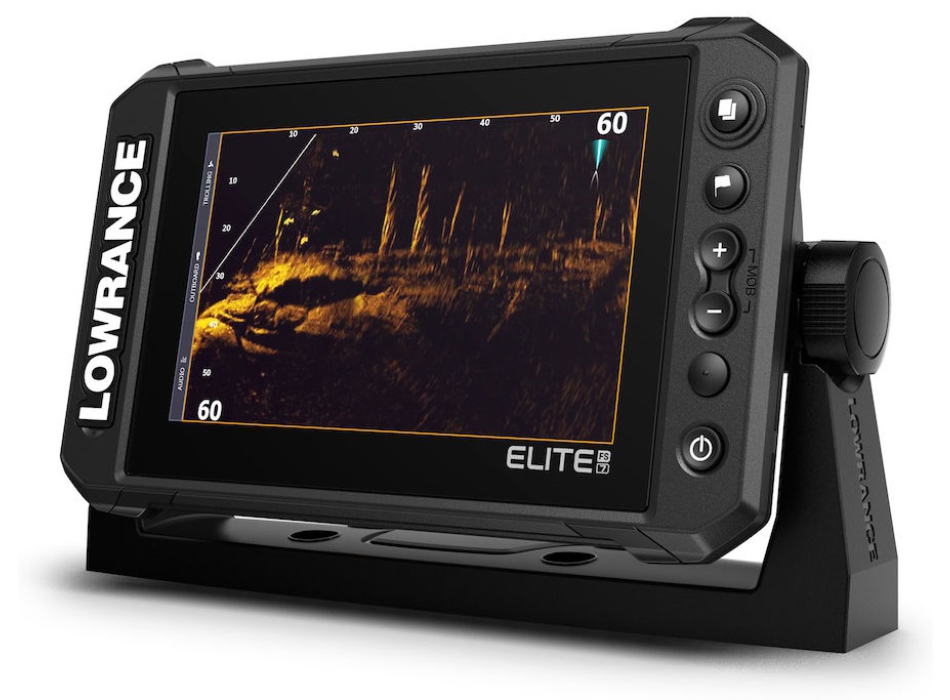

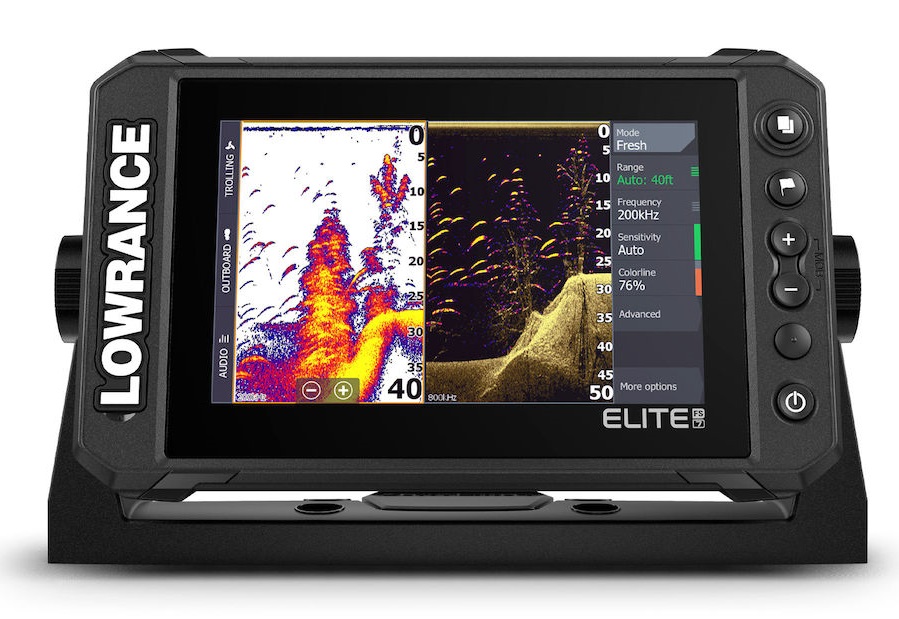

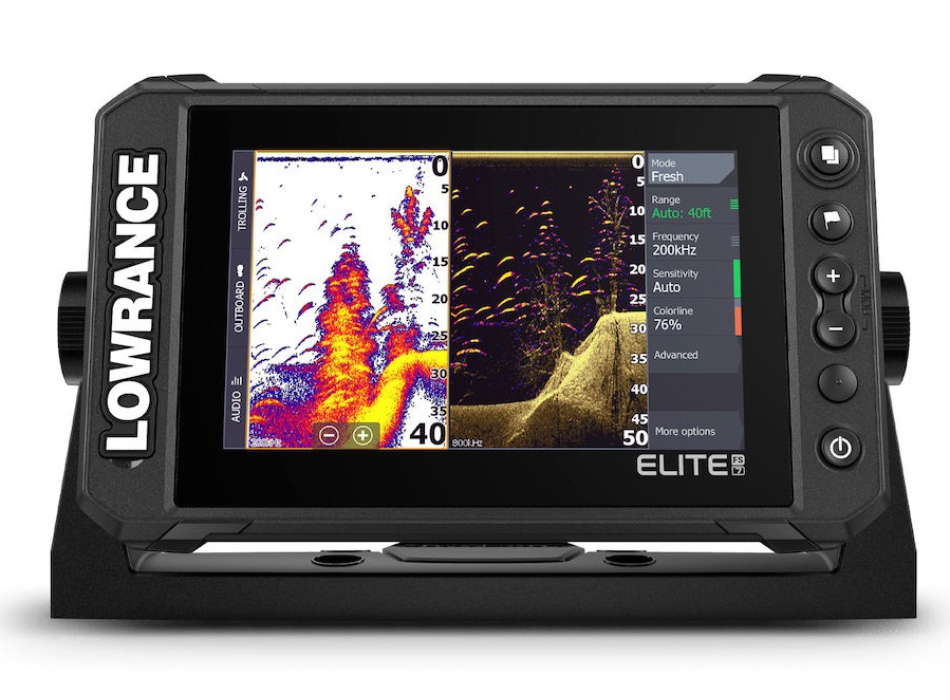

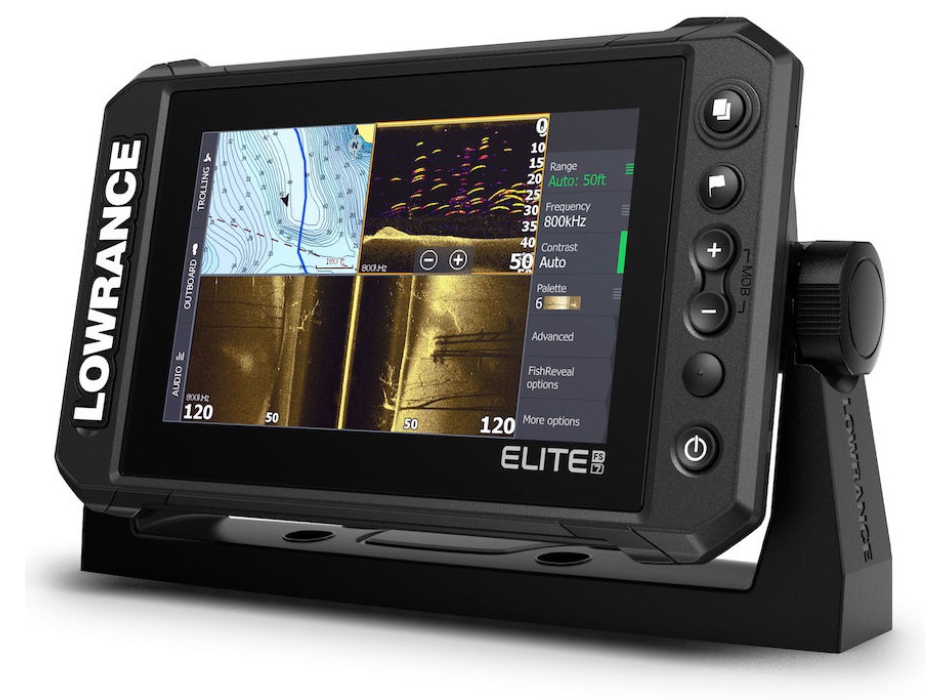

Lowrance Elite 7FS eco/GPS TouchScreen

Faq
Any questions about this product?
You'll find the answers you're looking for HERE
starting from € 829,00 € 1.036,00 -20%
Lowrance Elite 7 FS Mid/High/Down/SideScan GPS
Choose the version with Transducer
CHOOSE THE DISPLAY/TRANSDUCER PACKAGE YOU PREFER FROM THE DROP-DOWN MENU
Three options available:
. without transducer only GPS display
. with standard HDI transom transducer, 83 and 200 khz frequencies, and DownScan Imaging
. with Chirp Active Imaging 3 IN 1 transom transducer standard echo, DownScan and SideScan Imaging

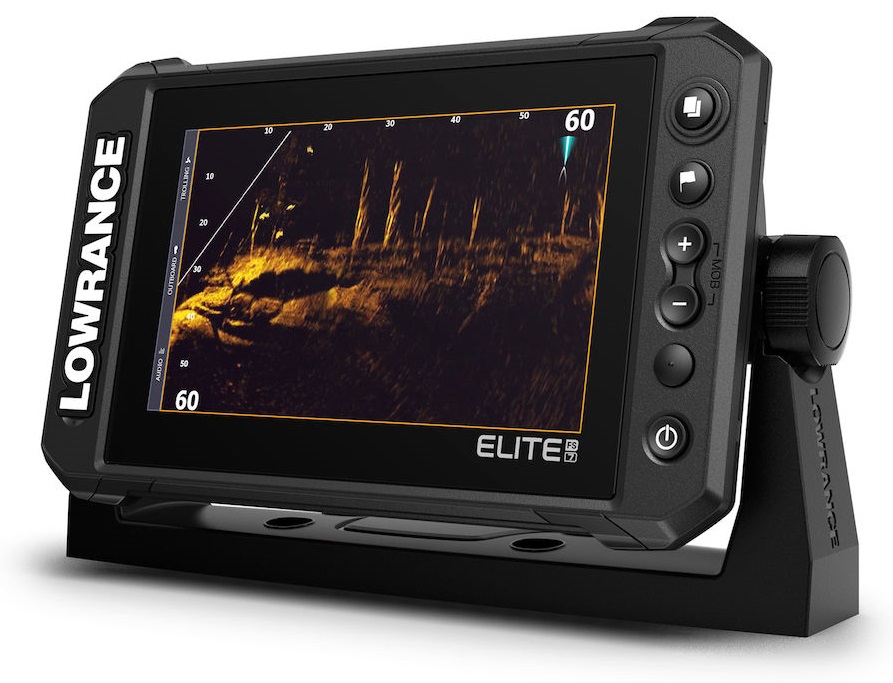

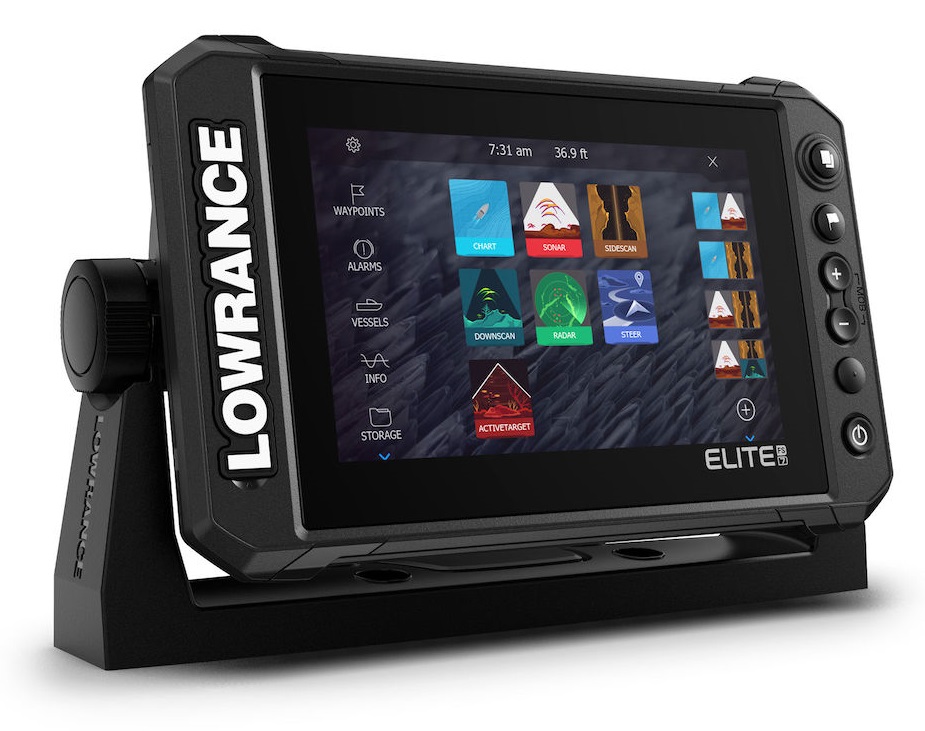

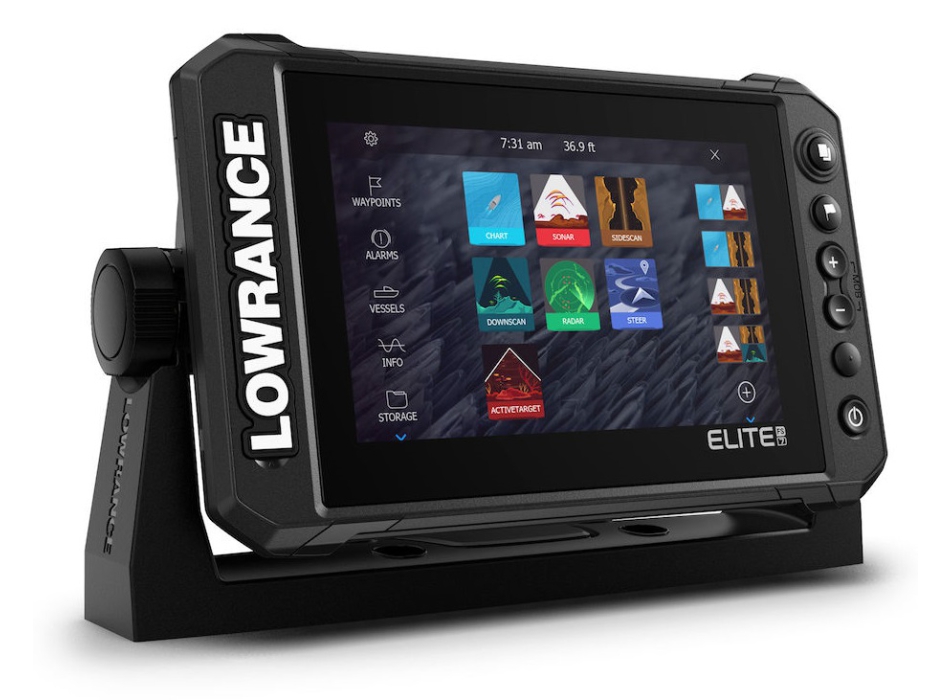

Elite FS™ 7
The new Fishing System (FS) Elite gives you access to the full range of Lowrance fishfinding tools, including ActiveTarget™ live sonar, Active Imaging™ and compatibility with a wide range of mapping options, to make the most of your time on the water.

The Elite Fishing System (FS) combines the power of proven Lowrance fish-finding tools with a more accessible display that's easier to use and install. From ActiveTarget™ live sonar and ultra-high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™, to compatibility with a wide range of mapping options, Elite FS gives you all the tools you need to find and catch more fish.

Fish big with proven Lowrance sonar
With Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan, and DownScan with FishReveal™, anglers can see structure and cover in a new level of detail, at a range never before achieved with other structure imaging technologies. Get the best of CHIRP sonar and DownScan Imaging™ on a single screen with exclusive FishReveal intelligent target viewing, which lets you clearly distinguish fish from structure and cover on highly detailed DownScan images.

Locate fish in real time with new ActiveTarget™ Live sonar
Fishing is more targeted when you know exactly what fish are doing—in real time—with ActiveTarget™ Live sonar. Watch fish movements in high resolution, pinpointing them as they swim in and around structure. See their reaction to your bait in real time, and you'll know if your current technique is right or if it's time to adjust.

Multiple map options
Elite FS displays, preloaded with a worldwide basemap, offer compatibility with a wide range of cartography options, including C-MAP®, Navionics® and more.

Main functions
ActiveTarget™ Live sonar ready
3-in-1 Active Imaging Ready
FishReveal™
Includes a worldwide basemap, plus a wide range of cartography options, including C-MAP, Navionics® and more
C-MAP® Easy Routing, Navionics® Autorouting features
C-MAP Genesis Live on-screen cartography
High-resolution multi-touch touchscreen
Built-in wireless, NMEA 2000® and Ethernet connectivity
Full touchscreen control of Power-Pole® anchors and Ghost® electric motor

Accessories included in the package in addition to the Elite 7FS display

  • Elite FS™ 7 Sun Cover
  • HDS-7 LIVE / Elite FS™ 7 bracket
  • HDS/Elite/Hook/Mark Power Cable Only
  • Set of 3 3 amp fuses FUSE-1
  • HDI Skimmer 6ft MH 455/800Hz (ONLY IN THE PACKAGE WITH HDI TRANSDUCER)
  • Active Imaging 3-in-1 Transducer (ONLY IN ACTIVE 3-in-1 TRANSDUCER PACKAGE)
TECHNICAL SPECIFICATIONS
  • SD card storage 1 micro SD card up to 32GB
  • 1 x 100Mbit Ethernet ports
  • Weight 1.90 lbs (0.90 kg)
  • Refresh rate 10 Hz
  • GPS 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
  • Vibration shock 100,000 cycles of 20 G
  • Safety compass 12" (300mm)
  • Power supply voltage 12v DC (10.8-17VDC)
  • GPS receiver channels 16
  • NMEA 2000 Connectivity 1x Micro-C
  • Maximum power consumption 2.0A @ 13VDC with backlight on full
  • Typical power consumption 2.0A @ 13VDC with backlight on full
  • Minimum power consumption 2.0A @ 13VDC with backlight on full
  • Position accuracy 20m RMS
  • Waypoints, routes, tracks 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
  • Recommended fuse rating 3A
  • Storage temperature range 4°F to 140°F (-20°C to 60°C)
  • Radar Compatibility 4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)
  • Operating temperature range 5°F to 131°F (-15°C to 55°C)
  • Viewing angles 50° top 60° bottom 70° left/right
  • Humidity 60°C, 95% relative humidity (RH) for 18 hours
  • Display resolution 800x480
  • AIS AIS Chart overlay. Target vessel details.
  • Supported Charts C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
  • Cartography included C-MAP ROW Basemap (ROW models)Navionics basemap (AMER, AUS/NZ and ROW models)
  • Correction DGPSWAASMSASEGNOSGLONASS
  • Mounting Type Gimbal Bracket or Dash Flush Mount
  • Bluetooth Integrated Bluetooth 4.0 with support for Bluetooth Classic
  • Sonar Compatibility Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target
  • Wi-Fi Connectivity Internal 802.11b/g/n
  • IPX7 waterproof level with card door closed
  • Multi-Touch Interface TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power
  • Internal Memory None
  • PC Connectivity None
D Buongiorno prima di acquistarlo vorrei avere conferma che Fs 7 sia compatibile con sonda Airmar b258 da 1 kw con spinotto finale blu Lowrence.
R 03/01/2026 Buonasera, confermo la compatibilità se si aggiunge anche il cavo adattatore cod. 000-13313-001: https://www.painestore.it/simrad_7pin_blue_xdcr_to_9pin_black_adapter_1 Cordiali saluti. Luigi Bianchi
D Buongiorno, è possibile montare elite FS 7 direttamente sulla plancia o serve un adattatore Grazie
R 13/10/2025 Buongiorno, sì certo confermo, non serve alcun kit da incasso. Cordiali saluti. Luigi Bianchi
D Buongiorno, vorrei acquistare Lowrance Elite 7FS eco/GPS TouchScreen e vorrei avere informazioni dettagliate sulle differenze dei due trasduttori. Io navigo e pesco nelle acque del mar Adriatico (Jesolo) Quale mi consigliate: 1)Con Trasduttore di poppa 83-200khz e HDI DownSca 2)Con Trasduttore Active 3 IN 1 Grazie in anticipo
R 09-04-24 Buongiorno, i trasduttori sono praticamente equivalenti nelle funzionalità ecoscandaglio standard, leggermente superiori nei dettagli come prestazioni la Active 3-1. Cambia soprattutto il fatto che la Active 3-1 ha anche la funzione eco Side Vision con vista laterale. Cordiali saluti. Luigi Bianchi
D Salve vorrei la Vs miglior offerta per un eco gps cartografico lowrance élite 7 fs e 9 fs con trasduttore animare tm150 Grazie
R 03-02-24 Buonasera, totale per Elite FS con TM150, 1.179,00 euro, mentre per Elite 9FS sempre con TM150, 1.279,00 euro. Cordiali saluti. Luigi Bianchi
D Buongiorno.quanto tempo ci vuole per un eventuale consegna?
R 31-05-23 Buon pomeriggio, disponibili a nostro stock. Consegna in un paio di giorni, dipende dalla località di destinazione. Cordiali saluti. Luigi Bianchi
D Buonasera, ho già acquistato da Voi l'autopilota "Raymarine Autopilota EV-100 Wheel" ed ho da poco ricevuto in regalo questo fishfinder +gps "Lowrance Elite 7FS eco/GPS TouchScreen", chiedevo se è possibile interfacciare i due strumenti e ad esempio impostando la rotta sul gps, farla seguire in automatico dall'autopilota. Ringrazio
R 24-01-22 Buongiorno, sì certo, può integrare nella rete STNG il Lowrance Elite FS, mediante cavi adattamento NMEA 2000: https://www.painestore.it/raymarine_stng/nmea_2000f_cavo_spur_400_mm Cordiali saluti. Luigi Bianchi
D Buongiorno . Il prezzo dell elite fs 7 con sonda 3 in 1 è 1.033,04 euro ma nel sito viene fornito un codice di sconto . ho provato a inserire l'articolo nel cestino ma non trovo il campo dove verrà inserito il codice . Mi conferma che il prezzo finale è 929,736 euro? Grazie
R 26-11-2021 Buonasera, purtroppo no, stiamo terminando l'aggiornamento dei prezzi Black Friday, tutti gli extra sconti in questi giorni sono sospesi, abbiamo applicato a tutti i prodotti, il massimo sconto possibile, quindi confermo il pezzi di 1.033,04 euro. Cordiali saluti. Luigi Bianchi
D Gentilissimi, avrei bisogno di sapere la dimensioni del trasduttore Active 3 in 1 (lunghezza x larghezza x spessore) per verificare ci sta nella sede porta trasduttore del mio mezzo. Grazie
R 23-11-2021 Buonasera, al seguente link trova nella quarta immagine, il disegno con le dimensioni: https://www.painestore.it/lowrance_simrad_active_imaging_3-in-1_poppa Cordiali saluti. Luigi Bianchi
D Devo acquistare questo prodotto , cioè elite 7fs , vorrei sapere le dimensioni per incassare l'apparato. Grazie attendo voi
R 30-01-2021 Buonasera, nella sezione Documenti nell' articolo sul nostro sito, potrà scarica fin da ora sia il manuale utente in italiano che quello per l'installazione in inglese, in quest'ultimo troverà le dimensioni sia del 7 che del 9: https://www.painestore.it/lowrance_elite_7fs_eco/gps_touchscreen Cordiali saluti. Luigi Bianchi
D Vorrei sapere se scegliendo l'ELITE 7 FS con trasduttore Active 3 in 1 ho già tutte le funzioni compreso SONAR 3D - LIVE SIGHT - ACTIVE TARGET come ho letto sul manuale o occorre aggiungere moduli e trasduttori. Nel caso quali ed a che prezzo.
R 08-01-2021 Buon pomeriggio, nessuno dei tre, solo funzioni eco standard, DownScan e SideScan. Tutte le altre funzioni da Lei elencate, è possibile averle tramite box e trasduttori aggiuntivi. Cordiali saluti. Luigi Bianchi
D Salve Vorrei sapere se il lowrance elite fs 7 é compatibile con la sonda tm 150
R 25-12-2020 Buongiorno, certamente sì, confermo la compatibilità della TM150 con Elite FS. Cordiali saluti. Luigi Bianchi
D Vorrei sapere la profondità raggiunta , grazie!
R 17-12-2020 Buonasera, le caratteristiche sono le stesse per le versioni precedenti in termini di profondità massima, perchè il trasduttore è sempre l'Active 3-1, quindi siamo intorno ai ca 150/180mt in eco standard e ca 60mt in Down e SideScan. Cordiali saluti. Luigi Bianchi
