Lowrance HALO 20 24nm Radar Antenna

(0)
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 1.875,00 € 2.501,00 -25%

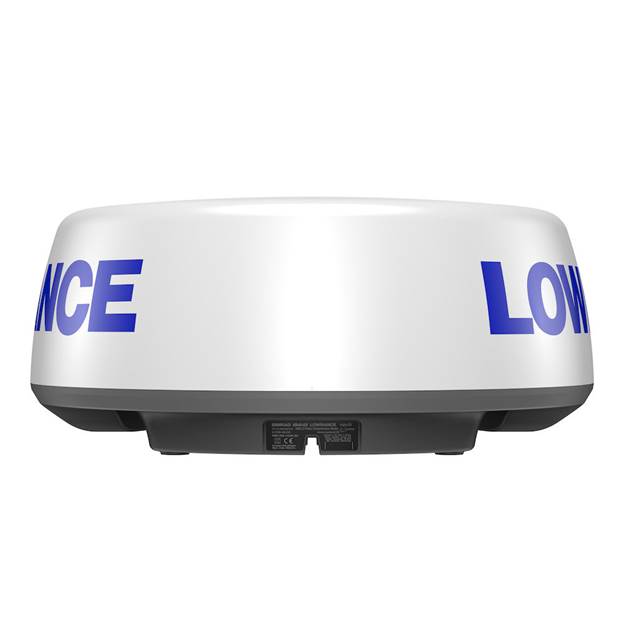

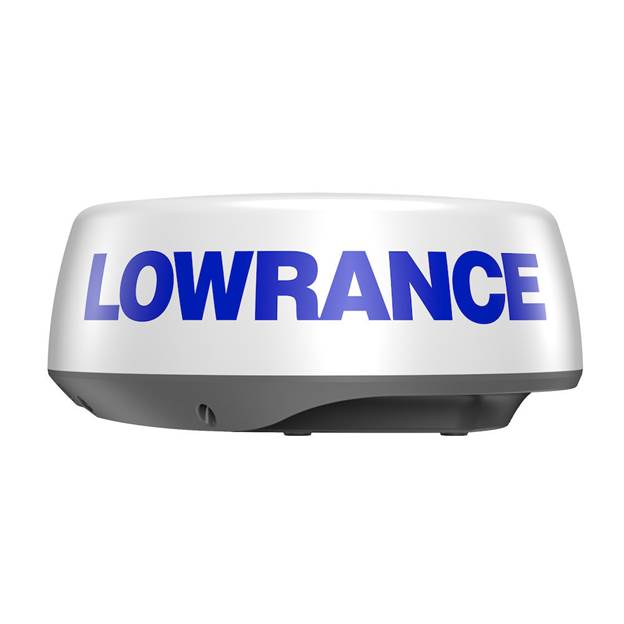

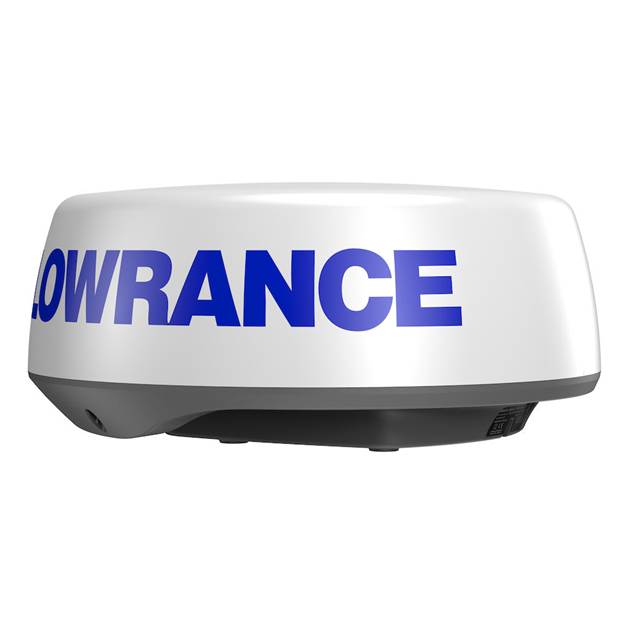

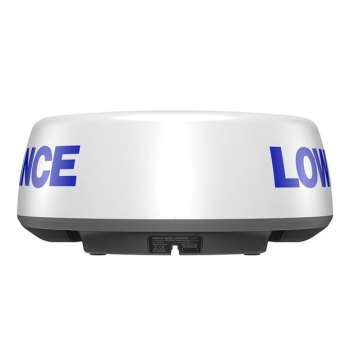

LOWRANCE HALO 20 Radar antenna

The HALO20 radar is an economical solution for boaters to raise situational awareness and avoid collisions by detecting collision hazards and other targets in the vicinity and up to 24 nautical miles away. With its small footprint and low profile, HALO20 is the perfect radar solution for budget conscious buyers with smaller sport fishing boats and pleasure boats. With its small footprint and low profile, HALO20 is the perfect radar solution for budget conscious buyers with smaller sport fishing boats and pleasure boats. The HALO20 radar also offers a full range of features to improve situational awareness and safety on the water. Boaters can monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets. Whether it's cruising through crowded waterways or contending in poor visibility, the HALO20 radar cuts through the clutter to give boaters a clear and current picture of their surroundings.

Excellent performance in short and medium distances
Extend the view from the bow of the boat up to 24 nautical miles with pulse compression radar technology that not only provides a powerful mix of short and long range detection, but also offers precise target definition with minimal disturbance.

Short and long range viewing with one compact antenna
Ideal for a wide range of small power boats, the HALO20 is supplied with a compact dome antenna that offers high quality short to medium range detection.
The pulse compression technology of the HALO20 radar makes no compromises when it comes to detection for any selected distance, while the narrowing of the beam offers better separation between small or distant targets.



Always ready to use
The HALO20 radar wakes up instantly from low-power standby mode, delivering high-speed radar coverage exactly when and where required. Even when the HALO20 radar is completely off, it starts up in seconds, unlike traditional pulse radars which take minutes. Whether navigating in high-traffic waters or in poor visibility conditions, the HALO20 radar filters and eliminates noise instantly to provide a clear, up-to-date picture of your surroundings.

Main features
  • Pulse compression 6W
  • Radar use mode (no bird mode)
  • Radiation safe *
  • 24nm range
  • 24rpm antenna rotation
  • Low profile and light weight 5.9 kg
  • Unrivaled short range
  • InstantOn ™
  • MARPA target tracking
  • Low energy consumption
  • Blanking sectors
  • Guard areas
  • LED lights
  • Blanking sectors
  • Guard areas
Technical specifications
  • Supply voltage 10.5 - 31.2 VDC (12 / 24V systems)
  • Maximum wind speed 100 knots (51 m / s)
  • Typical power consumption 18W
  • Warranty period 2 Years
  • Maximum power consumption 20W
  • Maximum range, 24 NM scale
  • Rotation speed 24 RPM
  • Operating temperature range -25 ° to + 55 ° C (-13 ° to + 130 ° F)
  • Beam width 4.9 ° H x 25 ° V
  • Weight 5.9 kg (13 lbs) without cable
  • Minimum range, scale 50 m / 200 ft / 50 yd
  • Dimensions (height x width x depth) 510mm dia x 223mm H. (20 "dia x 8.8" H)
  • Recommended fuse rating 5A
  • Humidity 95% RH at 35 ° C (95 ° F)
  • LOWRANCE MFD interface
  • Compliance with FCC approvals, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5 / EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2, 9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
  • Harbor, Offshore, Weather, North Up, Course Up, Relative motion, True Motion radar modes
  • Pulse Compression radar technology
D Il monitor è compreso nel pacchetto? Posso essere chiamato per informazioni grazie
R 27-08-25 Buongiorno, il display è parte, l'antenna Radar è compatibile con Elite FS e HDS PRO: https://www.painestore.it/?query=elite%20fs https://www.painestore.it/?query=hds%20pro Può contattarci in negozio al 054121629. Cordiali saluti. Luigi Bianchi
D Salve, l'antenna radar Halo 20 24nm Lowrance, è compatibile per connessione diretta con lo strumento SIMRAD NSS7? Viene fornita con cavo di connessione e connettori? Ci sono ulteriori sconti per acquisto di 02 pezzi? Grazie, Alfredo
R 14-05-25 Buonasera, dovrebbe indicarmi con precisione quale versione di NSS7 si tratta, stiamo parlando di primissima versione NSS7? Grazie. Cordiali saluti. Luigi Bianchi
D Questo oggetto ha opzione rilevamento gabbiano ???
R 17-02-2021 Buonasera, no, questa caratteristica è consentita solo sulle Halo 20+ e Halo 24. Cordiali saluti. Luigi Bianchi
