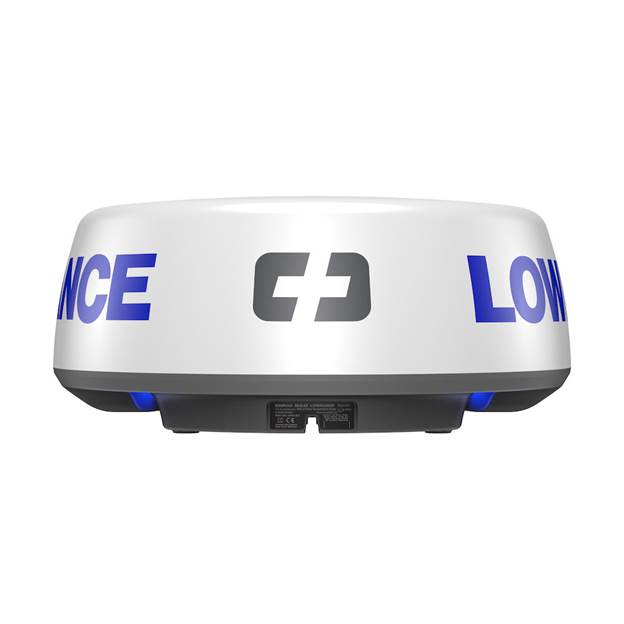

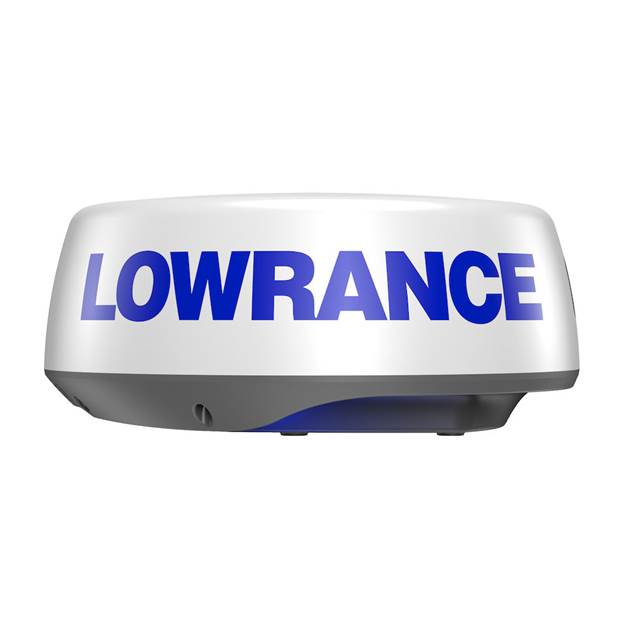

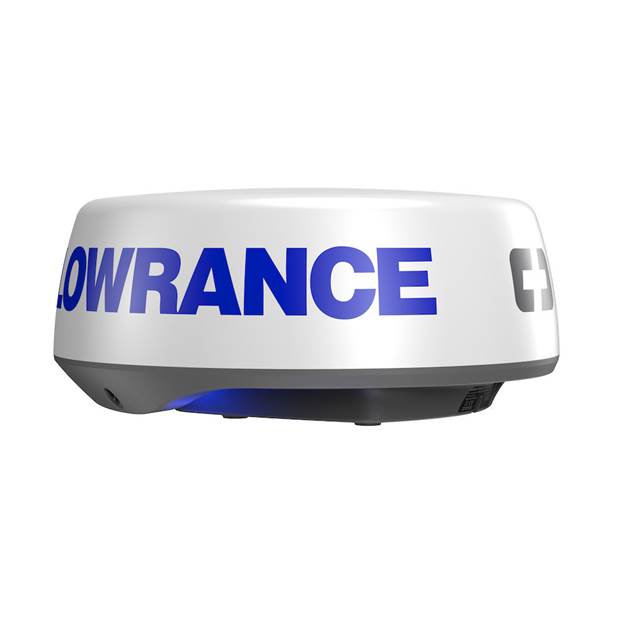

Lowrance HALO 20+ 36nm Radar Antenna

Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 2.499,00 € 3.087,21 -19%
LOWRANCE HALO 20+ Radar Antenna

HALO20+ delivers near real-time visibility with industry-leading 60 RPM close-range operation for collision avoidance. Instantly identify hazards with VelocityTrack™ and Doppler radar technology, and enjoy short- and long-range coverage (up to 36 nautical miles) from a single 20" radome antenna.

Excellent performance in short and medium distances
Extend your view from the bow of your vessel up to 36 nautical miles with pulse compression radar technology that not only provides a powerful mix of close- and long-range detection, but also delivers precise target definition with minimal clutter.

Short and long range vision with a single compact antenna
Ideal for a wide range of small powerboats, the HALO20+ comes with a compact dome antenna that delivers high-quality short to medium range detection.
HALO20+ radar's pulse compression technology compromises no detection range at any selected range, while beam sharpening provides improved separation between small or distant targets.



Always ready for use
HALO20+ radar wakes instantly from low-power standby mode, providing high-speed radar coverage exactly when and where you need it. Even when HALO20 radar is completely powered off, it wakes up in seconds, unlike traditional pulse radars that take minutes. Whether navigating through crowded waterways or in poor visibility, HALO20+ radar instantly filters out clutter to provide a clear, up-to-date picture of your surroundings.

Main Features
  • 25W pulse compression
  • VelocityTrack™
  • Target coloring
  • Automatic ARPA target detection (subsequent SW update, not at release)
  • Double flow without compromise
  • High speed rotation 1° 60 rpm
  • How to use the radar
  • Spoke sharpening that works
  • 48/36nm range
  • Low profile and light weight 6.9 / 5.9 kg
  • Unrivaled short-range
  • Excellent target detection
  • InstantOn™
  • Low energy consumption
TECHNICAL SPECIFICATIONS
  • Supply voltage 10.5 - 31.2 VDC (12/24V systems)
  • Maximum wind speed 100 knots (51 m/s)
  • Warranty period 2 Years
  • Typical power consumption 20W
  • Operating temperature range -25° to + 55°C (-13° to +130°F)
  • Maximum power consumption 29W
  • Maximum range, scale 36 NM
  • Beam width 4.9° H nominal (-3dB) 2.5° with target separation on high x 25° V
  • Weight 5.9 kg (13 lbs) without cable
  • Minimum range, scale 50 m / 200 ft / 50 yd
  • Dimensions diameter 510mm (20")
  • Dimensions (Height x Width x Depth) 510mm dia x 223mm H. (20" dia x 8.8" H)
  • Recommended fuse rating 5A
  • Humidity 95% RH at 35°C (95°F)
  • Compliance with FCC approvals, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
  • Radar modes Harbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative motion, True Motion
  • IPX6 waterproof level
  • Pulse Compression radar technology
  • LOWRANCE MFD Interface
  • Rotation speed Up to 60 RPM (Range Dependent)
D L'uso del radar può avvenire contemporaneamente al cartografico ed all'ecoscandaglio?
R 29/11/2025 Buonasera, sì certo è possibile, può configurare una pagine con le tre funzioni a quale display deve abbinare il Radar? Cordiali saluti. Luigi Bianchi
D Buongiorno, ho un cartografico HDS9, e chiedo se con il prodotto selezionato (o con l' aggiunta di qualche altro dispositivo) c'è la possibilità di vedere i bersagli nella finestra del radar con lo sfondo della carta nautica. Grazie per il riscontro, Alessandro De Marco
R 22-05-25 Buonasera, se intende la sovrapposizione dell'immagine Radar sulla cartografia, necessaria una bussola Precision 9: https://www.painestore.it/simrad_b_g_precision-9_sensore_bussola oltre al kit NMEA 2000: https://www.painestore.it/kit_di_avviamento_nmea_2000_ Cordiali saluti. Luigi Bianchi
D Buongiorno vorrei sapere x cortesia se il radar da la presenza e la posizione longitudine , latitudine dei bersagli visualizzati tramite cursore sullo schermo grazie Roberto
R 07-05-25 Buonasera, questa caratteristica è possibile solo in funzione overlay, in fase di sovrapposizione del Radar sulla cartografia. Per avere però questa funzione con buona approssimazione dei dati corretti, necessaria anche un sensore di direzione, quindi una bussola collegata nel sistema. Tutto ciò dipende dal modello di display a cui si collega l'antenna Radar. Cordiali saluti. Luigi Bianchi
D Gradirei sapere che cavo di connessione dovrei acquistare per collegare il radar al display multifunzione "Lowrance HDS PRO 12". Grazie. Cordiali saluti. Luciano
R 18-02-24 Buongiorno, non è necessario alcun cavo, la confezione prevede già un cavo lungo 5mt. Codiali saluti. Luigi Bianchi
D buon giorno, vorrei acquistare LOWRENCE HDS LIVE 16, lo strumento in questione è compatibile con antenna HALO 20+? Grazie
R 30-03-2021 Buonasera, sì certo compatibile. In caso sia interessato all'acquisto di entrambi, mi faccia sapere così Le invio un preventivo dettagliato con tutti gli sconti che possiamo applicare. Grazie. Cordiali saluti. Luigi Bianchi
