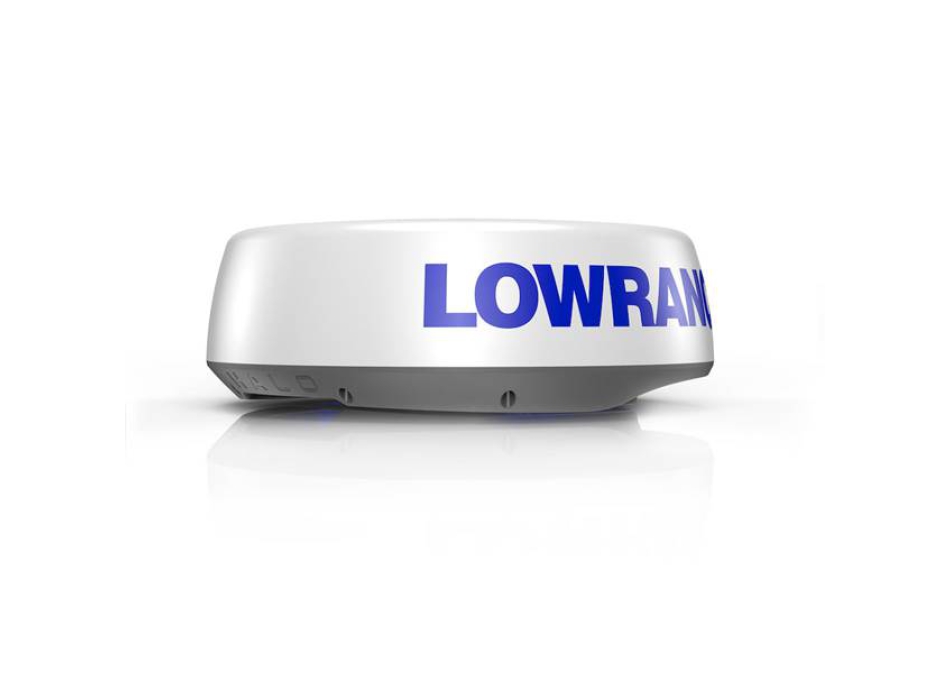

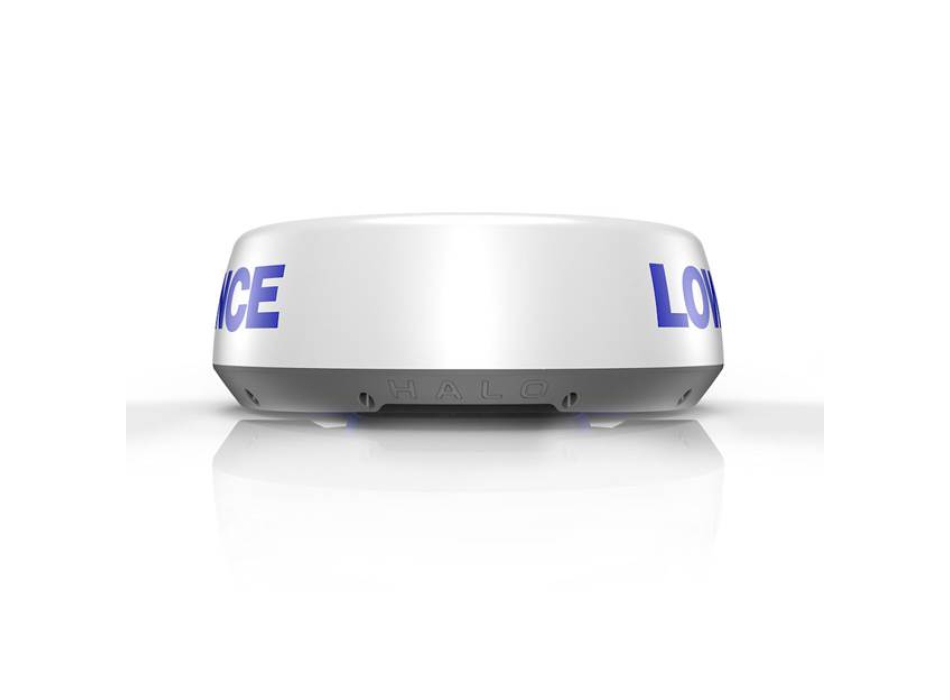

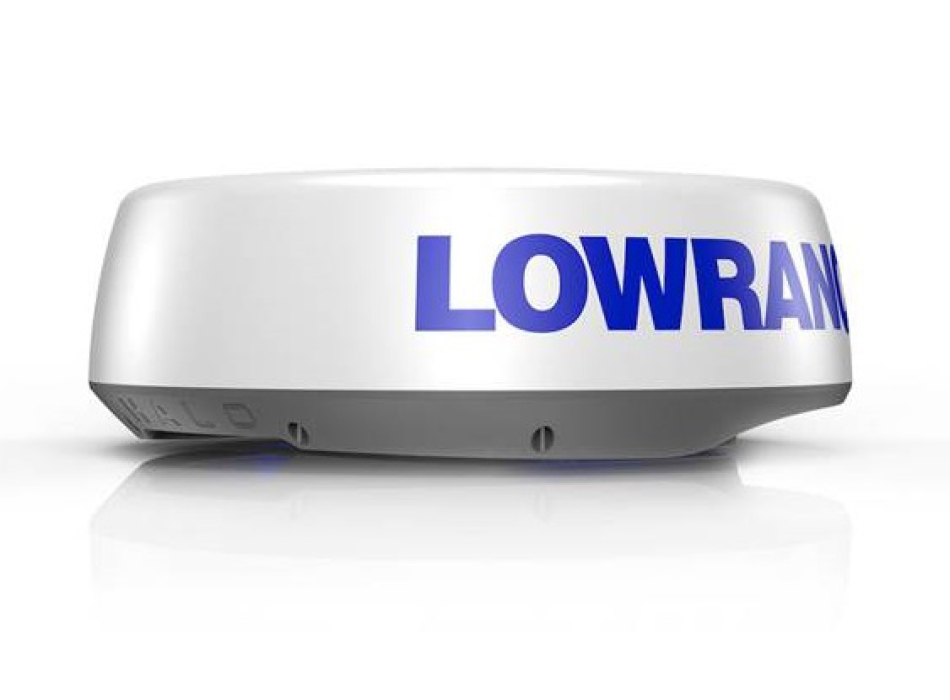

Lowrance HALO 24 48nm Radar Antenna

(0)
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 2.699,00 € 3.294,00 -18%

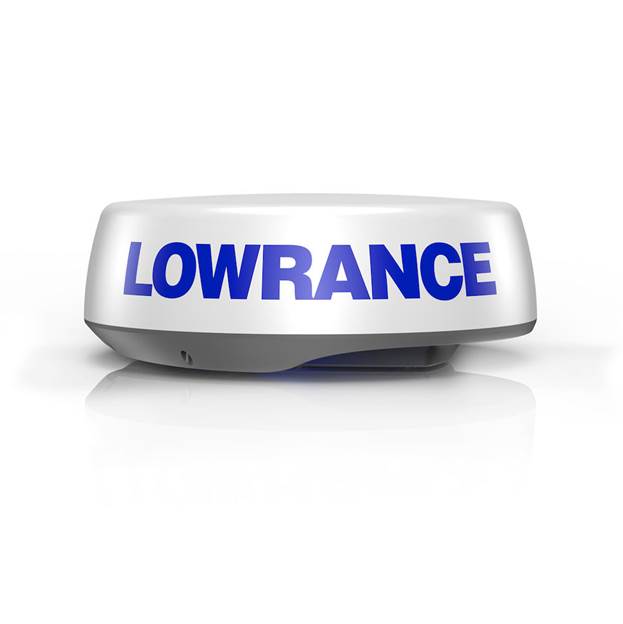

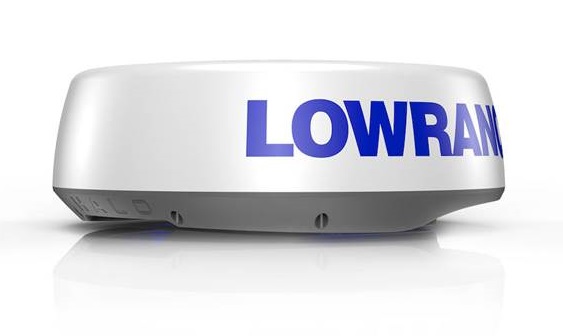

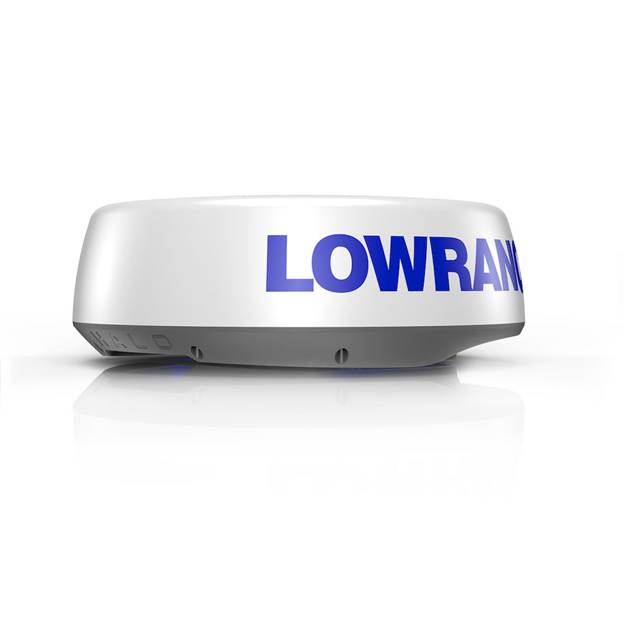

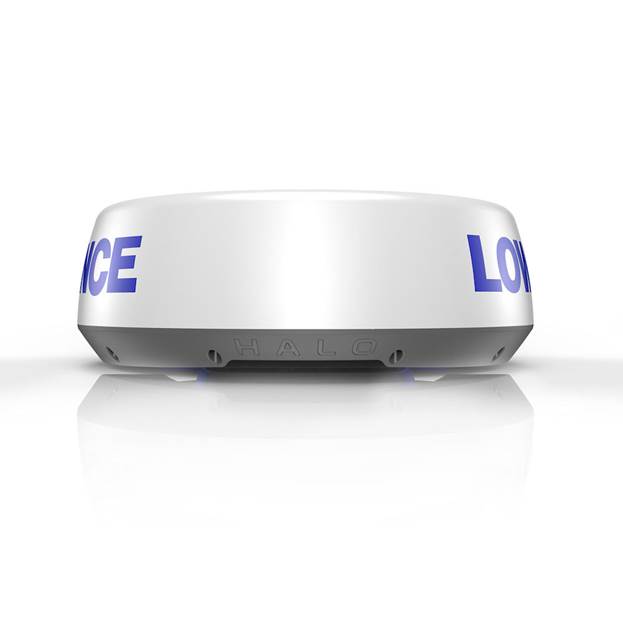

LOWRANCE HALO 24 Radar antenna

HALO24 revolutionizes the concept of radar by offering near real-time vision, with industry-leading short-range operation at 60 rpm to avoid collisions. Instantly identify hazards with VelocityTrack ™ Doppler Radar Technology and enjoy simultaneous short and long range coverage (up to 48 nautical miles) via a single compact 24 "dome antenna.

Main features
Range up to 48 NM via a single compact 24 "dome antenna
Advanced pulse compression technology with narrowing of the beam
Simultaneous Dual Range vision for short and long range coverage
Ultra fast operation at 60 rpm for distances up to 1.5 NM
VelocityTrack ™ Doppler radar technology to avoid collisions
Easy to use in Harbor, Offshore, Weather and Bird modes
MARPA target tracking (up to 10 targets, 20 with dual scale)
Immediately activated from standby mode

Short and long range viewing with one compact antenna
Ideal for a wide range of small power boats, the HALO24 is supplied with a compact dome antenna capable of delivering high quality short, medium and long range detection. It allows you to monitor two distances at a time in Dual Range mode, to keep an eye on storm cells in the distance and to control close collision hazards. The pulse compression technology of the HALO24 radar makes no compromises when it comes to detection for any selected distance, while the narrowing of the beam offers better separation between small or distant targets.




Maximum visibility to avoid collisions
The HALO24 radar delivers full 360-degree radar scans every second, thanks to an industry-leading 60-rpm rotation mechanism for distances up to 1.5 nautical miles. Ultra-fast updates offer near-real-time vision over short distances to provide maximum visibility and thus avoid possible collisions.

Integrated VelocityTrack ™ Doppler Radar Technology
VelocityTrack ™ technology delivers instant visual feedback to check whether weather phenomena are approaching or moving away. Simple color coding highlights potential hazards and hazards for increased situational awareness and to further reduce the risk of collision. The HALO24 radar automatically monitors every target present within its range, without having to manually select individual targets and without any restrictions on the number of targets that can be displayed simultaneously on the screen.

Always ready to use
The HALO24 radar wakes up instantly from low-power standby mode, delivering high-speed radar coverage exactly when and where it's needed. Even when the HALO24 radar is completely off, it starts up in seconds, unlike traditional pulse radars which take minutes. Whether navigating in high-traffic waters or in poor visibility conditions, the HALO24 radar filters and eliminates noise instantly to provide a clear and up-to-date picture of your surroundings.
TECHNICAL SPECIFICATIONS
  • IPX6 waterproof level
  • Dimensions diameter 610mm (24 ")
  • Supply voltage 10.5 - 31.2 VDC (12 / 24V systems)
  • 100 Base T Ethernet ports
  • Maximum wind speed 100 knots (51 m / s)
  • Warranty period 2 Years
  • Typical power consumption 20W
  • Operating temperature range -25 ° to + 55 ° C (-13 ° to + 130 ° F)
  • Maximum power consumption 29W
  • Beam width 3.9 ° H nonminal (-3dB) 2 ° with target separation on high x 22 ° V
  • Maximum range, 48 NM scale
  • Minimum range, scale 50 m / 200 ft / 50 yd
  • Recommended fuse rating 5A
  • Weight 6.75 kg (14.9 lbs) without cable
  • Dimensions (height x width x depth) 610mm dia x 225mm H. (24 "dia x 8.9" H)
  • Humidity 95% RH at 35 ° C (95 ° F)
  • LOWRANCE MFD interface
  • Compliance with FCC approvals, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5 / EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2, 9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
  • Harbor, Offshore, Weather, Bird Dual Range, North Up Course Up, Relative motion, True Motion radar modes
  • RadarnPulse Compression technology
  • Rotation speed nUp to 60 RPM (Range Dependent)
D buonasera,ho acquistato da voi un antenna radar halo 24 ed una volta collegata al lowrance 12 hds non mi compare nulla nella schermata iniziale.potete aiutarmi a capire cosa devo fare.grazie.
R 27-07-24 Buongiorno, a quale HDS 12 ha collegato l'antenna Radar? Grazie. Cordiali saluti. Luigi Bianchi
