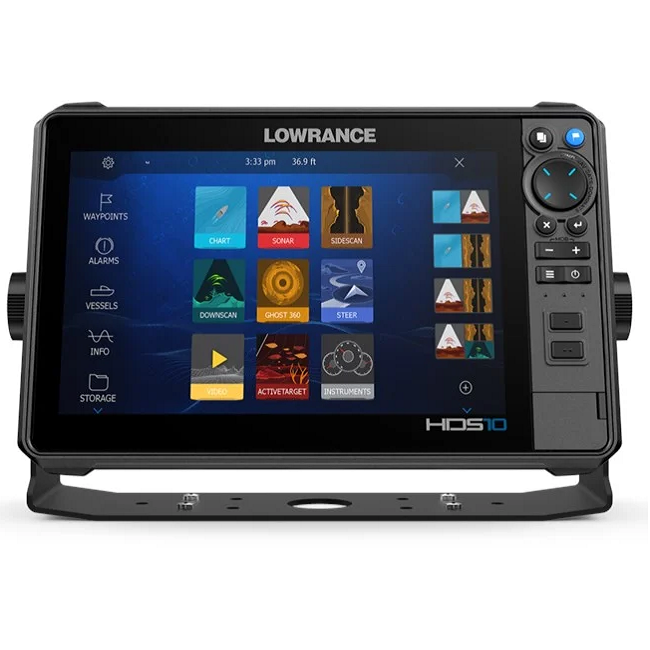

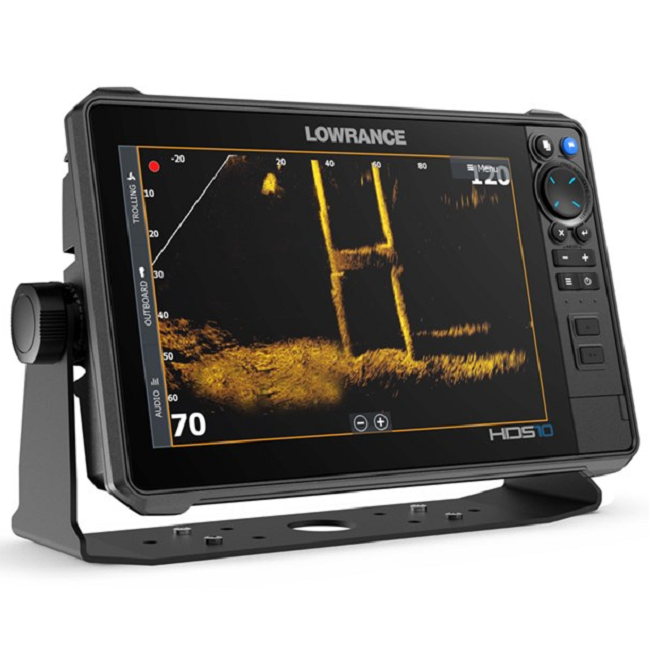

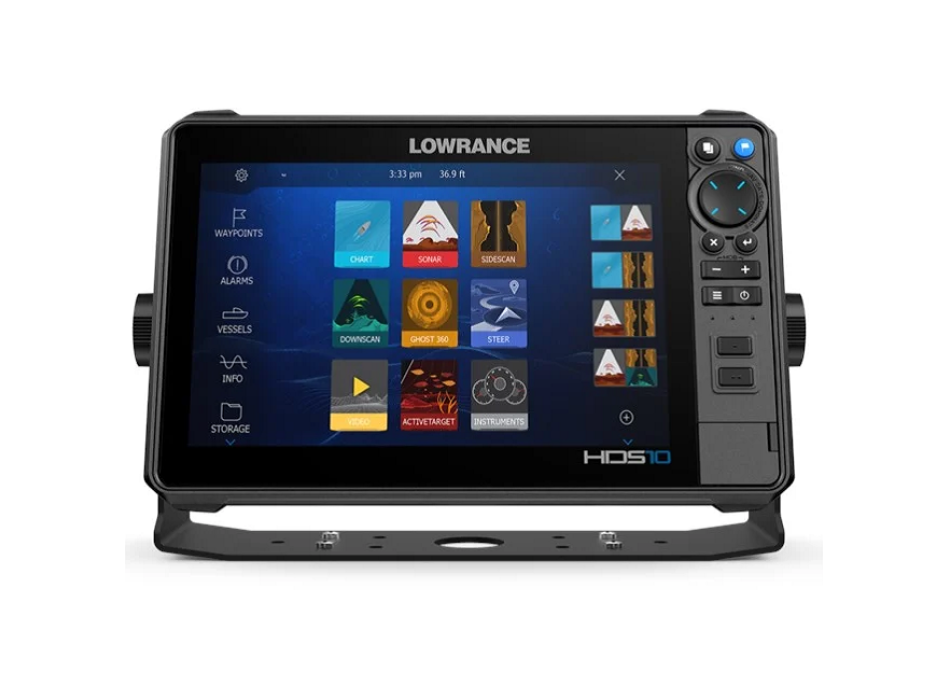

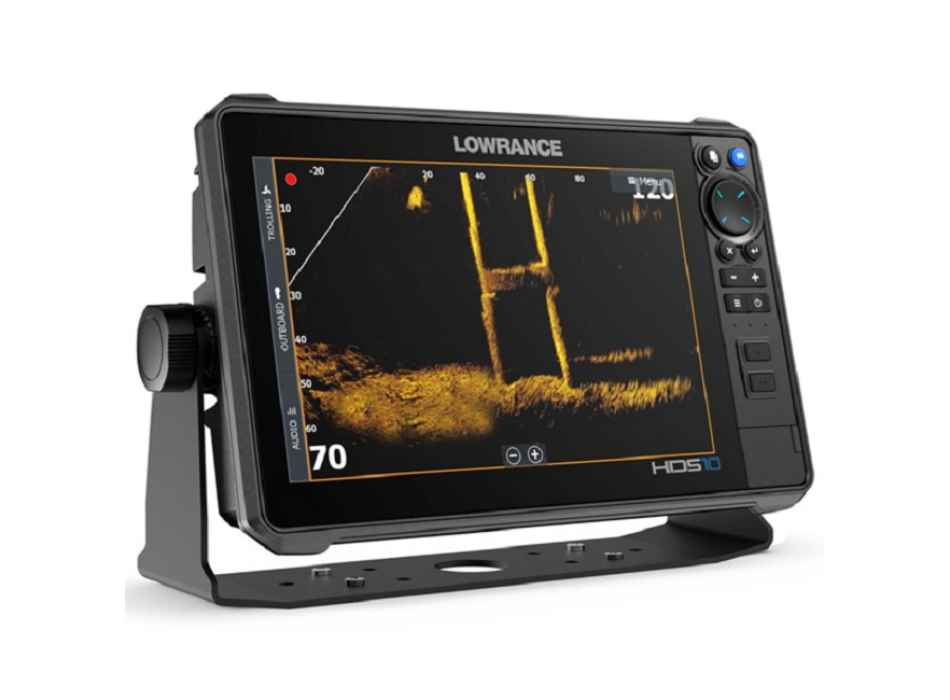

Lowrance HDS PRO 10 display 10" Active Imaging HD

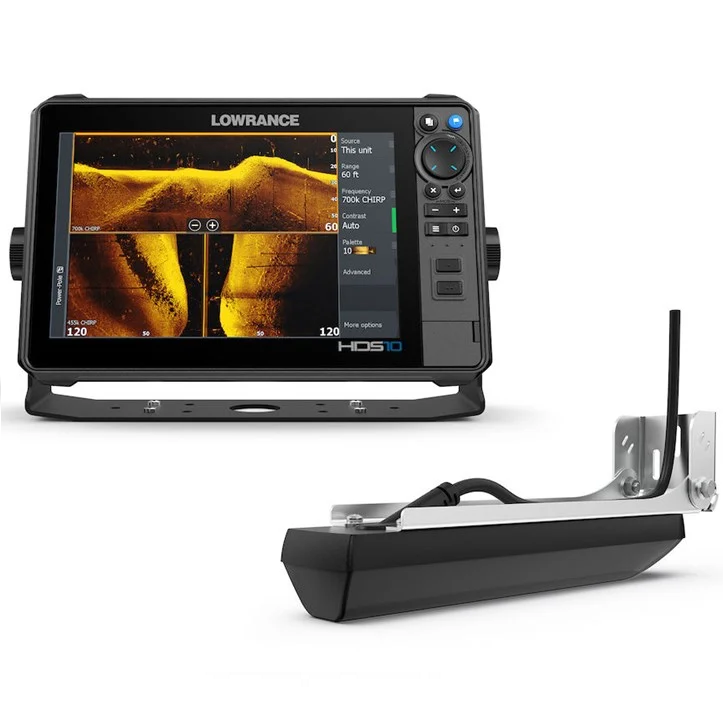

Without transducer or With Active Imaging™ HD transom transducer
  • Code: 000-16000-001
€ 2.695,00 € 3.170,78 -15%
you chose:

Enhance your vision and fish more with the new HDS PRO fishfinder / chartplotter. Watch fish react to your bait with new high-resolution ActiveTarget® 2 Live sonar and locate schools and structures where they hang out with new high-definition Active Imaging™ HD. Find fishing spots quickly with the latest C-MAP® charts using a fully connected fishing system and flawless boat control from bow to stern.

Main functions
SolarMax™ HD touchscreen viewable from any angle and with polarized lenses
Novelty! 1.2 MHz HD High Definition Active Imaging™ Ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
Novelty! Ready for ActiveTarget® 2 Live high-resolution sonar
FishReveal™ with new SideScan view and Downscan view
Screen available in 9", 10", 12" and 16" sizes
Worldwide basemap with the ability to upgrade to C-MAP® DISCOVER and REVEAL or other chart providers.
Real-time mapping available with C-MAP® Genesis Live.
Support for the new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
Large programmable keys for 10", 12" and 16" models
Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, autopilot and Lowrance outboard pilot
Wireless connectivity, Bluetooth® and NMEA 2000®, plus smartphone notifications
Wide range of optional chart upgrades, including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.

The SolarMAX™ HD touchscreen delivers pictures
breathtaking fish, texture and detail
maps visible from any angle,
under direct sunlight and through lenses
polarized: characteristics that make the
difference in water.

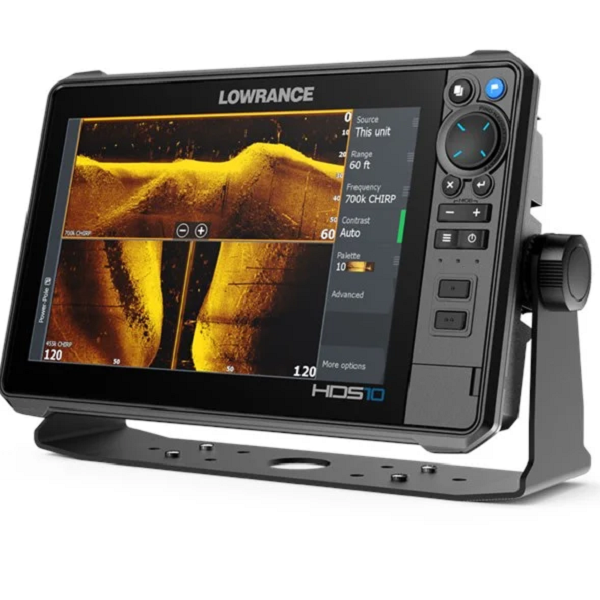

Active Imaging™ HD, our clearest sonar
ever, offers high-definition views of sonar
Lowrance CHIRP, SideScan and DownScan Imaging™.

The better the visibility, the better your catches will be.
From the high-definition touchscreen display to the extreme clarity of new optimized Lowrance sonar, the HDS® Pro has it all
complete with useful underwater views that will make your fishing experience exceptional.

Viewing angles 80° top/bottom, 80° left/right
Pure White LED backlight color
Screen brightness>1200 Nits1280x720 display resolution

Dimensions (height x width x depth) 40.8 x 14.5 x 35.8 1.66 kg
Compass Safety12" (300mm)
Mounting Type Gimbal Bracket Front Dash Flush MountRear Dash Flush Mount

Bluetooth Integrated Bluetooth 4.0 with support for Bluetooth Classic
NMEA 20001x Micro-C connectivity
Wi-Fi Connectivity Item Internal 802.11b/g/n and Compatible with WiFi-1 Module
SD card memory2 micro SD cards up to 32GB
Ethernet1x 100 Mbit ports, 6 max MFD's on a network
VideoOutput: NoInput: Composite video RCA - singlechannel via optional adapter

Supported ChartsC-MAP RevealC-MAP Discover C-MAP Reveal XC-MAP Discover XC-MAP (MAX N, MAX N+) C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners

Steering Mode Course Heading Waypoint Power Steer CourseHeading Waypoint Power Steer U-TurnC-TurnSpiralZigzagSquareLazy-S

Maximum Power Consumption 2.9A @ 13.8VDC with Full Backlight, Sonar on
Minimum power consumption 2.0A @ 13VDC withwith Full Backlight, Sonar on
Typical Power Consumption2.0A @ 13VDC withwith Full Backlight, Sonar on
Supply voltage 12V DC (10.8-17VDC)
Recommended fuse rating 3A

Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Storage Temperature Range4°F to 140°F (-20°C to 60°C )
Waterproof Level IPX7 with card door closed Humidity IEC 60945 Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs) Vibration Shock 100,000 cycles of 20 G

GPS receiver channels16
DGPS, WAAS correction
Refresh rate 10Hz
Position accuracy 20m RMS
Time before repair30s

MFD extension
AIS AIS Chart and Radar overlay. Target vessel details.
AutopilotOutboard Pilot NAC-1 NAC-2Ghost Trolling Motor MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Cartography included C-MAP World Background (ROW models) Navionics basemap (AMER and ROW models)
CzoneNaviop digital switching
Sonar CompatibilityIntegrated: CHIRP BroadbandActive Imaging DownScanActive Imaging SideScanActive Imaging HD DownScanActive Imaging HD SideScanCompatible with:ActiveTargetActiveTarget2, S3100 SonarHub StructureScanStructure ScanHD StructureScan3D LiveSight (requires PSI-1 module)
Internal memory 8.0 GB Internal
MeteoSiriusXM via WM-3 (USA only)SiriusXM via WM-4 (USA only)
Multimedia SonicHub SonicHub2 FusionLink productsany NMEA 2000 compliant Marine Aduio products
Waypoints, Routes, Tracks3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail

InterfaceTouchscreen:Full Multi-touch touchscreenKeypad:8-way directional keypadZoom +/-ExitEnterMenuWaypointPower/Light
