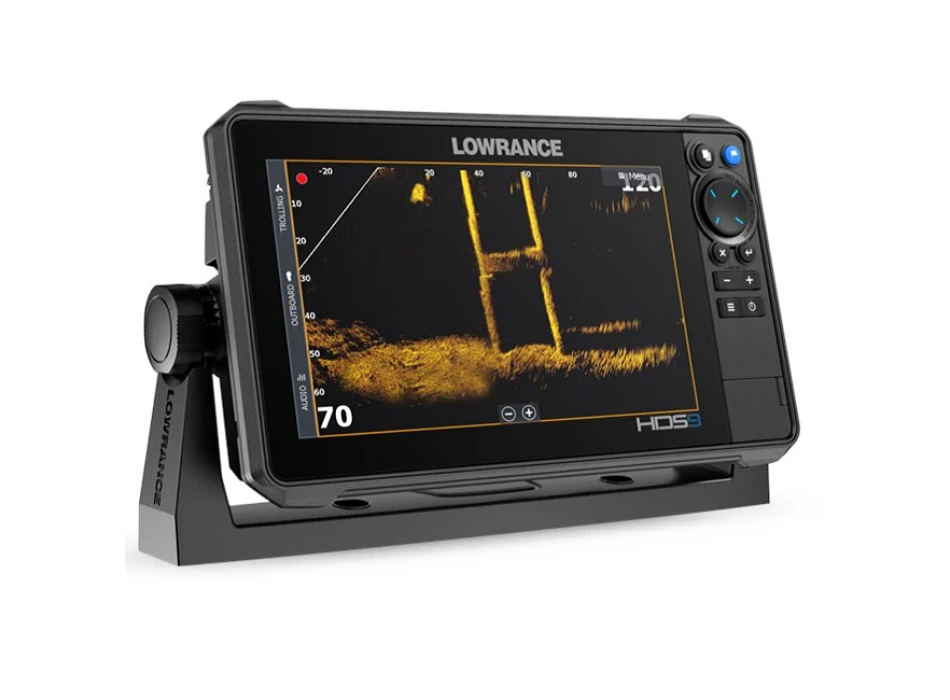

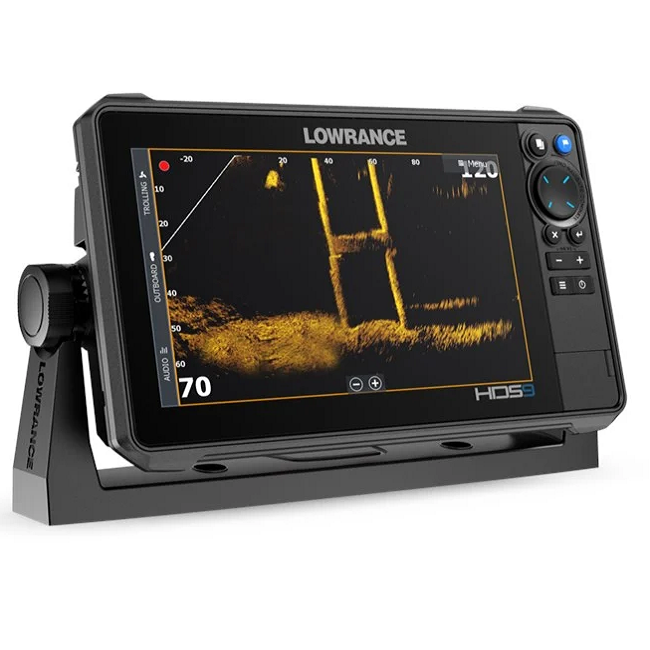

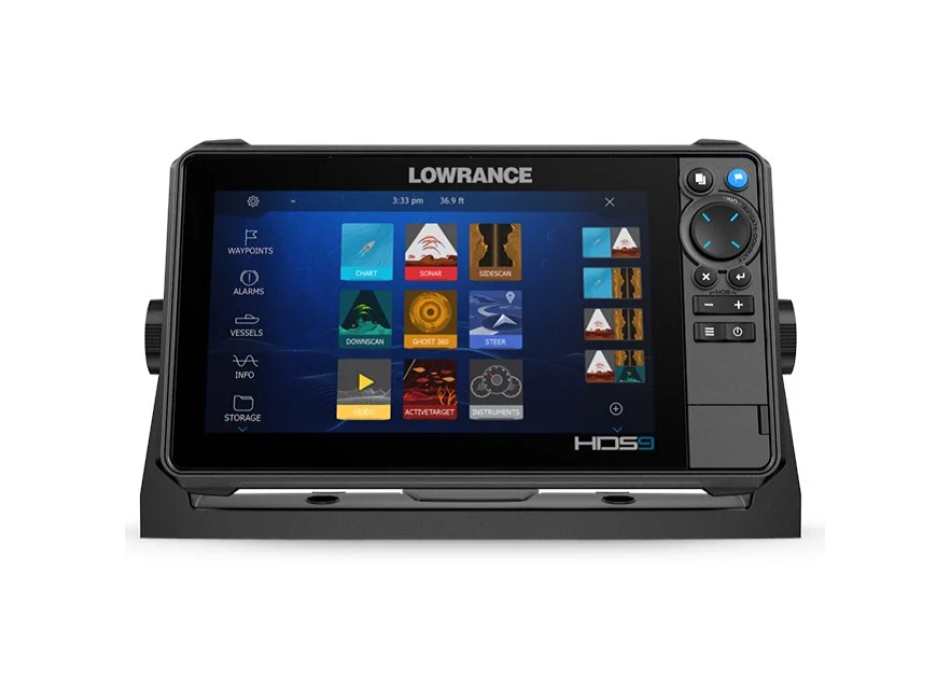

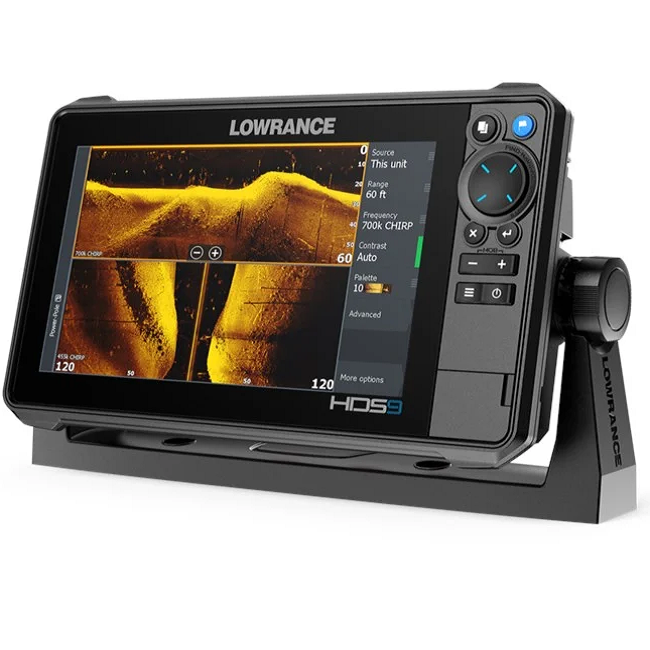

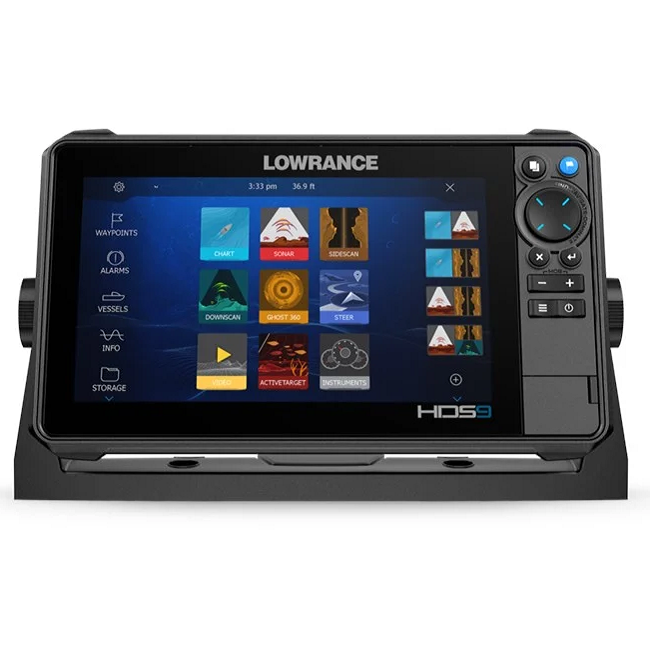

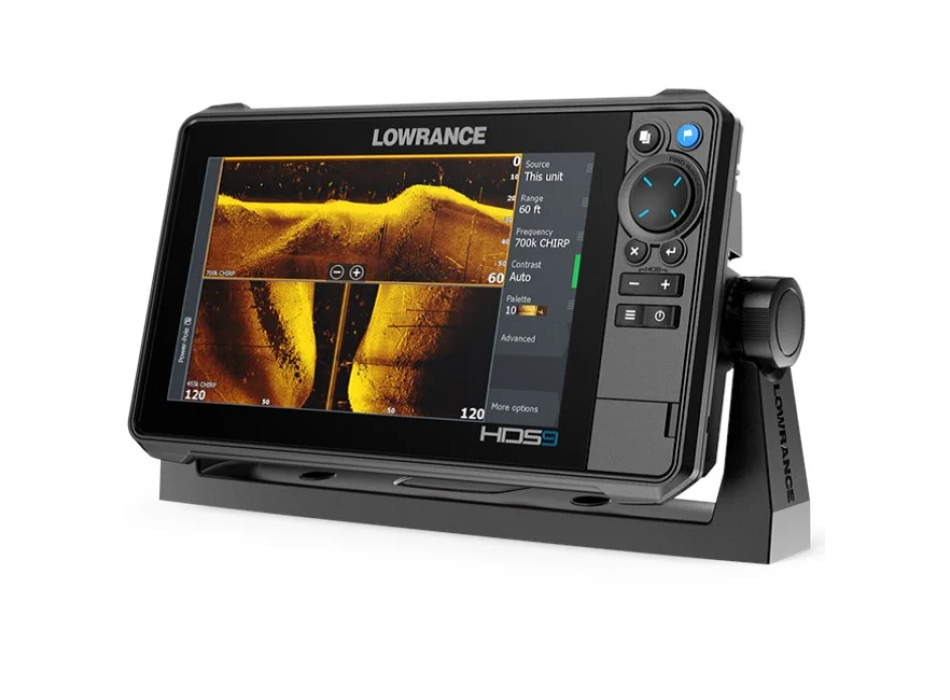

Lowrance HDS 9 LIVE display 9 "Active Imaging

  • Code: 000-15997-001
€ 1.969,00 € 2.316,78 -15%
Previous price: € 1.899,00
you chose:

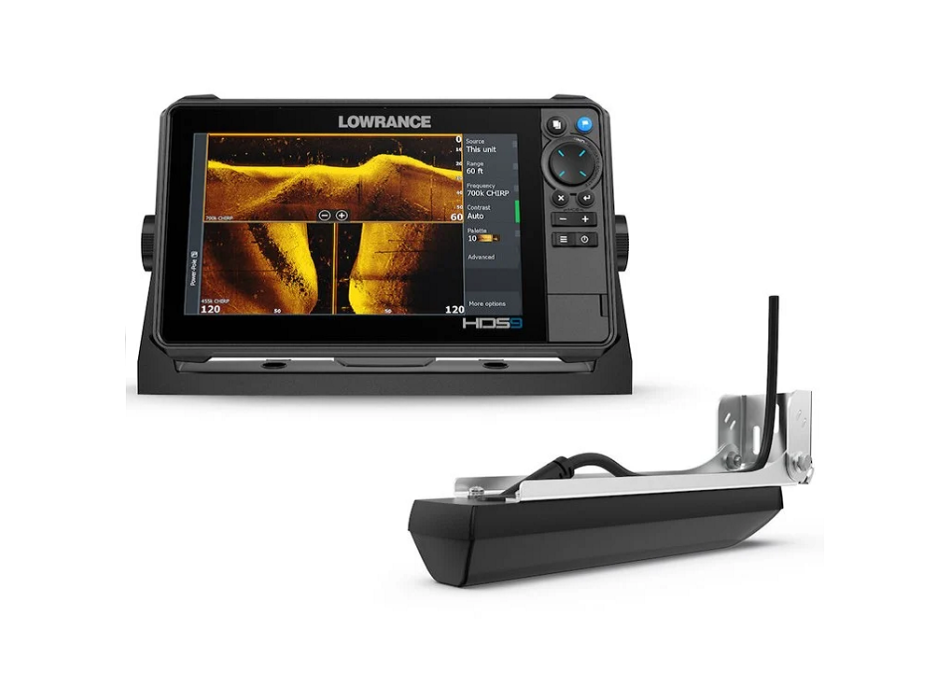

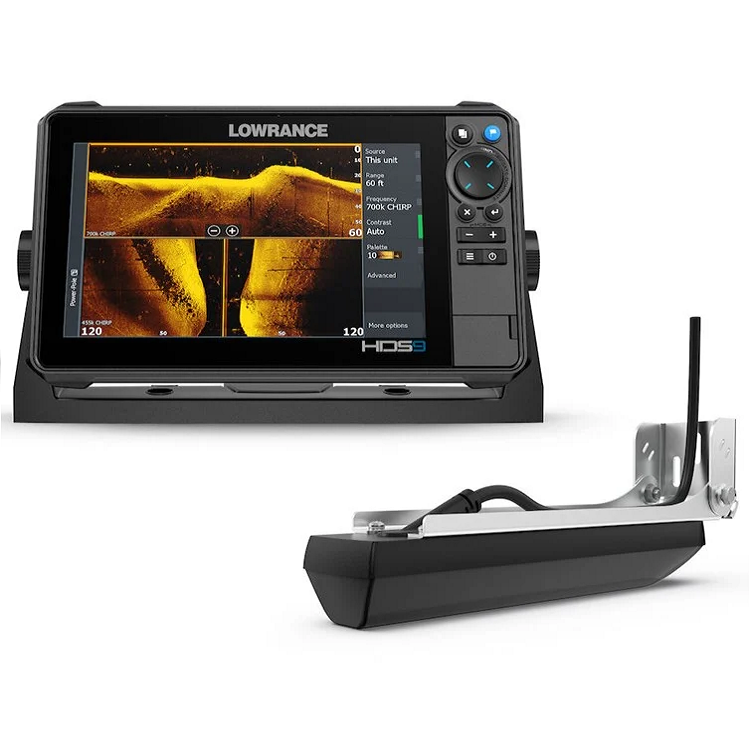

Transducerless - With Active Imaging ™ 3-in-1 transom transducer

Year after year, HDS is chosen by professional anglers more than any other fish finder brand. HDS LIVE will continue this tradition by pushing beyond premium performance and offering the best collection of innovative sonar features available, from the new Active Imaging ™ and StructureScan® 3D with Active Imaging to FishReveal ™ and LiveSight ™ real-time sonar. With HDS LIVE comes a new level of performance for fish hunting.
Returning to your favorite fishing spot or finding a new one has never been easier, thanks to the best range of navigation features ever integrated into the HDS Live display: among them, preloaded world basemap, C-MAP® Easy Routing, Navionics® Autorouting * and C-MAP Genesis Live cartography.

HDS LIVE makes it easier to stay in the water with on-screen text messages and call notifications, offering an intuitive user interface that makes HDS LIVE even easier to use.
Featuring a SolarMAX ™ high resolution HD screen, HDS LIVE delivers industry-leading images that are always easy to view - from any angle, in direct sunlight or even through polarized glasses.
* Navionics subscription required

HDS is chosen by professional anglers more than any other fishfinder model. And it is not a case. HDS LIVE 9 continues this tradition with innovative features such as Active Imaging ™, StructureScan® 3D with Active Imaging, LiveSight ™ real-time sonar with forward or downward configuration compatibility, Genesis Live cartography and more *. The power of HDS LIVE is its wide range of sonar capabilities. HDS LIVE 9 delivers outstanding sonar performance with Lowrance® CHIRP technology, but stands out with built-in support for Active Imaging technology and compatibility with StructureScan 3D with Active Imaging and LiveSight real-time sonar.

HDS LIVE 9 comes with the best navigation tools ever created for the HDS range, including C-MAP® Easy Routing and Navionics® Autorouting capabilities, world basemaps and the new C-MAP Genesis Live chart system, which allows anglers to draw 1/2 foot contour maps in real time on the HDS LIVE 9 display.

Fish overlay function - superimposes the image detected by the standard echo function on the HDI image.
Displays fish on the bottom structure image.

Featuring a SolarMAX ™ high resolution HD screen, HDS LIVE 9 delivers industry-leading images that are always easy to view - from any angle, in direct sunlight or even through polarized glasses. HDS LIVE 9 offers powerful fish finder sonar equipped with a high-performance dual-core processor, which ensures smooth and uninterrupted operation, touchscreen responsiveness, redraw speeds and faster sonar updates. Designed to easily handle current technology and future upgrades, HDS LIVE additionally offers a wealth of integration options - from Power Pole® shallow water anchors to autopilot, 4G ™ Broadband Radar to SonicHub®2 audio, up to to the SiriusXM® Audio and Marine Weather module.


Active Imaging ™ 3-in-1 (CHIRP / Side / Down) sonar ready
Active Imaging ™ 2-in-1 (Side / Down) sonar ready
StructureScan® 3D with Active Imaging enhancements (available Fall 2018)
LiveSight ™ in real time sonar compatible
Smartphone notifications
High performance dual-core processor
C-MAP® Genesis Live on-screen cartography
Smart display of FishReveal ™ targets
9-inch SolarMAX ™ high-resolution multitouch screen with the widest range of viewing angles, readable even with glasses fitted with polarized lenses
World base map
C-MAP Easy Routing and Navionics Autorouting functionality
Dual Channel CHIRP: Double sonar beam coverage from the same transducer
Live networked sonar: greater water coverage and clearer fish detection by a network of CHIRP sonar transducers
Compatible with the SiriusXM® Marine Weather and Audio module
Wireless and Bluetooth® connectivity
Thermal mapping function that allows anglers to detect changes in water temperature to locate

Screen brightness> 1200 Nits
Refresh rate 10 Hz
Shock Vibration 100,000 cycles of 20 G
Supply voltage 12 v DC (10.8-17 VDC)
Secure compass 12 "(300mm)
1280 x 720 screen resolution
GPS receiver channels 16
1x Micro-C NMEA 2000 connectivity
SD card storage 2 micro SD cards up to 32GB
2 x 100 Mbit Ethernet ports, 6 max MFDs on a network
Warranty period 2 years + 3 additional years of upgrade options for a total of 5 years
Typical Power Consumption 2.0A @ 13VDC with Full Backlight, Sonar On
Power Consumption min 2.0A @ 13VDC with full backlight, Sonar on
Power consumption max 2.9A @ 13VDC with full backlight, Sonar active
Position accuracy 20m RMS
Waypoints, routes, tracks 3000 Waypoints 100 Routes 100 Routes with a maximum of 10,000 points per track
Time of first correction 30s
Weight 4.14 lbs (2.00 kg)
Storage temperature 4 ° F to 140 ° F (-20 ° C to 60 ° C)
Radar compatibility Halo24 (Broadband) 3G (Broadband) 4H (Broadband) Dome Radar) Halo 3 '/ 4' / 6 '(Open Array Compression Radar)
Operating temperature range 5 ° F to 131 ° F (-15 ° C to 55 ° C)
Recommended value of 5A fuse
Dimensions H x W x D 6.56 '' (166.7mm) x 11.02 '' (280.0mm) x 3.05 '' (77.7mm)
Humidity 60 ° C, 95% relative humidity (RH) for 18 hours
Internal storage 8.0 GB internal
Viewing angles 80 ° up / down, 80 ° left / right
AIS Overlay of AIS graph and radar. Details of the target ship
Supported graphics C-MAP (MAX N, MAX N +) C-MAP Genesis C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV + Platinum +) Insight (Pro and HD)
Cartography included C-MAP US advanced base map (AMER models) C-MAP World background (ROW models) Navionics base map (AMER and ROW models)
Digital switching Czone, Naviop
DGPS correction, WAAS
Compliance with FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM approvals
Mount Type Gimbal Bracket Front Dash Flush Mount Support for rear flush mount
Bluetooth Integrated Bluetooth 4.0 with support for Bluetooth Classic
Sonar Compatibility Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructureScan3D
802.11b / g / n Internal WiFi Connectivity Element and compatible with the WiFi-1 module
Waterproofrating IPX7 with closed door
PC connectivity None
Autopilot Outboard pilot MotorGuide Xi5 / Xi3 Trolling motor ** requires Motorguide PinPoint Gateway
Video Output: No Input: RCA composite video - single channel via optional adapter
Pure white LED backlight color
Multimedia SonicHub SonicHub2 FusionLink integrates any NMEA 2000 compliant Marine Audio product
Touchscreen interface: Full multi-touch touchscreen keyboard: 8-way directional keyboard Zoom +/- Exit Enter Waypoint Power / Light menu
NMEA 0183 sentences are supported
