Simrad Lowrance B275LH-W 1KW Pass-Through Transducer Bronze

(0)
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 2.789,00 € 3.405,57 -18%

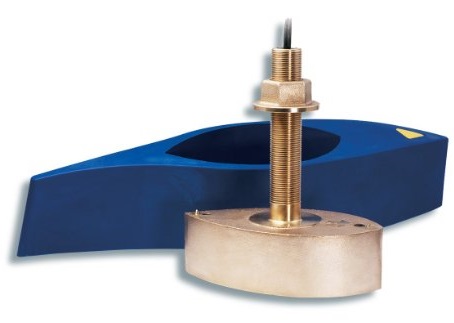

SIMRAD - LOWRANCE TRANSDUCER B275LH-W

B275LH-W transducer compatible with Simrad NSS evo3 and Lowrance HDS displays, with dual xSonic 9 PIN connector.

Get greater coverage beneath your boat with Airmar's exclusive wide-beam, high-frequency, Chirp-ready transducer. The high-band operates over a frequency range of 150 to 250 kHz and has a fixed 25° beam angle across all frequencies. The high-frequency band offers superior resolution. The consistently wide beam provides twice the coverage and excellent fish arches on your display compared to most high-frequency narrow-beam transducer options.

The included Fairing Block improves broadband results at speeds above 30 knots (34 MPH).
The Wide-Beam cone is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential up to 152m (500').
The low-frequency band and 1 kW of power also support excellent deepwater performance. Get the best of both worlds with Airmar's dual-frequency, CHIRP-ready transducers with wide-beam coverage.
Characteristics
Fast-response depth and water temperature sensor
1 kW for great performance in deep water from low frequency
Low frequency: 42 to 65 kHz

Beam width from 25° to 16°
Maximum depth of 914 m (3,000 ')

High frequency: 150 to 250 kHz

Constant beam width of 25°
Maximum depth of 152 m (500 ')

123 kHz total bandwidth from one transducer
Covers the most popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
High frequency provides superior shallow water performance, bottom detail and fish-target separation
High beamwidth provides greater coverage for fish detection in the upper water column
Bronze housing with high performance fairing for optimum performance at the highest speeds
D Buonasera. Questo trasduttore è compatibile con elte fs9? Se non fosse compatibile quale potrebbe essere un alternativa? Consideri che pesco a slow pitch (tra 50 e 150 mt) e a bolentino di profondità (attualmente intorno ai 200 mt) ma piacerebbe spingermi fino a 400-500). Grazie
R 26/12/2025 Buongiorno, spiacente purtroppo compatibile solo con display HDS, domanda, lei ha già un display Elite FS? Cordiali saluti. Luigi Bianchi
D Buongiorno, ho un lowrance live 7 pollici, ho un trasduttore di poppa da 1kw ma.non mi trovo benissimo Il.mio eco è idoneo per B275LH-W? Attendo Vs riscontro Grazie
R 04-12-24 Buon pomeriggio, se mi conferma che si tratta di HDS 7 Live, confermo la compatibilità. Però in tutta sincerità investire su questo tipo di trasduttori abbinati a display di piccole dimensioni, non trovo sia conveniente, a mio avviso dovrebbe valutare la sostituzione anche del display almeno minimo con uno da 9". Cordiali saluti. Luigi Bianchi
D Buongiorno, posso cambiare le frequenze o sono preimpostate?
R 04-11-24 Buonasera, le frequenze non si cambiano sul trasduttore, bensì sul display, dipende a quale display lo si abbina, solitamente sì, può scegliere una frequenza fissa. Cordiali saluti. Luigi Bianchi
D Gradirei sapere se è compatibile con il Display Multifunzione GPS-Radar-ECO "Lowrance HDS PRO 12 Active Imaging HD". Grazie. Cordiali saluti. Luciano
R 01-02-24 Buongiorno, sì certo, confermo la compatibilità. Cordiali saluti. Luigi Bianchi
D Buongiorno, desidererei sapere se è compatibile con l'ecoscandaglio HUMMINBIRD Solix 12. Grazie. Cordialità. Lorenzo Mazzola
R 19-02-23 Buongiorno, non compatibile. Cordiali saluti. Luigi Bianchi
