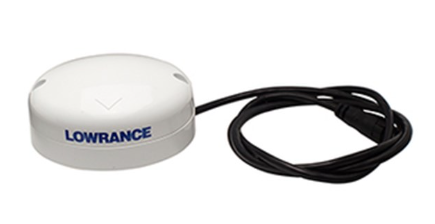

Lowrance Point-1 GPS Antenna

(0)
The Point-1 GPS antenna is the ideal GPS for the navigator who requires extremely accurate and rapid updates of the vessel's position and speed data.
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 299,00 € 340,38 -12%
Lowrance Point-1 GPS Antenna

The Lowrance Point-1 is the ideal position and heading device. Point-1 provides highly accurate and rapid updates on your vessel's position and speed. Plus, unlike other position-only antennas, Point-1 provides heading for precise vessel heading at any speed for radar/chart overlay. Point-1 easily connects to any HDS Gen2, HDS Gen2 Touch, or Elite-7 display, or to any NMEA 2000 network. It is fully waterproof and can be pole- or surface-mounted on any vessel.

Main functions

  • NMEA 2000 Position and Heading Sensor
  • Supports GPS and GLONASS, compatible with Galileo with future software updates
  • Supports SBAS including WAAS/EGNOS/MSAS
  • 10Hz updates for accurate and consistent positioning
  • The integrated electronic compass provides a 10Hz heading update for map stabilization and radar overlay, as well as accurate vessel heading even at low speeds
  • Compact and rugged design for all marine environments and completely waterproof
  • Includes spat/pole mounting
  • Use with MARPA or autopilot is not recommended.
Specifications
Weight 0.14 kg (0.3 lbs)
Safety compass 0.5 m (20")
Mounting Type Flush mount / Standard Pole Mount

Electric
Maximum power consumption 2 W
Typical power consumption < 2 W
Supply voltage 9 V DC - 18 V DC

Environment
Operating Temperature Range -25°C to 60°C (-13°F to 140°F
Storage temperature range -40 to + 85ºC (-40 to + 185ºF)
IPX7 waterproof level
Humidity 40ºC, 93% RH, operating

Connectivity
NMEA 2000 Connectivity 1x NMEA 2000 Micro-C port, 2 LEN

GPS
GPS Receiver Channels 32 Channels
DGPS, WAAS, EGNOS, GLOANASS, MSAS correction
Refresh rate Up to 10 Hz (1,5,10)
Position accuracy 3m (9.8 ft)
Time to first repair 3s (Cold Start 50s)

Approvals
CE approvals compliance under RED 2014/53/EU Directive

HeadingSensors
Available heading sensor data
Magnetic, Heading, Rate of Turn, Heel Angle, Trim Angle
Heading Sensor Accuracy +/- 3º Heading, +/- 1º Roll/Pitch @ 30º
NMEA 2000 Heading Sensor Data Protocol
Sensor type Solid state

Other
Warranty period 2 Years
D Buongiorno. Dovrei acquistare quest' antenna, da abbinare al lowrance hds 10 pro che due settimane fa ho acquistato da voi. Ho letto la scheda tecnica e qualità prezzo mi sembrano che abbiano un ottimo rapporto. E mi sembra di aver capito che sia compatibile con il mio strumento. Mi confermate di aver capito bene, cosi faccio l.ordine. Grazie mille. Saluti Christian
R 03/05/2026 Buongiorno, sì certo confermo la compatibilità, dovrebbe prevedere anche il kit avviamento NMEA2000 se non presente a bordo: https://www.painestore.it/kit_di_avviamento_nmea_2000_ Anche se il dato Bussola lo considero sicuramente meno preciso rispetto ad una Precision 9. Cordiali saluti. Luigi Bianchi
