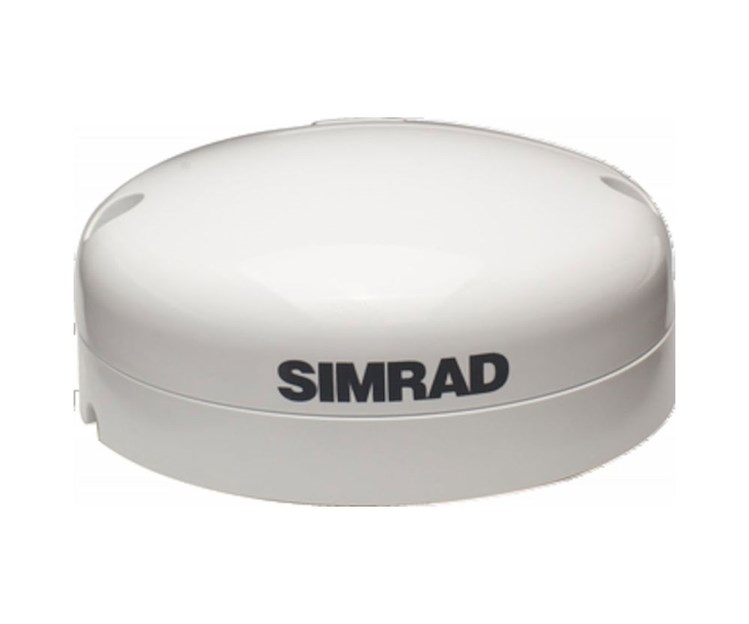

Simrad GS25 GPS Antenna

(0)
The Simrad GS25 GPS antenna is the ideal GPS for the navigator who requires extremely accurate and rapid updates of the vessel's position and speed data.
  • Code: 000-11043-002
  • Brand : Simrad
€ 299,00 € 357,40 -16%

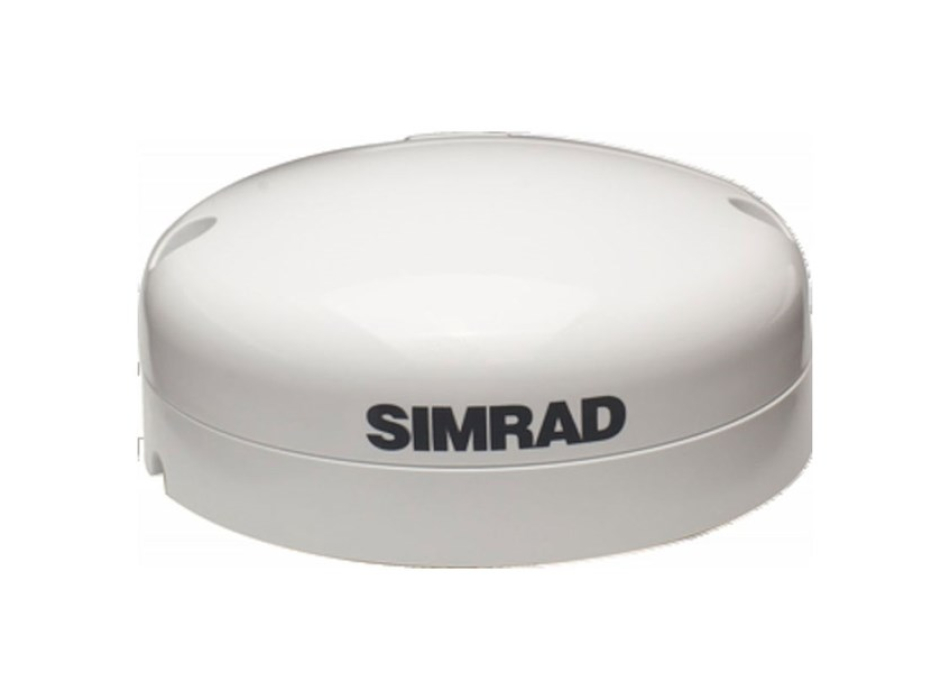

Simrad GS25 GPS Antenna


The Simrad GS25 GPS antenna is the ideal GPS for the navigator who requires extremely accurate and rapid updates of the vessel's position and speed data.
Unlike other position-only antennas, the GS25 provides magnetic heading for accurate vessel heading at any speed for radar/chart overlay.
The GS25 connects easily to any Simrad NS Series multifunction display or any NMEA 2000 network.
It is completely waterproof and can be pole or surface mounted on any vessel.
*Please note that this product is not suitable for use with MARPA or autopilot systems, which require a Rate compass such as the RC42.
Package Contents:
  • N2K-T-RD T-connector
  • GS25/ZG100/POINT-1 pole mount
  • N2KEXT-15RD 15-Foot Network Extension Cable
Specifications
Weight 0.14 kg (0.3 lbs)
Safety compass 0.5 m (20")
Mounting Type Flush mount / Standard Pole Mount
Electric
Maximum power consumption 2 W
Typical power consumption < 2 W
Supply voltage 9 V DC - 18 V DC
Environment
Operating Temperature Range -25°C to 60°C (-13°F to 140°F
Storage temperature range -40 to + 85ºC (-40 to + 185ºF)
IPX7 waterproof level
Humidity 40ºC, 93% RH, operating
Connectivity
NMEA 2000 Connectivity 1x NMEA 2000 Micro-C port, 2 LEN

GPS
GPS Receiver Channels 32 Channels
DGPS, WAAS, EGNOS, GLOANASS, MSAS correction
Refresh rate Up to 10 Hz (1,5,10)
Position accuracy 3m (9.8 ft)
Time to first repair 3s (Cold Start 50s)
Approvals
CE approvals compliance under RED 2014/53/EU Directive
HeadingSensors
Available heading sensor data
Magnetic, Heading, Rate of Turn, Heel Angle, Trim Angle
Heading Sensor Accuracy +/- 3º Heading, +/- 1º Roll/Pitch @ 30º
NMEA 2000 Heading Sensor Data Protocol
Sensor type Solid state
Other
Warranty period 2 Years
