Lowrance Simrad Chirp transducer TM185 1kw stern
Select the TM185M or TM185HW transducer from the drop-down menu

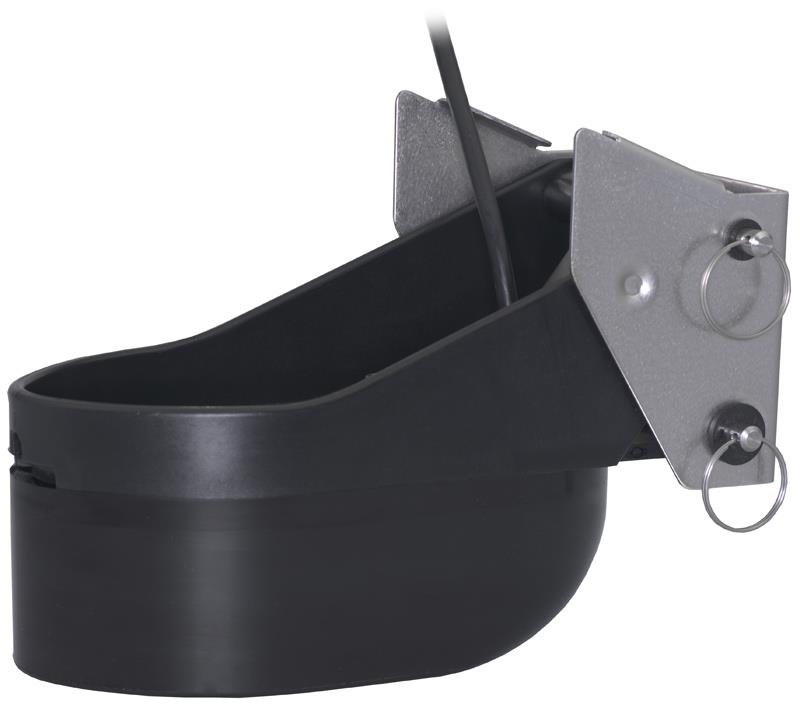

TM-185M - The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore and freshwater anglers who spend time in shallow to medium depths. Its mid-frequency design offers the perfect combination of under-boat coverage, extended depth range, and the ability to produce clean, accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths up to 1,500 feet (457 m) and provides exceptionally clear target resolution.
The TM185M transmits across the following bandwidth: Medium frequency 85 to 135 kHz
Characteristics
- Fast-response depth and water temperature sensor
- 1 kW with a maximum depth of 457 m (1,500 ')
- Medium frequency: 85 to 135 kHz
- Beam width from 16° to 11°
- 50 kHz total bandwidth from one transducer
- Covers the popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
- Mid-frequency provides excellent shallow to medium depth performance, bottom detail and fish-target separation
- Transom-mounted urethane housing with stainless steel bracket for installation on outboard and I/O powered boats
- Also available as a pass-through model ( B285M , B175M ) and internal model ( M135M )
- Exclusive Xducer ID ® technology
Get more coverage under your boat with Airmar's exclusive wide-beam, high-frequency, Chirp-ready transducers. The high-frequency band operates from 150 to 250 kHz and has a fixed 25° beam angle. This results in superior resolution. The consistently wide beam provides twice the coverage and excellent fish arches on your display compared to most high-frequency narrow-beam transducer options.
The High Wide is the ideal choice for both coastal and pelagic fishing, where resolution and maximum coverage are essential up to 152m (500').
Characteristics
- Fast-response depth and water temperature sensor
- 1 kW with a maximum depth of 152 m (500 ')
- High frequency: 150 to 250 kHz
- Constant beam width of 25°
- 100 kHz total bandwidth from one transducer
- Covers the popular fishing frequency of 200 kHz plus everything else in the bandwidth
- The high frequency band offers excellent shallow to medium depth performance, bottom detail and fish-target separation
- High beamwidth provides greater coverage to detect fish in the upper water column
- Urethane transom transducer
- Stainless steel bracket for installation on outboard and I/O motor boats
- Recommended for use on planing and displacement hulls
- Also available as a pass-through ( B175HW ) and internal ( M285HW ) mount
- Exclusive Xducer ID ® technology
