Maretron Micro Straight Female Connector Mid Size

(0)
€ 34,95 € 39,00 -10%
Maretron

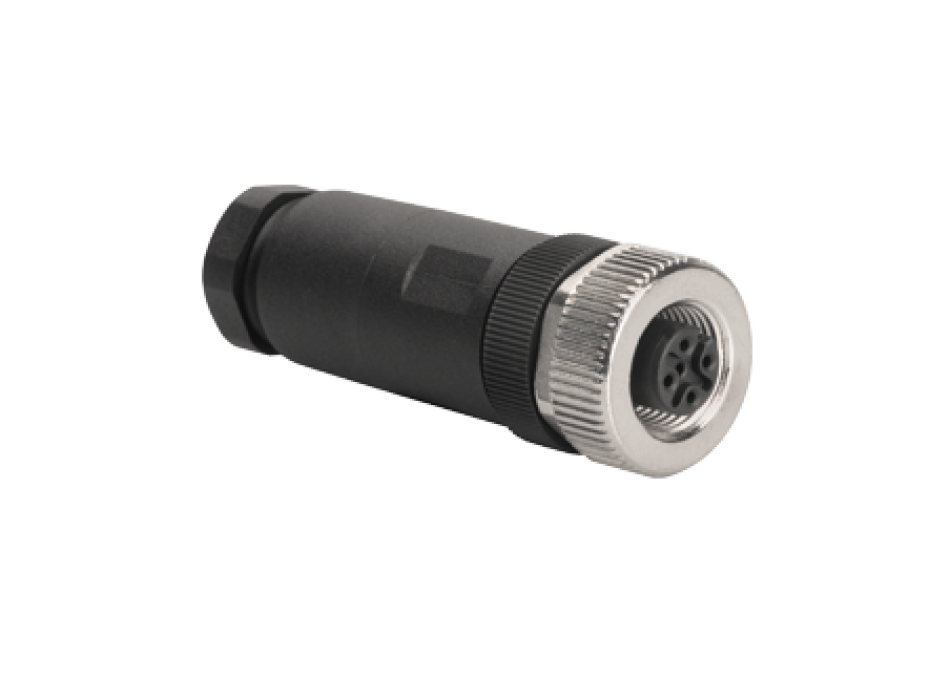

Maretron Micro mid Field Connector (straight Female)
Female connector to be wired for straight mid-size Maretron cable, it is a connector that allows you to create an NMEA cable of the desired length.

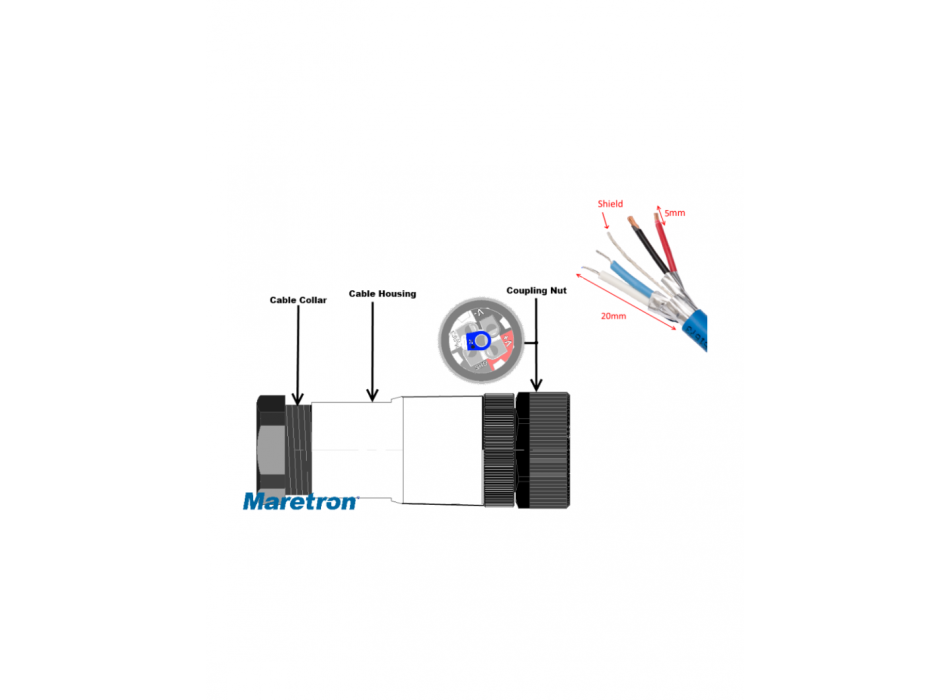

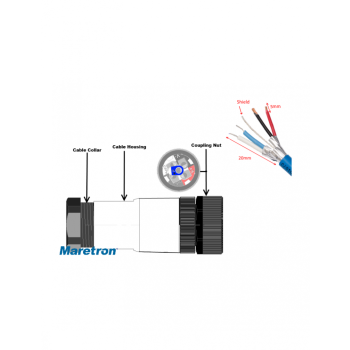

Thanks to the color coding directly on the terminal, the installation of this connector is simple and error-free.

Code FA-CF-ST
TECHNICAL SPECIFICATIONS
  • Housing Surface/Plating: Nylon/Black
  • Contact Surface/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Maximum wire size: 18 (1.02 mm) AWG
  • Cable grip range: 6-8mm
  • Rated current: 4.0 Ampere
  • Rated voltage: 30V AC/ 36V DC
  • Protection class: IEC IP67
  • Temperature range: -40°C to 85°C (-40°F to 185°F)
  • NMEA APPROVALS: NMEA 2000® Approved
  • IEC: IEC-61162-3
