-11%

Maretron NMEA 2000 N2k Cable

(0)
€ 8,50 € 9,50 -11%
MARETRON NMEA 2000 CABLE

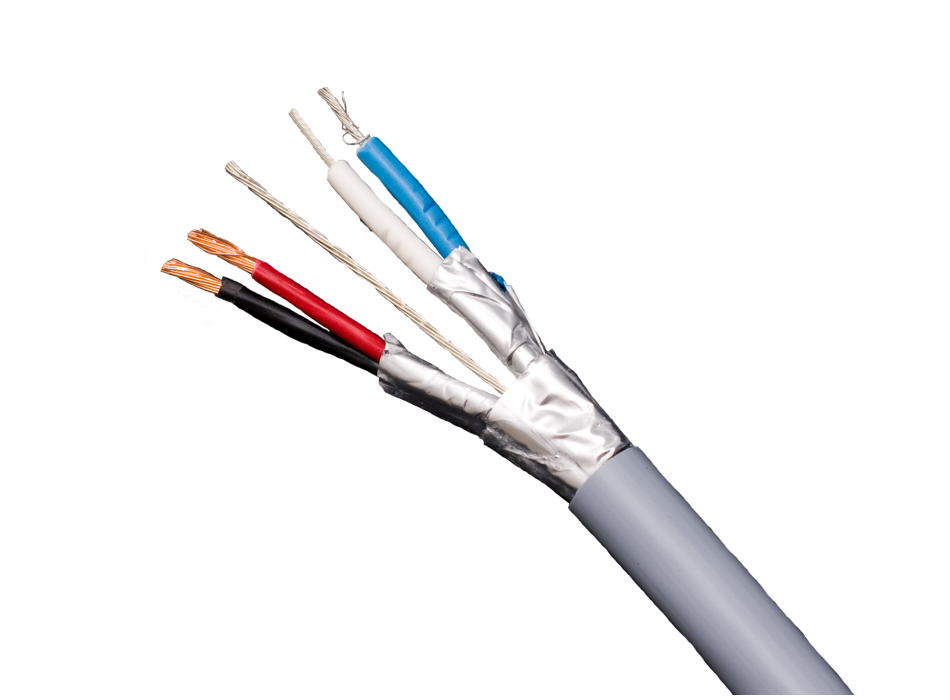

Maretron Mid Bulk Cable DG1-100C
The Mid Bulk cable is primarily used as a drop cable, but can also be used as a backbone depending on your network's power requirements. The mid cable is rated for up to 4 amps. It uses field-attachable micro connectors (NOT INCLUDED) .
(Price per meter, indicate the quantity in the order)

DG1-METER
TECHNICAL CHARACTERISTICS
  • External Coating Mat/Color: PVC/Grey – DG1 PVC/Blue – DB1
  • Insulation material: PE (data cables), PVC (power cables)
  • Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG,
  • 20 (0.81 mm) AWG shield wire
  • Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)
  • Power supply pair Cable: 2x16 (1.29 mm) AWG
  • Resistance/Conductor: 4.1 Ohm/1000 ft max
  • Maximum amperage: 14 Amperes
  • Color Code: Red/Black
  • DATA PAIR Cable: 2x20 (0.81 mm) (AWG)
  • Characteristic impedance: 120 Ohm ± 10%
  • Capacitance: 10.75 pF/ft
  • Signal Cables: White/Blue
  • APPROVALS: PLTC 75°C sunlight resistant E90625, AWM 80°C 300V CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000® Approved
  • IEC: IEC-61162-3
Accessories, NMEA2000, Ethernet
