Maretron NBE100 Network Splitter Bus Extender NMEA 2000 N2k

(0)
€ 855,00 € 900,00 -5%
MARETRON NMEA 2000 NETWORK SPLITTER

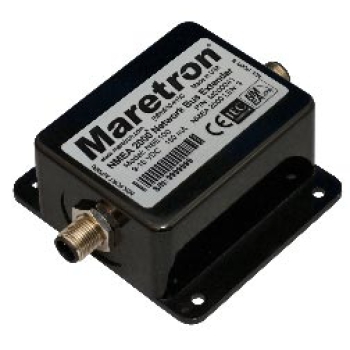

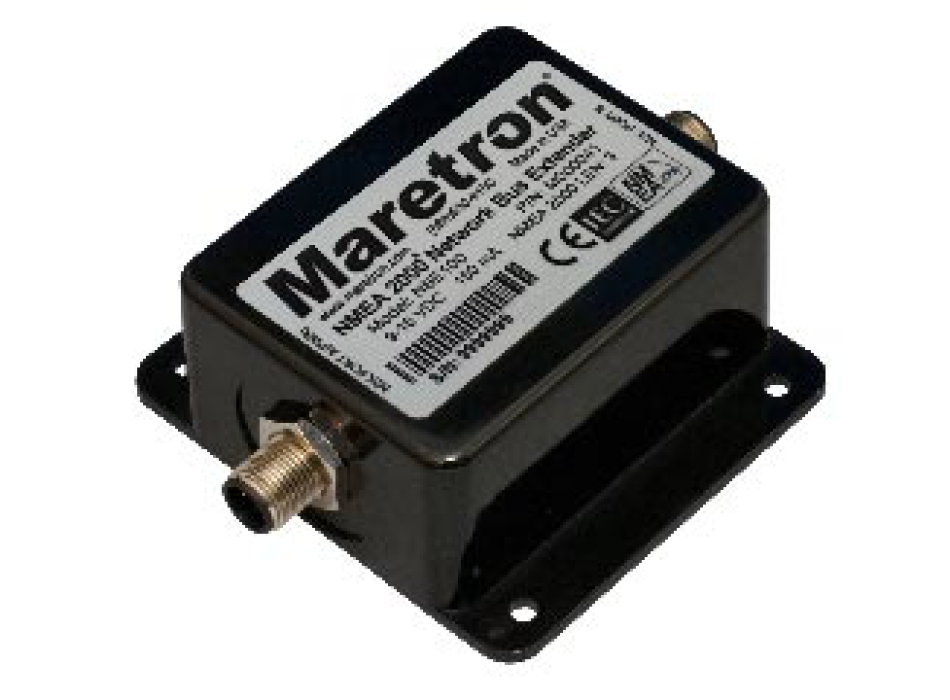

Maretron bus extender NBE100
It is used to extend the NMEA 2000 backbone line by dividing it into two shorter parts while maintaining the data connection and allowing the insertion of two access points.
diet .
Maretron's NBE100 (Network Bus Extender) also allows you to extend the maximum number of nodes, line length, and cumulative drop length of any NMEA 2000 network.
The NBE100 solves bus errors and other electrical problems caused by exceeding these limitations and simplifies the design of large networks.

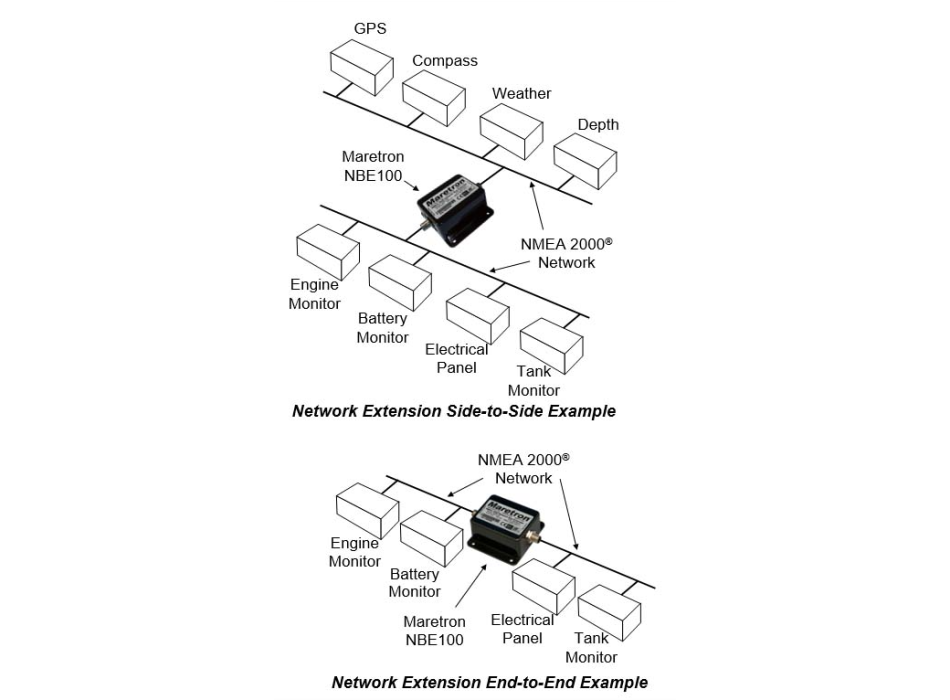

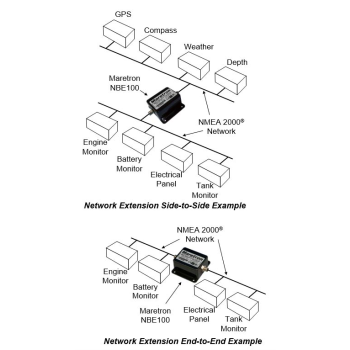

If you have a network that exceeds the specified lengths, you can simply disconnect the network in the middle and connect the ends to the NBE100, along with additional terminating resistors (not included) . This will split the network into two electrical segments.
The NBE100 will transparently route NMEA 2000 messages between the two network segments, causing them to operate as a single logical NMEA 2000 network.

Code NBE100-01
TECHNICAL CHARACTERISTICS
Response to Request PGNs 126464 PGN List (Transmit and Receive) N/A
126998 Configuration Information N/A

PGNs Protocol 059392 ISO Acknowledge N/A
059904 ISO Request N/A
060928 ISO Address Claim N/A
065240 ISO Address Command N/A
126208 NMEA Request/Command/Acknowledge N/A

Maretron Proprietary PGNs 126720 Configuration N/A
  • Voltage 9 to 16 Volts DC
  • Consumption <150mA Average absorption
  • Equivalent Load (LEN) 3 NMEA 2000® Spec. (1LEN = 50 mA)
  • Reverse polarity protection
  • Energy class according to SAE J1113
  • Measures 3.11” x 3.46” x 1.38” (79mm x 88mm x 35mm) including mounting flanges
  • Weight (227 g)
EC Classification 60945
IP67 protection rating
Operating temperature -25°C to 55°C
Storage temperature -40°C to 70°C
Relative humidity 93%RH @40° according to IEC60945-8.2
Vibration 2-13.2 Hz at ±1 mm, 13.2-100 Hz at 7 m/s2 according to IEC 60945-8.7
Protection against rain and splashes of 12.5 mm at 100 litres/min from 3 m for 30 minutes according to IEC 60945-8.8
Solar radiation Ultraviolet B, A, visible and infrared according to IEC 60945-8.10
Corrosion (salt spray) 4 times 7 days at 40°C, 95% relative humidity after 2 hours in salt spray According to IEC 60945-8.12
Electromagnetic emission Conducted and radiated emission according to IEC 60945-9
Conducted, radiated, power supply and ESD electromagnetic immunity according to IEC 60945-10
Safety Precautions Hazardous Voltage, Radio Frequency Electromagnetic Compatibility according to IEC 60945-12
