Introducing Simrad® NSX ULTRAWIDE | Built for those who Never Settle.

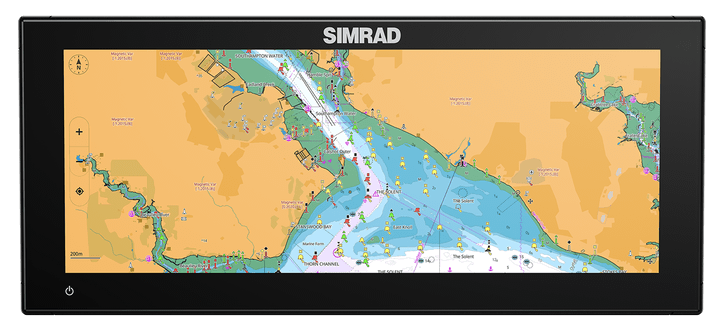

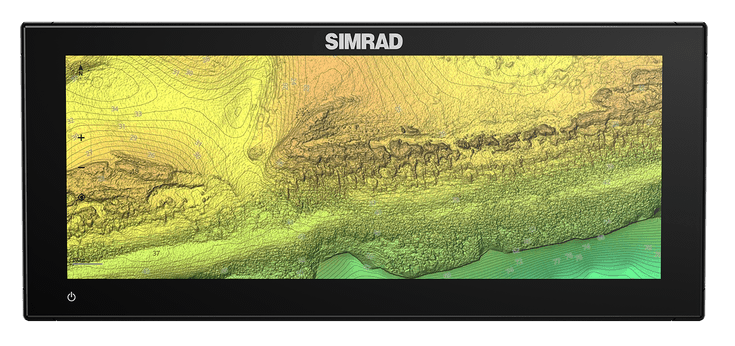

Simrad NSX 3012UW 12" Ultra Wide display

(0)

Expand your horizons with the world’s first ultrawide display, complete with all the navigation features.
NSX ULTRAWIDE delivers all the benefits of dual screens on a single display for an even more immersive experience.

Code: 000-16215-001
Brand : Simrad

Secure payments

Find out more

starting from € 3.179,00 € 3.658,00 -13%

Promotions combined with this product

CHOOSE THE TRANSDUCER

quantity

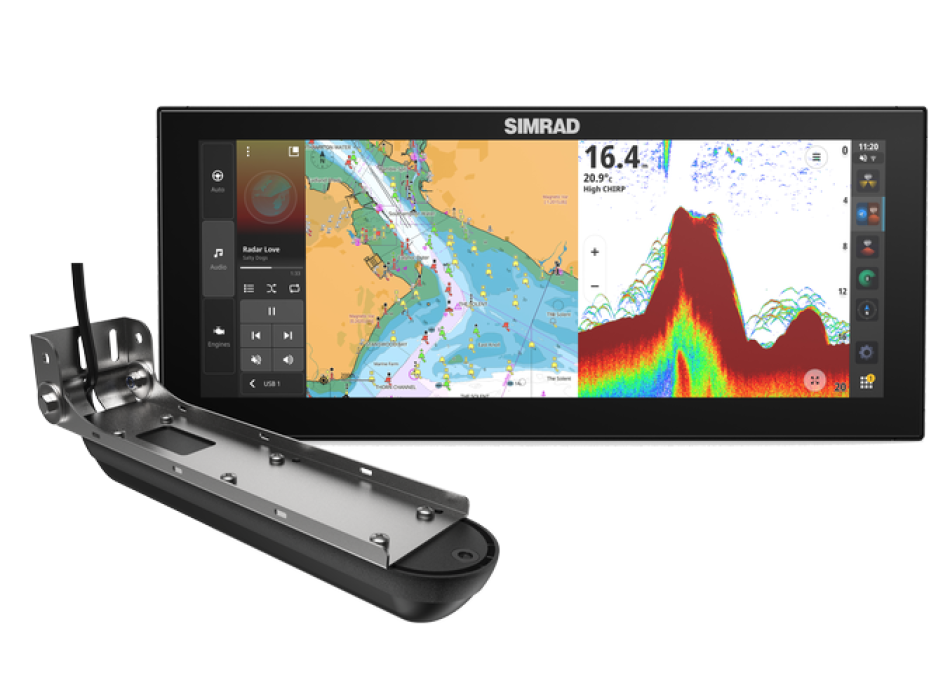

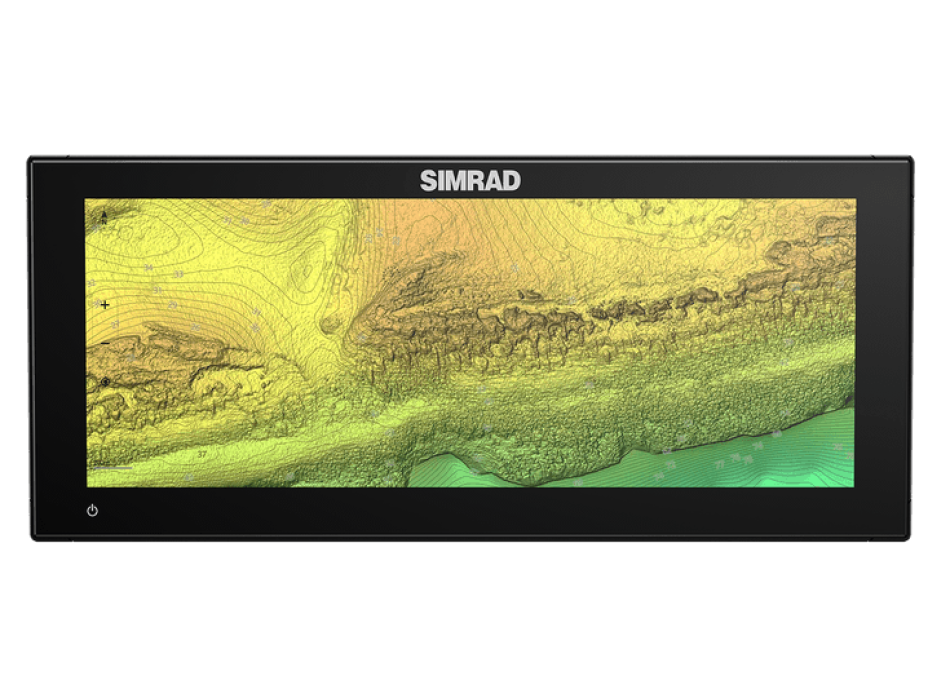

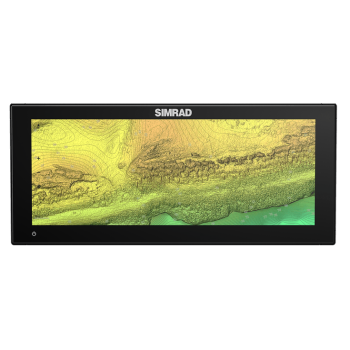

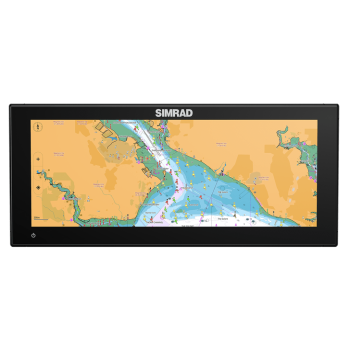

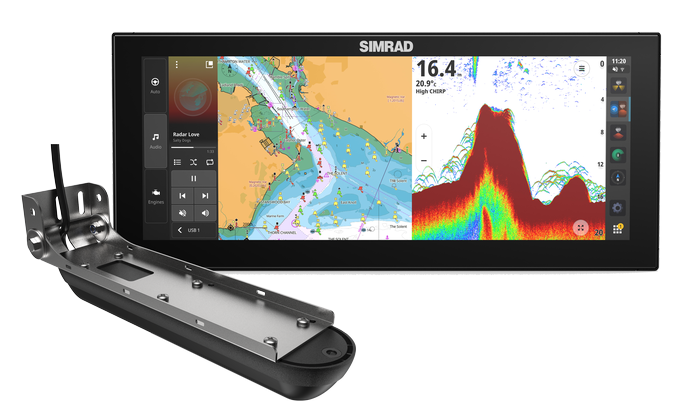

Simrad NSX 3012UW with Active Imaging 3-in-1

Easier navigation thanks to our new operating system

NSX ULTRAWIDE also delivers revolutionary simplicity. Use the intuitive taskbar to pin your favorite apps and switch between them with a single tap. Plus, the fully customizable dashboard lets you tailor NSX to your needs, so you always have the right data at hand—and nothing you don't.

The simplified interface lets you spend your time browsing, not wasting it navigating through menus. And it's faster, too, thanks to our autorouting system that calculates routes in a third of the time.

Upper engine control

Connectivity is at the heart of the NSX ULTRAWIDE. The display sends more information to the helm than ever before, offering superior control over the entire suite of onboard technologies.

The first key point is superior engine control. No one integrates with Mercury better than us, and the NSX ULTRAWIDE also offers advanced integration with other leading propulsion brands, such as Honda and Suzuki.

Bow-to-stern integration

Control with NSX ULTRAWIDE extends across the entire vessel, with support for CZone digital switching, RGBW lighting, IP cameras and audio – with an intuitive Setup Wizard to help you get it all connected.

Main functions

Simrad Suite Integration

Increase visibility near and far with full support for 3G, 4G and HALO radars
Simplified autopilot integration with NAC-1, NAC-2, NAC-3 and NAC-D pilots
Simrad app integration for waypoint management and offline route planning*

*Mirroring and app control features are not currently available on Simrad NSX ULTRAWIDE.

Integration with third-party tools

Seamless integration with Mercury, including SmartCraft® Connect
Integration with major powertrain brands, such as Honda and Suzuki
Digital switching CZone
OmniSense
Dometic
Lumishore Lighting
Multiple audio partners
IP cameras
Compatible with HTML5 apps
Much, much more...

Maps and navigation

Optimized for C-MAP DISCOVER X and REVEAL X charts
X-Chart Manager
3x faster autorouting*

*Compared to SIMRAD GO

Fishfinding and sonar functionality

Sharing sonar between NSX devices
Compatible with Active Imaging, CHIRP, SideScan and DownScan Imaging and S3100 and S5100 sonar modules*

*Requires an update to software version 1.7 and later

Network connectivity

Wireless
Ethernet
USB
NMEA 2000

Additional functions

The latest Simrad operating system for revolutionary ease of use
SolarMAX ultrawide HD IPS touchscreen with extremely wide viewing angles
Intuitive guided installation
Bracket holder sold separately

Display

Viewing angles: 85° (top, bottom, left, and right)

Backlight color: White

Display size: 12 inches

Screen brightness: >1000 nits

Display resolution: 1920 x 720 px

Physicist

Dimensions (height x width x depth): No bracket, no suncover| W: 337.0 mm (13.30") x H: 147.9 mm (5.82") x D: 88.5 mm (3.48"). With gimbal bracket | H: 157.9 mm (6.22") D:96.5 mm (3.80")

Weight: 1.5 kg (3.3 lbs)

Compass safety: 50 cm (1.7 ft)

Mounting type: Rear mount (bracket supplied), Bracket mount (bracket optional)

Electric

Maximum power consumption: 19.8 W (1434 mA at 13.8 V)

Supply voltage: 12 V DC (10 - 17 V DC min - max)

Recommended fuse rating: 3A

Environment

Operating temperature range: -15°C to 55°C (5°F to 131°F)

Storage temperature range: -20°C to 60°C (-4°F to 140°F)

Waterproof level: IPx6 and IPx7

Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

Vibrations and shocks: 100,000 cycles of 20 G

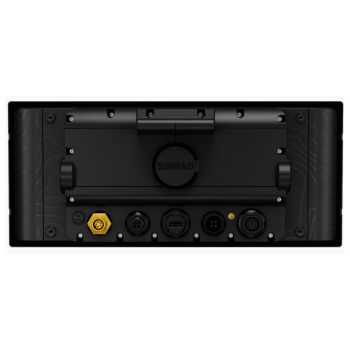

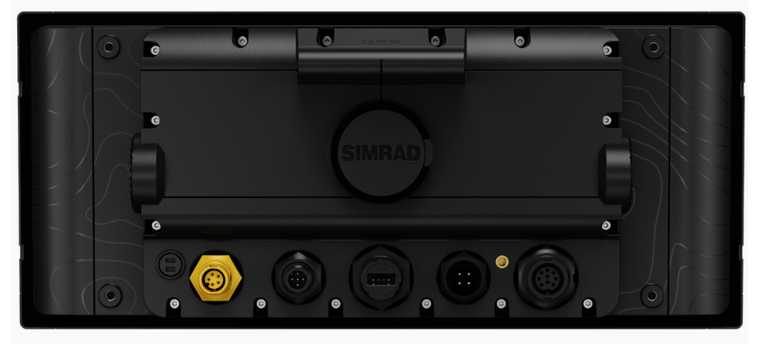

Connectivity

Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic

NMEA 2000 connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN

PC Connectivity: No

Wi-Fi connectivity element: IEEE 802.11b/g/n

SD card memory: 1 MicroSD slot, 1 x USB

Ethernet ports
1 port (5-pin connector)

Video: IP Camera support

MFD

Cartography included: World wide basemap (not for navigation)

Digital switching: Czone / Simrad DDS

Sonar compatibility: One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging

GPS: Internal, 10Hz

Weather forecast: No

Waypoints, routes, tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

GPS

GPS receiver channels: 32 Channels

Refresh rate: 10 Hz high speed update (internal)WASS, MSAS, EGNOS, GLONASS

Location accuracy: Horizontal Accuracy 3 m (9.8 ft)

Other

Interface: Multi-touch screen

Languages: -German (Deutsch)-English (English)-Dutch (Nederlands)-Danish (Dansk)-Spanish (Español)-French (Français)-Italian (Italiano)-Norwegian (Norsk)-Portuguese (Português)-Finnish (Suomi)-Swedish (Svenska)-Icelandic (Islenska)-Greek (ελληνικά)-Chinese (中文)-Turkish (Türkçe)-Estonian (Eesti)-Croatian (Hrvatski)-Lithuanian (Lietuvių)-Latvian (Latviešu)-Polish (Polski)-Chinese Simplified (中文)-Japanese (日本語)-Korean (한국어)-Ukrainian
