PEPWAVE Mobility 42G

(0)
  • Code: ANT-MB-42G-S-W-6
  • Brand : Peplink
€ 436,70 € 462,38 -6%

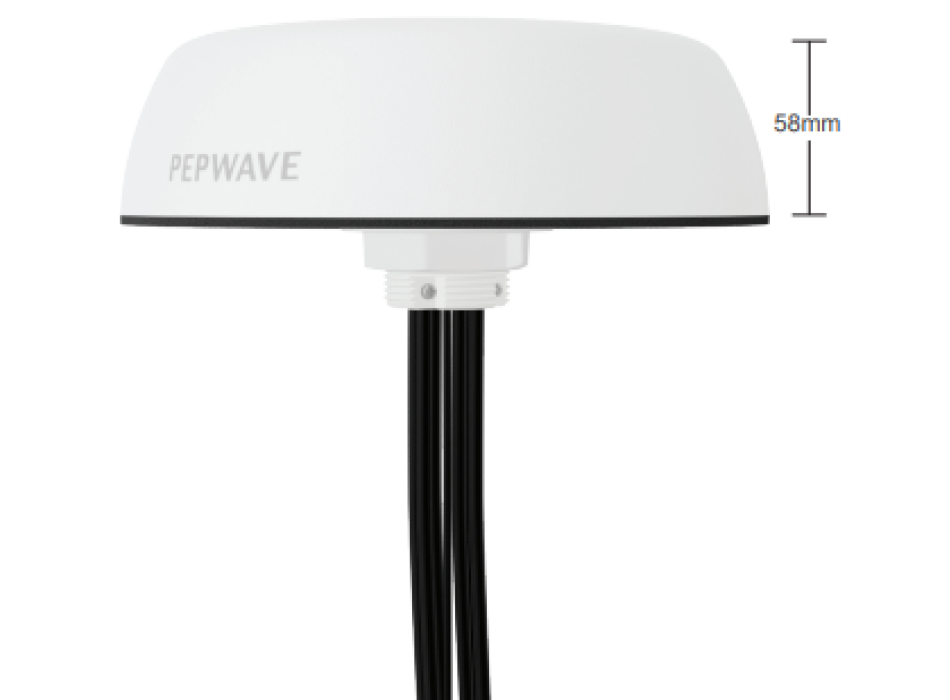

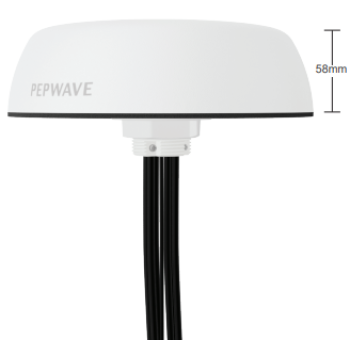

PEPWAVE Mobility 42G (Puma 421)
.
The Peplink Mobility 42G is a 5G-ready 7-in-1 multiband antenna built for mobile applications. It supports 4x4 MIMO for high bandwidth and solid reliability. It is also ready for 5G and supports a wide range of global cellular frequencies. It has 2 built-in Wi-Fi antennas that work with Wi-Fi out and in for Wi-Fi as WAN. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking. The Mobility 42G (Puma 421) has a solid housing made of UV stable plastic materials. Two-color (black and white) options are available to suit different distributions.



4x4 MIMO 5G ready cellular antenna system
2x2 Wi-Fi antennas
1x GPS receiver
Total descent cables N 7
Cellular frequencies 600-6000 MHz
Support B71
Durable and UV stable housing
Black or white color options
Degree of protection IP67
6 foot cables
Cellular

Antenna elements 4 elements
Cellular frequencies 2.7dBi: 617-960MHz 5.2dBi:
1710-2700MHz 4.9dBi:
3400-4200MHz 6.7dBi:
5000-6000MHz
Cellular bands
LTE bands B1 to B86
(except B31, B72, B73, B87, B88),
5G bands n1 to n99 VSWR <2.5 over 95% of the band
Feed power handling 10W
Input impedance 50 Ω
Polarization Linear
Ground plane Not required

Wifi
Antenna elements 2
elements Peak Gain & Frequencies 5.0dBi:
2400-2500MHz 7.5dBi:
5000-6000MHz VSWR <2.5
Feed power handling 10W
Input impedance 50 Ω
Polarization Linear

GPS

Frequency range 1561-1602 MHz
Peak Gain & Frequencies
0.5dBi@1575MHz 1.6dBi@1602MHz VSWR <2 dB
Output return loss 10dB max
LNA Gain 28 ± 3dB
Noise figure 1.5dB max at 3.3V
Operating Voltage 3.3V
Power consumption 8.5 ± 2.5mA at 3.3V

IP rating IP68
Operating temperature -40 ° - 176 ° F / -40 ° - 80 ° C
Storage temperatures -40 ° - 176 ° F / -40 ° - 80 ° C
RoHS compliance, REACH, WHEE Wind Survivability 137mph, 220 km / h
Enclosure flammability UL 94 HB
Cable flammability UL 758 (VW-1)
UV resistance UL 746C (F1 long-term UV exposure)
Salt Spray MIL-STD 810F / ASTM B117
