PEPWAVE AP One AX Lite

(0)
  • Code: APO-AX-LITE
  • Brand : Peplink
€ 604,45 € 645,38 -6%

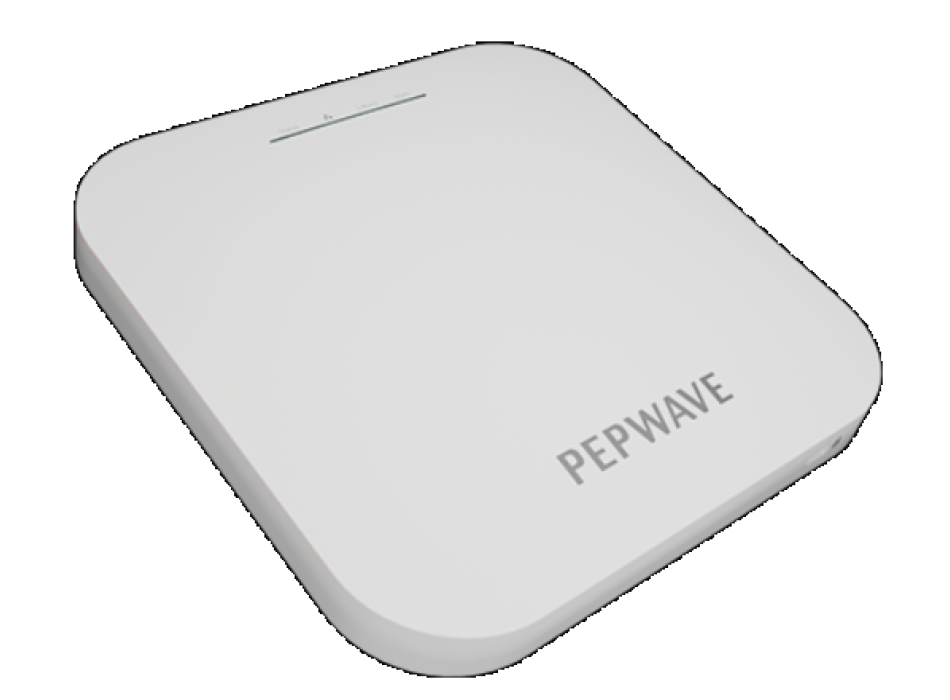

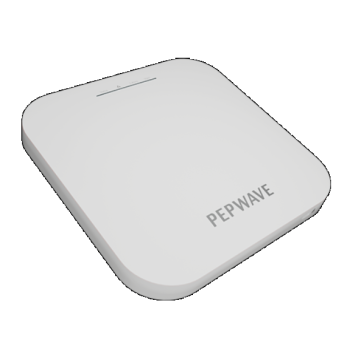

PEPWAVE AP One AX Lite

Access point with integrated Wi-Fi 6 which is 45% faster than Wi-Fi 5, has 4 more radios and consumes less power than previous versions.

Supports 802.11k/v/r, Simultaneously 1x 2.4GHz 802.11b/g/n/ax 1x 5GHz 802.11a/n/ac/ax providing users with seamless roaming experience between access points.






Package Contents:
  • AP One AX Lite
  • Ceiling Mount Base (9/16” T-Rail)
  • Ceiling Mount Base (15/16” T-Rail)
  • Mounting Screw Set
Characteristics:
Product Code APO-AX-LITE
Ethernet Port 1 x 1Gbps
Gigabit Ethernet
Standard Wi-Fi Simultaneous
1x 2.4GHz 802.11b/g/n/ax
1x 5GHz 802.11a/n/ac/ax
Radio Chains/Streams 2 x 2:2
Data Rates 2.4 GHz: up to 574 Mbps
5 GHz: up to 1200 Mbps
Channel Width 20/40/80 MHz
Recommended clients for Radio 256
SSID For Radio 16
Maximum transmit power
(single chain)		 2.4GHz: 24dBm
5GHz: 25dBm
Antenna Built-in Omni antenna:
2x 3dBi - 2.4GHz
2x 3dBi - 5GHz
Enclosure Plenum-rated enclosure
Dimensions 5.9 x 5.9 x 1.3 inches
160 x 160 x 33 mm
Weight 0.84 pounds
382 grams

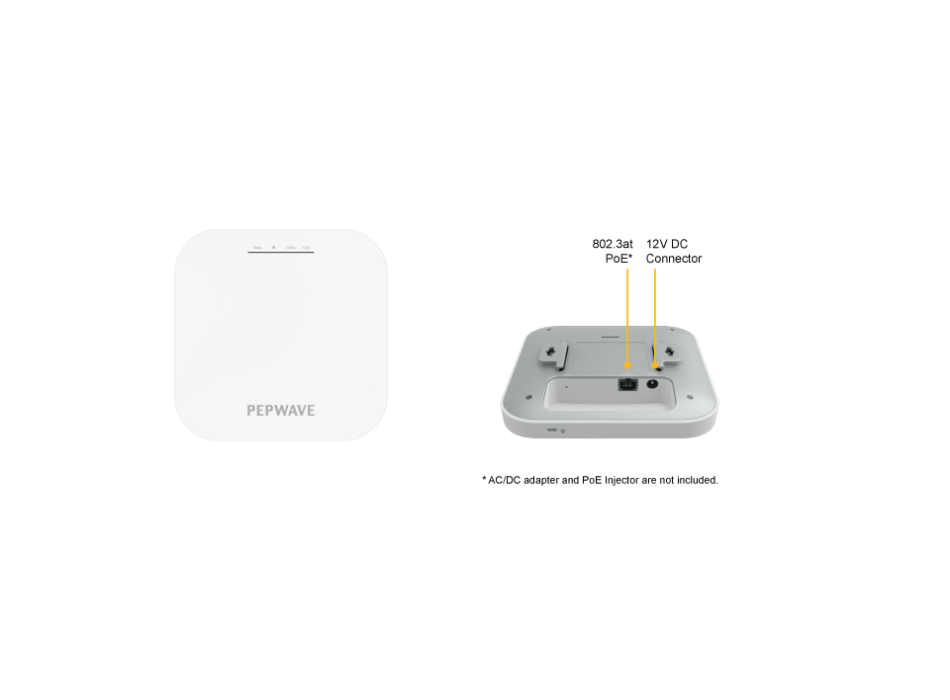

Power Input 12V DC Jack
(Plug 5.5 x 2.1 mm, center positive)*
802.3at PoE*
Power Consumption 14.5W (max.)
Operating Temperature 32ºF - 104ºF
0ºC - 40ºC
Certifications FCC, CE, RoHS
Warranty 1 Year Limited Warranty

* AC/DC adapter and PoE Injector are not included.

Network Bridge Mode
Router (NAT) Mode
Mesh
Wireless Distribution System (WDS)
Support for PPPoE, Static IP, DHCP
VLAN Management
Spanning Tree Protocol
Radio Multiple SSID
Auto Channel Selection
Transmit Power Adjustment
Neighbor AP Detection
AP Security Open
WPA/WPA2/WPA3-Personal
WPA/WPA2-Enterprise
Device Management Web Administrative Interface
InControl Cloud Management
Peplink AP Controller
SNMP v1, v2c and v3
Client Management By SSID
VLAN with QoS (802.1p/802.1q)
Bandwidth Control
MAC Address Filtering
Layer 2 Client Isolation
Limit on Max. Number of Clients

For Clients
VLAN with RADIUS
VLAN with VLAN Pool
Bandwidth Control
Multicast Filter
IGMP Snooping/Multicast Enhancement
