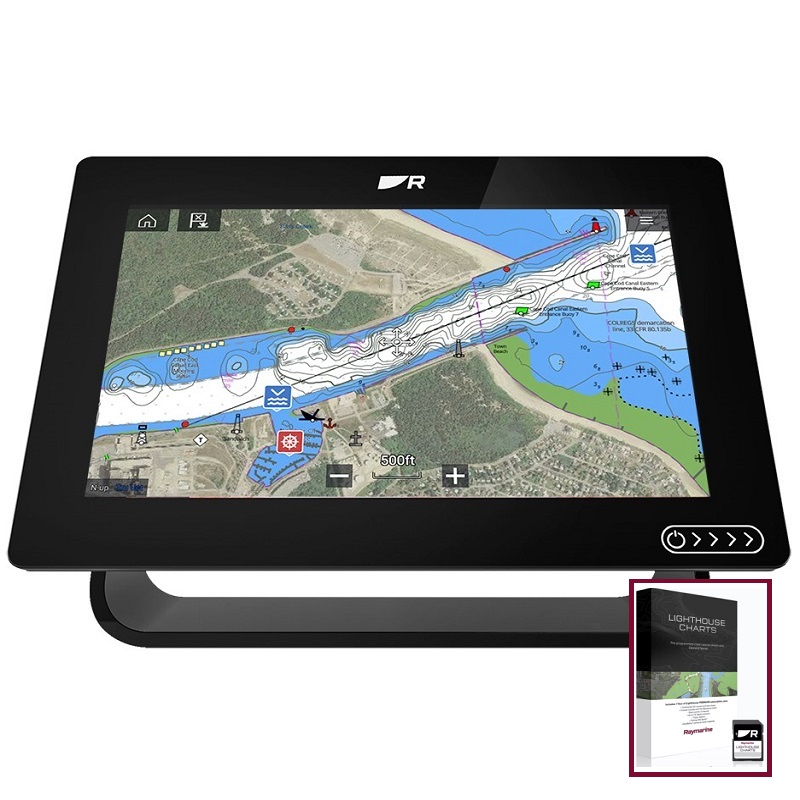

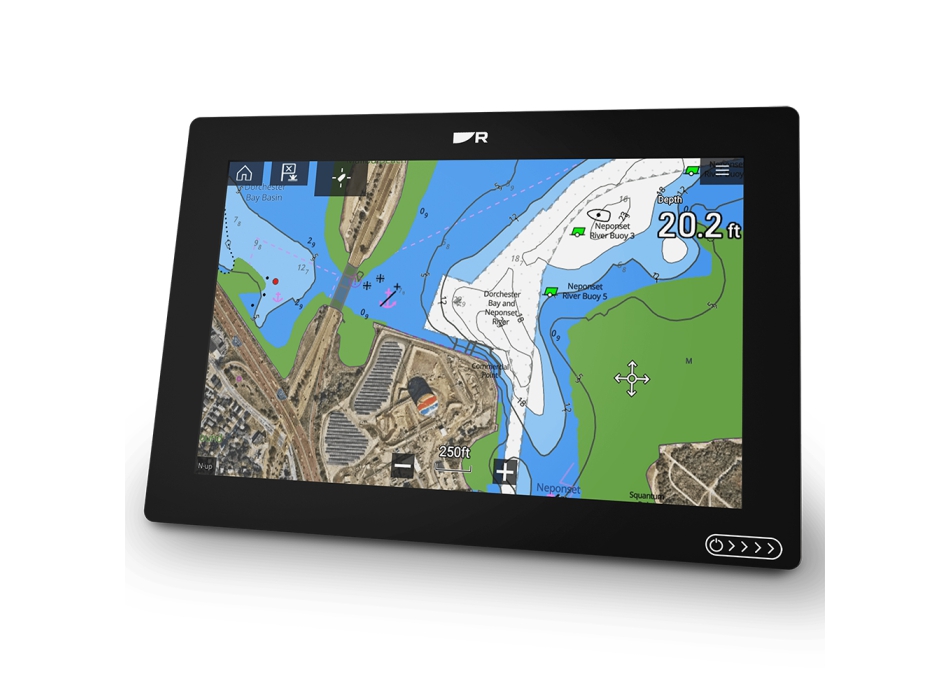

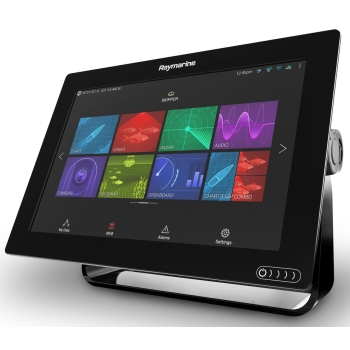

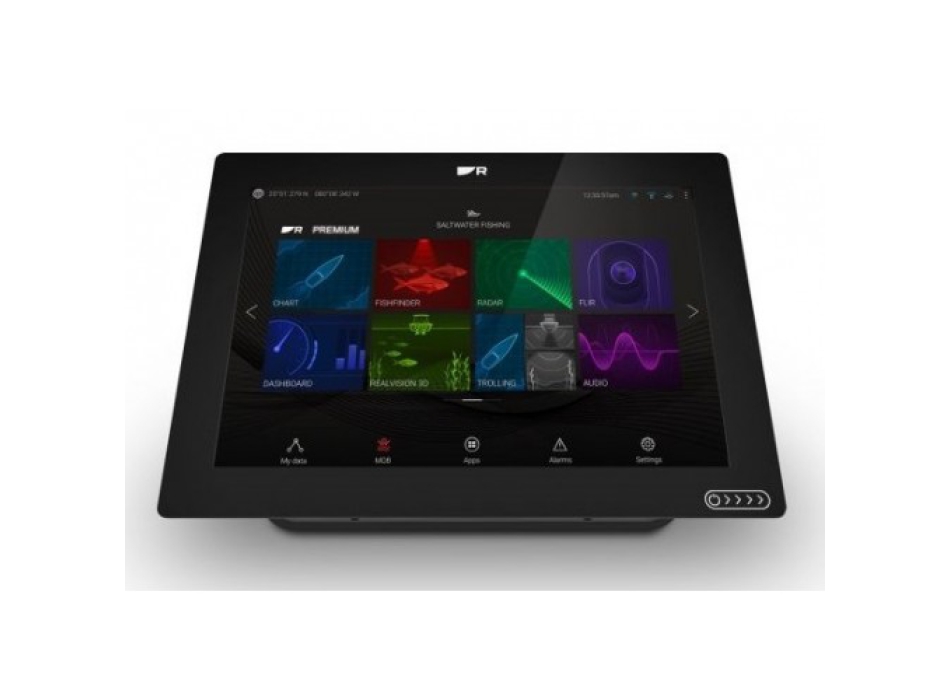

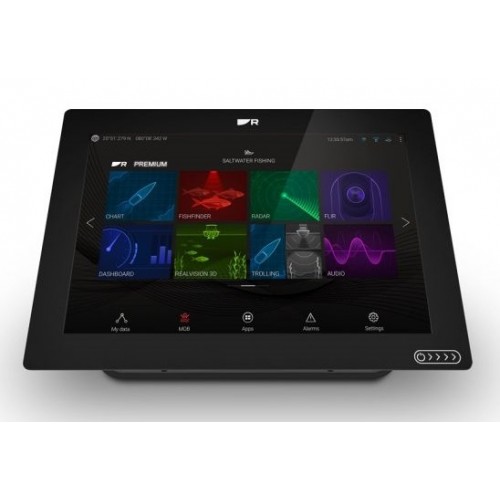

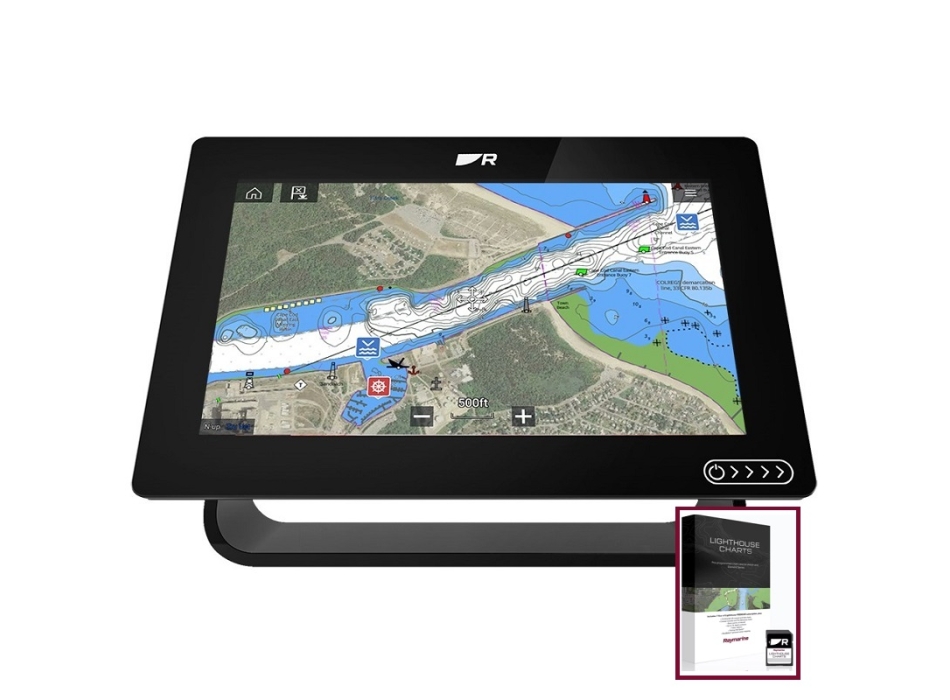

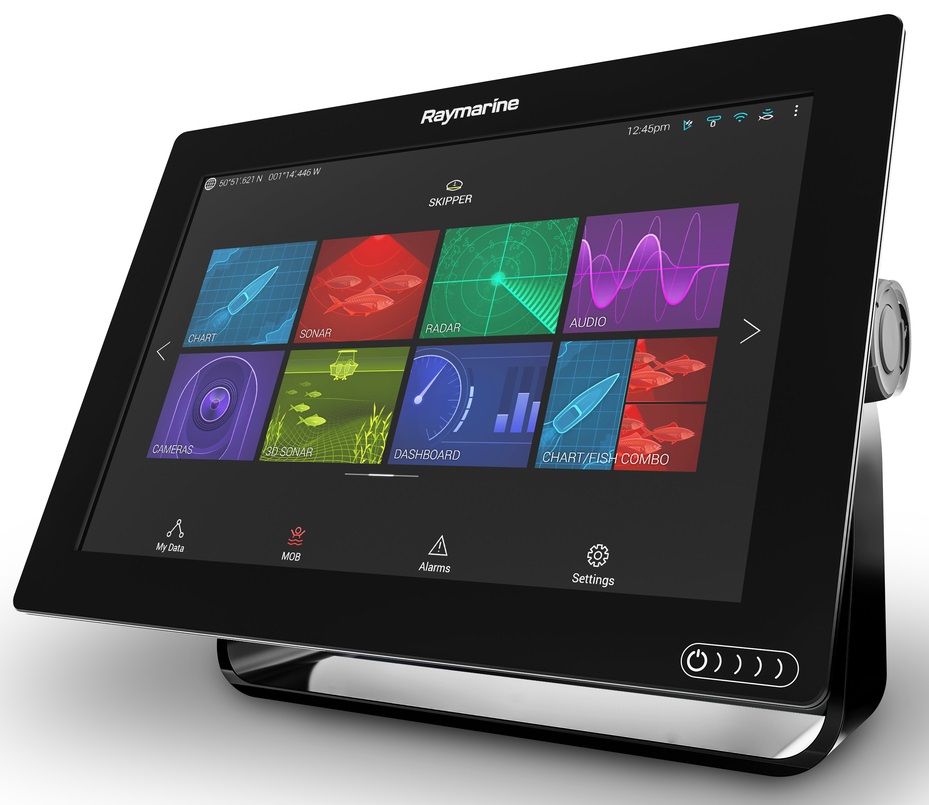

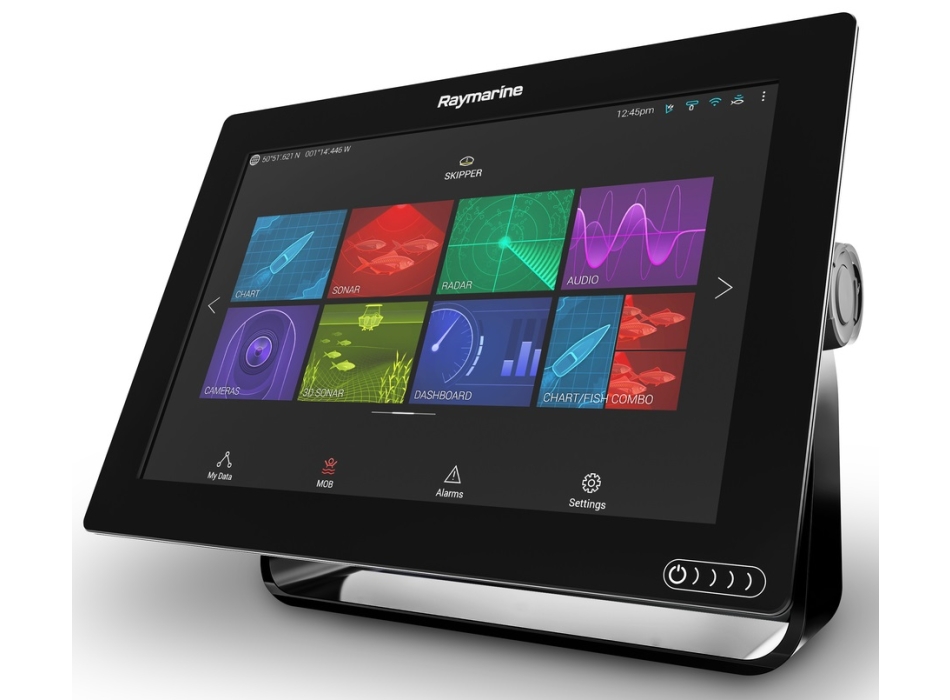

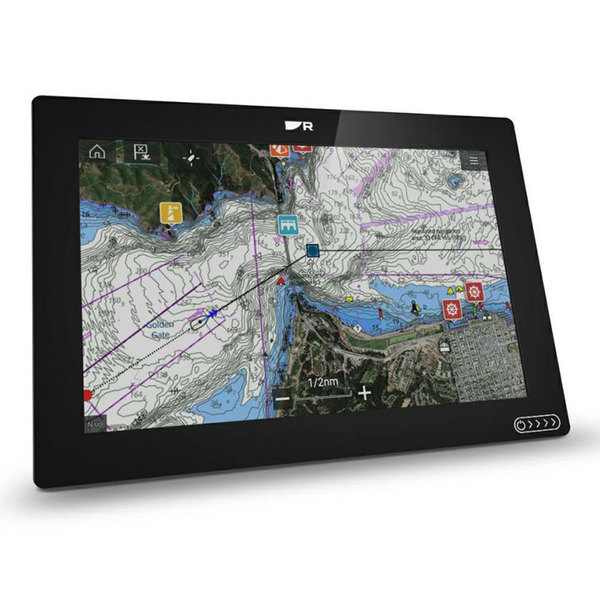

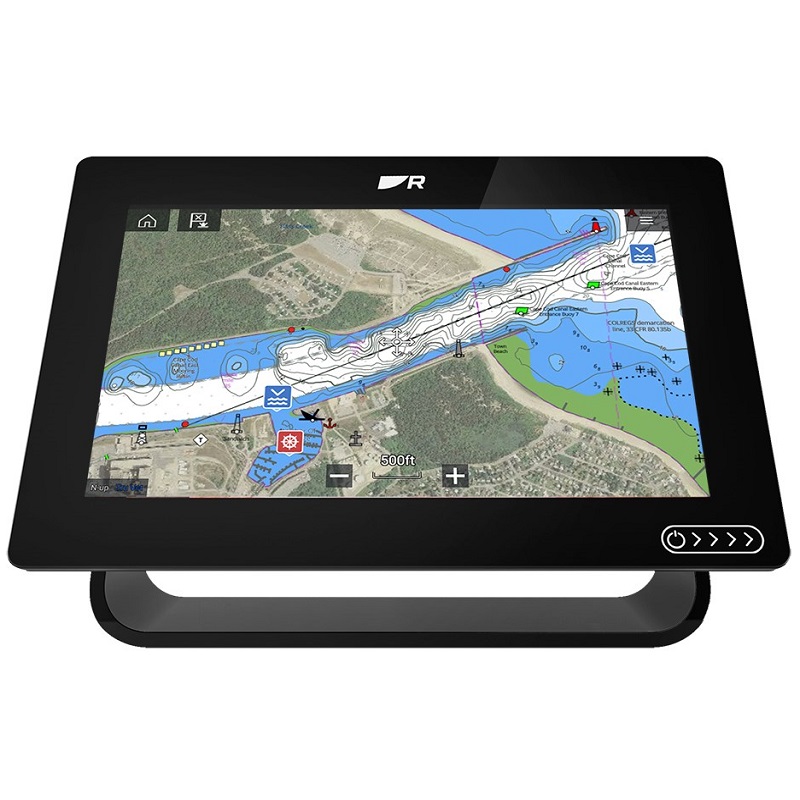

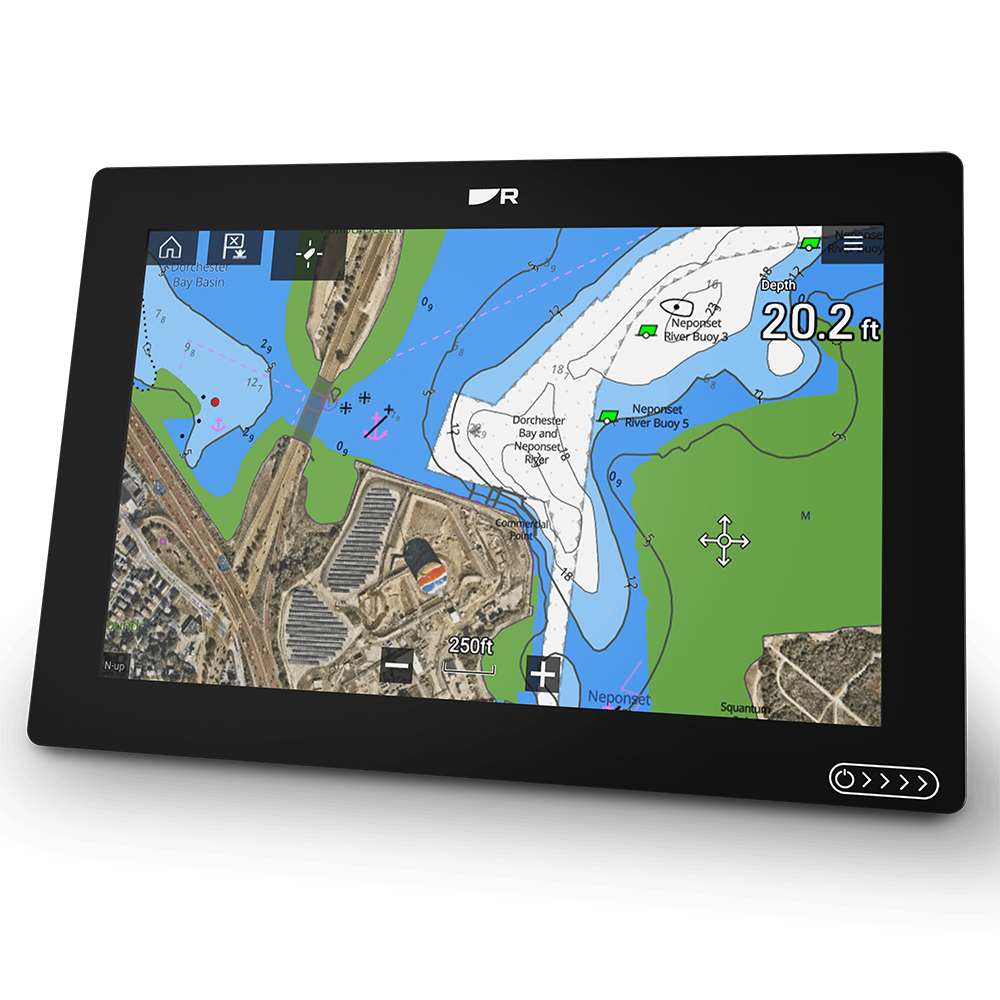

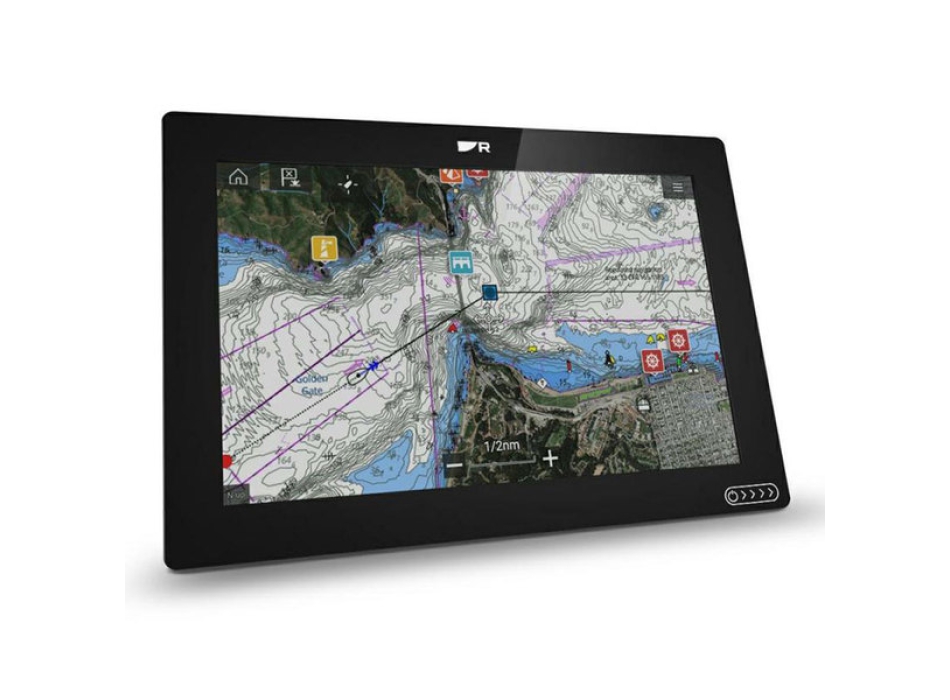

Raymarine AXIOM+ 12 12" multifunction display

Select the option with or without cartography from the drop-down menu.
  • Code: E70638
€ 3.125,00 € 3.592,90 -13%
CHART OPTION
you chose:
Raymarine AXIOM+ 12 Display 12"
GPS only without depth sounder

Designed to ensure the highest performance, Axiom®+ is the NEW generation of Raymarine's award-winning multifunction display. Optimized for speed, Axiom Plus features a powerful, industry-leading quad-core processor for responsiveness and processing power, giving you the ability to redraw maps, navigate with augmented reality, and experience RealVision sonar ™ 3D seamless.

The new high-resolution IPS display provides 25% more brightness and the new day/night color tables offer greater visibility in any lighting condition. Axiom Plus supports the renowned LightHouse 3, the most powerful and easy-to-use operating system for Raymarine multifunction displays.

OPTIMIZED FOR HIGH PERFORMANCE

Fast, responsive and designed to support new features.
Smooth and fast loading of Navionics and C-Map maps.
Powerful quad-core processor, with more onboard memory for personal data and apps.
Smart and intuitive, the LightHouse 3 operating system makes navigation easy.
ClearCruise™ Augmented Reality helps you make smarter navigation decisions.



HYDROTOUGH™ DISPLAY
The glass screen is coated with nanotechnology materials, resists impacts and repels water, oil and smudges for better viewing and accurate touch controls.

BRIGHTER
The 7-, 9-, and 12-inch all-weather displays are 25% brighter (up to 1,800 nits).




CLEARER
IPS display technology offers wider viewing angles and sharp contrast, with double the resolution of traditional displays.
AXIOM+ 12 SPECIFICATIONS
Screen size 12.1 IPS High Density
Display resolution 1280 x 800 (WXGA)
Multitouch screen type with hydrophobic HydroTough™ coating
Brightness 1,800 nits
Viewing angles 88° from top, bottom, right, left
Dimensions
W x H x D 314 x 217 x 77mm
IPX6 / IPX7 waterproof

CONNECTIVITY
Ethernet 1 x 10/100 Mbit/s network port (RayNet)
NMEA0183 No
NMEA2000 NMEA2000 via DeviceNet connector. SeaTalkng compatible with optional adapter
SeaTalkNG Requires DeviceNet (F) adapter cable (A06079 120mm adapter cable included in box)
USB 1 x USB microAB
Wi-Fi WiFi - 802.11 a/b/g/n
BlueTooth Bluetooth v4.0

NAVIGATION
Cartography Compatible with Lighthouse, Navionics, and C-MAP maps
Waypoints/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 groups of wpts / 150 rts - 250 wpts max / 16 tracks - Max 10,000 trk pts




Caratteristiche

Sei interessato ad una offerta privata?
D. Buongiorno non e' compatibile con il radar analogico corretto? o ci sono adattatori?
R. 26-11-22 Buon pomeriggio, purtroppo non compatibile con vecchi Radar Raymarine analogici. Pertanto dovrebbe valutare la sostituzione con una nuova Quantum. Cordiali saluti. Luigi Bianchi
D. buongiorno sono interessato al 12+. ci sono delle previsioni di consegna? grazie
R. 13-07-22 Buonasera, sono in ordine a Raymarine da Dicembre, purtroppo non danno ancora date certe. Eventualmente attivi la richiesta AVVISAMI QUANDO DISPONIBILE, così appena arrivano Le invio il messaggio di risposta. Cordiali saluti. Luigi Bianchi
D. buongiorno , io sarei interessato all'acquisto del gps Raymarine AXIOM+ 12 Display 12" multifunzione .volevo chiedere de le dimensioni dello strumento quali sono in quanto io oggi ho un rainmarine C120 vvecchio di 10 anni e non spazio per allargare il foro di contenimento dell'apparecchio . poi se questo mi si interfaccio con il pilota automatico vecchio sempre rainmarine che ho oggi e con il radar sempre rainmarine . mi può aiutare ? grazie
R. 20-01-22 Buongiorno, l'Axiom 12 in realtà è più piccolo come dimensioni rispetto al C120, solitamente prevediamo una mascherina di adattamento in plexiglass nero. Per la compatibilità con l'autopilota, necessario il kit E22158: https://www.painestore.it/raymarine_kit_conversione_stng_a_seatalk_1_cod_e22158 Purtroppo invece non compatibile con il Suo Radar. A disposizione per chiarimenti. Cordiali saluti. Luigi Bianchi
D. Buongiorno volevo sapere se è compreso trasduttore RV 100? Se non è compreso quanto costa? Quando costa Microsd che fa' tutta Italia. Grazie
R. 11-04-2021 Buongiorno, questa versione non ha l'eco incorporato, dovrebbe valutare la versione RV: https://www.painestore.it/raymarine_axiom_12rv_display_12_eco/gps Tramite menù a tendina, potrà selezionare la variante con trasduttore di poppa RV-100. Costo per la cartografia Navionics, 204,00 euro: https://www.painestore.it/raymarine_navionics_carta_gold_43_xg_micro-sd_card Comunico anche codice Coupon sconto extra 5%: idyxv37q Cordiali saluti. Luigi Bianchi
