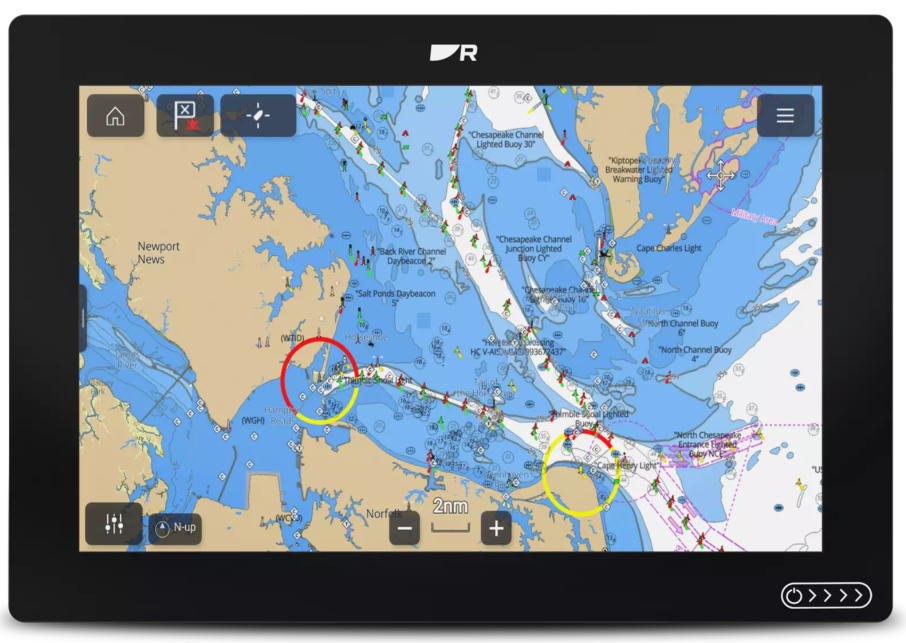

Raymarine AXIOM2 12 12" Multifunction Display

(0)
Select the option with or without maps from the drop-down menu
starting from € 3.179,00 € 3.653,90 -13%
Raymarine AXIOM2 12 12" Multifunction Display
Your trusted marine chartplotter. Now even better.
Our most popular marine chartplotters: now faster, more connected, and built for the future. Axiom 2 combines navigation, sonar, radar, video, and NMEA 2000 networking in one powerful display. Choose Axiom 2 as a dedicated chartplotter for uncompromising navigation, or upgrade to Axiom 2 RV for the perfect chartplotter and sonar combo in a single display.

One display. Total control.
One display. Total control.

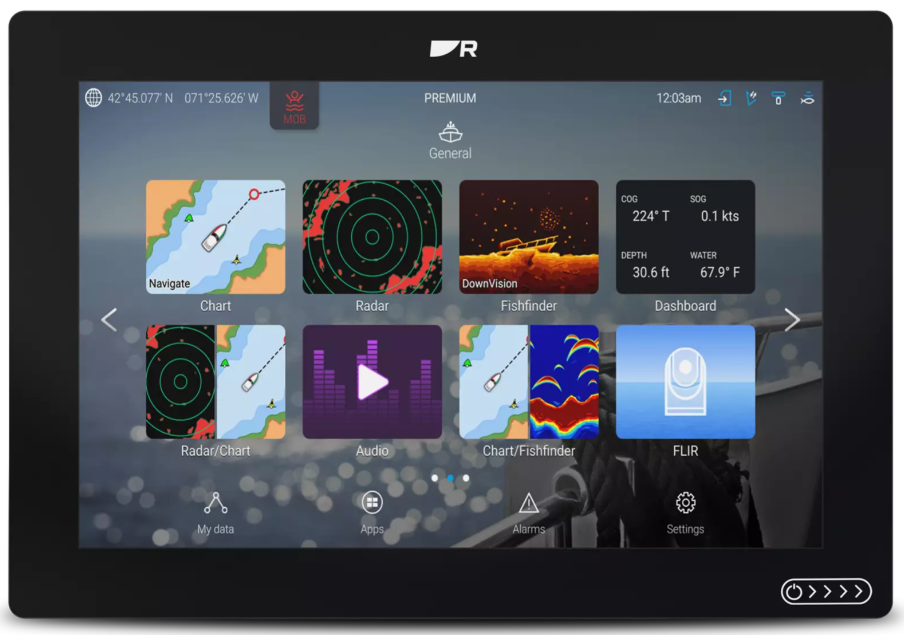

Axiom 2's LightHouse operating system is a single, easy-to-use interface that gives you complete situational awareness. Choose Axiom 2 as your all-in-one multifunction display or connect additional Axiom 2 displays on your bridge or at a remote station.

Navigate smarter with Lighthouse GEN 2 Charts
Navigate smarter with Lighthouse GEN 2 Charts
Get up to 30% faster map rendering with a new 6-core processor and LightHouse OS. Choose the Axiom 2 bundle with LightHouse GEN 2 Charts for smoother map scrolling, faster redraws, and expanded coverage.

Built for speed and expansion
RayNet Gigabit Ethernet enables faster networking between displays and sensors. Experience smoother radar, sonar, and video performance across your entire system.

Engine monitoring
Connect to leading engines, including Mercury, Yamaha, Suzuki, and many others. Monitor performance, fuel, and propulsion data directly from your dashboard.

More features, all integrated
Expand your Axiom 2 with access to over 30 marine apps. Take control of lighting, audio, energy monitoring, and weather systems. Or stream entertainment from Netflix, YouTube, and Spotify.

Guaranteed performance in any weather conditions
Rugged waterproof construction and bright HydroTough™ displays repel water for reliable touchscreen control in all conditions.

Plan routes with the Orca app
Share a route from the Orca mobile app to Axiom 2 via Wi-Fi. Simply enter your starting point and destination, and Orca's advanced navigation algorithms will find the best route for your vessel.

Advanced navigation tools
Optimize your sailing performance with Axiom 2's suite of powerful navigation features, including polar profiles, dynamic heading lines, race timers and tactical navigation displays.
Dimensions (bracket mounting)

Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)

Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)

Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)
Dimensions (surface/flush mount)

Axiom 2 7" Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)

Axiom 2 9" Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)

Axiom 2 12" Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)
Connecting accessories

USB Micro B
Ethernet connection

RayNet (Ethernet 10 / 100 / 1000 Mbit/sec)
External memory

1 MicroSDXC card slot
NMEA 2000 connection

DeviceNet (male connector integrated into the power cable)
Wireless connections

Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
Internal memory

64 GB
Transducer connection

25-pin RealVision-style connector. Requires A80490 adapter cable for CPT-S-style transducers.
Operating temperature

-25°C to +55°C (-13°F to 131°F)
Storage temperature

-30°C to +70°C (-22°F to 158°F)
Relative humidity

Up to 93% at 40°C (104°F)
Waterproof

IPX6, IPX7
Energy consumption

Axiom+ 7: 9.84 W

Axiom+ 9: 11.98 W

Axiom+ 12: 18.96 W
Operating voltage range

8V DC to 16V DC
Fuse amperage

7 A
Rated supply voltage

12 V DC
LEN (Load Equivalency Number NMEA 2000)

1
Resolution

7" Axiom 2: WSVGA 1024 x 600

9" Axiom 2: HD Widescreen 1280 x 720

12" Axiom 2: WXGA 1280 x 800
Display brightness

7" Axiom 2: 1800 nits / 1800 cd/m2

9" Axiom 2: 1500 nits / 1500 cd/m2

12" Axiom 2: 1800 nits / 1800 cd/m2
Protective coating

HydroTough TM Oleophobic
LCD Type

IPS (In-Plane Switching)
Location accuracy

Without SBAS: ≤ 15 meters for 95% of the time; with SBAS: ≤ 5 meters for 95% of the time
Geodetic reference system

WGS-84 (alternatives can be selected in the multifunction display)
Satellite Differential Signal (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels

Tracks up to 28 satellites simultaneously
Antenna

Internal: Ceramic chip mounted near the top of the unit
GNSS compatibility

GPS, GLONASS, Beidou
Almanac update

Automatic
Signal acquisition

Automatic
Sensitivity of the receiver chip

165 dBm (tracking), 160 dBm (acquisition), 148 dBm (cold start)
Operating frequency

From 1574 MHz to 1605 MHz
Refresh rate

10 Hz (10 times per second)
Time for the first cold fix

< 2 minutes
Waypoint

You can store up to 10,000 waypoints in up to 200 waypoint groups
Routes

You can store up to 250 routes, each containing up to 500 waypoints. The route capacity limit is subject to your chartplotter's 10,000 waypoint limit (for example, you can store 20 routes, each containing 500 waypoints).
Automatic route planning

Yes, with Navionics cartography or via the Orca mobile app
Traces

Up to 15 tracks can be stored, each of which can contain up to 10,000 track points.
