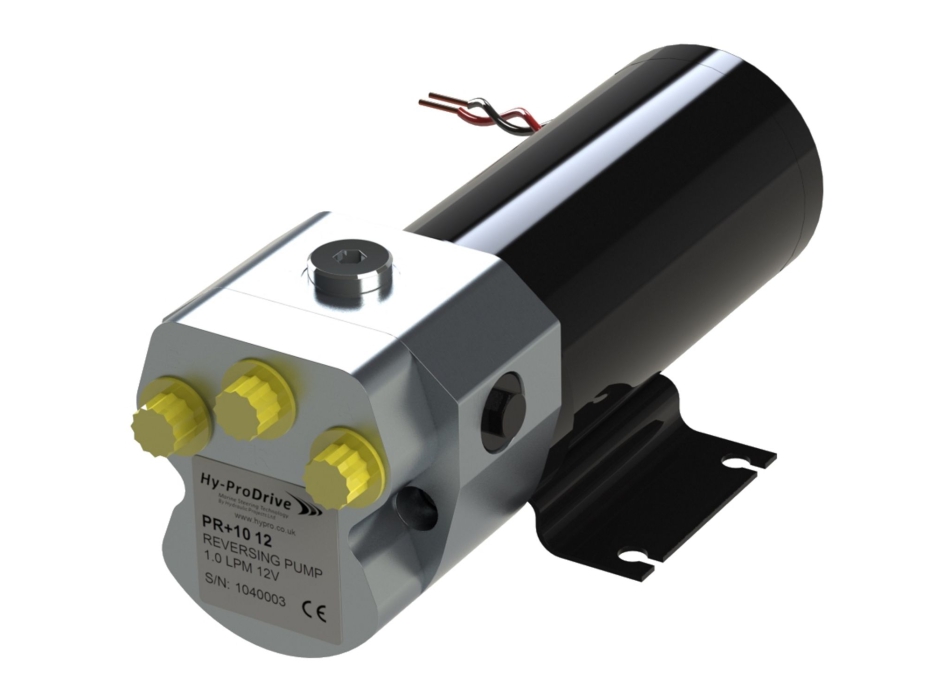

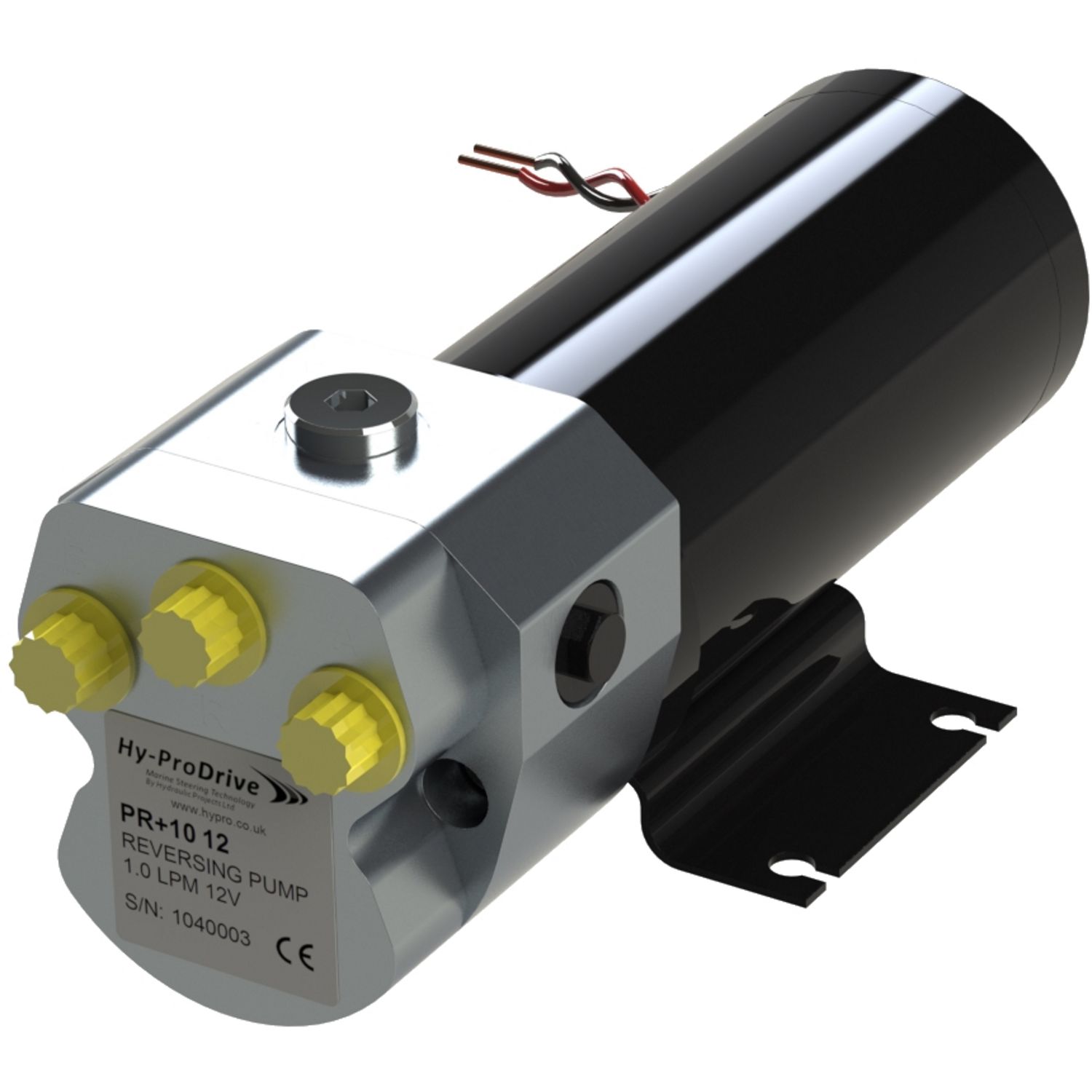

Raymarine Type 1 12V Hydraulic Pump

(0)
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 1.049,00 € 1.213,90 -14%
Raymarine Type 1 12 Volt Hydraulic Pump

Raymarine hydraulic steering systems

Raymarine Evolution engines connect to the steering system via a robust hydraulic pump suited to the steering system's capacity.

If the steering system is hydraulic…
You need to know the volume (in cubic centimeters) of the cylinder(s) mounted on the rudder stock on boats with inboard or outboard engines. You'll find this information in your steering system manual.

Advise
If you can't find the cylinder volume in your steering system manual, you can determine the make and model directly from the cylinder. You can then use our hydraulic cylinder ram cross-reference guide to determine which autopilot pump is compatible with your boat's hydraulic steering system.

Cylinder volume: 80cc – 230cc
Regulated peak pressure at 12V: 50bar
Maximum flow rate (idle): 1000cc/min
Corepack: ACU-200

D salve Salve, avrei la necessita di sostituire la mia vecchia pompa "Raymarine Protor pumpset Type 1A - 12 V - 800cc/min abbinata al sistema di controllo SmartPilot S1000 Autopilot il tutto montato per un fuoribordo con cilindro idraulico seastar hc5345-3. se cortesemente mi indate la compatibilità con quella sopra da voi venduta. grazie
R 15/02/2026 Buon pomeriggio, purtroppo non compatibile la pompa in oggetto con S1000, leggermente sovradimensionata, deve valutare la versione da 0,5: https://www.painestore.it/raymarine_pompa_idraulica_tipo_0_5_12v Cordiali saluti. Luigi Bianchi
D Buongiorno per favore volevo sapere se la pompa proposta è compatibile con un autopilota Raymarine mod. ST6002 con centralina S1 Grazie saluti Andrea Ricci
R 29-03-23 Buonasera, sì confermo la compatibilità. Ma deve deve effettuare una sostituzione? Cordiali saluti. Luigi Bianchi
