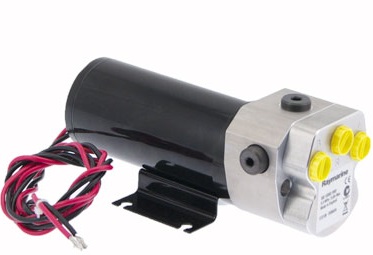

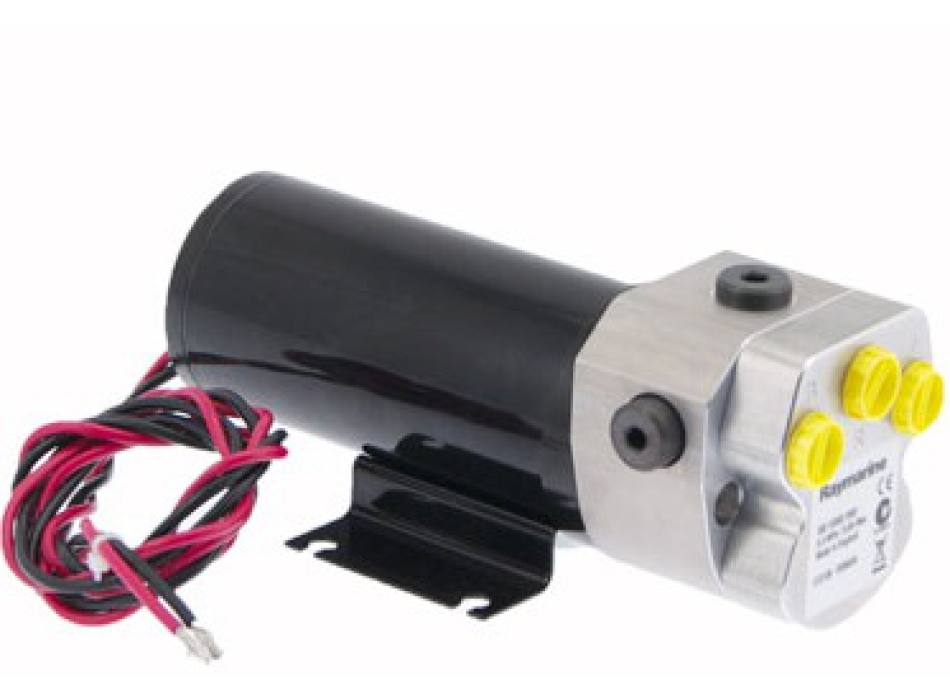

Raymarine hydraulic pump type 2 12 volts Raymarine hydraulic steering systems
The Evolution Raymarine are connected to the wheelhouse via a robust hydraulic pump suitable for the capacity of the wheelhouse itself. If the wheelhouse is hydraulic ...
You need to know the volume (in cc) of the cylinder (s) mounted on the rudder shaft on boats with inboard engines or on outboard engines. You will find this information in the wheelhouse manual. Advise
If you do not find the volume of the cylinder in the wheelhouse manual, you can determine the make and model directly from the cylinder; you can then use our hydraulic cylinder ram cross-reference guide to determine which autopilot pump is compatible with your boat's hydraulic steering.
Cylinder volume: 230cc - 350cc
Peak pressure regulated at 12V: 100 bar
Maximum flow rate (empty): 2000 cc / min
