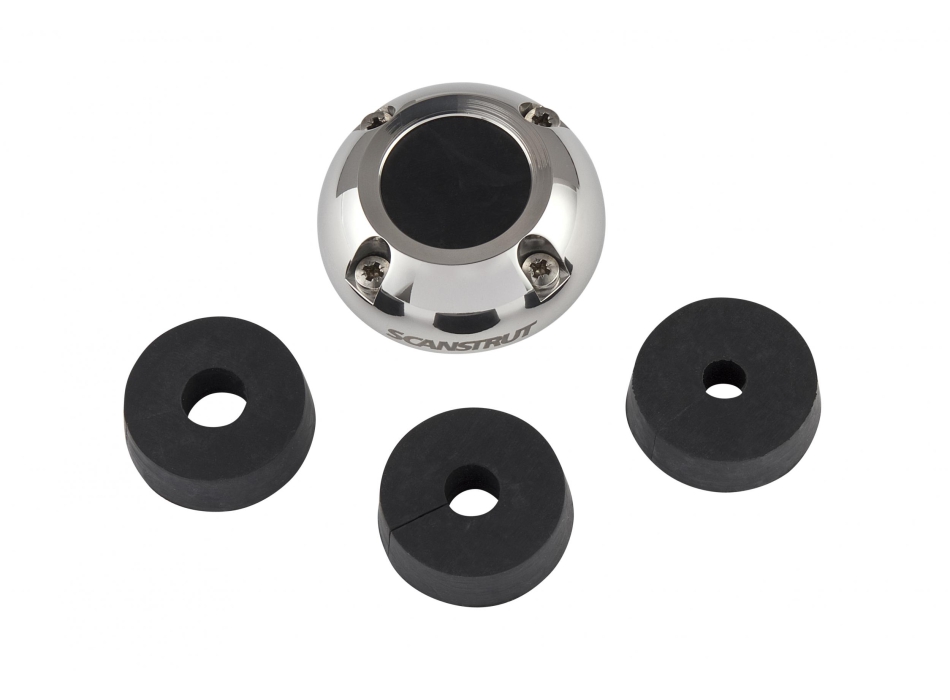

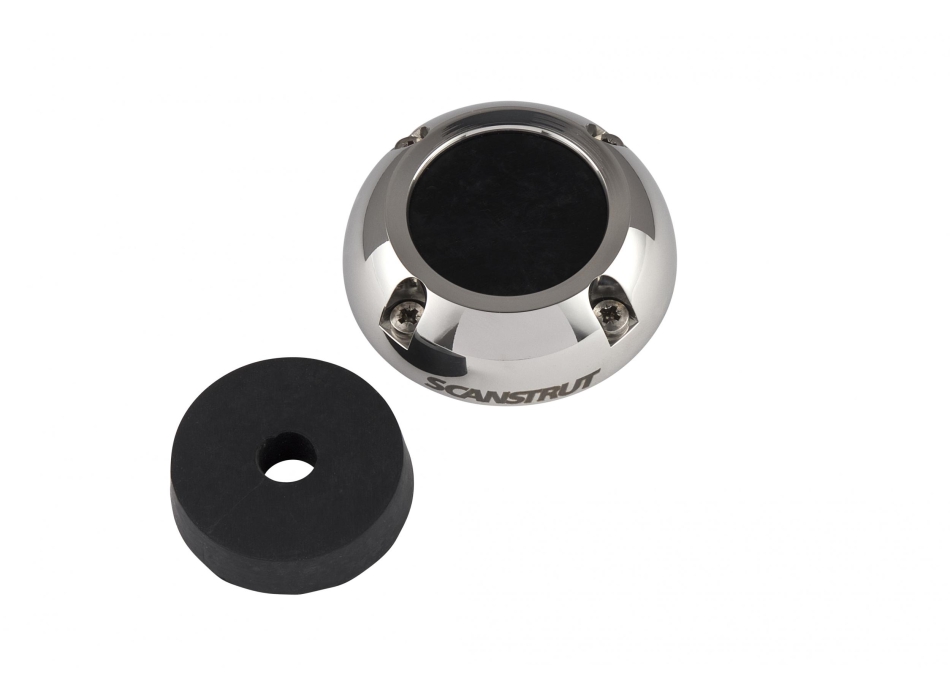

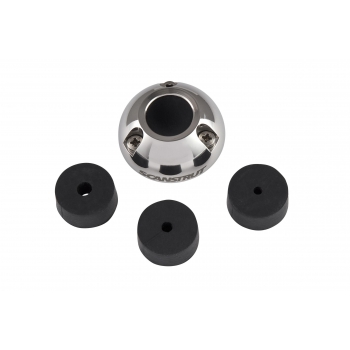

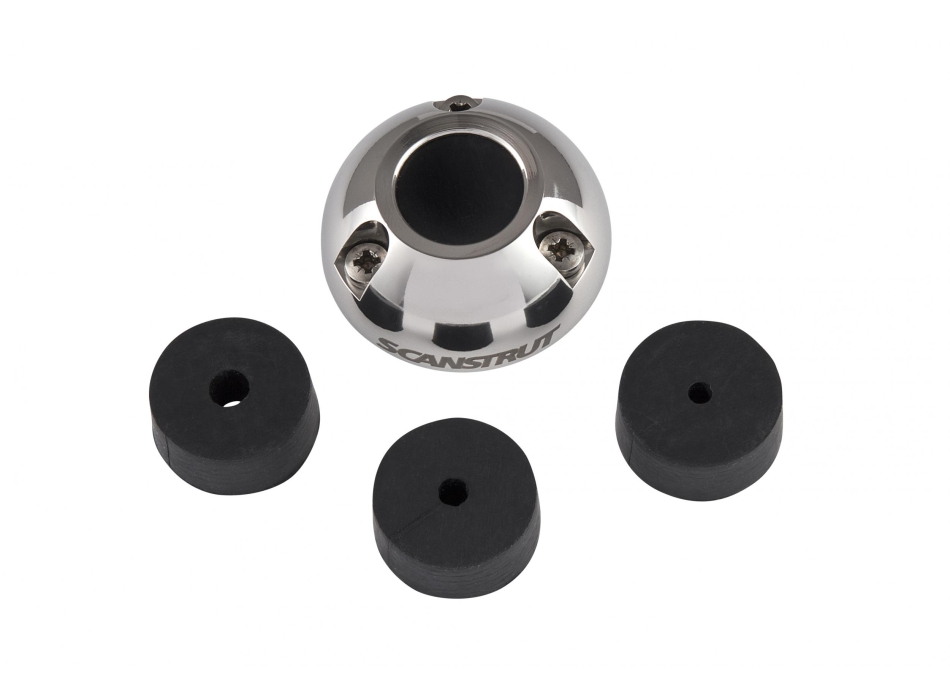

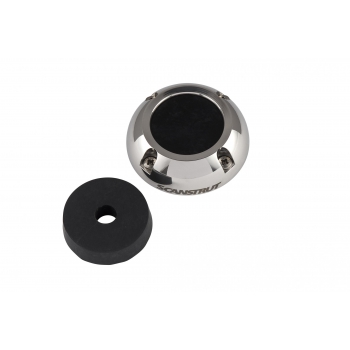

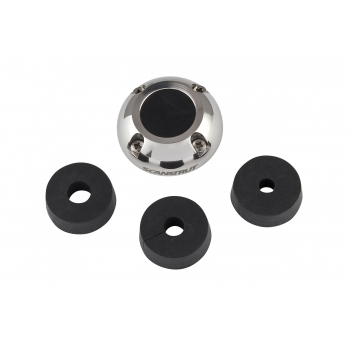

Scanstrut stainless steel watertight cable glands DS series

(0)
starting from € 57,00 € 71,98 -21%
Scanstrut DS watertight cable glands vertical entry
Our range of high quality IP68 waterproof products offer easy cable routing which reduces installation time Designed for a wide range of cable diameters and with connector options from 16mm to 40mm, it is ideal for almost any installations.

Characteristics of the range

1st choice worldwide
100% watertight - IP68
Installation without removing the cable connector
Pre-drilled, empty and split caps included
Designed for a wide range of cable diameters and with connector options from 16mm to 40mmm
Available in gray, high impact black plastic or 316 stainless steel.
The low profile dome construction is ultra strong and impact resistant
Captive nuts facilitate assembly and also allow reliable repeat installations.
Our materials have been selected to be UV resistant and wear resistant
No messy sealant on the caps

Product information.
Watertight installation Il
conical cap forms a watertight seal. all units are supplied with a closed cell base gasket - 100% waterproof. All models have been tested and IP68 approved.

Easy and reliable installation
Captive nuts facilitate assembly and also allow reliable repeat installations. Each unit is supplied with pre-drilled and blind internal gaskets to make installation as simple as possible.

Multifunctional dome shape
The aesthetic dome-shaped profile offers a stronger, impact-resistant design (no sharp edges to hit your foot on!) And the outer dome provides an additional water shield.
Information on product variants

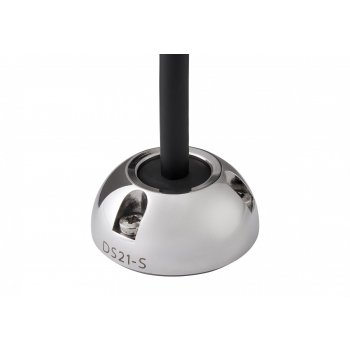

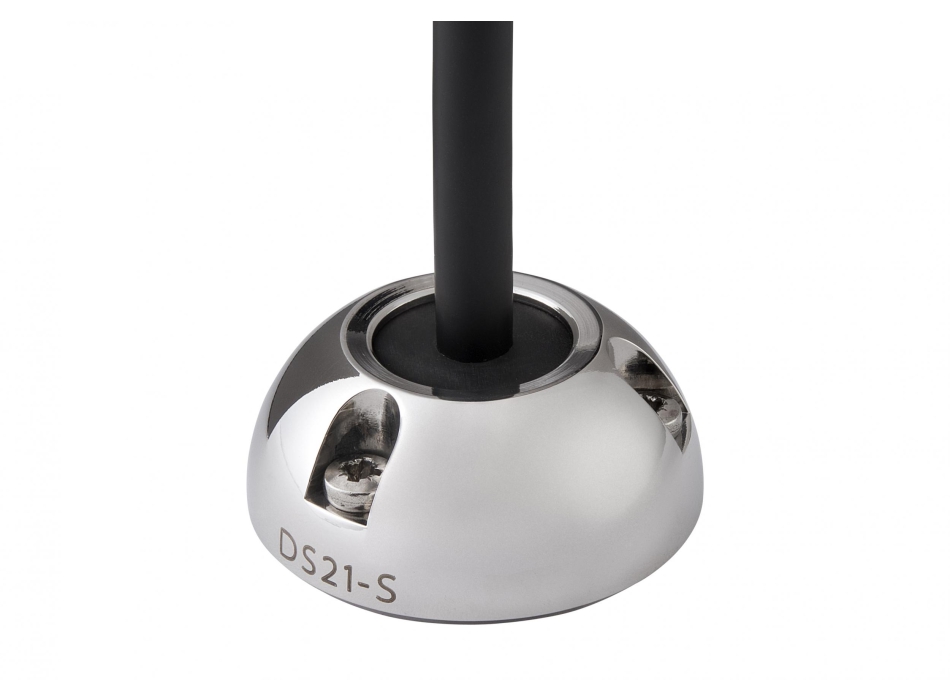

DS21A-S
4-9mm (0.15 "-0.35") cables
For connectors up to Ø21mm (0.82 ")

DS21B-S
9-14mm (0.35 "-0.55") cables
For connectors up to Ø21mm (0.83 ")

DS30-S
9-14mm (0.35 "-0.55") cables
For connectors up to Ø30mm (1.18 ").

DS40-S
12-15mm (0.47 "-0.59") cables
For connectors up to Ø40mm (1.57 ")
