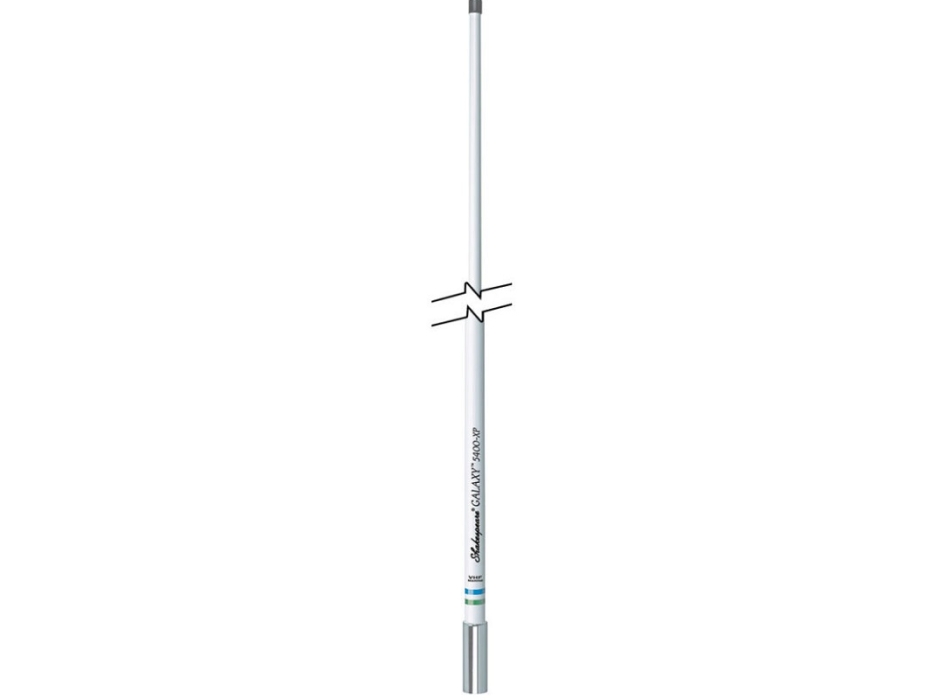

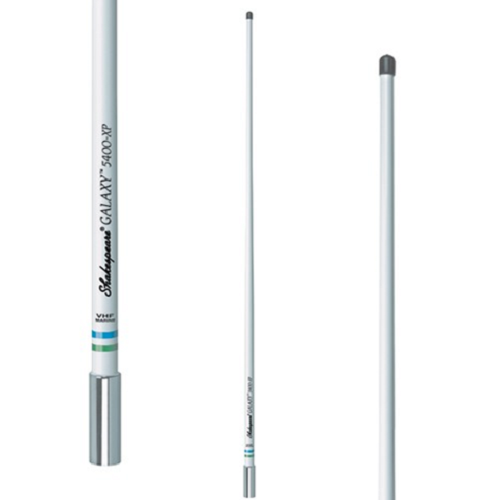

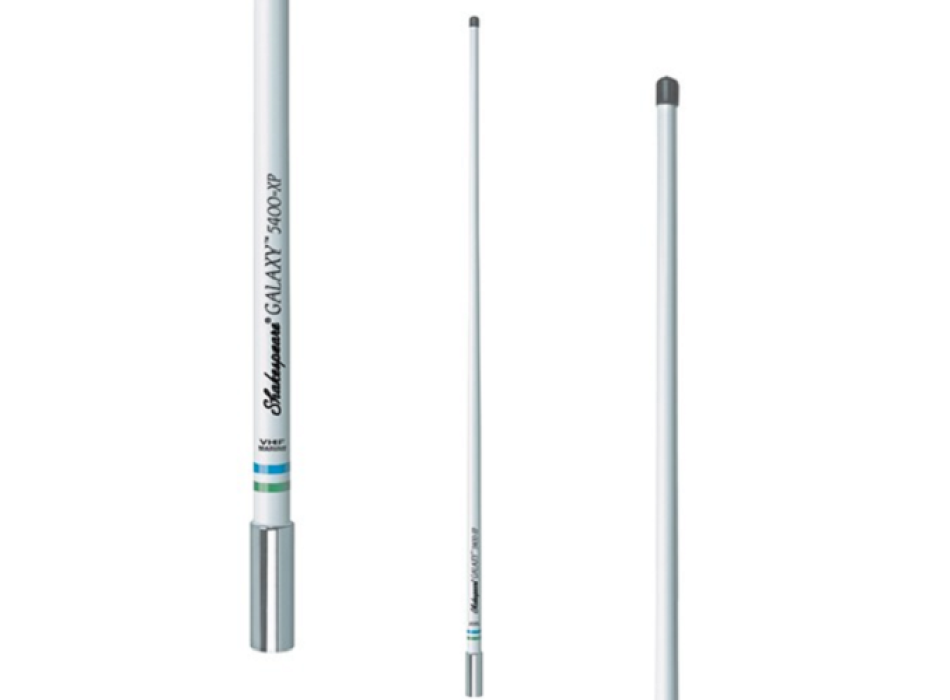

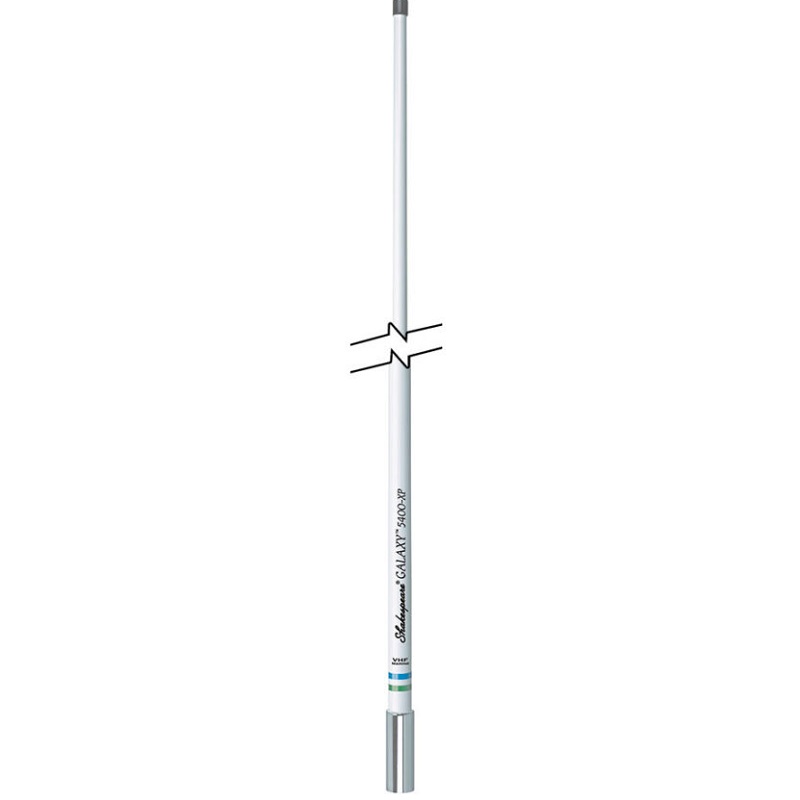

Shakespeare 5400-XP Galaxy VHF Antenna 1,2mt White HI Perf.

(0)
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 233,00 € 291,58 -20%
Shakespeare Antenna VHF 5400 -XP White 1,2mt
High performance with silver elements

Galaxy® antennas have long been revered as the industry standard for both performance and quality. Following a tradition of over 20 years, Shakespeare® Galaxy® antennas ensure reliable communication through high quality materials and craftsmanship with every single antenna.

Silver elements elements provide greater range, clarity and efficiency than XT series, all Galaxy XP series have absolutely high performance.
The stainless steel ferrule prevents rust
Low loss 20 'RG-8 / X cable plus a solderless screw-in PL-259 connector included for easy installation
The glossy polyurethane finish prevents yellowing

VSWR of <1.5: 1 at 156.8 MHz
3 MHz bandwidth within 2.0: 1 VSWR
Finishes White / Fiberglass and Black / Fiberglass *
VHF ANTENNA BLACK VTR 1,2MT STAINLESS STEEL RING 5400 ‐ XP
Galaxy 5400-XP specifications
Band: VHF marine band
Antenna gain: 3dB
Maximum Input Power: 50 watts
CFA: Less than 1.5: 1 at 156.8 MHz
Bandwidth: 5 MHz within 2.0: 1 VSWR
ferrule: Stainless steel
Coaxial supplied: 20 feet of RG-8 / X
Connector supplied: PL-259, not installed
Color / Finish: Galaxy White
Polarity: Vertical
Impedance: 50 Ohm
Ground DC: No DC Ground - The antenna will read open during the continuity test.
D Buongiorno, vorrei acquistare questa antenna e la base di fissaggio su tubolare 4190, disponibile sul vostro store. Vi chiedo se la ghiera alla base di questa antenna è filettata e compatibile con la filettatura della base in oggetto. Oltre chiaramente al VHF, di cui dispongo già, mi serve altro per poter montare e far funzionare correttamente questa antenna? Grazie Nicolò Casagrande
R 16-07-25 Buongiorno, sì certo confermo la compatibilità dell'antenna con la base. Non serve altro, fatto salvo il VHF appunto. Cordiali saluti. Luigi Bianchi
