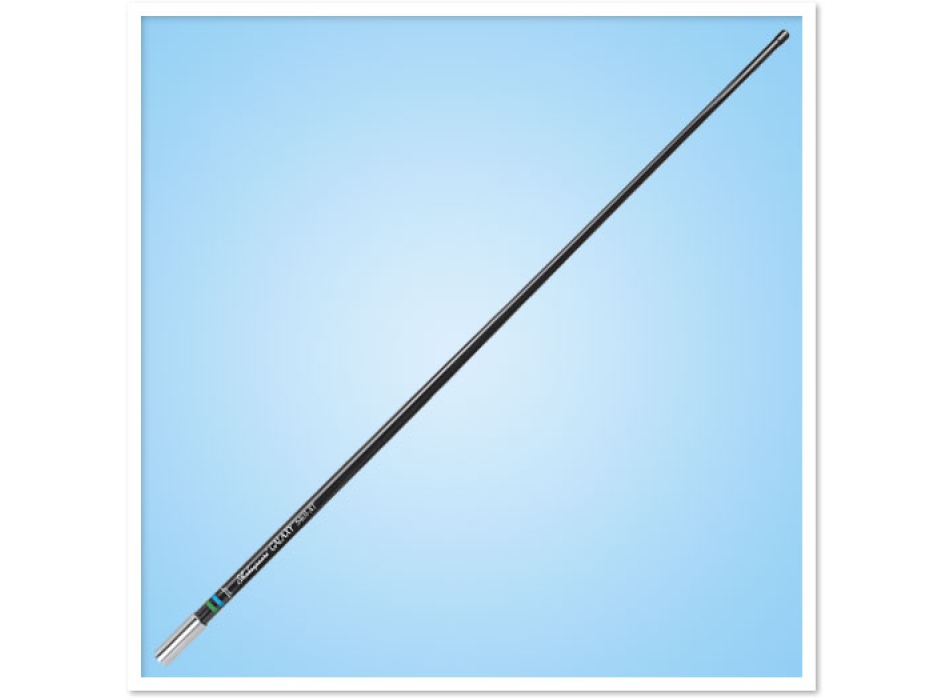

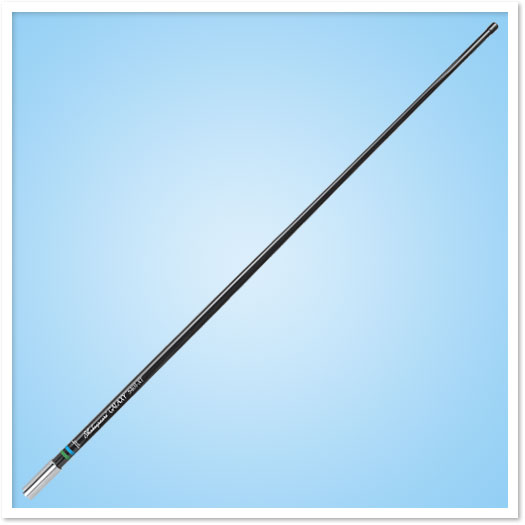

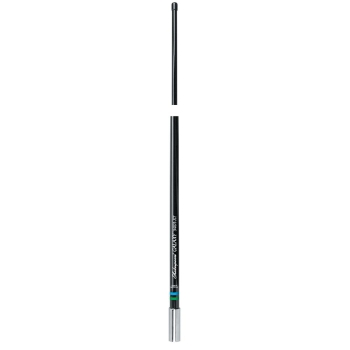

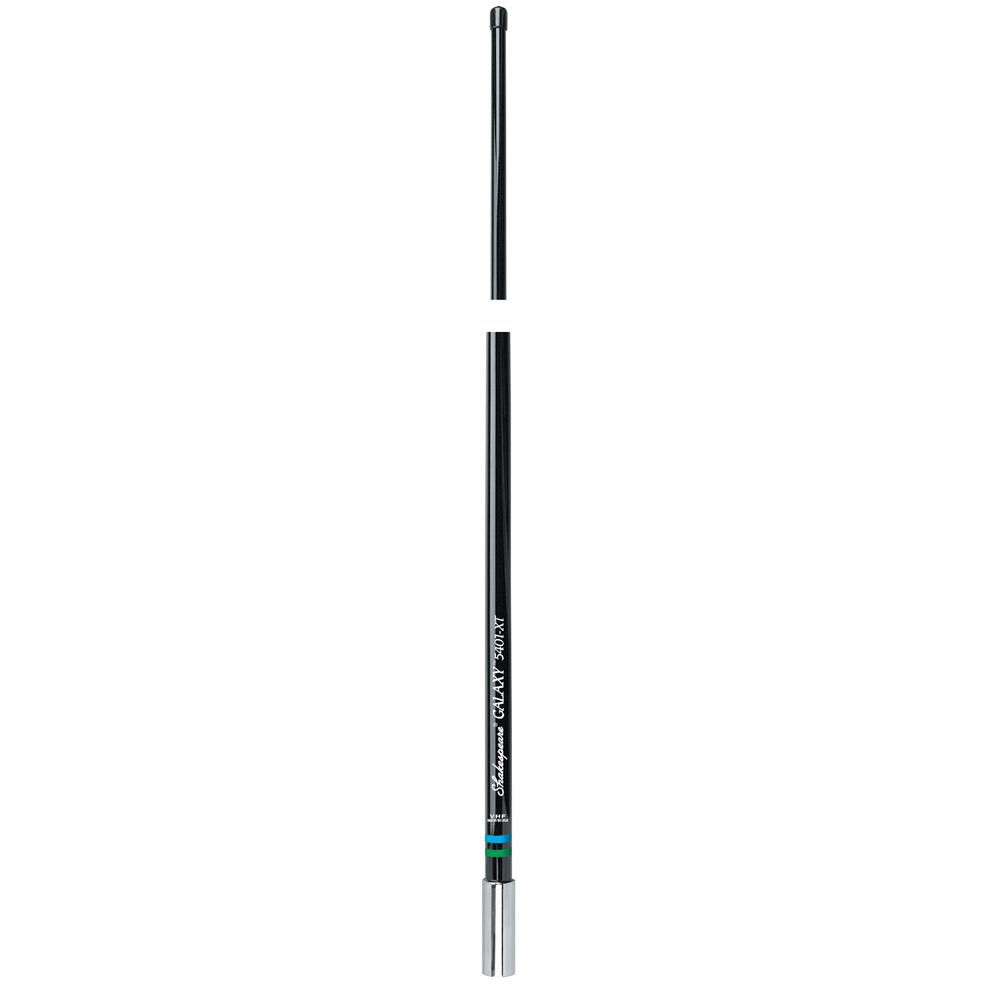

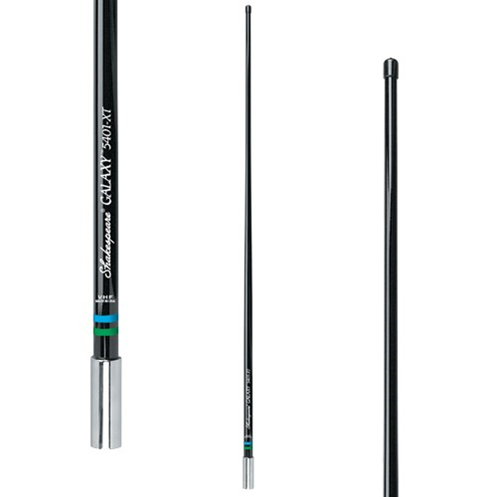

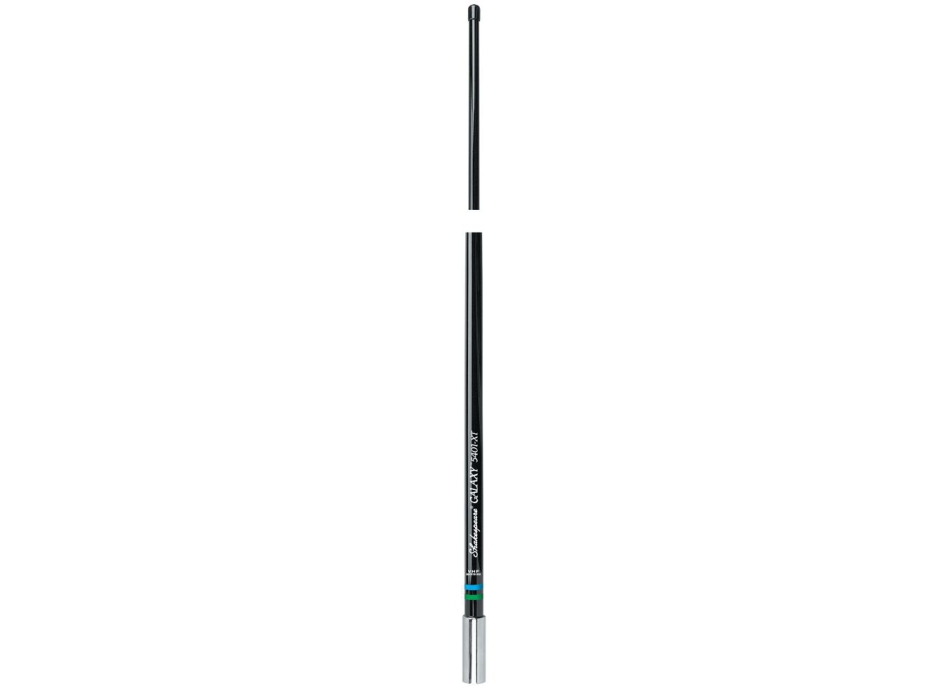

Shakespeare 5401-XT Galaxy VHF Antenna 1.2m BLACK

(0)
€ 185,00 € 230,58 -20%
BLACK VHF ANTENNA IN FIBERGLASS 1.2MT WITH STAINLESS STEEL RING 5401‐XT BLACK

4' (1.2m) 3dB VHF Center-Fed 1/2 Wave Coaxial Sleeve
An exceptional, ruggedly constructed 4′ antenna for general-purpose communications. It's ideal for T-tops, hardtops, and other overhead locations, where its compact size provides maximum range. The 5401-XT features an exclusive Galaxy Black finish.
  • Solid performance packed into an extra-strong radome
  • Brass and copper elements to maximize flow rate
  • Stainless steel bezel with standard 1″-14 thread
  • Includes 20-foot RG-8/X cable and PL-259 connector
  • Beautiful Galaxy black finish
  • A section
Top applications include: T-tops and hard-tops
VHF marine radios, with quality Shakespeare® antennas, are affordable and a primary requirement on most vessels. VHF equipment is installed on all large ships and most small marine vessels, and is also used on rivers and lakes. The VHF radio frequency range is 156.0 to 162.025 MHz. Transmit power ranges from 1 to 25 watts, with an effective small-boat range of approximately 5 nautical miles (9 km; 6 mi) between antennas.
BLACK VHF ANTENNA IN FIBERGLASS 1.2MT WITH STAINLESS STEEL RING 5401‐XT BLACK
Galaxy 5401-XT Little Giant™ Specifications
Musical group: VHF Marine Band
Antenna gain: 3dB
Maximum Input Power: 50 watt
CFA: Less than 1.5:1 at 156.8 MHz
Bandwidth: 5 MHz within 2.0:1 VSWR
ring: Stainless steel
Coaxial supplied: 20 feet of RG-8/X
Connector supplied: PL-259, not installed
Color/Finish: Black Galaxy
Polarity: Vertical
Impedance: 50 Ohm
Earth CC: No DC Ground – The antenna will read open during the continuity test.
