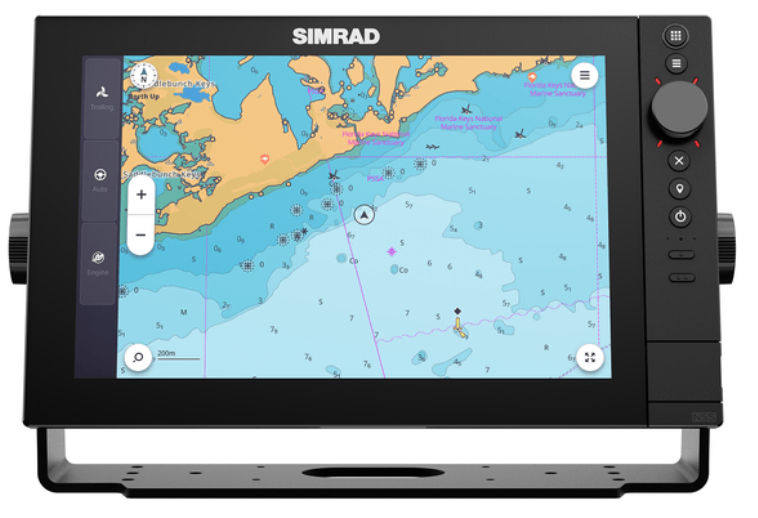

Simrad NSS 4 Display 12" with echo/Fishfinder

Version with Fishfinder Chirp 1KW echo sounder
  • Code: 000-16016-001
  • Brand : Simrad
€ 4.389,00 € 4.878,78 -10%
Simrad NSS 4 12" Multifunction Display
Built-in 1KW Chirp Fishfinder

Hybrid controls for all conditions
The NSS 4 offers three control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for navigating charts, which on the NSS 4 is more fluid than ever. Drag to discover new areas, use two fingers to zoom in and out, and tap to get more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data views instantly. The keypad also offers a selection of one-touch functions for easy navigation.

  1. Main menu/pages button instantly switches to full screen mode, for a clear overview of all key data, without clutter.
  2. App menu gives you quick access to the settings menu to make changes on the fly.
  3. Rotary knob useful for performing a wide range of functions: menu navigation, zooming in/out, press-to-select, and much more.
  4. X button allows you to return to the previous screen or cancel the current action.
  5. Waypoint Button is an extremely quick and easy way to accurately mark waypoints on the map.
  6. Power button turns the device on and off.
  7. Configurable Custom Keys: These fully customizable buttons are designed to provide instant access to your favorite apps and features. Buttons can be assigned multiple functions, each activated by a short or long press. (10" includes one custom key only.)
  8. Dual SD card slots Convenient front slots for easy access to map cards and memory cards.

Unparalleled speed
Experience the power of a super-fast 8-core Qualcomm processor, designed to keep up with every move in the water.

Immediate response
Navigate seamlessly between apps without lag and with seamless transitions. This way, you can focus on sailing and fishing, not on the screen.

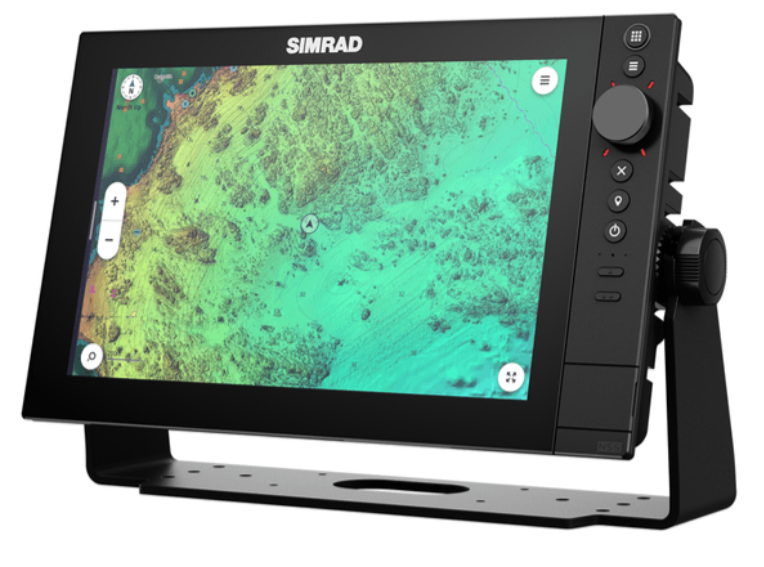

Ultra-fast mapping
NSS 4 features our fastest autorouting ever and rapid map rendering, to help you get to your next destination quickly.

Advanced fishing features for the perfect sport fishing system
Active Imaging HD delivers incredibly clear, high-resolution sonar that reveals fish and underwater structure in stunning detail, making it easier to locate prime fishing spots.

Integration
Seamless integration with the full suite of Simrad electronics gives you complete control. Connect seamlessly with our most powerful HALO radars, the RECON trolling motor, the incredible Simrad app, and so much more...

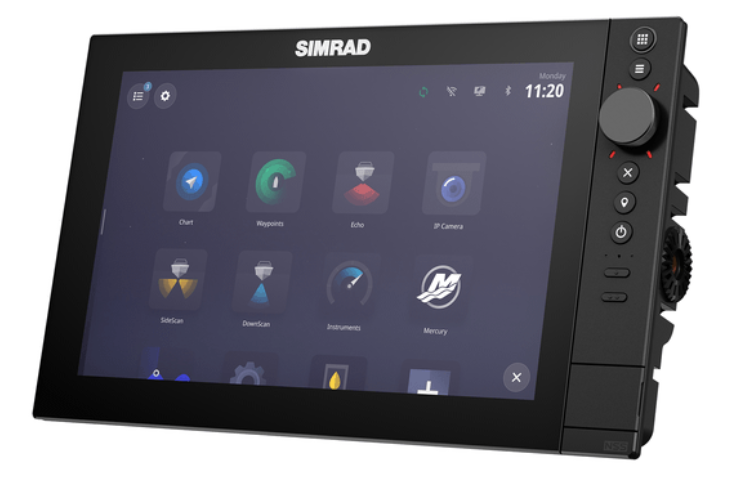

Designed for complete customization
Personalize NSS 4 with a wide range of customization options. Create instrument screens that best suit your needs by modifying our pre-configured dashboards to match your navigation style. You can also create custom split screens based on your preferences and screen settings.

Main functions
  • Three hybrid controls: touch, rotary knob and keyboard
  • Premium frameless design
  • Ultra-fast Qualcomm 8-core processor
  • Redesigned operating system
  • Built-in dual-channel 1kW CHIRP sonar
  • Support for Active Imaging and Active Imaging HD
  • Support for C-MAP X-gen charts and more
  • Compatible with Simrad RECON, Rhodan, and Motorguide trolling motors
  • Compatible with Simrad suite: S3100 and S5100 sonar modules, radar and more...
  • Support for Mercury, CZone, SiriusXM and more...
  • 2-year limited warranty
Viewing angles
80° top/bottom, 80° left/right
Backlight color
White
Display size
12 inches
Screen brightness
1200 nits
Display resolution
1280 x 800

Physicist
Dimensions (height x width x depth)
Display only: 338.9 mm x 208.4 mm x 84.8 mm (13.34″ x 8.20″ x 3.34″)With bracket: 367.8 mm x 232.8 mm x 84.8 mm (14.48″ x 9.17″ x 3.34″)
Weight
2.8 kg (6.17 lb)
Compass safety
65 cm (2.1 ft)
Mounting type
Bracket mount (bracket supplied). Rear mount (brackets supplied)

Electric
Maximum power consumption
40 W
Supply voltage
12/24 V DC (10 - 31.2 V DC min - max)
Recommended fuse rating
5 A

Environment
Operating temperature range
-15°C to 55°C (5°F to 131°F)
Storage temperature range
-20°C to 60°C (-4°F to 140°F)
Waterproof level
IPX6 and IPX7
Humidity
IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Vibrations and shocks
100,000 cycles of 20 G

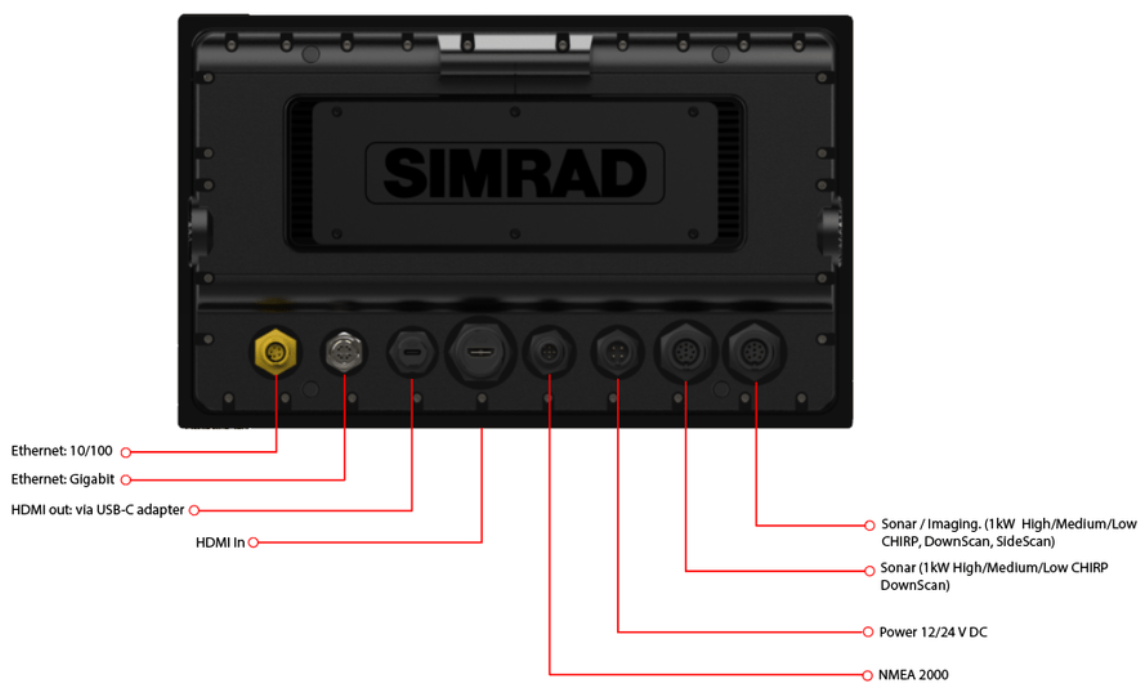

Connectivity
Bluetooth
Bluetooth 4.0 with support for Bluetooth Classic (currently not used)
NMEA 2000 connectivity
1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity
No
Wi-Fi connectivity element
Wi-Fi 5 (IEEE 802.11ax)
SD card memory
2x (microSD®, SDHC®), 1 x USB port

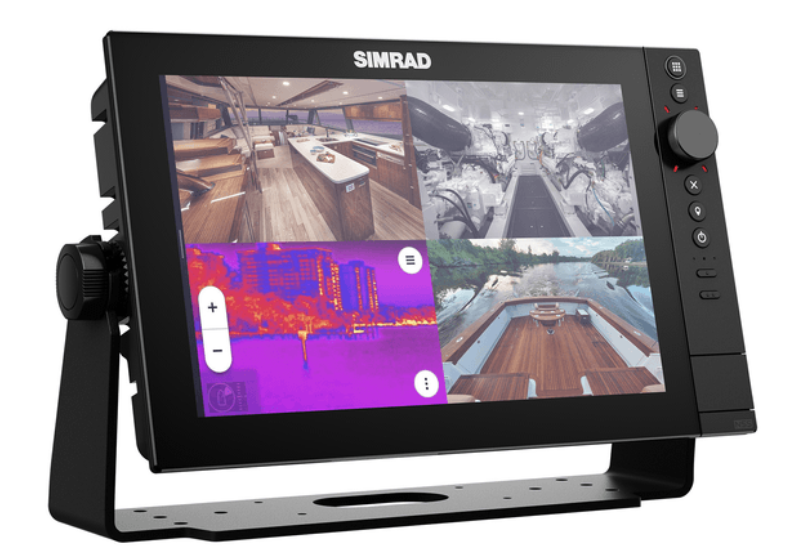

Video
Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP CameraIP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras

MFD
AIS
Receive AIS data over NMEA 2000
Autopilot
NAC-1, NAC-2, NAC3, NAC-D compatible
Cartography included
World wide basemap (not for navigation).Detailed chart card required
Digital switching
Czone / DDS
Sonar compatibility
Two 9 pin Xsonic 1 kW Sonar ports. Sonar port: Low, Medium, and High Chirp up to 1kW RMS: Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Imaging port: Sonar: Low, Medium, and High Chirp up to 1kW RMS. Downscan: 455kHz, 800kHz, 700kHz CHIRP, 1200kHz CHIRP. Sidescan: 455 kHz, 800 kHz, 455 kHz CHIRP, 1200 kHz CHIRPNetwork Sonar modules S3100, S5100
GPS
10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS)
Waypoints, routes, tracks
10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network

GPS
GPS receiver channels
32 Channels
Correction
10 Hz high speed update (internal)
Refresh rate
10Hz
Location accuracy
Horizontal Accuracy 3 m (9.8 ft)

Autopilot
Mode of government
Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav
Maneuvering turn patterns
U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth

Cartography
Supported cards
C-MAP Discover™
Map format
C-MAP Tile (CMT) Discover

Other
Interface
Hybrid multi-touch screen, buttons, and rotary knob
Languages
-German (Deutsch)-English (English)-Dutch (Nederlands)-Danish (Dansk)-Spanish (Español)-French (Français)-Italian (Italiano)-Norwegian (Norsk)-Portuguese (Português)-Finnish (Suomi)-Swedish (Svenska)-Icelandic (Islenska)-Greek (ελληνικά)-Chinese (中文)-Turkish (Türkçe)-Estonian (Eesti)-Croatian (Hrvatski)-Lithuanian (Lietuvių)-Latvian (Latviešu)-Polish (Polski)-Chinese Simplified (中文)-Japanese (日本語)-Korean (한국어)-Ukrainian
Warranty period
2 Years
