Standard Horizon GX2400GPS / E VHF with GPS and AIS

(0)
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 519,00 € 604,00 -14%

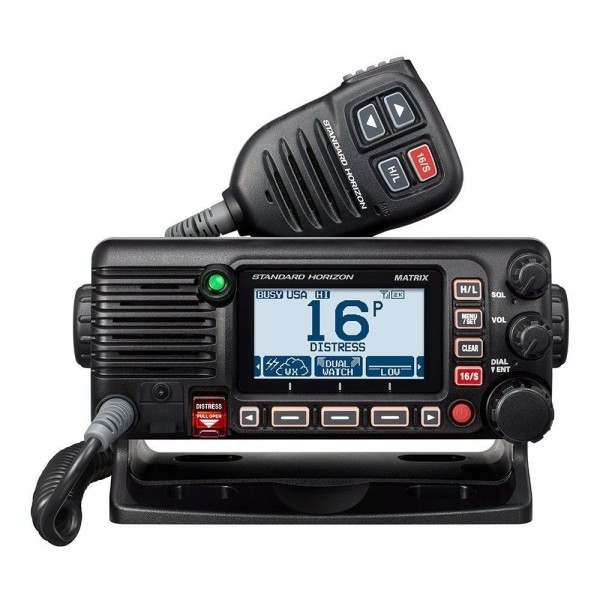

VHF Standard Horizon GX2400GPS / E with built-in GPS and AIS

Power, performance, reliability! With the new GX2400 Matrix AIS / GPS / NMEA2000



NMEA2000
NMEA 2000 plug and play interface. Integrated NMEA 2000 supports all PGNs for navigation, GPS, AIS and DSC. Simply connect NMEA 2000 to your existing network to complete the system with full VHF and DSC functionality.

RAM4X Wireless Second Station Functionality
Wirelessly control all radio functions of the GX2400 with the RAM4X wireless remote access microphone interface. Using the SCU-30 wireless access point connected to the rear of the radio, up to 4 RAM4X units can be synchronized. With a range of up to 65 feet, the RAM4X allows you to control all radio functions including DSC calling, location polling, group calling and more, or use the RAM4X for intercom between the master station or between other wireless RAM4X units .

Integrated AIS receiver
The GX2400 Matrix AIS / GPS / NMEA2000 displays AIS target information (MMSI, Callsign, Vessel Name, BRG, DST, SOG and COG) on the large front panel display. Having this information allows you to contact an AIS vessel directly using DSC, shows your vessel's position in relation to AIS targets, and alerts you when an AIS vessel may get too close to your position via the CPA (Closest Point of Approach) alarm.

Integrated 30 Watt PA / Hailer
Powerful 30 Watt integrated PA system with megaphone and listening capability. Switch to fog horn mode to select one of the preprogrammed fog signals, with siren and horn functions. For added benefit, the last selected VHF channel can still be monitored in PA or Fog modes.
Technical features:

NMEA2000 and NMEA0183 compatible
Second station capability with wired RAM4 or wireless RAM4X (when used with optional SCU-30 WiFi module)
Built-in 66-channel built-in GPS receiver
Integrated 32-code voice scrambler and 4-code voice scrambler
Noise canceling function for both audio reception and transmission
Meets ITU-R M.493-15 Class D (digital selective calling)
Separate receiver for CH70 (receiving DSC calls)
AIS / AIS SART target display: MMSI, call sign, ship name, BRG, DST, SOG and COG
E2O menu and icon system (easy to use)
The Preset button stores up to 10 favorite channels
Intercom function between the radio and an optional second station
Programmable Scan, Priority Scan and Multi Watch
DSC position request and reporting functions
Compass GPS, Waypoint and GPS status pages
Enter, save and navigate to a waypoint using the Compass page
Navigation information (LAT / LON, Time, SOG and COG) is shown on the display
Programmable CPA (Closest Point of Approach) or TCPA (Time to Closest Point of Approach) alarms
Commercial grade receiver (spurious rejection and image better than –80dB)
30 Watt PA / megaphone with programmed fog signals and listening back
GM (Group Monitor) Using DSC Group Position Call
MOB (Man over Board) Operation
Excellent visibility with the busy LED indicator
Selectable night mode display
NOAA weather channels with weather warning
D Buongiorno. Vorrei sapere se la funzione ais che si trova nel vhf horizon GX2400 è solo ricevente o anche trasmittente della propria posizione. Grazie
R 22-11-22 Buonasera, solo ricevente, nel caso in cui sia interessato a VHF con AIS ricetrasmittente, consiglio V60-B di B&G o RS40-B di Simrad: https://www.painestore.it/b_g_radio_vhf_v60-b_con_gps_e_ais_rx-tx https://www.painestore.it/simrad_radio_vhf_rs40-b_con_gps_e_ais_ricetrasmittente Cordiali saluti. Luigi Bianchi
D Buongiorno, Ho un Furuno TZT3 16” , mi conferma che tramite collegamento NMEA i dati AIS del VHF vengono visualizzati sullo schermo Furuno. Grazie
R 07-07-22 Buonasera, sì certo, tramite collegamento NMEA 0183. Cordiali saluti. Luigi Bianchi
D Salve,dalla descrizione non è chiaro se l’AIS oltre che ricevere,può anche trasmettere il segnale alle altre imbarcazioni.Grazie
R 21-03-22 Buon pomeriggio, funziona AIS solo in ricezione. Cordiali saluti. Luigi Bianchi
D Buongiorno, se collegata alla rete nmea 2000 invia le informazioni AIS al plotter? nel mio caso un SIMARD GO 7 Grazie Alessandro
R 02-08-2021 Buon pomeriggio, sì confermo, si consiglia il collegamento in NMEA 2000. Eventualmente necessario il kit avviamento se non previsto al momento a bordo: https://www.painestore.it/kit_di_avviamento_nmea_2000_ Cordiali saluti. Luigi Bianchi
D Buonasera, possiede AIS attivo o solo passivo? Grazie
R 07-07-2021 Buonasera, solo AIS passivo. Cordiali saluti. Luigi Bianchi
D Buongiorno, Avete disponibile anche il microfono wireless (mi pare si chiami Ram4) per questo vhf?
R 01-07-2021 Buonasera sì esatto, si tratta della RAM 4X con base Wireless SCU-30, totale per entrambi i componenti 349,00 euro. disponibilità in ca 3-4 giorni lavorativi. Cordiali saluti. Luigi Bianchi
D Buongiorno, Vorrei sapere se è la versione omologata per l’Europa oppure quella per gli Stati Uniti. Di solito la versione europea finisce con la “E” es. GX2400E Grazie
R 30-06-2021 Buonasera, confermo si tratta di versione /E Europa, ho infatti corretto la descrizione. Trova anche nella sezione Documenti, il ceritificato di conformità. Cordiali saluti. Luigi Bianchi
Fixed Nautical VHFs
Products that may be of interest to you
Standard Horizon RAM4X VHF Wireless Remote Station Painestore
- 15%
Standard Horizon RAM4X SSM-72H Wireless remote station
starting from € 199,00 € 234,24
Standard Horizon SCU-30 base unit Wireless Painestore
- 13%
Standard Horizon SCU-30 base unit Wireless
€ 197,00 € 226,92
Standard Horizon RAM4 SSM-70H Remote cable station Painestore
- 12%
Standard Horizon RAM4 SSM-70H Remote cable station
€ 199,00 € 226,92

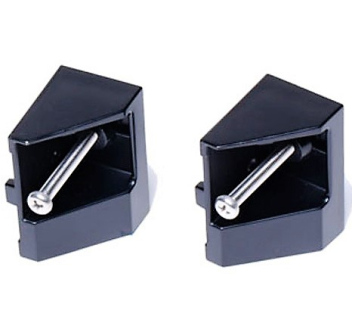

Standard Horizon Bracket For Flush Mounting VHF GX 2400/1400 Painestore
