Specifications:
Ethernet: 8 multi-layer managed ETH ports, 10/100/1000 Mbps support MDI/MDIX auto crossover
Fiber: 2 SFP ports
POE Output: PoE Ports Port 1 - 8
PoE Standard: 802.3af and 802.3at Alternative B
Maximum PoE power per port: (at PSE) 30 W
Total PoE power budget: (at PSE) 240 W
Maximum Ethernet cable length: 100 meters
Services: EtherNet/IP
SNMP version 2, version 3: YES
LLDP:YES
Network Management: 802.1p Class of Service, 802.1x Port-Based Network Access Control, 802.1Q VLAN
DHCP: DHCP server, DHCP client, DHCP static leases capable of using wildcard MACs
Port Settings: Enable/Disable, Link Speed Control, Port Isolation, PoE Management, EEE Management (802.3az), Port Mirroring
L3 Features: Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
Security: PAM authentication — pre-shared key, Radius and TACACS+, IP blocking and login attempts
Energy
Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC
PoE-out input voltage range
44 – 57 VDC
Energy consumption
Idle: < 3W / Max: 8W / PoE Max: 248W

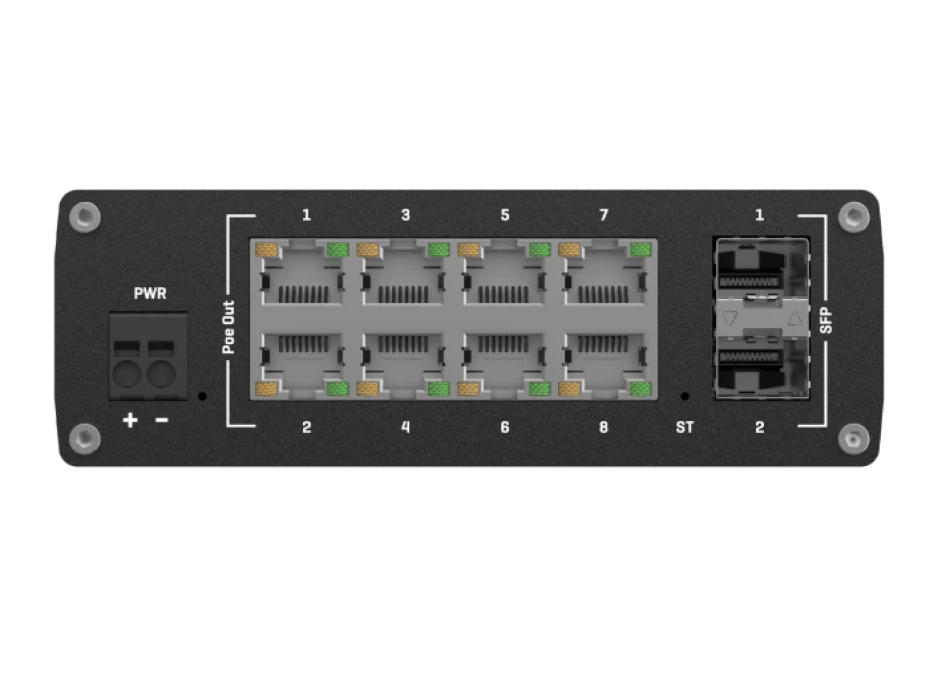

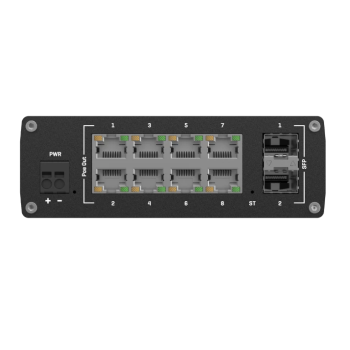

Physical interfaces
Ethereal
8 RJ45 ports, 10/100/1000 Mbps
Fiber
2 SFP ports
Status LED
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power: 1 x 2-pin industrial DC power socket

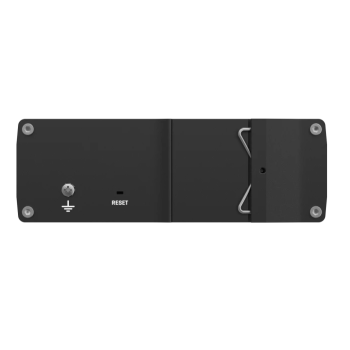

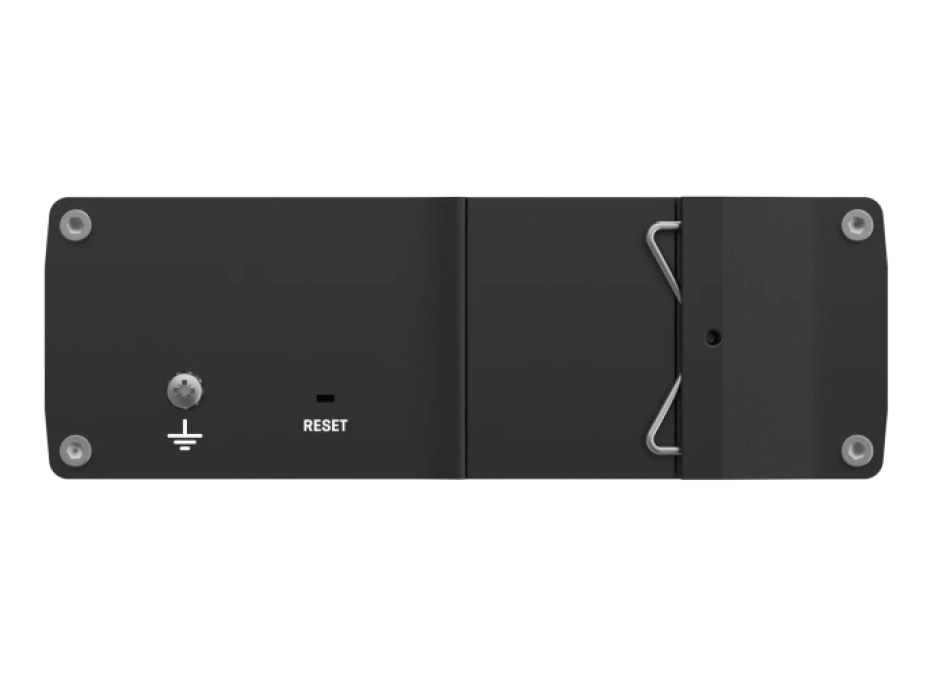

1 x Grounding screw
Physical Specifications: Enclosure Material: Anodized aluminum housing and panels
Dimensions (W x H x D)
Dimensions: 132 x 44.2 x 122.2 mm
Weight
610 grams
Mounting options
Integrated DIN rail mount, wall mount, flat surface (additional kit required)
Operating environment
Operating temperature
-40°C to 75°C
Operating humidity
5% to 95% non-condensing
Degree of ingress protection
IP30 rating
Regulatory and type approvals
Regulations
CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE, SDPPI (POSTEL)
EMC emissions and immunity
Standard
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
ESD
EN 61000-4-2:2009
Radiated immunity
Standard EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
Surge immunity (AC power port)
EN 61000-4-5:2014 + A1:2017
Customer Service
EN 61000-4-6:2014
IMMERSION
EN 61000-4-11:2020
Safety
Standard
CE : EN IEC 62368-1:2020 + A11:2020
Italian: RCM : AS/NZS 62368.1:2022
Italian: CEI EN 62368-1:2018 Standard
