Ethernet
Fiber
4 SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
ETH
24 multi-layer managed ETH ports, 10/100/1000 Mbps, supports MDI/MDIX auto-crossover
INDUSTRIAL PROTOCOLS
Profinet
Profinet Class B compliant (available with optional order code)
Services
EtherNet/IP
YES
SNMP V2, V3
YES
LLDP
YES
Network Management
802.1p Class of Service, 802.1x Port-Based Network Access Control, 802.1Q VLAN
Net
Routing
Dynamic Routing (BGP, OSPF v2, RIP v1/v2, EIGRP)
MRP
MRP Customer Role, MRP Manager Role
L2 Features
Loop protection, forwarding table, VLAN, STP/RSTP
DHCP
DHCP server, DHCP client, DHCP static leases capable of using wildcard MACs
Port settings
Enable/disable, link speed control, port isolation, PoE management, EEE (802.3az) management, port mirroring
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
Quality of service
Quality of service
Port priority, DSCP priority, 802.1p priority, TOS
Planning method
SP/WFQ/WRR
Bandwidth control
Speed limiting, storm control
Traffic Shaper
Port-based modeling
Diagnostics
Tools
Cable diagnostics, ping, traceroute, nslookup
Ping restart
Ability to restart PoE on a specific port
Safety
Authentication
PAM — Pre-Shared Key, Radius and TACACS+, IP Blocking and Login Attempts
VLAN
Port VLAN separation
802.1x
Port-based network access control clients and servers
MAC filtering support
Allow specific MAC addresses to connect through specified ports, ignore unauthorized ports, or disable the port if an unauthorized MAC address is detected
API
Teltonika Networks Web API Support (beta)
Expand the capabilities of your device by using a set of configurable API endpoints to retrieve or modify data.
System Features
processor
Realtek, single core, 500 MHz, MIPS-4KEc
RAM memory
128 MB, DDR3
FLASH memory
16 MB serial flash
Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update the FW without losing the current configuration
Factory reset
A full factory reset restores all system settings, including IP address, PIN, and user data to the manufacturer's default configuration.
FIRMWARE CUSTOMIZATION
Operating system
TSWOS (OpenWrt-based Linux operating system)
Supported languages
Busybox Shell, Lua, C, C++
Development tools
SDK package with build environment provided
Package Manager
Package Manager is a service used to install additional software on your device
Performance Specifications
Bandwidth (non-blocking)
56 Gbps
Forwarding fee
83.33 Mpps
Packet buffer
512 KB
MAC address table size
8K entries
Jumbo Frame Support
10,000 bytes
POE OUT
PoE+ ports
Doors 1-24
PoE Standard
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A
Maximum PoE power per port (at PSE)
30 W
Total PoE power budget (at PSE)
300 W
Energy

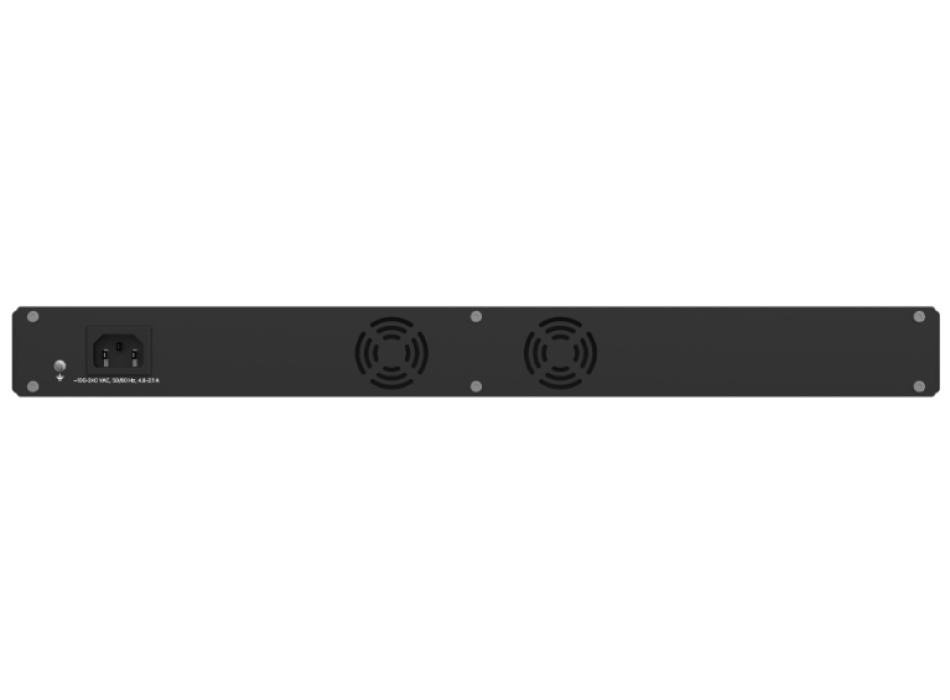

Connector
C14 connector
Input voltage range
100-240V AC, 50/60Hz
Energy consumption
Idle: 9W / Max: 330W / PoE Max: 300

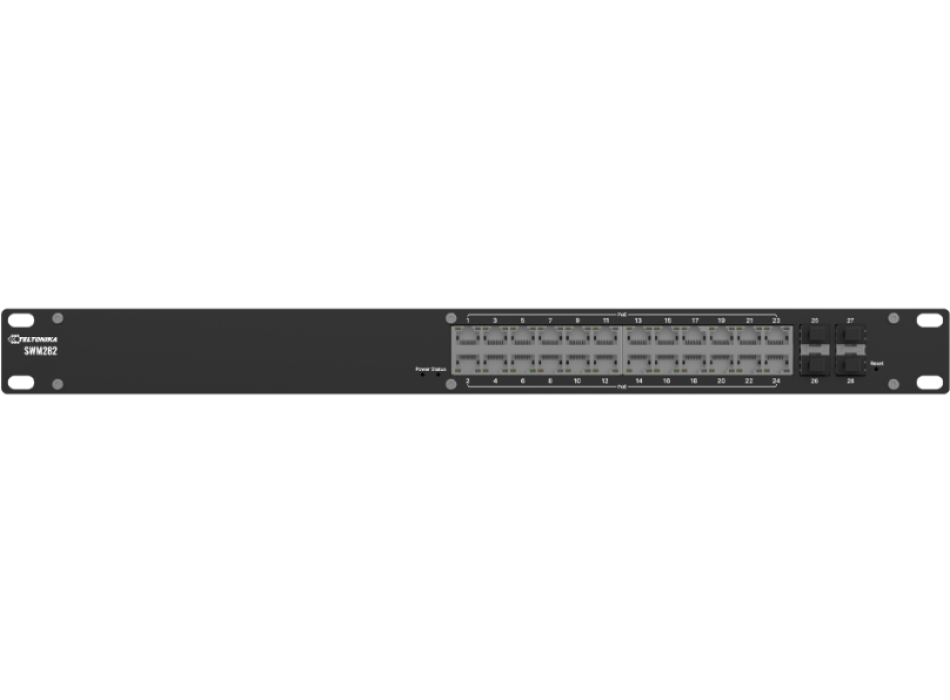

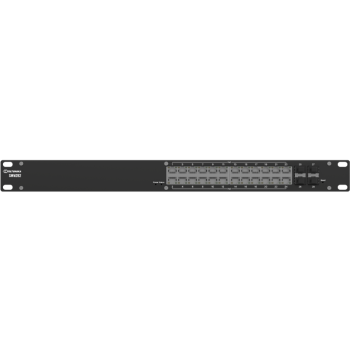

Physical interfaces
Ethernet
24 RJ45 ports, 10/100/1000 Mbps
Fiber
4 SFP ports
Status LED
1 x Power LED, 48 x ETH Status LEDs, 1 x Status LED, 4 x SFP Status LEDs
Energy
1 C14 connector
Reset
Software reset button
Other
1 x Grounding screw

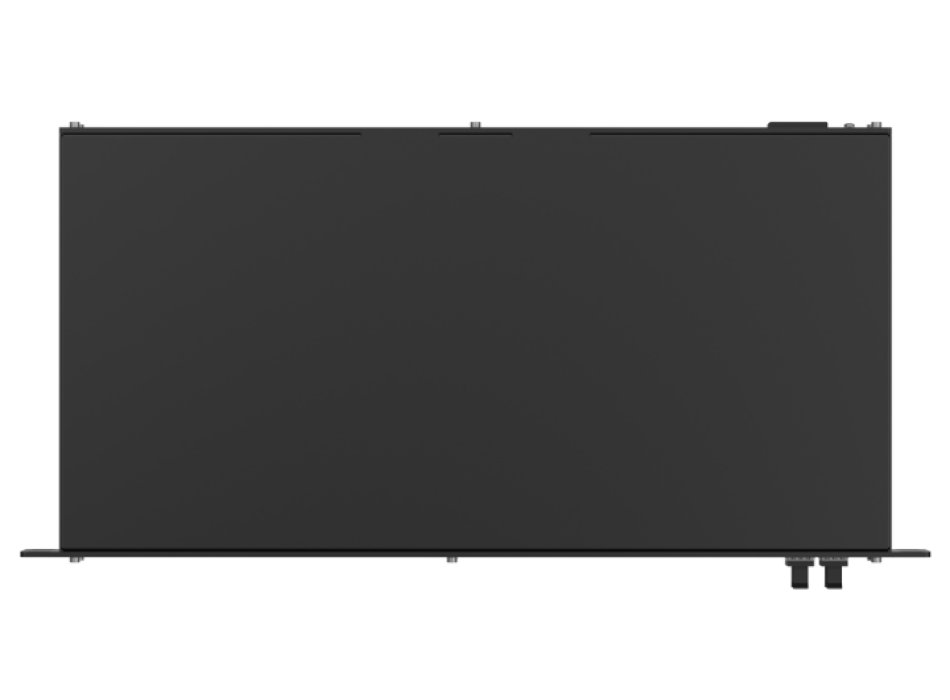

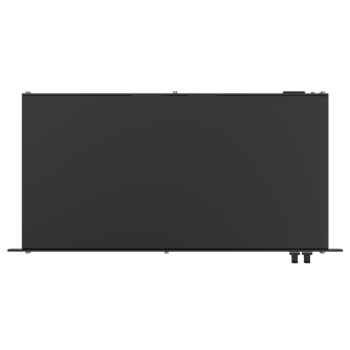

Physical specifications
Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
483 x 44 x 234 mm
Weight
2291 grams
Mounting options
Rack Mount Kit
Operating environment
Operating temperature
from 0°C to 50°C
Operating humidity
10% to 90% non-condensing
Degree of ingress protection
IP30
Regulatory and type approvals
Regulations
CE, UKCA, CB, RCM, FCC, IC
