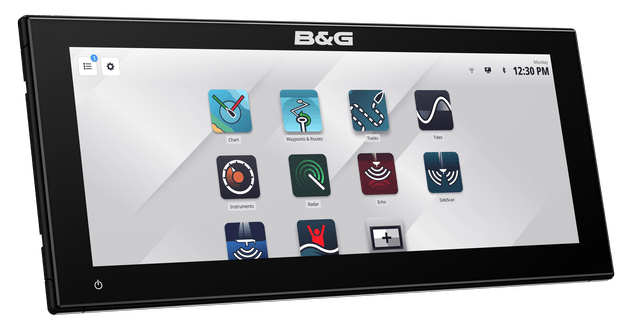

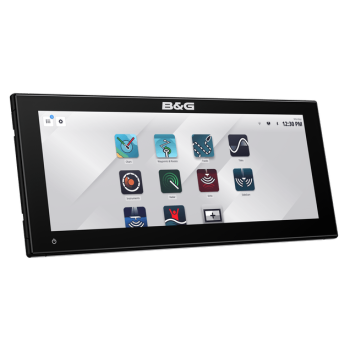

B&G Zeus S 3012 Ultrawide

(0)
Zeus S Ultrawide offers a simpler and more immersive navigation experience.
View our award-winning navigation features as clearly as possible, without interruptions from frames or unnecessary spaces.
  • Code: 000-16354-001
  • Brand : B&G
€ 3.289,00 € 3.658,78 -10%
Promotions combined with this product
- € 3.289,00 € 2.889,00 Savings € 400,00
B&G Zeus S 3012 Ultrawide
Intuitive and easy to use chartplotter
Zeus It's our most intuitive chartplotter for sailing. It features new and exclusive Sailing modes with dashboards and data presets for specific situations, as well as numerous advanced navigation features for a simpler navigation experience. All this is supported by clear and precise C-MAP cartography options, for simpler and safer navigation.

Next generation cards
C-MAP X-Gen charts for cutting-edge navigation. Explore DISCOVER X charts, zooming in or out instantly. Discover new spots with incredible local detail. Navigate even after dark with a dedicated night mode. The upgraded exceptional REVEAL X charts add stunning shaded relief and satellite imagery to your arsenal.



Revolutionary security features
X-Gen charts also offer a range of exceptional features, such as the revolutionary C-MAP Safety Alerts designed to automatically warn you of hazards ahead, from shallow water to buoys.


Innovative card management
An industry first, X-Chart Manager lets you manage C-MAP chart updates and upgrades directly from your device, with the ability to select custom areas for virtually instant download. There are also tons of updates available, as X-Gen charts are constantly evolving, with new features and features being added constantly.

Higher level integration
Our latest operating system puts integration at the heart of everything you do, with seamless networking across your entire vessel. Connect to HALO radars for improved safety and situational awareness. Get superior performance with our Triton Edge and Hercules sailing processors. See the best data at the helm with our renowned wind sensors, included in our Triton and Nemesis instrument ranges.

Main functions
  • Ultrawide IPS SolarMAX high-definition touchscreen viewable from all angles, even with polarized glasses
  • Different modes for Cruising, Racing and Anchoring
  • Award-winning sailing features like SailSteer, LayLines, Race Routes and StartLine
  • Compatible with C-MAP DISCOVER X and REVEAL X charts
  • C-MAP Safety Alerts
  • Full integration with HALO radars, B&G navigation processors, autopilots, Triton 2 instruments, Nemesis, wind sensors and more...
  • Integration with the B&G app with access to a 12-month premium subscription when registering a C-MAP X chart.*
  • Wi-Fi, Ethernet, and NMEA 2000 network connectivity
  • Support for IP cameras
  • Guided setup for quick operation.
*Mirroring and App control features are not currently available on the B&G Zeus S Ultrawide.
Display

Viewing angles
85° (top, bottom, left, and right)
Backlight color
White
Display size
12 inches
Screen brightness
>1000 nits
Display resolution
1920 x 720 px

Connectivity
Bluetooth
Bluetooth 4.0 with support for Bluetooth Classic
NMEA 2000 connectivity
1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity
No
Wi-Fi connectivity element
IEEE 802.11b/g/n
SD card memory
1 MicroSD slot, 1 x USB (A)
Ethernet ports
1 port (5-pin connector)
Video
IP Camera support

Cartography
Supported cards
C-MAP Tile (CMT) Discover

Autopilot
Mode of government
Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav

Electric
Maximum power consumption
19.8 W (1434 mA at 13.8 V)
Supply voltage
12 V DC (10 - 17 V DC min - max)
Recommended fuse rating
3A

Environment
Operating temperature range
-15°C to 55°C (5°F to 131°F)
Storage temperature range
-20°C to 60°C (-4°F to 140°F)
Waterproof level
IPx6 and IPx7
Humidity
IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Vibrations and shocks
100,000 cycles of 20 G

GPS
GPS receiver channels
32 Channels
Correction
10 Hz high speed update (internal)WASS, MSAS, EGNOS, GLONASS
Refresh rate
10 Hz high speed update (internal)WASS, MSAS, EGNOS, GLONASS
Location accuracy
Horizontal Accuracy 3 m (9.8 ft)

MFD
AIS
Receive AIS data over NMEA 2000
Autopilot
NAC-1, NAC-2, NAC3, NAC-D compatible
Cartography included
World wide basemap (not for navigation).Detailed chart card required
Digital switching
Czone
Sonar compatibility
One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
GPS
Internal, 10Hz
Weather forecast
Sirius XM via WM4 module (USA only)
Waypoints, routes, tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Physicist
Dimensions (height x width x depth)
No bracket, no suncover| W: 337.0 mm (13.30") x H: 147.9 mm (5.82") x D: 88.5 mm (3.48"). With gimbal bracket | H: 157.9 mm (6.22") D:96.5 mm (3.80")
Weight
1.5 kg (3.3 lbs)
Compass safety
50 cm (1.7 ft)
Mounting type
Rear mount (bracket supplied), Bracket mount (bracket optional)

Other
Interface
Multi-touch screen
Languages
-German (Deutsch)-English (English)-Dutch (Nederlands)-Danish (Dansk)-Spanish (Español)-French (Français)-Italian (Italiano)-Norwegian (Norsk)-Portuguese (Português)-Finnish (Suomi)-Swedish (Svenska)-Icelandic (Islenska)-Greek (ελληνικά)-Chinese (中文)-Turkish (Türkçe)-Estonian (Eesti)-Croatian (Hrvatski)-Lithuanian (Lietuvių)-Latvian (Latviešu)-Polish (Polski)-Chinese Simplified (中文)-Japanese (日本語)-Korean (한국어)-Ukrainian
Warranty period
2 Years
