Technical Specifications |
|
| Preloaded maps | |
|---|---|

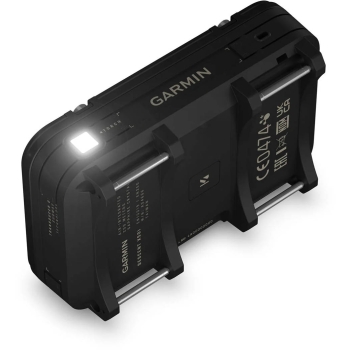

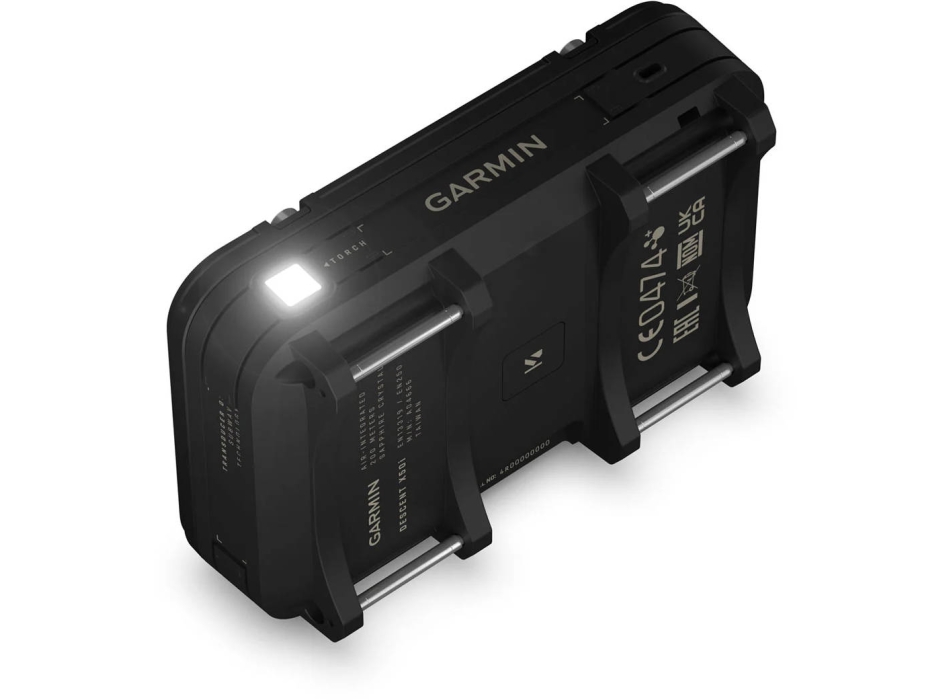

| LED Flashlight | |
| Display type | LCD |
| Touch screen | |
| Waterproof rating | Dive (200 meters) |
General |
|

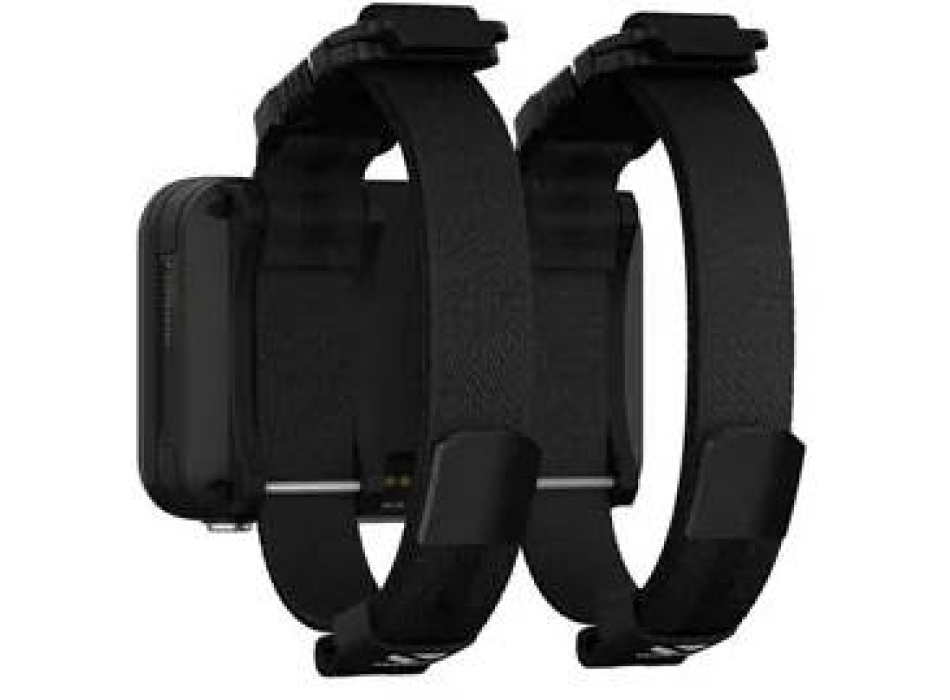

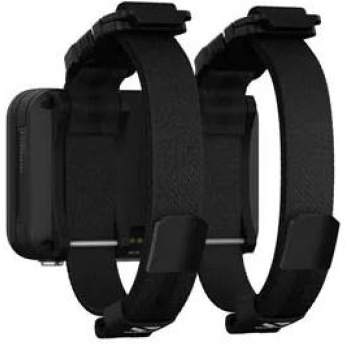

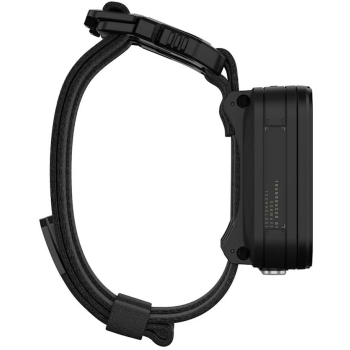

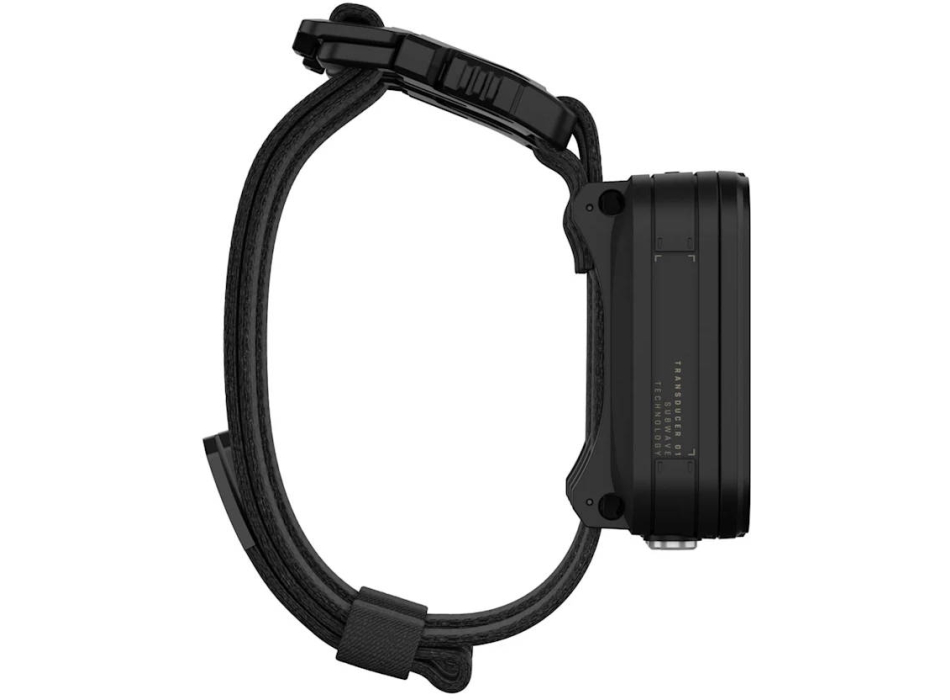

| Strap material | Elastic nylon with adjustable buckles |
|---|---|
| Lens material | Sapphire crystal |
| Bezel material | Fibre reinforced polymer |
| Case material | Fibre reinforced polymer |
| Compatible with QuickFit ™ bands | Yes (20mm) |
| Case dimensions | 62.4 x 98.3 x 24.5 mm Nylon strap: 38cm |
| Weight | Without strap: 253 g Nylon strap (strap and buckle): 280g. |
| Hermetically sealed inductive buttons | |

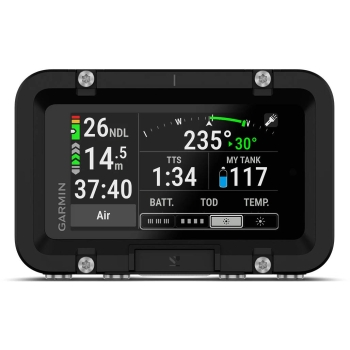

| Display size | Diagonal: 3″ |
| Display resolution | 640 x 360 pixels RGB |
| Color screen | |
| Battery life | Medium brightness (default): 16 hours High brightness: 13 hours Night dive: 20 hours |
| Charging method | Garmin Clip Charger |
| Memory/History | 32 GB |
Clock Functions |
|
| Time/Date | |
|---|---|
| Time synchronization via GPS | |
| Automatic Daylight Saving Time | |
| Chronometer | |
| Sunrise/Sunset Times | |
Sensors |
|
| GPS | |
|---|---|
| GLONASS | |
| Galileo | |
| Compass | |
| Gyroscope | |
| Accelerometer | |
| Thermometer | |
| Ambient light sensor | |
| Depth sensor | |
Smart Functions |
|
| Connectivity | Bluetooth ® , ANT+ ® , Wi-Fi ® , Subwave™ |
|---|---|
| Smart Notification | |
| Auto-reply with preset messages (Android™ only) | |
| Weather Forecast | |
| Sync settings in real time from the Garmin Connect™ app | |
| Find My Watch | |
| Smartphone Compatibility | iPhone® , Android™ |
Tactical functions |
|
| Double grid coordinates | |
|---|---|
Underwater Features |
|
| Maximum operating depth for diving activities | 200 meters |
|---|---|
| Single gas mode | |
| Multi-gas mode | |
| Indicator mode | |
| Decompression model | Bühlmann ZHL-16c with gradient factor |
| Nitrox Support | |
| Trimix Support | |
| Closed circuit breathing apparatus (CCR) | |
| Gas mixtures | Air, Nitrox and Trimix, up to 100% O2; 1 bottom gas and up to 11 deco and/or reserve gases. |
| PO2 | Up to 2.0 with customizable PO2 deco setting |

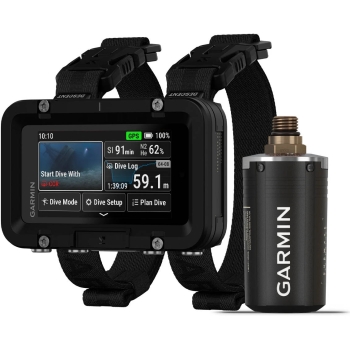

| Subwave™ Support | |

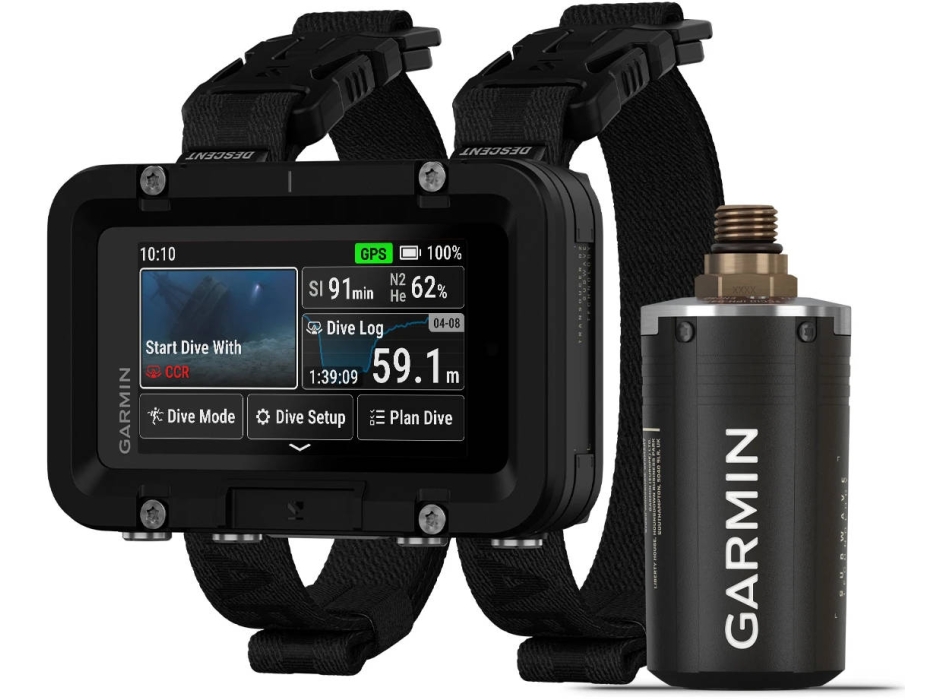

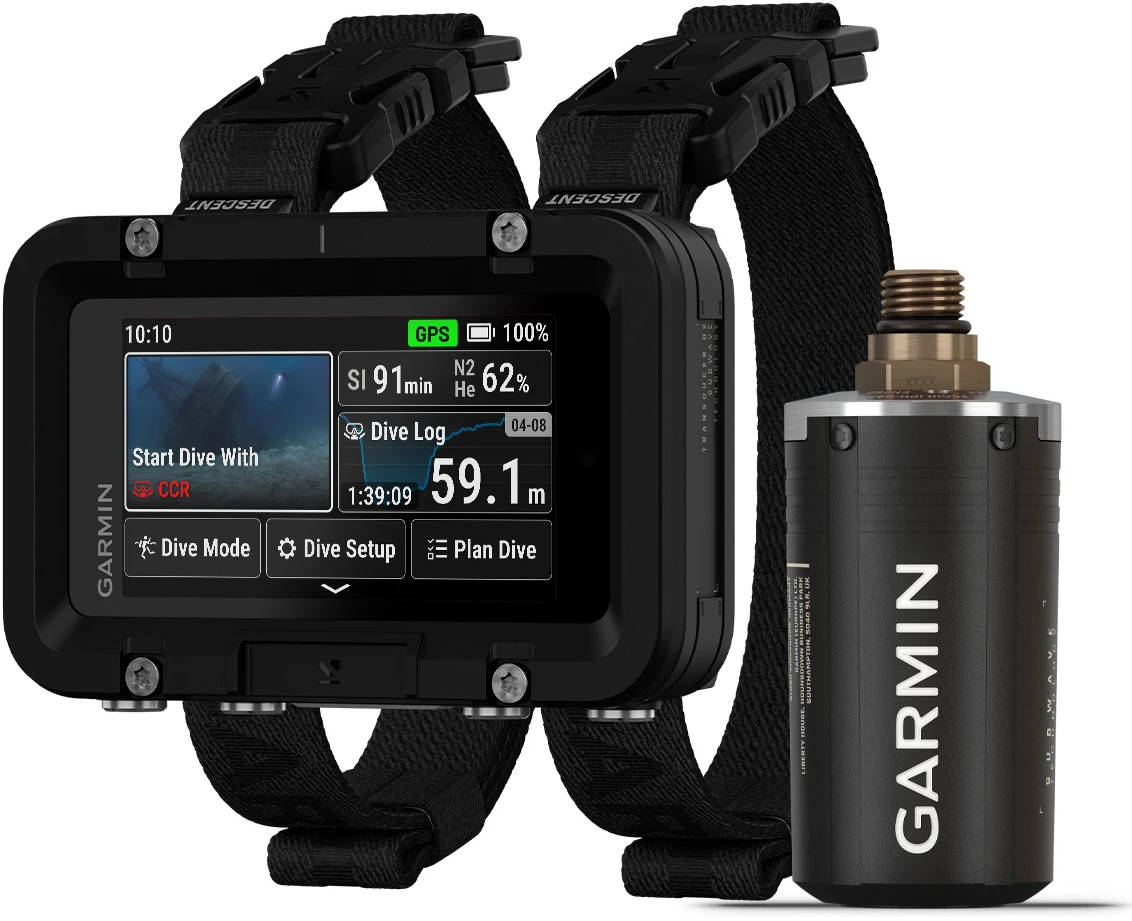

| Air integration | Yes (via SubWave™) |
| Number of transmitters supported | 8 |
| Gas time remaining | |
| Gas consumption percentage | |
| Automatic start/stop dive | |
| Custom end of dive timeout | Yes (from 20 to 10 m) |
| Safety stop | Yes (customizable off/3 min/5 min) |
| Depth stages | Yes (with custom Gradient Factors) |
| Customizable caution | Yes (low/medium/high or custom with Gradient Factor) |
| Ascent/descent speed indicator | |
| Automatic height adjustment | |
| No fly time | |
| Dive Planning | Yes (basic NDL planning + multigas deco) |
| Backlight | Yes (configurable time and intensity; automatic activation in depth) |
| Automatically saves dive entry and exit positions | |
| Sync your dive log to the Garmin Dive ™ App | |
| Custom Dive Data Pages | |
| Warnings and Alarms | Tone and vibration alarms for ascent rate, PO2, CNS/OTU, NDL, deco, gas switch, tank pressure, gas consumption rate. Customizable alarms (up to 40) via tone and/or vibration for dive mode, based on depth or time |
| 3-axis diving compass | Yes (with configurable direction, quick change to 90R, 90L and reciprocal). Indicate the degrees and the direction relative to the set one |
| Deco block missing | Yes (can be deactivated before dive with user confirmation) |
| Resetting residual fabric load | Yes (on the surface with user confirmation) |
| Diver Surface Status Widget | Yes (surface interval, N2/HE loading, CNS, OTU and tissue status) |
| Dive Readiness | Yes (with compatible accessory) |
Marine Functions |
|
| Preloaded profiles for nautical mode | Nautical, Sailing, Regatta Mode |
|---|---|
| Streaming playback of vessel data | CIQ |
| Integrated barometer and tide tables | Yes (downloadable tides) |
Training, Planning and Analysis Functions |
|
| GPS Speed and Distance | |
|---|---|
| Touch and/or Button Block | |
| Activity history on the watch | |
Outdoor Functions |
|
| Point-to-point navigation | |
|---|---|
| POINT OF REFERENCE | |
| Distance to destination | |
| Preloaded road and trail maps | |
| Downloadable maps | |
| GPS coordinates | |
