Garmin GHP™ Reactor for Reversible Hydraulic Steering Systems
Suitable for small boats without a display to be connected in NMEA 2000 with compatible Garmin displays
Our most responsive autopilot 9-axis solid-state AHRS (Attitude Heading Reference System) compass.
Reduction of deviation and course errors, rudder movement and lower power consumption, for precise and comfortable navigation.
Calibration and setup times
Garmin offers advanced technology for hydraulically steered powerboats with the innovative GHP Reactor series of autopilots. The GHP Reactor is one of the most sensitive and responsive systems on the market.
The GHP Reactor is designed for all types of boats with hydraulic steering. It is an indispensable aid during navigation when you need to leave the helm to perform other tasks or control other onboard devices.
AHRS System - 9-axis solid-state compass The GHP Reactor delivers unprecedented performance through the use of a 9-axis solid-state compass and AHRS that minimizes course and heading errors, thus limiting rudder movement and vessel power consumption, ensuring precise and comfortable course keeping.
Responsive in every situation This extraordinary autopilot adapts to any sea conditions to help you stay on course. The GHP Reactor can perfectly maintain your set course even when pitching and rolling in rough seas.
Significantly reduced calibration and initial setup times All autopilots require commissioning and calibration. The new Reactor autopilots, compared to previous versions, have simpler processes and setup and calibration times have been significantly reduced.
Full integration with Garmin chartplotters With a compatible Garmin network chartplotter, you can have complete control of the GHP Reactor directly from the display. Using BlueChart® g2 Vision cartography (sold separately), you can take advantage of the innovative Autoguidance feature, automatically following the best route to a point on the GPS. The GHP Reactor, in addition to holding course in any sea conditions, can easily perform numerous preprogrammed procedures, such as search and trolling.
Connecting to network devices The GHP Reactor autopilot connects to the Garmin Marine Network via NMEA 2000®, allowing data to be shared with compatible chartplotters. It supports up to three GHC™ 50 control heads for data viewing, which can also be controlled via an optional wireless remote or with quatix®, the world's first GPS watch for marine navigation.

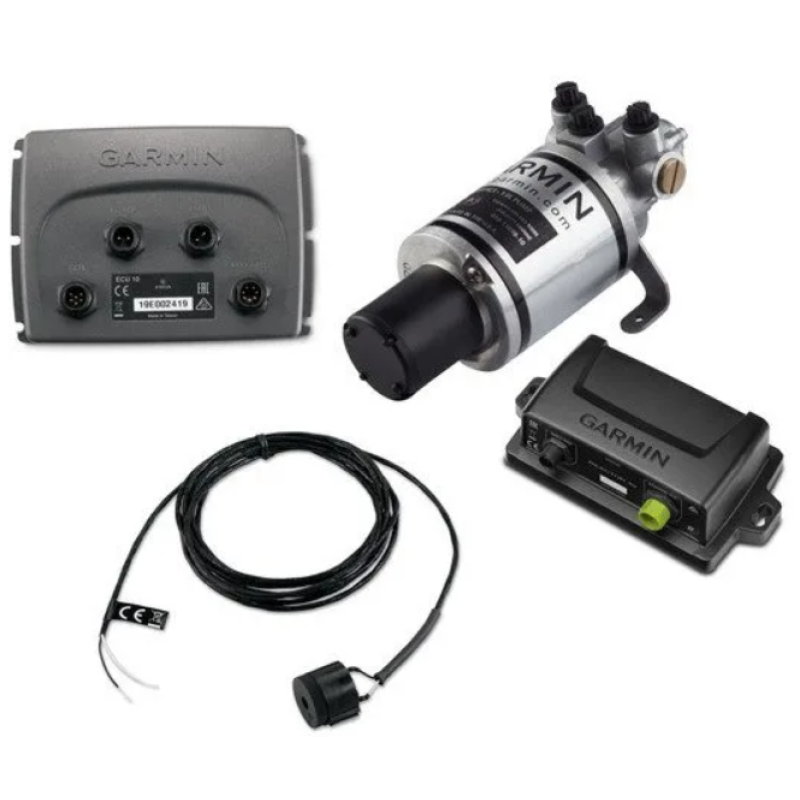

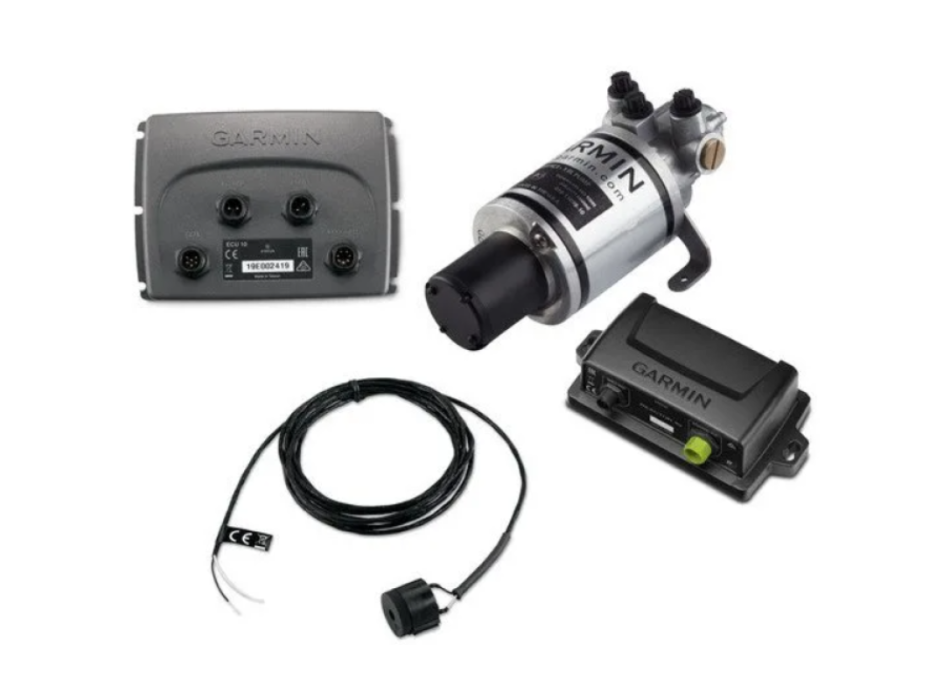

Packaging CCU (Course Compass Unit)
ECU (Electronic Control Unit)
Pump 1.0 L
CCU/ECU connection cable
Horn
ECU power cable
NMEA 2000® Installation Kit
Documentation
