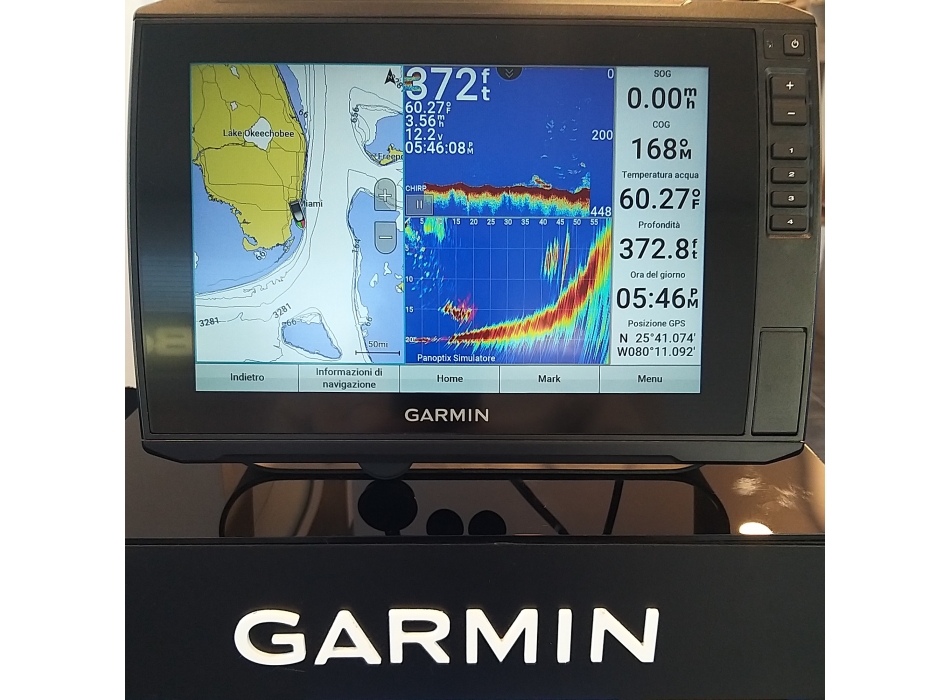

Garmin ECHOMAP Ultra 102SV Chirp fishfinder/plotter 10" with GT54 USED

  • Code: 010-02111-01
€ 1.699,00 € 2.299,00 -26%
Previous price: € 1.599,01

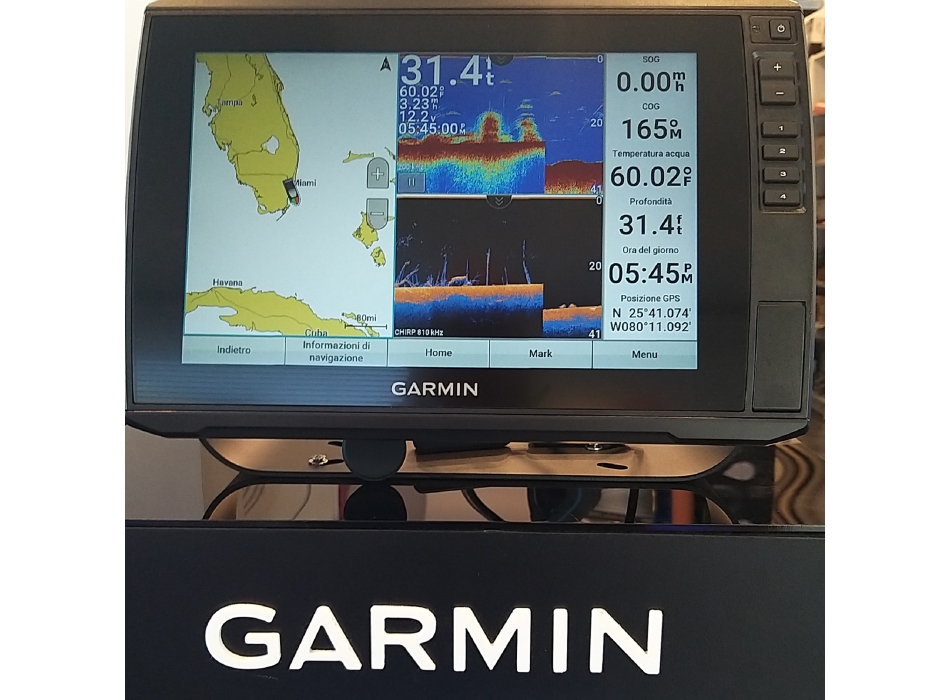

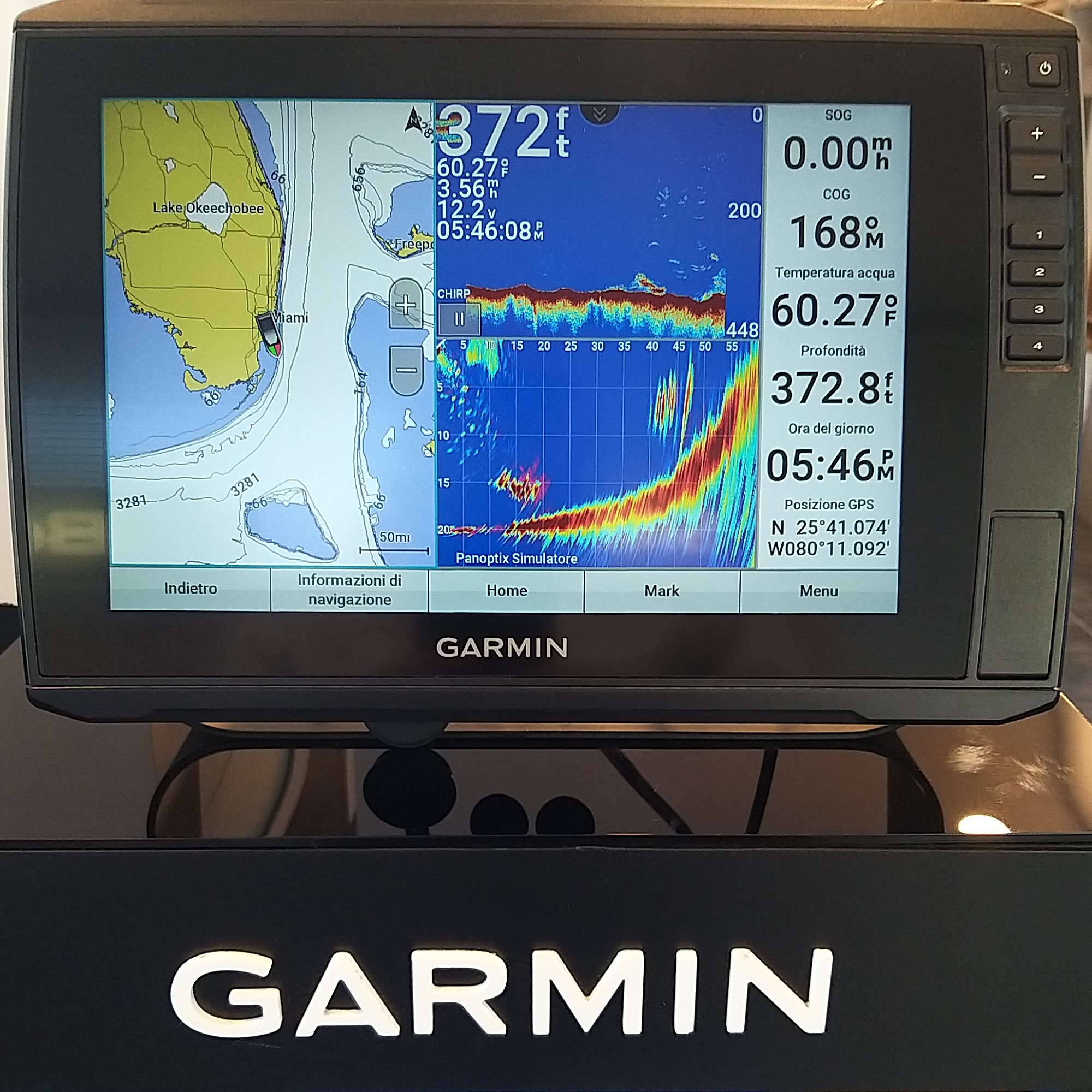

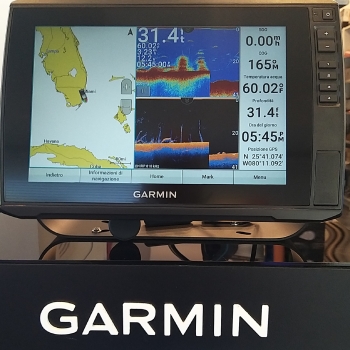

Garmin ECHOMAP Ultra 102SV USED
GT54UHD-TM transducer included

Revolutionize the best
Combined chartplotter with bright 10" display and equipped with keyed-assist touchscreen, an innovative keyboard-assisted touchscreen system
Compatible with Panoptix LiveScope™ sonar technology and Panoptix LiveScope LVS12 transducer
Share sonar data, waypoints and routes with other 10" and 12" ECHOMAP Ultra and 7" and 9" ECHOMAP Plus units
Totally free Quickdraw Contours feature that allows you to independently trace your HD bathymetrics every 30 cm
The integrated Wi-Fi® connectivity allows access to the ActiveCaptain™ world, the new completely free application that allows you to have a unique experience with the Garmin Marine instrumentation installed on board
NMEA 2000® connectivity

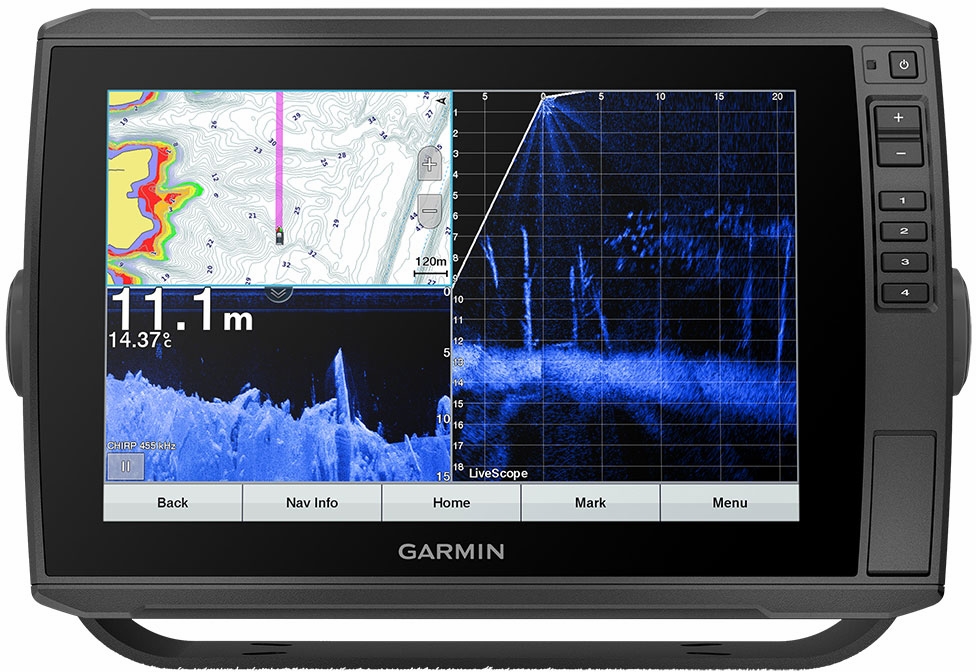

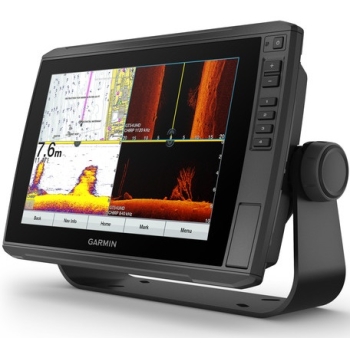

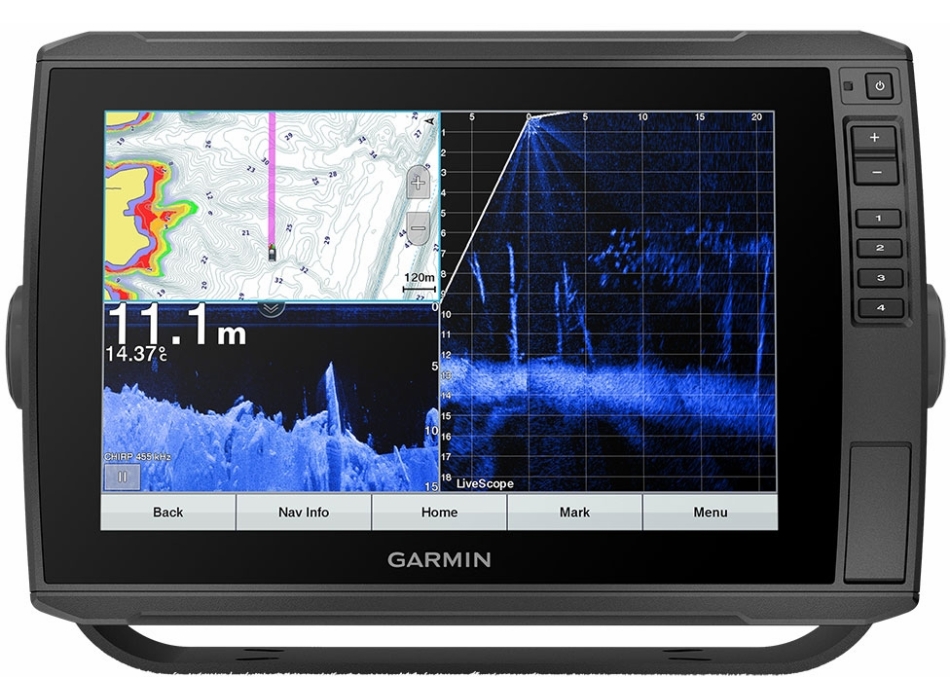

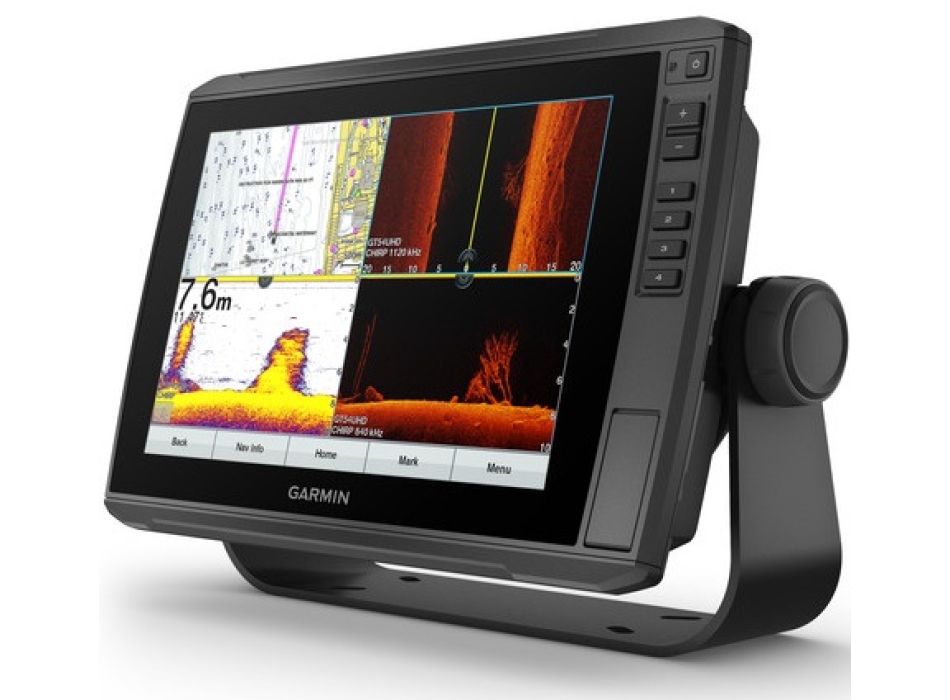

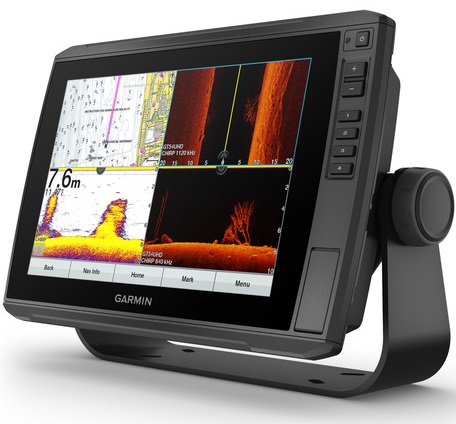

The new ECHOMAP Ultra 102sv offers the convenience of a touchscreen with keypad, thanks to the bright 10" anti-glare display. It includes support for the clear and sharp images of Garmin CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and it is compatible with the Panoptix 360° view sonar It is compatible with BlueChart® g3 and BlueChart® g3 Vision cartography which integrates the best of Navionics® data.

Advanced sonar technology
The new ECHOMAP Ultra 102sv with GT54UHD-TM Transducer2sv supports the latest generation Panoptix LiveScope LVS12 transducers as well as the entire line of Panoptix™ transducers that allow you to scan and display in real time everything that is happening in front of or below the boat, guaranteeing exact and extremely realistic perception.
The integrated module is equipped with CHIRP technology, which simultaneously sends a signal on several frequencies, from high to low, then interpreting the echo of each single frequency. This continuous spectrum provides more information to CHIRP sonar, which uses it to produce sharper, higher resolution images.
CHIRP ClearVü technology enables higher resolution for better target discrimination and higher level of detail.
CHIRP SideVü technology is the innovative function for displaying the compliance of the bottom and submerged structures on the sides of the boat.

Share data between onboard displays

Own more than one unit? You can share sonar data, waypoints and routes with other 10" and 12" ECHOMAP Ultra and 7" and 9" ECHOMAP Plus units.

Quickdraw Contours
Quickdraw Contours allows you to independently trace your HD bathymetrics every 30 cm.
Quickdraw Contours is really simple to use. Once activated, the user can check the boat's route on the display of his Garmin chartplotter while navigating and see the detail of the bathymetrics that are drawn directly on the map. The process is immediate: the new data is immediately available for use and it is possible to share it with friends and fishing buddies, thanks to the Quickdraw Community on Garmin Connect™, our online community.[Our Premium Sonar Support]The best of Garmin and the best of Navionics®

I'm compatible with the latest Garmin BlueChart® g3 cartography and BlueChart® g3 Vision, which integrates BlueChart data with Navionics data to offer the best cartography ever. This new cartography also includes Auto Guidance1 technology, which allows you to avoid dangers and obstacles, developing safe routes to destinations set based on the characteristics of the boats.

Make the most of the potential of the innovative ActiveCaptain application which allows you to connect Garmin Marine chartplotters to the mobile network and access a new world of content: consult, purchase, update and synchronize nautical cartography; quickly update the on-board devices to the latest software version available; receive Smart Notifications2, calls and SMS directly on the chartplotter display; connect with the ActiveCaptain community to learn updated information on marinas and new points of interest, thanks to updated feedback from thousands of other users; plan your navigation in advance from the comfort of your home; quickly and easily download and share bathymetrics from the Quickdraw™ Community; automatically synchronize routes and waypoints marked on the chartplotter to review all data anywhere on your mobile device.

ECHOMAP Ultra 102sv
GT54UHD-TM transducer
Data/power cable
Tilt stand with quick release base
Recessed installation kit
Protective cover
Dimensions 295 x 195 x 98mm
Screen size, WxH 21.7cm x 13.6cm; 10" diagonal
Screen resolution, WxH 1280 x 800 pixels
Screen type WXGA screen
Weight 1.8kg
IPX7 waterproof rating
Polarized Support
Power Consumption 26W
GPS antenna Internal or external on NMEA 2000 network
Mounting options Bracket or recessed
Receiver 10Hz
Garmin Marine Network™ 2 ports (large connector)

Maps and memory
External memory 2 microSD™ cards
Waypoints 5,000
Memorable routes 100
Track log 50,000 points; 50 tracks

Functions for outdoor activities
Tide data

Chartplotter functions
Compatible with Garmin black-boxes Yes
Compatible with AIS function
Compatible with DSC function
Supports FUSION-Link™ compatible radios
Support for GCV™ black box sounder
ActiveCaptain compatible Yes
Sailing functions

Sonar functions and specifications
Double frequency
Double cone
Frequencies supported CHIRP High-Wide: 150-240kHz
Ultra High-definition ClearVü: 800kHz (760-880kHz)
CHIRP ClearVü: 455kHz (425-845kHz)
Ultra High-definition SideVü: 1,200 kHz (1060-1170 kHz)
Transmit Power 500W (RMS) / 4,000W (peak-to-peak)
CHIRP Yes (integrated)
ClearVü Yes
SideVü Yes
Maximum depth 600 in fresh water
350 in salt water (maximum range is a guideline depending on factors such as bottom type and other water conditions)
Water temperature data and graph

NMEA 2000® compatible
Number of transducer pins 12
NMEA 0183 input ports 1
NMEA 0183 output ports 1
Wireless Connectivity Yes


Sei interessato ad una offerta privata?
D. Se possibile vorrei sapere il prezzo senza trasduttore
R. 04-11-23 Buon pomeriggio, di seguito link al sito per la versione senza trasduttore: https://www.painestore.it/garmin_echomap_ultra_102sv_chirp_eco/plotter_10_ Cordiali saluti. Luigi Bianchi
D. Buongiorno volevo sapere si può cambiare la sonda e mettere la gt 56
R. 04-11-23 Buongiorno, sì è possibile, di seguito link al sito: https://www.painestore.it/garmin_echomap_ultra_102sv_chirp_eco/plotter_10_ Prezzo 1.849,00 euro. Cordiali saluti. Luigi Bianchi
D. Antenna radar garmin hd e’ supportata dalla macchina?
R. 17-08-23 Buonasera, purtroppo tutti i prodotti serie echoMAP non supportano il Radar. Dovrà valutare un GPSMAP: https://www.painestore.it/cerca?keywords=gpsmap In caso di acquisto, inserisca il codice Coupon garfu6 per avere lo sconto extra del 6%, valido solo per gli articoli non in promo. Cordiali saluti. Luigi Bianchi
D. Buongiorno. Si può avere con trasduttore interno? E se si il prezzo? Grazie.
R. 16-08-23 Buonasera, sì è possibile, al prezzo di 1.500,00 euro con GT15 da interno. Segnalo che si tratta di display assolutamente nuovo con garanzia due anni. Cordiali saluti. Luigi Bianchi
D. Buonasera, sono interessato allo strumento usato da utilizzare come cart plotter ( senza trasduttore ) Gentilmente chiedo il nuovo prezzo con abbinato la cartografia ( top ) dell’Adriatico . Saluti
R. 06-08-23 Buonasera, segnalo che si tratta di oggetto assolutamente nuovo con garanzia due anni. Nel caso sia interessato alla versione senza trasduttore ma con cartografia dell'Adriatico, posso proporlo sempre allo stesso prezzo, ovvero 1.399,00 euro. Cordiali saluti. Luigi Bianchi
D. saluti chiedo se si puo interfacciare wifi ad altri strumenti garmin e se comprende la scheda alto adriatico o se è opzionale e quanto ci vuole in aggiunta
R. 19-07-23 Buon pomeriggio, interfacciabile con strumenti Garmin in NMEA 2000 e non in WiFi, cartografia da acquistare a parte: https://www.painestore.it/garmin_navionics_regular Non compatibile con RADAR. Cordiali saluti. Luigi Bianchi
D. salve volevo chiedere se questo modello é compatibile con il livescope lvs34
R. 05-07-23 Buon pomeriggio, certamente sì, compatibile. Cordiali saluti. Luigi Bianchi
D. Salve e compatibile con trasduttore airmar montato su un raymarine c120 può essere acquistato senza trasduttore
R. 30-04-23 Buonasera, compatibile solo con trasduttori da 600w e non con quelli da 1kw, tramite questa box di collegamento, tagliando il connettore del trasduttore Raymarine. Per acquisto senza trasduttore, la proposta è di 1.300,00 euro. Cordiali saluti. Luigi Bianchi
D. Buongiorno, io sarei interessato all ecoscandaglio solamente senza sonda, mi serve come secondo strumento, vendete solo ecoscandaglio? Grazie Davide
R. 26-04-23 Buongiorno, sì certo, possiamo prevederlo al prezzo di 1.200,00 euro senza trasduttore. Cordiali saluti. Luigi Bianchi
