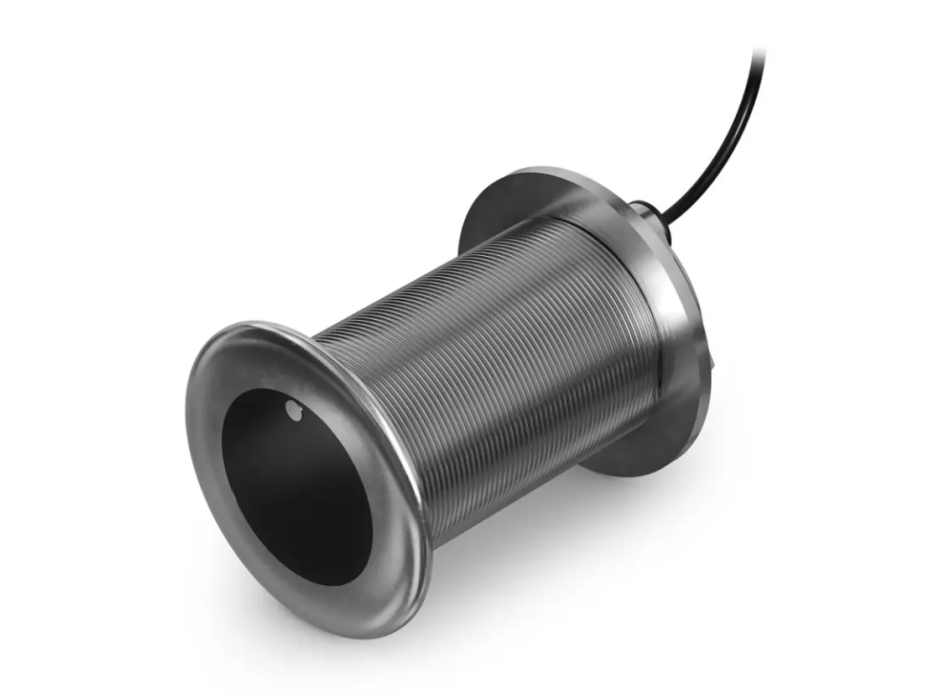

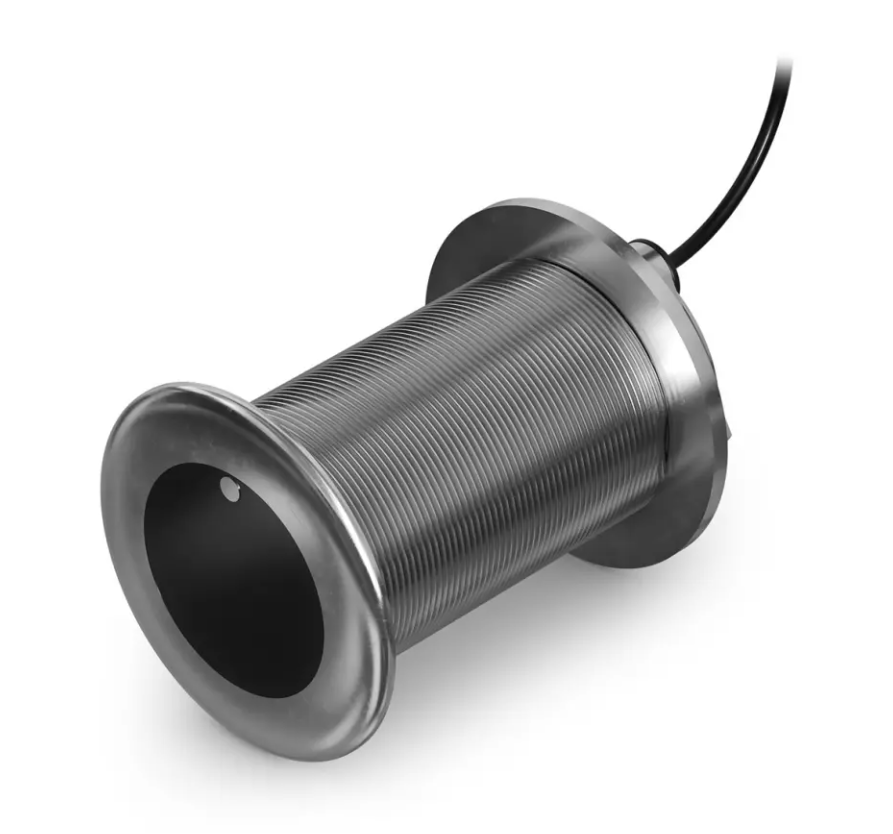

Garmin GT15M-THF 600W Chirp Thru-Hull Transducer in Steel

(0)
CHOOSE THE HULL INCLINATION FROM THE DROP-DOWN MENU
  • Code: 010-02868-00
  • Brand : Garmin
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 799,00 € 949,00 -16%

Garmin GT15M-THF 85-165 kHz Thru-Hull Steel Transducer


Designed to reduce drag and optimize sonar performance on mid-sized fishing and cruising boats, this flush-mount 600-watt mid-band CHIRP transducer delivers crisp fish arches, structure and bottom depth information on your screen.

Maximum depth performance up to 580 meters in fresh water.
Access the CHIRP sonar frequency range from 85 to 165 kHz.
Search with beam width between 16 and 24 degrees.
Fast response water temperature sensing.
The thru-hull transducer design allows for flush installation with 0, 12, or 20 degrees of tilt.
The automatic ID identification function enables simplified plug-and-play operation.

TRADITIONAL MID-BAND CHIRP FISHFINDER
This 600-watt, 8-pin, stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar for clear fish structure and targets up to 1,200 feet in saltwater and 1,900 feet in freshwater.

THROUGH-THROUGH INSTALLATION
The rugged stainless steel housing and stem provide a flush-mount mount for minimal resistance and optimal beam alignment for clear sonar returns.

WIDE FREQUENCY RANGE
Use the right frequency for the waters you're fishing. With a medium frequency range, this transducer ranges from 85 to 165 kHz, providing wide coverage, clear fish arches, and accurate depth readings.

AUTOMATIC ID IDENTIFICATION TECHNOLOGY
With Garmin Auto Identification technology, the fishfinder can automatically configure itself based on the transducer used.

OPTIMAL PING SENSITIVITY
With excellent sonar sensitivity, low noise, high resolution and good target separation, this rugged transducer makes it easier than ever to distinguish fish and structure on the screen of your compatible chartplotter.

COMPATIBILITY WITH VARIOUS TYPES OF LOOP
Configurable for a wide range of hull materials, including fiberglass, composite, steel, aluminum and wood, the transducer is available in a range of tilt versions to accommodate angles from 0 to 20 degrees without a fairing lock.

CHIRP FREQUENCY mid-band (85-165 kHz)
ENERGY 600 W
TRANSDUCER BEAMWIDTH 24°-16°
MAXIMUM DEPTH 365 meters salt water; 580 meters fresh water
CABLE LENGTH 15 meters
DEPTH/SPEED/TEMPERATURE Depth, temperature
NUMBER OF PINS 8 pin
SUPPORTED TILT/TRANSMITT ANGLES 0° supports through-hull tilt angles from 0° to 7°
12° supports thru-axle tilt angles from 8° to 15°
20° supports thru-axle tilt angles from 16° to 24°
HOUSING MATERIAL Stainless steel
D Vorrei sapere se è compatibile con ecoscandaglio Garmin striker vivid 9sv e l'angolo d'inclinazione di installazione su gozzo di 5 metri. Grazie
R 02/05/2026 Buongiorno, sì certo confermo la compatibilità, tramite questo cavo adattatore: https://www.painestore.it/garmin_cavo_adattamento_da_8_a_4_pin In merito all'inclinazione dovrebbe verificare lei l'inclinazione del suo scafo per scegliere il modello idoneo, grazie. Cordiali saluti. Luigi Bianchi
D Vorrei sapere le misure del diametro della filettatura per il buco nello scafo
R Buongiorno, le misure di foratura dello scafo per il montaggio del trasduttore sono le seguenti: Per il montaggio in uno scafo in vetroresina: • Fresa a tazza da 73 mm Per il montaggio in uno scafo in metallo: • Fresa da 75 mm Saluti Antonio Vasaturo
D Buona sera Vi chiedo se questo trasduttore è compatibile con il Garmin ecomap 92 sv uhd che ho acquistato 2 anni fa sul vostro sito, ad oggi è installato a bordo di uno sciallino con un trasduttore passante in bronzo airmar un po vecchiotto ma chiaramente perdo molte funzioni e pensavo di aggiornarlo con questo tipo di trasduttore. Resto in attesa di un vostro riscontro e porgo cordiali saluti Alessio Dicembre
R 10-01-25 Buongiorno, sì compatibile, attenzione però perchè ha solo le funzioni eco Chirp standard 2D, non ha chiaramente funzioni ClearVù e SideVù. Cordiali saluti. Luigi Bianchi
