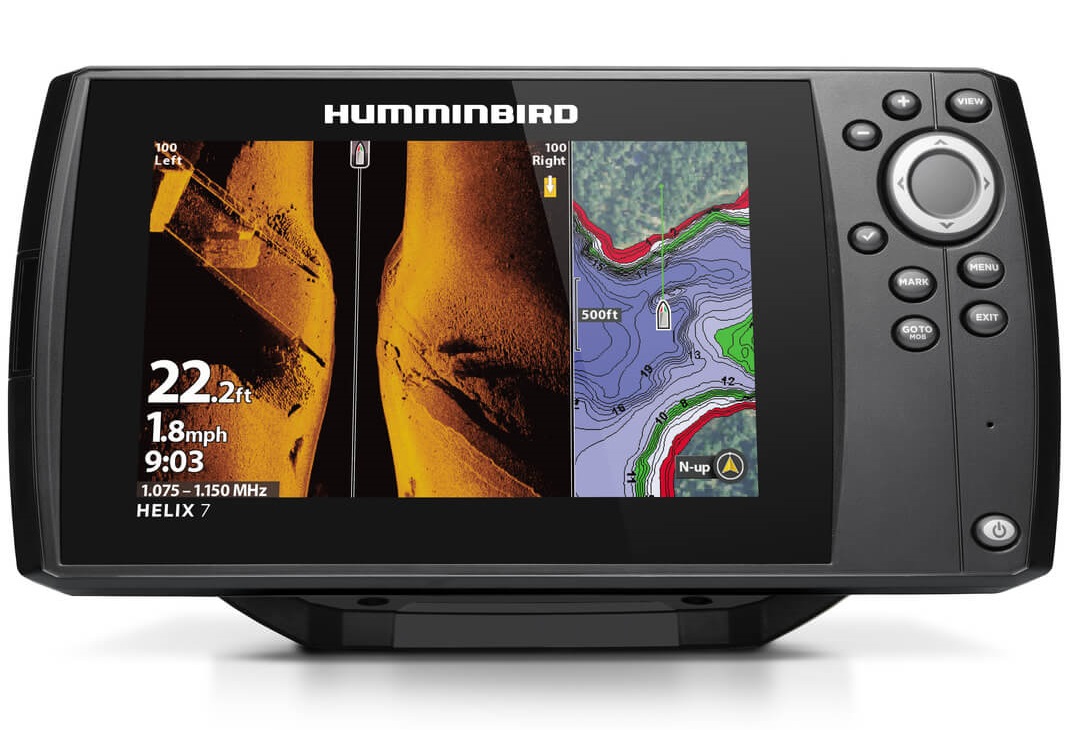

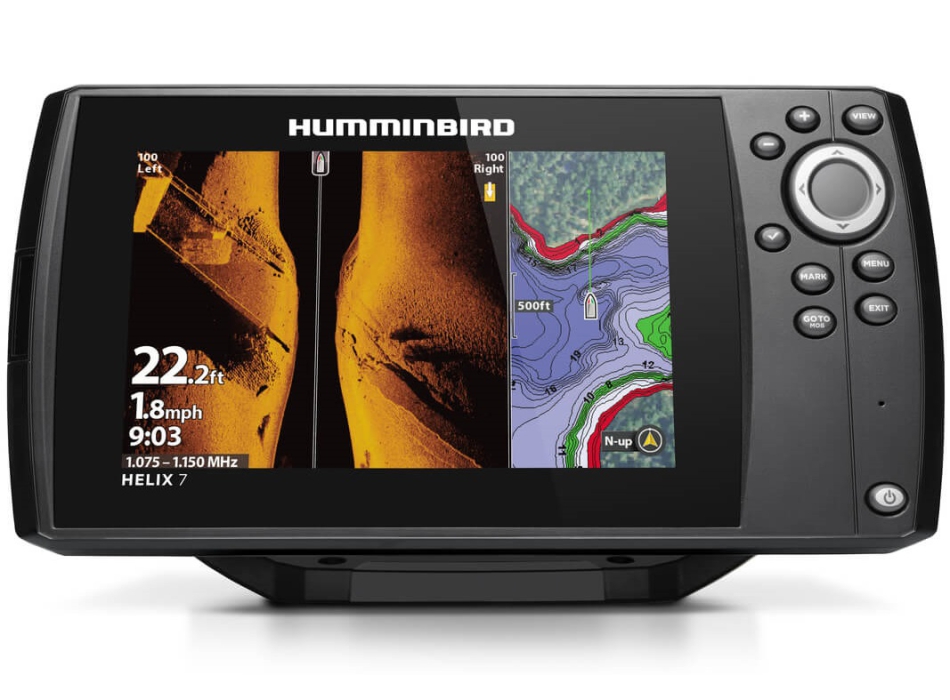

Humminbird HELIX 7 G4 CHIRP eco / GPS

Select the version with DS Dual Spectrum / Side Imaging / MegaDI / MegaSI transducer from the drop-down menu
  • Code: 411600-1
€ 639,00 € 829,00 -23%
CHOOSE THE MODEL
you chose:

Helix 7 CHIRP G4 Sonar Gps

CHOOSE THE DISPLAY / TRANSDUCER PACKAGE YOU PREFER THROUGH THE CURTAIN MENU

Four options available:
. DS version with eco Chirp Dual Spectrum stern transducer
. Side version with DS stern transducer, Down Imaging and Side Imaging
. MDI version with Mega Down Imaging eco Chirp DS and Mega Down Imaging transom transducer
. MSI version with Mega side Imaging echo Chirp DS, Mega Side and Down Imaging transom transducer

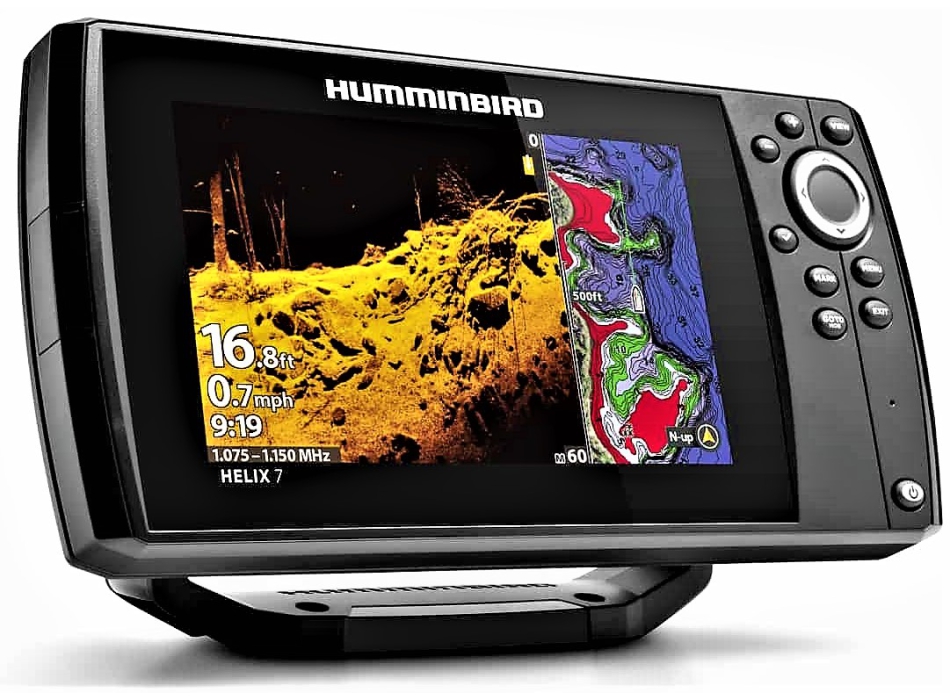

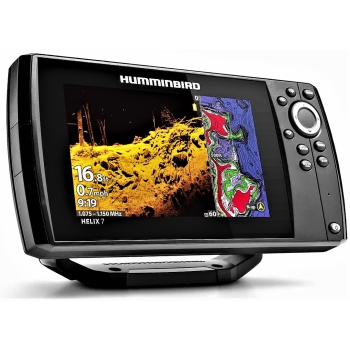

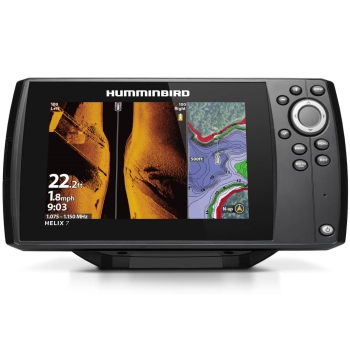

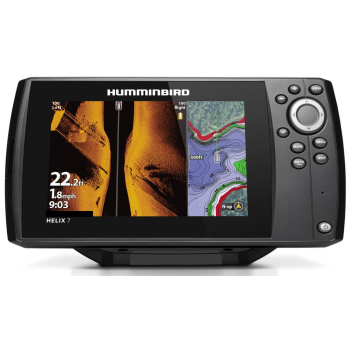

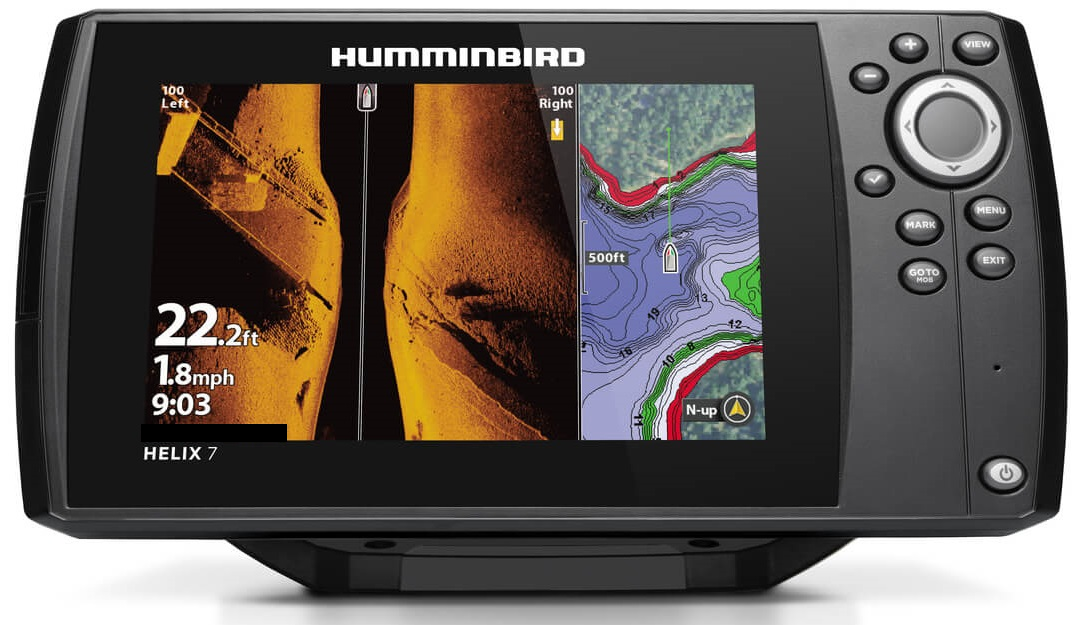

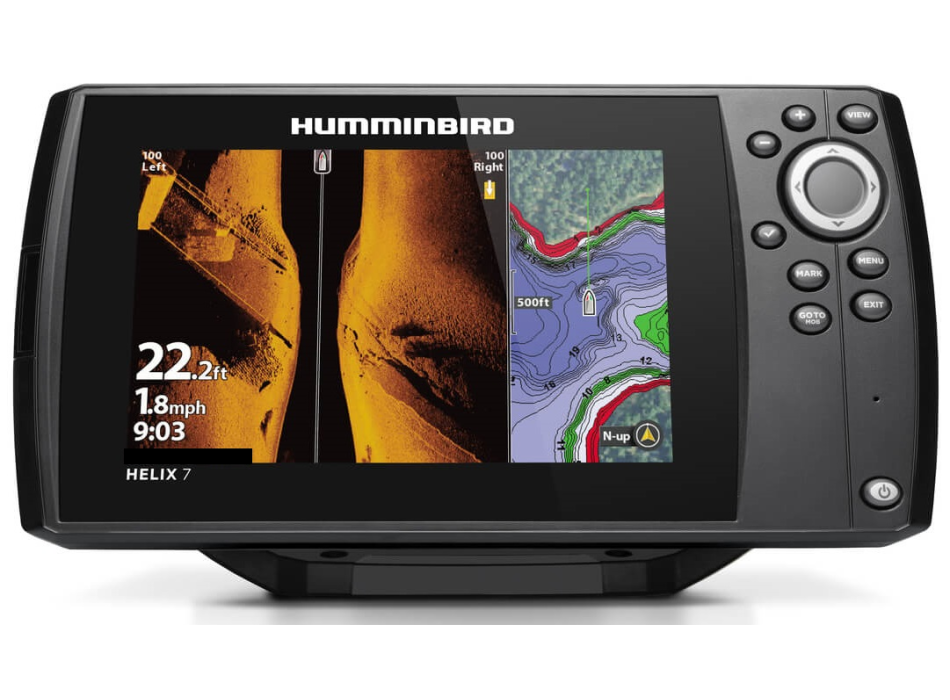

Helix 7 CHIRP G4 offers the angler Humminbird's most innovative and unique sonar technologies, such as Dual Spectrum Chirp, the accuracy of a state-of-the-art built-in GPS, Navionics' basic and highest detail cartography (optional), innovative features such as AutoCHart Live and much more. All this in a beautiful 7 ”display, super bright and with a high resolution (1024 x 600 pixels), so as not to lose any detail and no prey.

The transducers of the Helix models are designed and manufactured by Humminbird itself to create a perfect match between the sonar and the transducer, thus optimizing the performance of both and obtaining an unbeatable quality / price ratio.

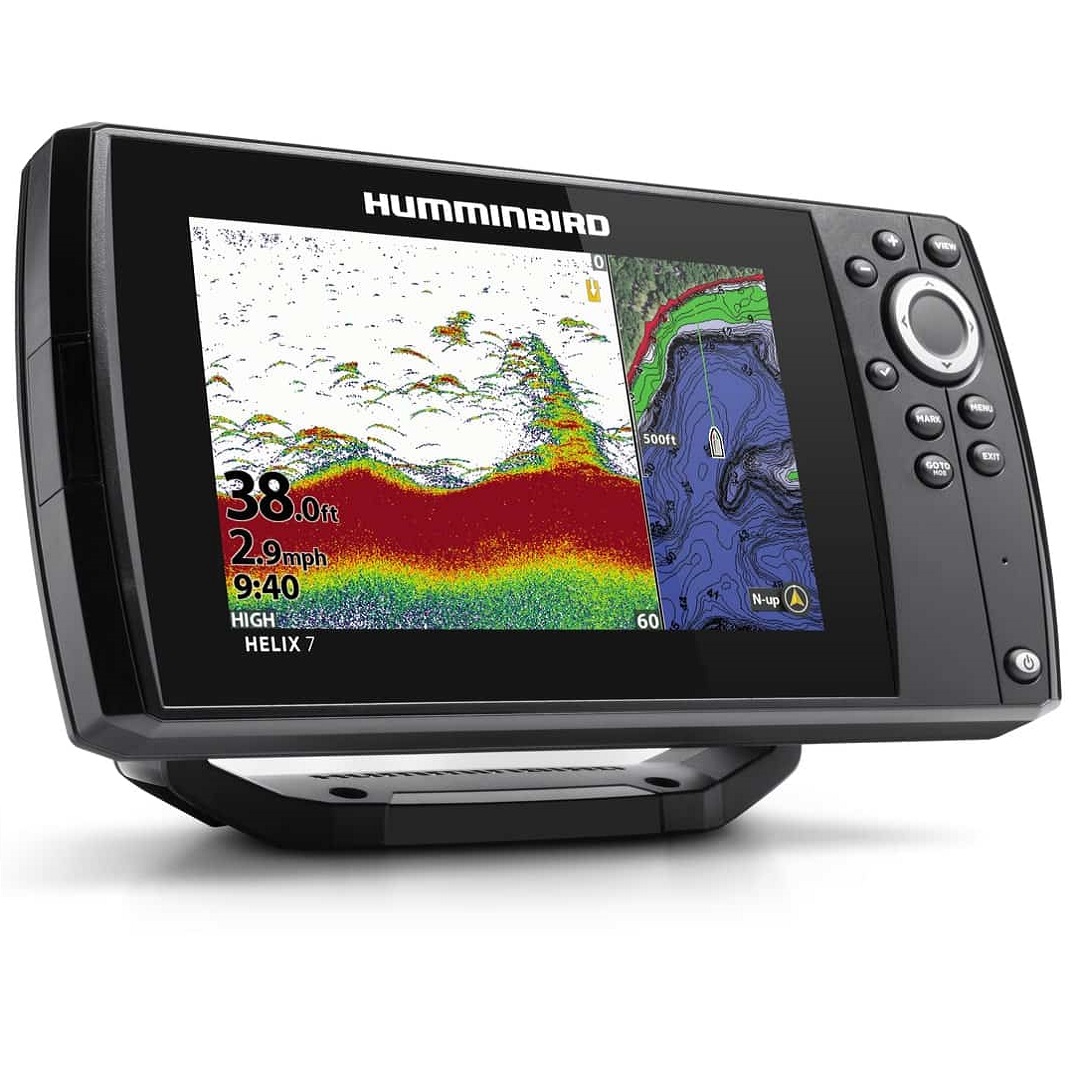

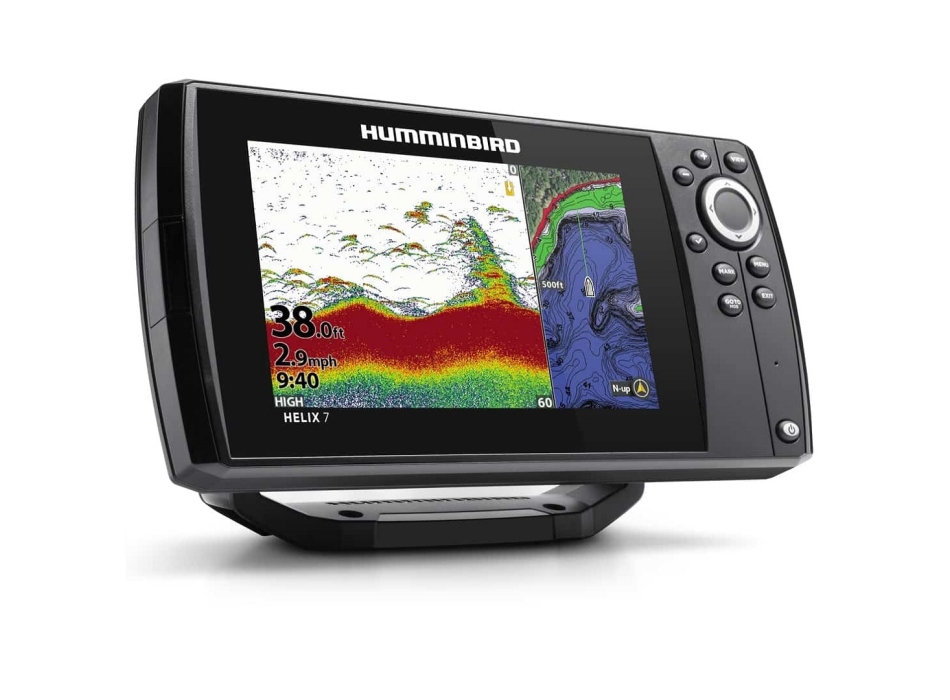

Dual Spectrum CHIRP Sonar   Humminbird, standard in this model, provides classic 2D viewing up to over 300 meters *, with exceptional fish response (arches) and excellent target separation. For deep fishing enthusiasts (up to 700m) *, a Humminbird XD transducer (optional) can be selected.

All Helix G4 models with GPS include the AutoChart LIve function, to create your own live bottom maps. By simply activating the function, it is possible to admire the depths and the definition of the structure of the bottom that materialize on the display.

  • 7 ″ display (1024 x 600 pixels)
  • Keyboard control
  • Internal GPS and optional external GPS antenna
  • Navionics compatibility
  • AutoChart Live
TECHNICAL SPECIFICATIONS

Display Size 7 "
Resolution 1024 × 600
Touch screen No.
Effective power (W) 500

Available versions:
Chirp DS 2D Technology
2D Meters 360/700 *
XNT9HWT transducer

Chirp Side 2D DS Technology, Down Imaging Tech and Side Imaging Tech
Side Imaging 60 meters
XNT9HWSIT transducer

Chirp MDI 2D DS Technology and Mega Down Imaging Tech
Down Imaging Meters 100
XNT9HWMDI75T transducer

Chirp MSI 2D DS Technology, Mega Down Imaging Tech and Mega Side Imaging Tech
Side Imaging 60 meters
XNT 9 HW MSI 150 T transducer


Network No.
Internal GPS yes
Live auto chart yes
Veg. & Hardness No
1M SD / micro card
NMEA2000 No.
Wi-Fi No

Note
* with optional XD transducer. Attention: The maximum depth data is indicative as it depends on various factors (in particular the density of the water and the type of seabed).

Caratteristiche

Sei interessato ad una offerta privata?
D. Salve, è possibile utilizzare la sonda Airmar TM165HW, su Helix 7 g4? La supporta bene? Grazie
R. 12-12-22 Buonasera, Humminbird non le prevede fra l'elenco delle sonde compatibili. Cordiali saluti. Luigi Bianchi
D. Salve, potrei sapere le dimensioni del trasduttore mega si? Grazie
R. 12-12-22 Buongiorno, dimensioni indicative del trasduttore MSI: Lungh.10cm x Largh. 6,5cm x Alt. 6cm. Cordiali saluti. Luigi Bianchi
D. Salve, che differenza c’è tra Helix g4 e g4n, in termini pratici e di qualità immagine? Grazie
R. 12-12-22 Buongiorno, nessuna differenza fra i due in termini di qualità dell'immagine. L'unica differenza è che le versioni "N" (Network) hanno la possibilità di essere collegati ad altri dispositivi, tipo motori MinnKota, o altri Helix sempre versioni "N". Cordiali saluti. Luigi Bianchi
D. Buon giorno, È possibile cambiare il trasduttore ed avere questo??? Trasduttore da poppa Dual Beam, 20/74°, 200/50 kHz, Temp, per max profondità modelli XD
R. 19-11-22 Buonasera, purtroppo non possiamo detrarre il costo del trasduttore dal pacchetto. Per avere quel tipo di funzionalità, dovrà aggiungere al prezzo di 629,00 euro, questo trasduttore: https://www.painestore.it/humminbird_trasduttore_di_poppa_xnt9db74t_50/200khz Cordiali saluti. Luigi Bianchi
D. Buona sera, poiché sarebbe il mio secondo ecoscandaglio, a me interesserebbe l'Helix 7 con il trasduttore Dual Beam JH-XNT1474T per massima profondità. Sarebbe possibile ed a quale prezzo? Grazie. Cordialità.
R. 03-06-22 Buon pomeriggio, in realtà a Lei serve il trasduttore XNT9DB74T, stesse caratteristiche del XNT1474T, che però è compatibile con Solix e non con Helix. In sostanza il totale per Helix 7DS con l'aggiunta del trasduttore XNT9DB74T e sconto Promo Piesse7, è di 811,35 euro. Cordiali saluti. Luigi Bianchi
D. Buongiorno Mi accingo ad ordinare questo prodotto dal vostro sito e siccome non conosco il prodotto mi potreste dire la differenza tra i modelli ? Vi ringrazio anticipatamente
R. 06-05-22 Buon pomeriggio, le differenze sono date dal fatto che la versione DS ha solo eco standard, la versione SI in più a sia le versione Down e Side Imaging, mentre la versione MEGA DI ha eco standard e funzione Mega DI, mentre la MEGA SI, oltre le altre ha anche la funzione MEGA Side. Chiarisco che le funzione MEGA hanno le frequenze fino a 1.2gigahz: https://www.painestore.it/blog/rete_nmea_2000_per_piccole_imbarcazioni Cordiali saluti. Luigi Bianchi
D. Buongiorno, volevo sapere se questo modello è compatibile per abbinare il mio motore elettrico minn kota terrova 112lbs 36v i-link.
R. 03-05-22 Buongiorno, purtroppo no, solo le versione G4N sono abbinabili ai Minnkota: https://www.painestore.it/humminbird_helix_7_g4n_chirp_eco/gps Cordiali saluti. Luigi Bianchi
D. Buongiorno vorrei sapere che differenze ci sono tra gli helix 7 g3 e i g4
R. 30-04-22 Buongiorno, principalmente i G4 hanno una risoluzione più alta. Cordiali saluti. Luigi Bianchi
