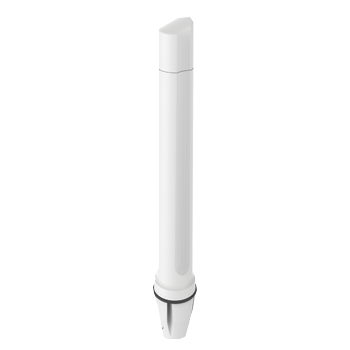

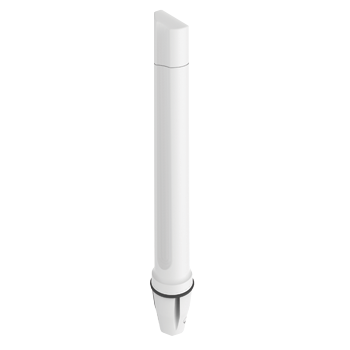

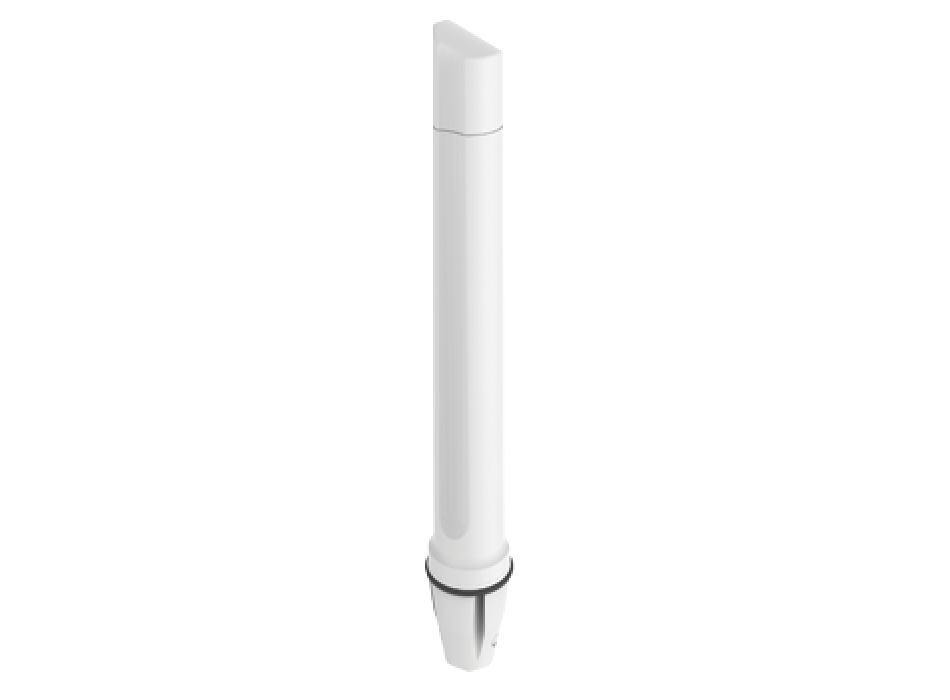

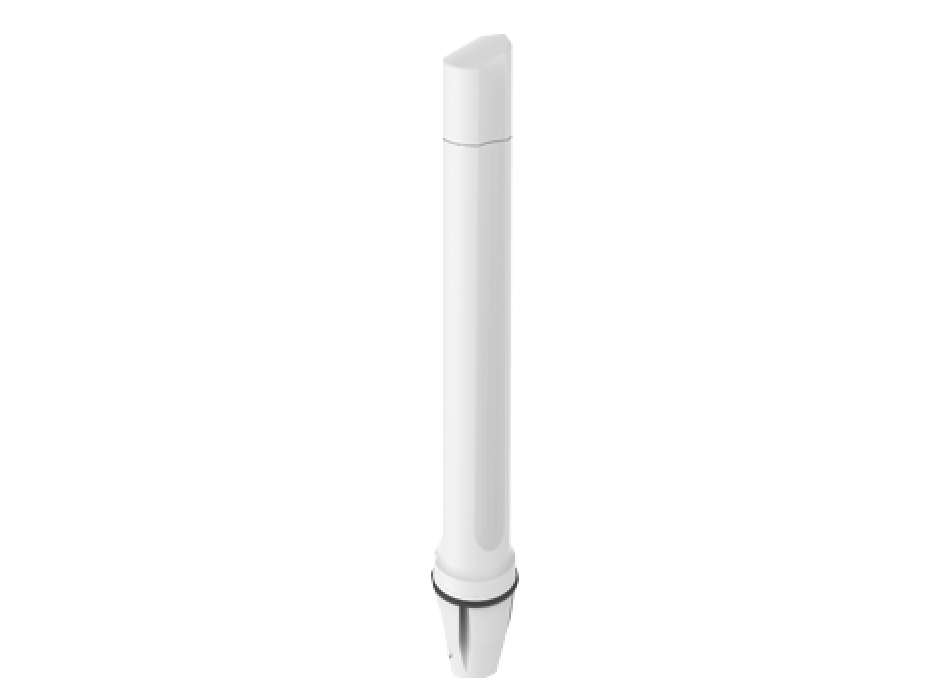

POYNTING OMNI-402

(0)
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 459,00
POYNTING OMNI 402 v1-01

2X LTE MIMO Omnidirectional Antenna 410-3800 Mhz


OMNI-402 is an ultra-wideband antenna, covering all LTE operating frequencies
contemporary with excellent balanced gain across all frequencies. The antenna
It also offers 2X2 MIMO functionality from its vertically separated radiating elements,
all in the same radome. The antenna design allows the antenna to have a
superior pattern control across the entire frequency range, making the OMNI-402
a true high-performance omnidirectional MIMO antenna, suitable for applications
marine and coastal. Usable in all parts of the world, OMNI-402 guarantees the
Signal reception almost everywhere. Poynting Antennas achieve this goal.
 through a new antenna configuration using multiple dipoles and a network of
i single power supply (patented). The antenna is future-proof as it covers the band
450 MHz LTE frequency, which is becoming increasingly popular in various regions and countries.
This antenna is also capable of receiving frequencies 3300-3800 MHz for coastal and inland use.

Package Contents:
A-OMNI-0402 Mounting bracket: 1” (14 TPI)
Marine Adapter (BRKT-40) & L-bracket (Ø30-50mm Pole)
Characteristics :

Frequency bands: 410 – 470 MHz 698 – 2700 MHz 3400 – 3800 MHz
Gain (max): 1 dBi @ 410-470 MHz 6.2 dBi @ 698-2700 MHz 2.5 dBi @ 3400-3800 MHz
VSWR: <2.5:1 across 90% of the bands
Power handling: 10 W
Input impedance: 50 Ohm (nominal)
Coax cable loss: 0.25 dB/m @ 400 MHz 0.385 dB/m @ 900 MHz 0.565 dB/m @ 1800 MHz 0.666 dB/m @ 2400 MHz 0.788 dB/m @ 3000 MHz
DC short: Yes
Product dimensions 750 mm x Ø75 mm (Incl. BRKT-40)
Packaged dimensions: 704 mm x 147 mm x 100 mm Weight: 0.86 kg
Packaged weight: 1.7 kg
Radome material: UV Stable Marine ASA
Radome colour: Brilliant White Pantone P 179-1
C Mounting Type: Standard 1'' -14 TPI marine mount & Wall/pole mount
Environmental Specifications, Certification & Approvals Wind Survival: <160 km/h Temperature Range (Operating): -40°C to +80°C
Environmental Conditions: Outdoor/Indoor Water ingress protection ratio/standard: IP 68 Salt Spray: MIL-STD 810F/ASTM B117
Operating Relative Humidity: Up to 98% Storage Humidity: 5% to 95% - non-condensing
Storage Temperature: -40°C to +80°C
Enclosure Flammability Rating: UL 94-HB
Impact resistance: IK 08
Product Safety & Environmental: Complies with CE and RoHS standards
D Buongiorno, sto cercando un amplificatore (booster) di segnale mobile (almeno GSM e 4G) da installare sulla mia barca e sto valutando questa antenna. Non ho ben chiaro però il suo funzionamento. Basta installare questa antenna all'esterno dell'imbarcazione per farla funzionare, oppure necessita di un router o dispositivo da installare anche all'interno dell'imbarcazione? Se necessita di altri dispositivi, sapreste indicarmi quali? Rimango in attesa di un vostro cortese riscontro. Cordiali saluti Andrea Ferazzoli
R Buongiorno Andrea, L'antenna necessita di un Router 4G LTE per funzionare valuti questo router link sotto : https://www.painestore.it/rut951_teltonika O in alternativa anche questa antenna https://www.painestore.it/outdoor_lte_5g_/wifi/gps_antenna_teltonika che puo' contenere lo stesso router semplificando il montaggio
