Garmin echoMAP Ultra 122SV Chirp eco / plotter 12 "with GT54

  • Code: 010-02113-01
€ 2.099,00 € 3.199,00 -34%

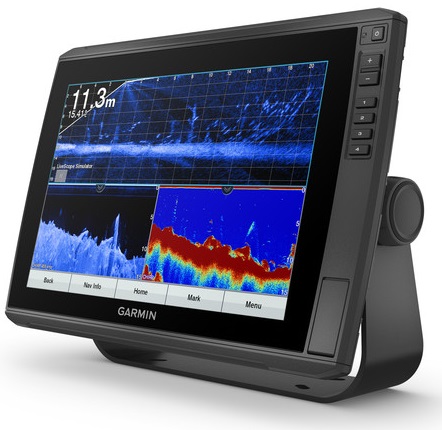

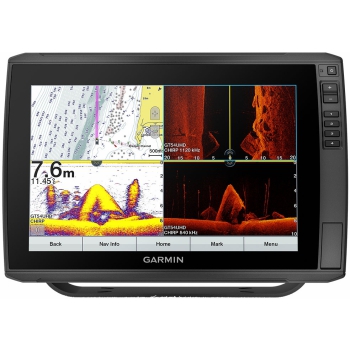

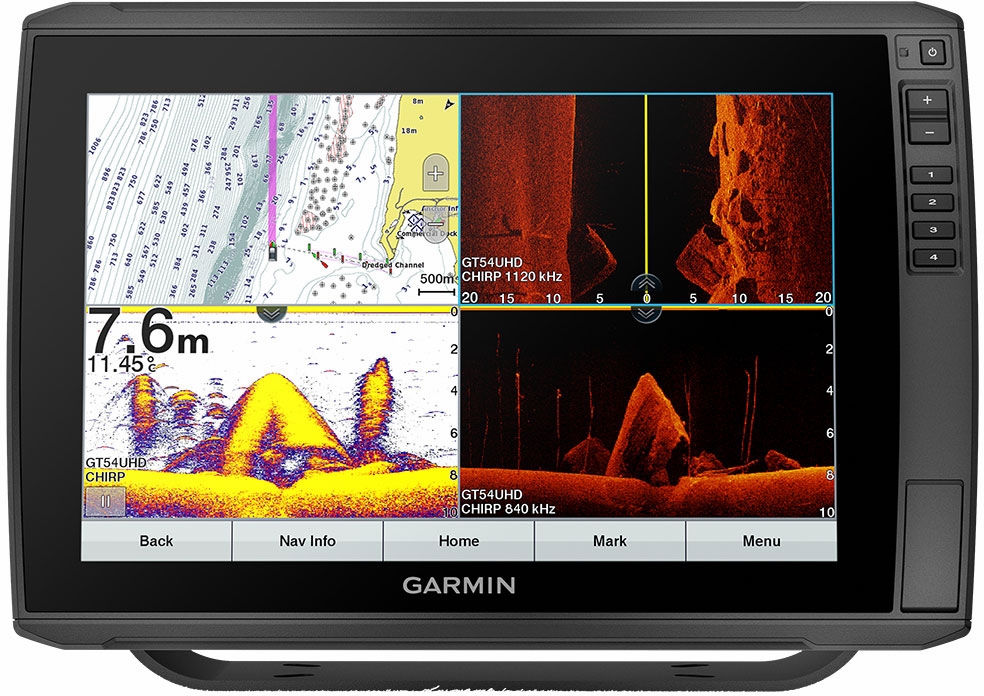

Garmin ECHOMAP Ultra 122SV
With GT54UHD-TM stern transducer included

Revolutionize the best
Combined chartplotter with bright 12 "display and keyed-assist touchscreen, an innovative keyboard-assisted touchscreen system
Compatible with Panoptix LiveScope ™ sonar technology and Panoptix LiveScope LVS12 transducer
Share sonar data, waypoints and routes with other ECHOMAP Ultra 10 "and 12" and ECHOMAP Plus 7 "and 9" units
Totally free Quickdraw Contours feature that allows you to trace your HD bathymetry every 30 cm in total autonomy
The integrated Wi-Fi® connectivity allows access to the ActiveCaptain ™ world, the new completely free application that allows you to have a unique experience with Garmin Marine instruments installed on board
NMEA 2000® connectivity

The new ECHOMAP Ultra 122sv, offers the convenience of a touchscreen with keyboard, thanks to the bright 12 "anti-glare display. Includes support for the clear and sharp images of traditional Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and It is compatible with the Panoptix 360 ° view sonar It is compatible with BlueChart® g3 and BlueChart® g3 Vision cartography which integrates the best of Navionics® data.

Advanced sonar technology
The new ECHOMAP Ultra 122sv with GT54UHD-TM Transducer2sv supports the latest generation Panoptix LiveScope LVS12 transducers as well as the entire line of Panoptix ™ transducers that allow you to scan and view in real time everything that happens in front or under the boat, guaranteeing a exact and extremely realistic perception.
The integrated module is equipped with CHIRP technology, which simultaneously sends a signal on multiple frequencies, from high to low, then interpreting the echo of each single frequency. This continuous spectrum provides more information to the CHIRP sonar, which uses it to process sharper, higher resolution images.
CHIRP ClearVü technology enables higher resolution for better target discrimination and a higher level of detail.
CHIRP SideVü technology is the innovative feature for viewing bottom compliance and submerged structures on the sides of the vessel.

Share data between displays on board

Do you own more than one unit? You can share sonar data, waypoints and routes with other ECHOMAP Ultra 10 "and 12" and ECHOMAP Plus 7 "and 9" units.

Quickdraw Contours
Quickdraw Contours allows you to trace your HD bathymetry every 30 cm in total autonomy.
Quickdraw Contours is really simple to use. Once activated, the user can check the boat's course on the display of his Garmin chartplotter while navigating and see the detail of the depths that are drawn directly on the map. The process is immediate: the new data is immediately available for use and can be shared with friends and fishing companions, thanks to the Quickdraw Community on Garmin Connect ™, our online community. [Our Premium Sonar Support] The best of Garmin and the best of Navionics®

I'm compatible with the latest Garmin BlueChart® g3 and BlueChart® g3 Vision cartography, which integrates BlueChart data with Navionics data to deliver the best cartography ever. This new cartography also includes Auto Guidance1 technology, which allows you to avoid dangers and obstacles, developing safe routes to destinations set based on the characteristics of the boat.

Make the most of the potential of the innovative ActiveCaptain application that allows you to connect Garmin Marine chartplotters to the mobile network and access a new world of content: consult, purchase, update and synchronize nautical maps; update the on-board devices quickly to the latest software version available; receive Smart Notification2, calls and SMS directly on the chartplotter display; connect with the ActiveCaptain community to get updated information on marinas and new points of interest, thanks to updated feedback from thousands of other users; plan navigation in advance from the comfort of your home; quickly and easily download and share bathymetry from the Quickdraw ™ Community; automatically synchronize routes and waypoints marked on the chartplotter to review all data anywhere on your mobile device.

ECHOMAP Ultra 122sv
GT54UHD-TM transducer
Power / data cable
Tilt stand with quick release base
Recessed installation kit
Protective cover
Dimensions 341 x 229 x 98 mm
Screen size, WxH 26.1cm x 16.3cm; 12 "diagonally
Screen resolution, WxH 1280 x 800 pixels
Display type WXGA display
Weight 2.5 kg
IPX7 waterproof rating
Polarized Support
Power Consumption 26W
Internal or external GPS antenna on the NMEA 2000 network
Mounting Options Bracket or Flush Mount
Receiver 10 Hz
Garmin Marine Network ™ 2 ports (large connector)

Maps and memory
External Memory 2 microSD ™ cards
Waypoints 5,000
100 storable routes
Track log 50,000 points; 50 tracks

Functions for outdoor activities
Tide data

Functions of the chartplotter
Compatible with Garmin black boxes Yes
Compatible with AIS function
Compatible with DSC function
Supports FUSION-Link ™ compatible radios
GCV ™ black box sonar support
ActiveCaptain compatible Yes
Sailing functions

Echosounder features and specifications
Double frequency
Double cone
Frequencies supported
CHIRP High-Wide: 150-240 kHz
Ultra High-definition ClearVü: 800 kHz (760-880 kHz)
CHIRP ClearVü: 455 kHz (425-845 kHz)
Ultra High-definition SideVü: 1,200 kHz (1060-1170 kHz)
Transmission power 500W (RMS) / 4,000W (peak-to-peak)
CHIRP Yes (integrated)
ClearVü Yes
SideVü Yes
Maximum depth 600 in fresh water
350 in salt water (the maximum indicative flow rate depends on factors such as the type of seabed and other water conditions)
Water temperature data and graph

NMEA 2000® compatible
Number of transducer pins 12
NMEA 0183 input ports 1
NMEA 0183 output ports 1
Wireless connectivity Yes


Sei interessato ad una offerta privata?
D. Buonasera, dovendolo montare su un catamarano il trasduttore a scarpetta è consigliabile? in sostituzione si potrebbe avere quello passante? costo ?
R. 13-12-23 Buonasera, sì certo è possibile, domanda, uso pesca oppure solo per vedere il fondale? Si tratta di catamarano a vela o motore? Ringrazio. Cordiali saluti. Luigi Bianchi
D. Salve vorrei sapere se il trasdutore g51m. Tm è compatibile con eco 122sv grazie
R. 09-12-23 Buonasera, sì certo, confermo la compatibilità. Cordiali saluti. Luigi Bianchi
D. Buonasera,volevo chiedere se lo strumento è nuovo imballato,se è usato o di demo in negozio. Poi vorrei sapere se il prezzo è trattabile. Sarei interessato o a questo o al 102 o al 92. Vi ringrazio anticipatamente e vi auguro una buona giornata. Grazie
R. 17-08-23 Buongiorno, confermo che si tratta di oggetto assolutamente nuovo, mai sballato dalla confezione. Vale anche per tutti gli altri articoli incluso il 102SV. Purtroppo non abbiamo margini per ulteriori sconti, per quanto riguarda i modelli con GT54, sono già presentati al massimo possibile. Cordiali saluti. Luigi Bianchi
D. buongiorno,offrite il finanziamento a tasso zero su questo oggetto? grazie
R. 09-11-2021 Buon pomeriggio, purtroppo non abbiamo la possibilità di intervenire con finanziamenti a tasso zero, abbiamo però delle ottime proposte tramite Santander, per acquisto in n. 10 rate con un tasso indicativo del 5/6%. Cordiali saluti. Luigi Bianchi
D. buonasera, questo set up è compreso di sonda GT54, giusto? per caso le mappe sono comprese nel prezzo nel caso di acquisto? mappe dei laghi italiani (nel caso)
R. 26-10-2021 Buonasera, confermo, trasduttore GT54 incluso, possiamo anche prevedere una cartografia Regular in omaggio, in caso di acquisto mi indichi il codice della carta che Le interessa: https://www.painestore.it/garmin_g2_regular_sd-microsd Cordiali saluti. Luigi Bianchi
