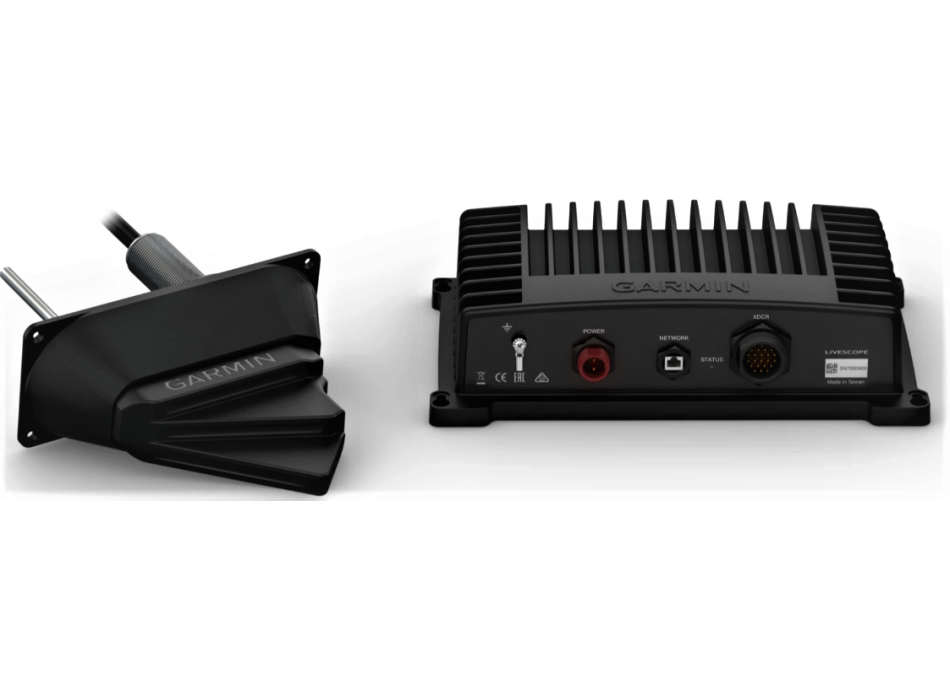

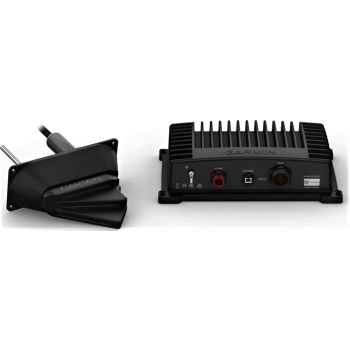

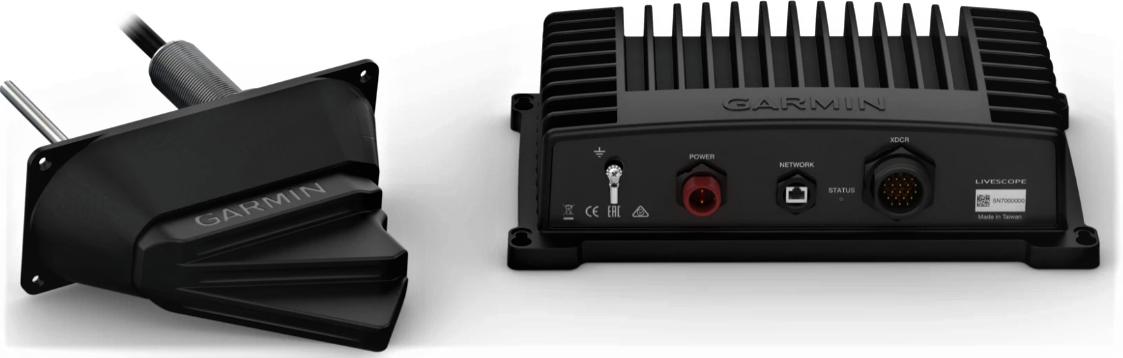

Garmin Panoptix Live Scope with LVS32 TH

  • Code: 010-02233-00
€ 1.826,55 € 2.149,00 -15%
Garmin Panoptix LiveScope with Transducer LVS32 Poppa
SOUNDER TECHNOLOGY FOR UNPRECEDENTED DETAIL

Revolutionize the way you fish with Panoptix technology for real-time images.
View structures and fish below and in front of the boat in real time thanks to the easy-to-interpret images captured by the sonar.
You will be able to observe the bait you are catching and even recognize the different species of fish.
Not only clear and detailed images, but also at an indicative maximum range of 60 meters, in front of and below the barge, even when it is stationary.


Stabilizes images even in rough seas, thanks to the integrated AHRS technology, Attitude Heading Reference System.
This system integrates seamlessly with compatible chartplotters using the Garmin Marine Network plug-and-play connector.
TECHNICAL SPECIFICATIONS
  • Dimensions of the black box of the GLS 10 sonar: 24.5 x 14.9 x 6.5 cm;
  • LVS32-TH transducer without fairing: 24.4 x 4.6 x 13.7 cm;
  • LVS32-TH transducer with fairing: 24.4 x 8.6 x 20.6 cm
  • GLS 10 black box weight: 2.0 kg; LVS32-TH transducer without fairing: 2.0 kg; LVS32-TH transducer with fairing: 2.3 kg
  • IPX7 waterproof rating
  • 500 W transmission power
  • Garmin Marine Network 1 ports (small connector)
  • Operating temperature Black-box GLS 10: operation: from -15 ° C to 70 ° C; Panoptix LiveScope LVS12 transducer: operation: 0 ° C to 40 ° C
  • Echosounder features and specifications
  • Frequencies supported 530 - 1,100 kHz
  • Maximum depth Forward: 61 m
  • Electrical characteristics
  • Power input 10 - 32 V
  • Power consumption 21 W typical; 58 W maximum
  • 7.5 A fuse
  • Beam width: 20 ° x 135 °
  • Transducer cable length: 6.1

D. Qual è la differenza tra il LVS32 ed il LVS32TH?
R. 22-04-22 Buongiorno, la versione TH include il trasduttore passante scafo anzichè di poppa. Cordiali saluti. Luigi Bianchi
D. Buongiorno sarei interessato all' acquisto, vedo però che il codice da voi inserito 010-02233-00 sul sito Garmin corrisponde al kit panoptix con trasduttore passante, mentre nella foto è presente il trasduttore da poppa, quale trasduttore comprende l' articolo in vendita? Comprende anche il modulo eco? Grazie Mauro
R. 05-01-22 Buonasera, confermo che il kit in oggetto cod. 010-02233-00, è la versione con trasduttore passante, quella di poppa ha il codice 010-01864-00: https://www.painestore.it/garmin_panoptix_live_scope_con_lvs32 Cordiali saluti. Luigi Bianchi
