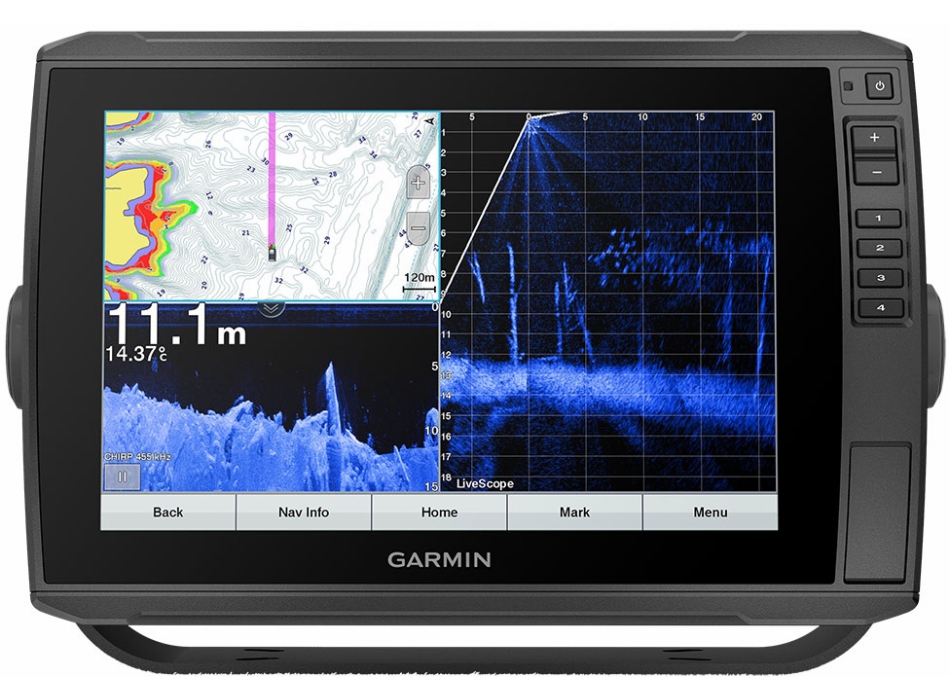

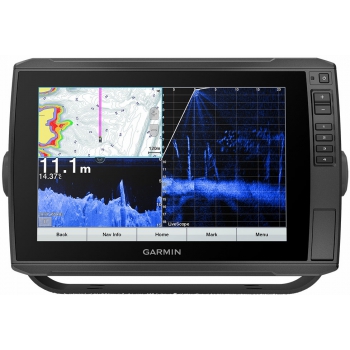

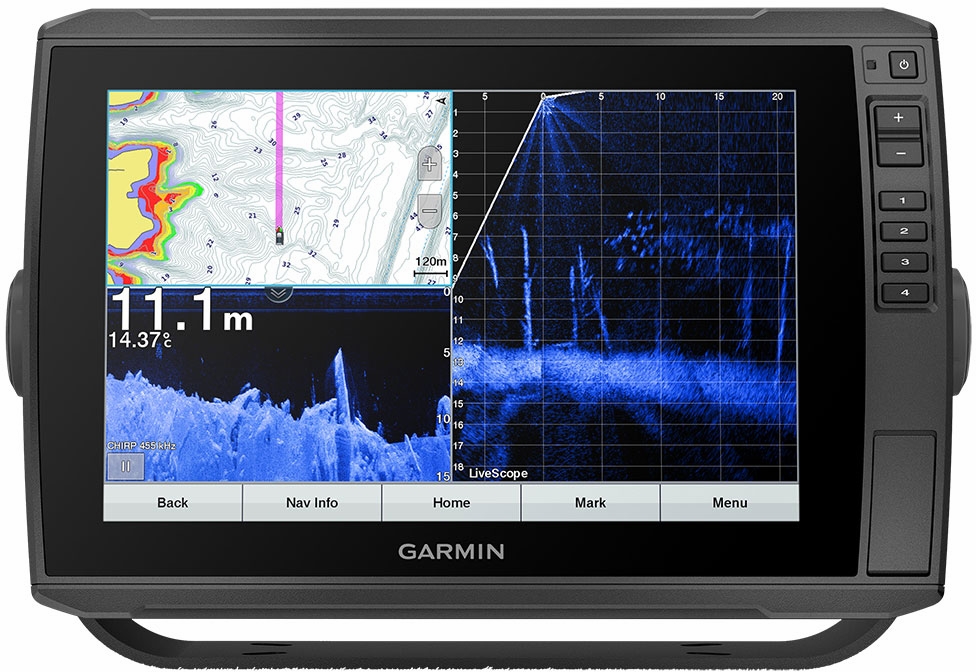

Garmin ECHOMAP Ultra 102SV Chirp eco / plotter 10 "

  • Code: 010-02111-00
€ 1.469,00 € 2.099,00 -30%
you chose:
Garmin ECHOMAP Ultra 102SV

Revolutionize the best
Combined chartplotter with bright 10 "display and keyed-assist touchscreen, an innovative keyboard-assisted touchscreen system
Compatible with Panoptix LiveScope ™ sonar technology and Panoptix LiveScope LVS12 transducer
Share sonar data, waypoints and routes with other ECHOMAP Ultra 10 "and 12" and ECHOMAP Plus 7 "and 9" units
Totally free Quickdraw Contours feature that allows you to trace your HD bathymetry every 30 cm in total autonomy
The integrated Wi-Fi® connectivity allows access to the ActiveCaptain ™ world, the new completely free application that allows you to have a unique experience with Garmin Marine instruments installed on board
NMEA 2000® connectivity

The new ECHOMAP Ultra 102sv, offers the convenience of a touchscreen with keyboard, thanks to the bright 10 "anti-glare display. Includes support for the clear and sharp images of traditional Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and It is compatible with the Panoptix 360 ° view sonar It is compatible with BlueChart® g3 and BlueChart® g3 Vision cartography which integrates the best of Navionics® data.

Advanced sonar technology
The new ECHOMAP Ultra 102sv with GT54UHD-TM Transducer2sv supports the latest generation Panoptix LiveScope LVS12 transducers as well as the entire line of Panoptix ™ transducers that allow you to scan and view in real time everything that happens in front or under the boat, guaranteeing a exact and extremely realistic perception.
The integrated module is equipped with CHIRP technology, which simultaneously sends a signal on multiple frequencies, from high to low, then interpreting the echo of each single frequency. This continuous spectrum provides more information to the CHIRP sonar, which uses it to process sharper, higher resolution images.
CHIRP ClearVü technology enables higher resolution for better target discrimination and a higher level of detail.
CHIRP SideVü technology is the innovative feature for viewing bottom compliance and submerged structures on the sides of the vessel.

Share data between displays on board

Do you own more than one unit? You can share sonar data, waypoints and routes with other ECHOMAP Ultra 10 "and 12" and ECHOMAP Plus 7 "and 9" units.

Quickdraw Contours
Quickdraw Contours allows you to trace your HD bathymetry every 30 cm in total autonomy.
Quickdraw Contours is really simple to use. Once activated, the user can check the boat's course on the display of his Garmin chartplotter while navigating and see the detail of the depths that are drawn directly on the map. The process is immediate: the new data is immediately available for use and can be shared with friends and fishing companions, thanks to the Quickdraw Community on Garmin Connect ™, our online community. [Our Premium Sonar Support] The best of Garmin and the best of Navionics®

I'm compatible with the latest Garmin BlueChart® g3 and BlueChart® g3 Vision cartography, which integrates BlueChart data with Navionics data to deliver the best cartography ever. This new cartography also includes Auto Guidance1 technology, which allows you to avoid dangers and obstacles, developing safe routes to destinations set based on the characteristics of the boat.

Make the most of the potential of the innovative ActiveCaptain application that allows you to connect Garmin Marine chartplotters to the mobile network and access a new world of content: consult, purchase, update and synchronize nautical maps; update the on-board devices quickly to the latest software version available; receive Smart Notification2, calls and SMS directly on the chartplotter display; connect with the ActiveCaptain community to get updated information on marinas and new points of interest, thanks to updated feedback from thousands of other users; plan navigation in advance from the comfort of your home; quickly and easily download and share bathymetry from the Quickdraw ™ Community; automatically synchronize routes and waypoints marked on the chartplotter to review all data anywhere on your mobile device.

ECHOMAP Ultra 102sv
GT54UHD-TM transducer (only in the variant "WITH GT54UHD AFT TRANSDUCER)"
Power / data cable

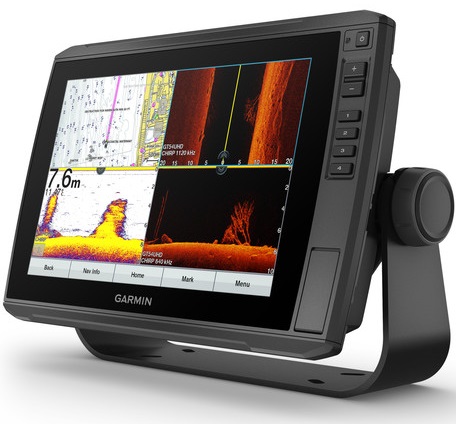

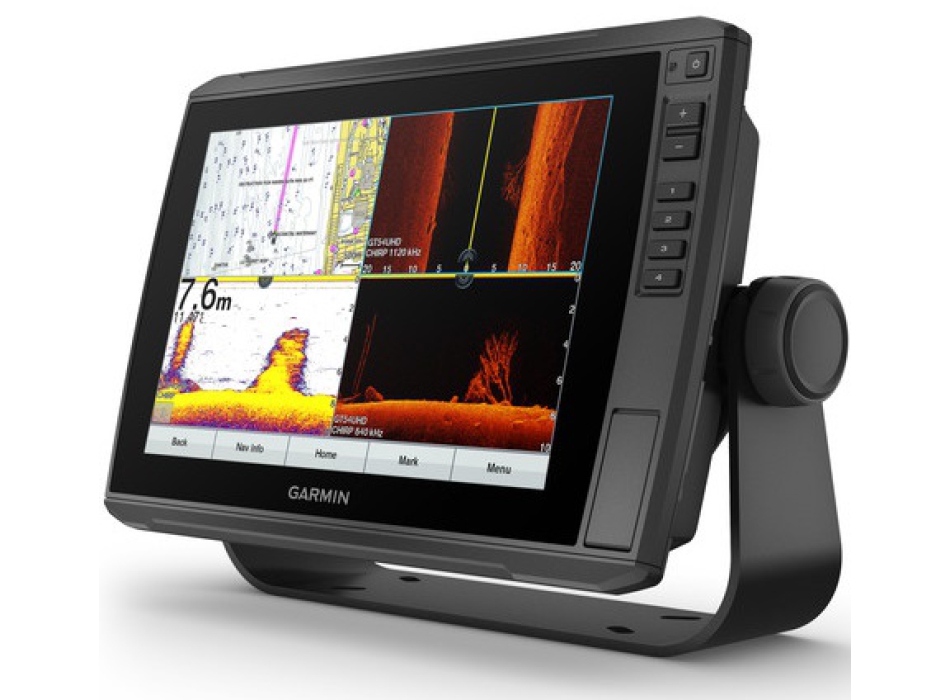

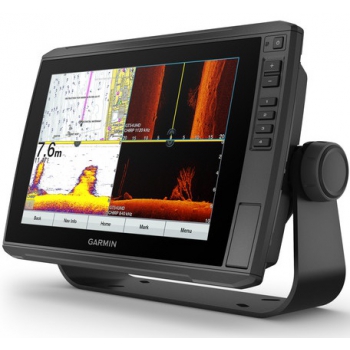

Tilt stand with quick release base
Recessed installation kit
Protective cover
Dimensions 295 x 195 x 98 mm
Screen size, WxH 21.7cm x 13.6cm; 10 "diagonally
Screen resolution, WxH 1280 x 800 pixels
Display type WXGA display
Weight 1.8 kg
IPX7 waterproof rating
Polarized Support
Power Consumption 26W
Internal or external GPS antenna on the NMEA 2000 network
Mounting Options Bracket or Flush Mount
Receiver 10 Hz
Garmin Marine Network ™ 2 ports (large connector)

Maps and memory
External Memory 2 microSD ™ cards
Waypoints 5,000
100 storable routes
Track log 50,000 points; 50 tracks

Functions for outdoor activities
Tide data

Functions of the chartplotter
Compatible with Garmin black boxes Yes
Compatible with AIS function
Compatible with DSC function
Supports FUSION-Link ™ compatible radios
GCV ™ black box sonar support
ActiveCaptain compatible Yes
Sailing functions

Echosounder features and specifications
Double frequency
Double cone
Frequencies supported CHIRP High-Wide: 150-240 kHz
Ultra High-definition ClearVü: 800 kHz (760-880 kHz)
CHIRP ClearVü: 455 kHz (425-845 kHz)
Ultra High-definition SideVü: 1,200 kHz (1060-1170 kHz)
Transmission power 500W (RMS) / 4,000W (peak-to-peak)
CHIRP Yes (integrated)
ClearVü Yes
SideVü Yes
Maximum depth 600 in fresh water
350 in salt water (the maximum indicative flow rate depends on factors such as the type of seabed and other water conditions)
Water temperature data and graph

NMEA 2000® compatible
Number of transducer pins 12
NMEA 0183 input ports 1
NMEA 0183 output ports 1
Wireless connectivity Yes


Sei interessato ad una offerta privata?
D. Salve volevo sapere le differenze che ci sono fra questo prodotto e L ‘echomap ultra 2
R. 29-03-24<br /> Buonasera, unica differenza è che gli Ultra2 possono comunicare fra loro via WiFi, mentre gli Ultra solo con cavo di rete ethernet. Il resto tutto uguale.<br /> Cordiali saluti.<br /> Luigi Bianchi
D. Buongiorno, sono interessato all’acquisto del garmin echomap 102 sv ultra senza trasduttore, in quanto possessore di un vecchio echomap 72 sv con trasduttore gt 51 da poppa. Volevo sapere se echomap ultra fosse compatibile con la mia sonda gt51. Grazie in anticipo per la risposta Distinti saluti
R. 24-12-23 Buongiorno, certamente sì confermo la compatibilità anche degli echoMAP Ultra con GT51. Buone Feste. Luigi Bianchi
D. Supporta le carte Navionics small?
R. 25-12-2020 Buongiorno, purtroppo no, compatibile solo con carte Garmin: https://www.painestore.it/cartografia_garmin Cordiali saluti. Luigi Bianchi
D. Buongiorno volevo sapere le differenze sostanziali tra questi garmin: echomap ultra 102sv, gps map 1022xsv, echomap plus 92sv. Per il trasduttore panoptix PS31 montato in poppa per funzione forward bisogna usare qualche staffa particolare a parte quella in dotazione? Grazie
R. Buonasera, le differenze sostanziali sono date dal fatto che al 1022xs può essere abbinato anche un Radar ed ha un modulo eco da 1kw. Differenze che il 92SV, sono date dal Display ovviamente più grande e soprattutto che è compatibile con il nuovo trasduttore GT54, che ha prestazioni migliori rispetto al GT52. Sul tema PS31, nel caso in cui il suo utilizzo sia dedicato solo per pesca al tonno come immagino, allora il consiglio è di adottare delle staffe artigianali telescopiche, sui vari siti ne trova diverse, non esiste una staffa costruita da Garmin. Nelle'eventualità contatti a nome nostro Furlanetto Andrea, ne costruisce una molto valida: 3289847234. Cordiali saluti. Luigi Bianchi
