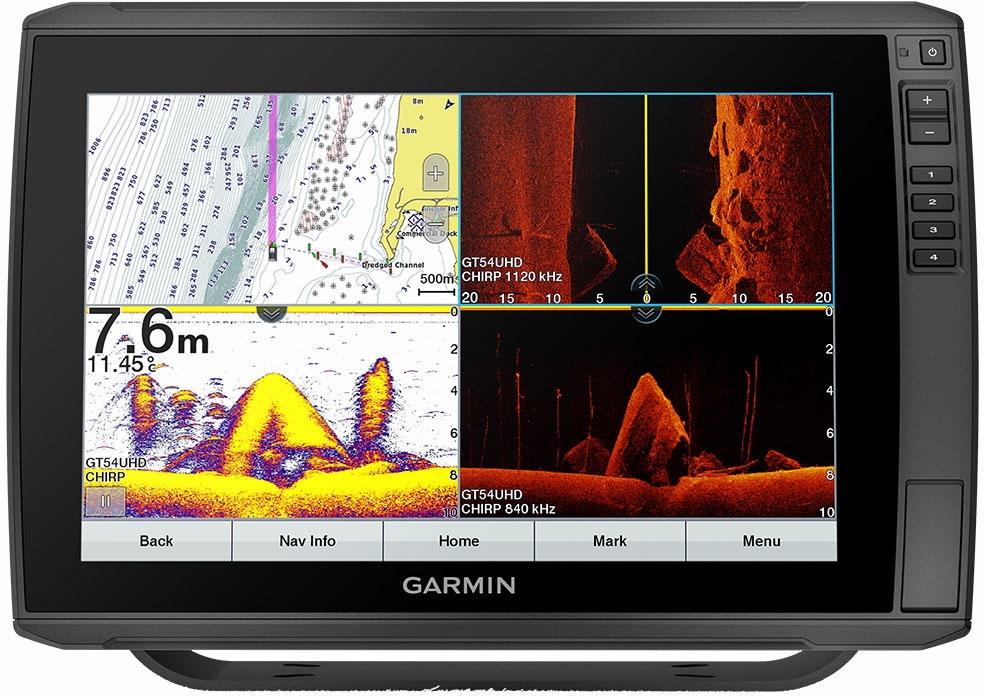

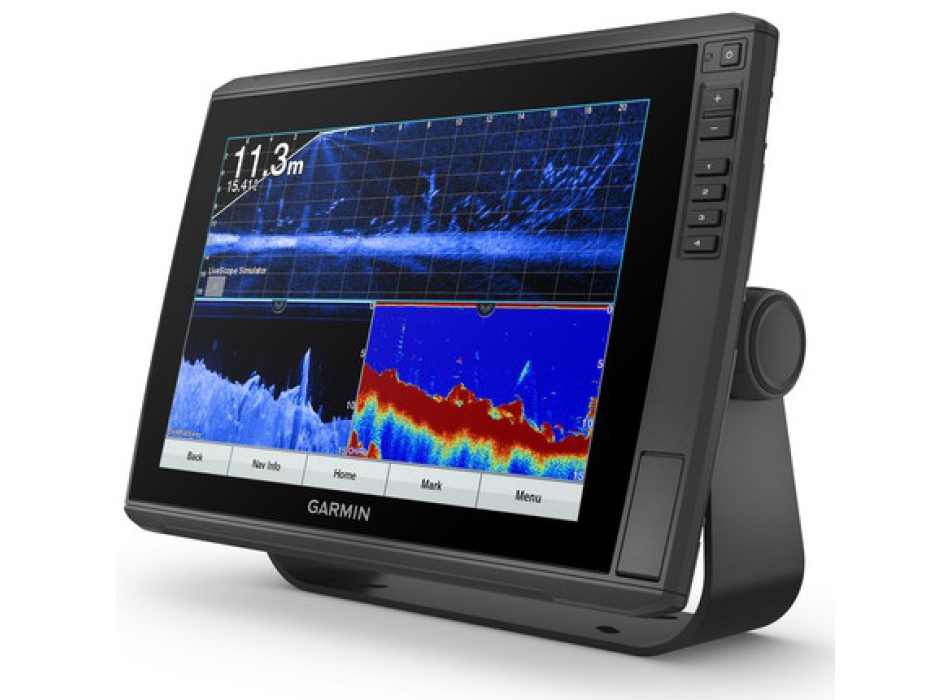

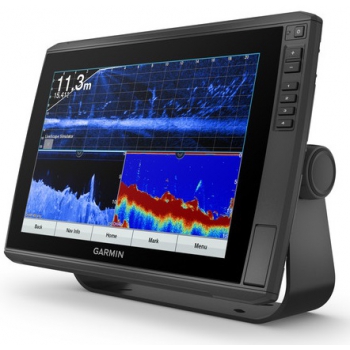

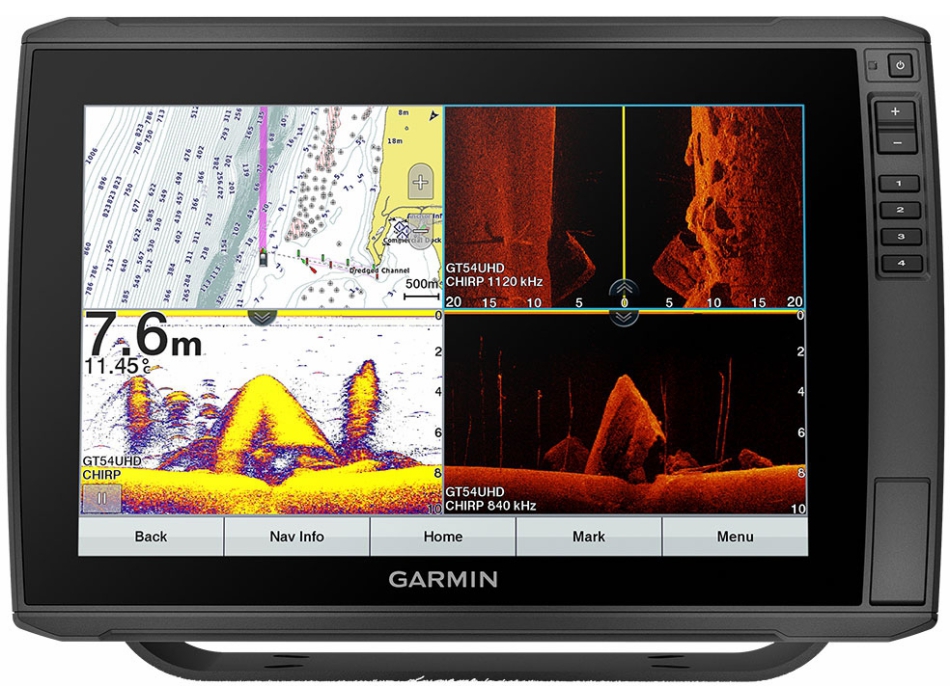

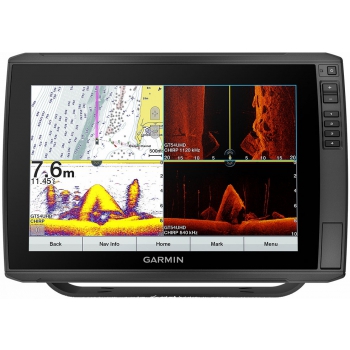

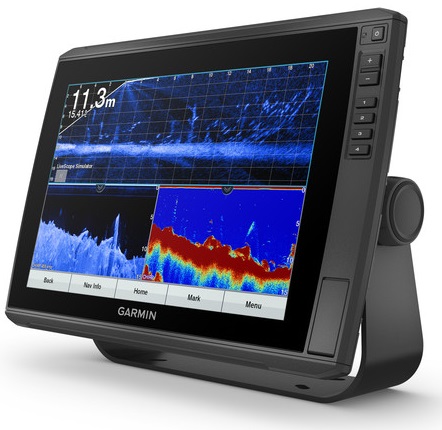

Garmin ECHOMAP Ultra 122SV Chirp eco / plotter 12 "

  • Code: 010-02113-00
€ 2.586,55 € 3.049,00 -15%
you chose:
Garmin ECHOMAP Ultra 122SV

Revolutionize the best
Combined chartplotter with bright 12 "display and keyed-assist touchscreen, an innovative keyboard-assisted touchscreen system
Compatible with Panoptix LiveScope ™ sonar technology and Panoptix LiveScope LVS12 transducer
Share sonar data, waypoints and routes with other ECHOMAP Ultra 10 "and 12" and ECHOMAP Plus 7 "and 9" units
Totally free Quickdraw Contours feature that allows you to trace your HD bathymetry every 30 cm in total autonomy
The integrated Wi-Fi® connectivity allows access to the ActiveCaptain ™ world, the new completely free application that allows you to have a unique experience with Garmin Marine instruments installed on board
NMEA 2000® connectivity

The new ECHOMAP Ultra 122sv, offers the convenience of a touchscreen with keyboard, thanks to the bright 12 "anti-glare display. Includes support for the clear and sharp images of traditional Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and It is compatible with the Panoptix 360 ° view sonar It is compatible with BlueChart® g3 and BlueChart® g3 Vision cartography which integrates the best of Navionics® data.

Advanced sonar technology
The new ECHOMAP Ultra 122sv with GT54UHD-TM Transducer2sv supports the latest generation Panoptix LiveScope LVS12 transducers as well as the entire line of Panoptix ™ transducers that allow you to scan and view in real time everything that happens in front or under the boat, guaranteeing a exact and extremely realistic perception.
The integrated module is equipped with CHIRP technology, which simultaneously sends a signal on multiple frequencies, from high to low, then interpreting the echo of each single frequency. This continuous spectrum provides more information to the CHIRP sonar, which uses it to process sharper, higher resolution images.
CHIRP ClearVü technology enables higher resolution for better target discrimination and a higher level of detail.
CHIRP SideVü technology is the innovative feature for viewing bottom compliance and submerged structures on the sides of the vessel.

Share data between displays on board

Do you own more than one unit? You can share sonar data, waypoints and routes with other ECHOMAP Ultra 10 "and 12" and ECHOMAP Plus 7 "and 9" units.

Quickdraw Contours
Quickdraw Contours allows you to trace your HD bathymetry every 30 cm in total autonomy.
Quickdraw Contours is really simple to use. Once activated, the user can check the boat's course on the display of his Garmin chartplotter while navigating and see the detail of the depths that are drawn directly on the map. The process is immediate: the new data is immediately available for use and can be shared with friends and fishing companions, thanks to the Quickdraw Community on Garmin Connect ™, our online community. [Our Premium Sonar Support] The best of Garmin and the best of Navionics®

I'm compatible with the latest Garmin BlueChart® g3 and BlueChart® g3 Vision cartography, which integrates BlueChart data with Navionics data to deliver the best cartography ever. This new cartography also includes Auto Guidance1 technology, which allows you to avoid dangers and obstacles, developing safe routes to destinations set based on the characteristics of the boat.

Make the most of the potential of the innovative ActiveCaptain application that allows you to connect Garmin Marine chartplotters to the mobile network and access a new world of content: consult, purchase, update and synchronize nautical maps; update the on-board devices quickly to the latest software version available; receive Smart Notification2, calls and SMS directly on the chartplotter display; connect with the ActiveCaptain community to get updated information on marinas and new points of interest, thanks to updated feedback from thousands of other users; plan navigation in advance from the comfort of your home; quickly and easily download and share bathymetry from the Quickdraw ™ Community; automatically synchronize routes and waypoints marked on the chartplotter to review all data anywhere on your mobile device.

ECHOMAP Ultra 122sv
GT54UHD-TM transducer (only in the variant "WITH GT54UHD AFT TRANSDUCER)"
Power / data cable
Tilt stand with quick release base
Recessed installation kit
Protective cover
Dimensions 341 x 229 x 98 mm
Screen size, WxH 26.1cm x 16.3cm; 12 "diagonally
Screen resolution, WxH 1280 x 800 pixels
Display type WXGA display
Weight 2.5 kg
IPX7 waterproof rating
Polarized Support
Power Consumption 26W
Internal or external GPS antenna on the NMEA 2000 network
Mounting Options Bracket or Flush Mount
Receiver 10 Hz
Garmin Marine Network ™ 2 ports (large connector)

Maps and memory
External Memory 2 microSD ™ cards
Waypoints 5,000
100 storable routes
Track log 50,000 points; 50 tracks

Functions for outdoor activities
Tide data

Functions of the chartplotter
Compatible with Garmin black boxes Yes
Compatible with AIS function
Compatible with DSC function
Supports FUSION-Link ™ compatible radios
GCV ™ black box sonar support
ActiveCaptain compatible Yes
Sailing functions

Echosounder features and specifications
Double frequency
Double cone
Frequencies supported
CHIRP High-Wide: 150-240 kHz
Ultra High-definition ClearVü: 800 kHz (760-880 kHz)
CHIRP ClearVü: 455 kHz (425-845 kHz)
Ultra High-definition SideVü: 1,200 kHz (1060-1170 kHz)
Transmission power 500W (RMS) / 4,000W (peak-to-peak)
CHIRP Yes (integrated)
ClearVü Yes
SideVü Yes
Maximum depth 600 in fresh water
350 in salt water (the maximum indicative flow rate depends on factors such as the type of seabed and other water conditions)
Water temperature data and graph

NMEA 2000® compatible
Number of transducer pins 12
NMEA 0183 input ports 1
NMEA 0183 output ports 1
Wireless connectivity Yes
D. Con il Garmin ECHOMAP Ultra 122SV Chirp eco/plotter 12" sono compatibili : - trasduttore B265 LH - filtro GSD 26
R. 12-03-20201 Buonasera, non compatibile la GSD 26 con prodotti echoMAP. Cordiali saluti. Luigi Bianchi
D. Ho a bordo un garmin 10 XsV con trasduttore GT 51 sostituendo il 10 con il 12 di cosa ho bisogno volendo installare anche la rete MNEA cosa mi proponete per un installazione in ottima configurazione. Grazie Massimo
R. 27-09-2020 Buon pomeriggio, visto il costo del 122SV Ultra, consiglierei di prevedere un 1222XSV, lo ritengo più completo: https://www.painestore.it/garmin_gpsmap_1222_plus_display_multif_12_ Per il collegamento in NMEA 2000, dovrà verificare se sia già presente a bordo, diversamente si dovrà prevedere lo starter kit: https://www.painestore.it/garmin_nmea_2000_starter_kit Cordiali saluti. Luigi Bianchi
