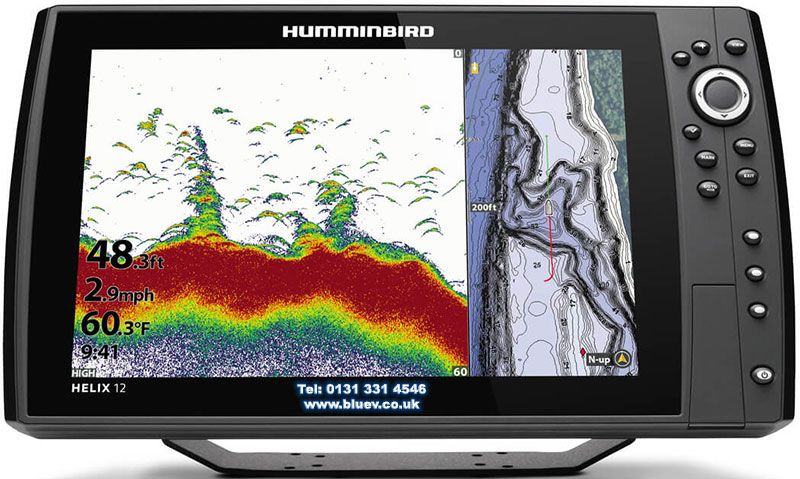

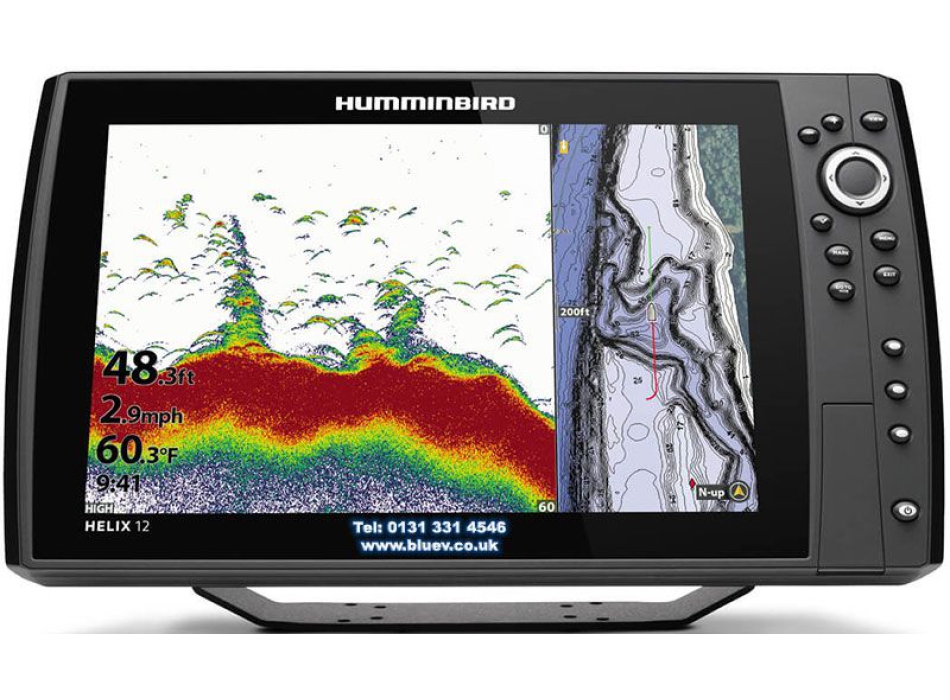

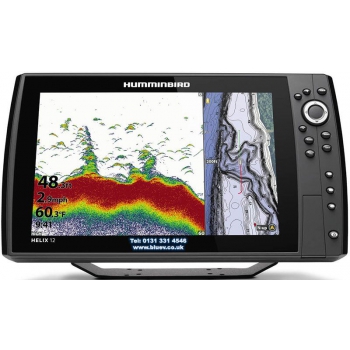

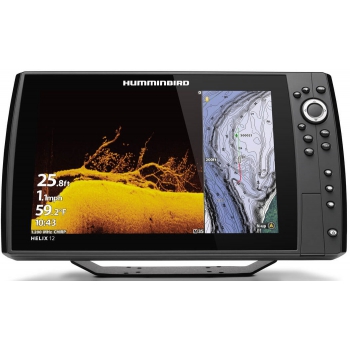

Humminbird Helix 12 CHIRP G4N eco / GPS

  • Code: 411430-1
€ 2.299,00 € 3.019,00 -24%
you chose:
Humminbird Helix 12 CHIRP G4N Sonar Chartplotter Gps
New CHIRP G4N Network version


Three options available:

. DS version with eco Chirp Dual Spectrum stern transducer

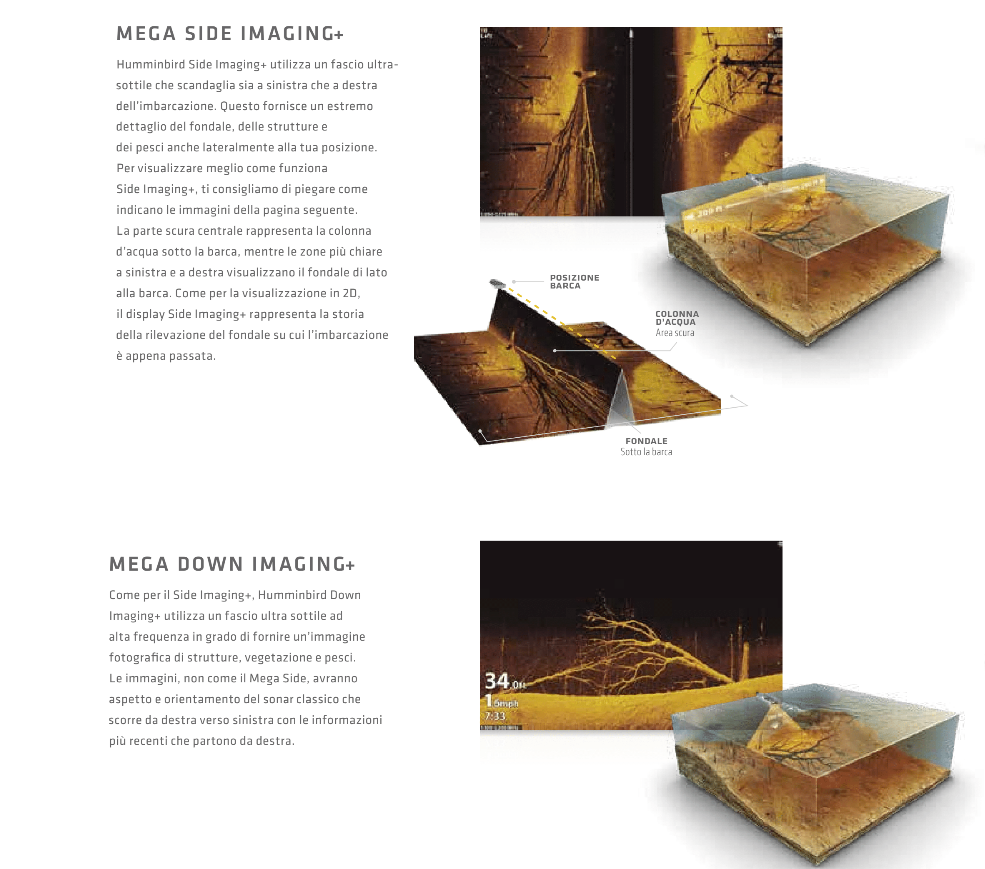

. MDI version with Mega Down Imaging eco Chirp DS and Mega Down Imaging transom transducer
. MSI version with Mega side Imaging echo Chirp DS, Mega Side and Down Imaging transom transducer

Just take a look at the new Helix 12 CHIRP to understand that Humminbird blood flows in his veins. You will be amazed at the resolution, clarity and brilliance of its display. The wide horizontal development of the screen allows you to view both all the details of the sonar images, and to accompany the cartography. It doesn't matter what the prey is. no matter what the sea conditions are.

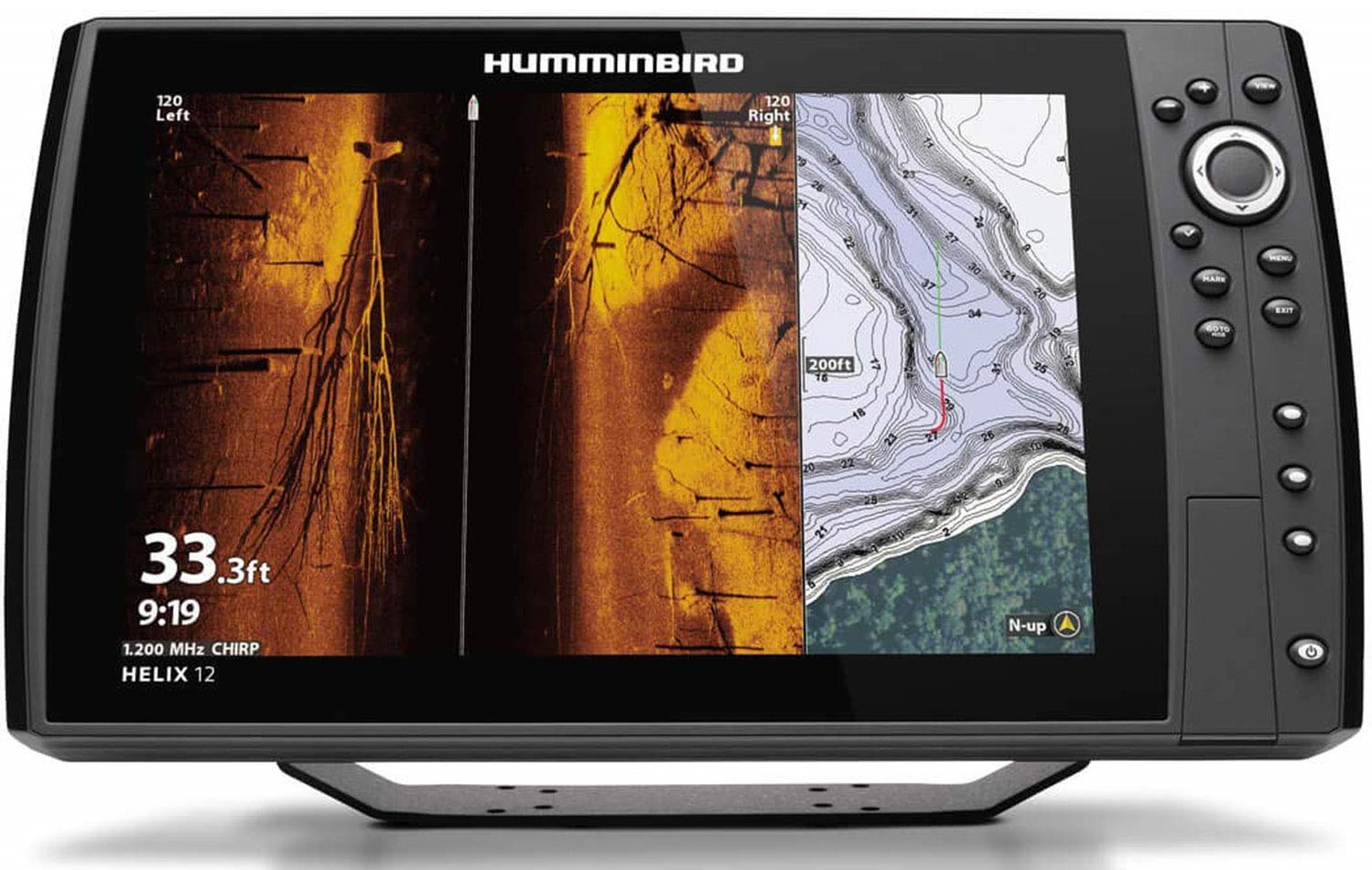

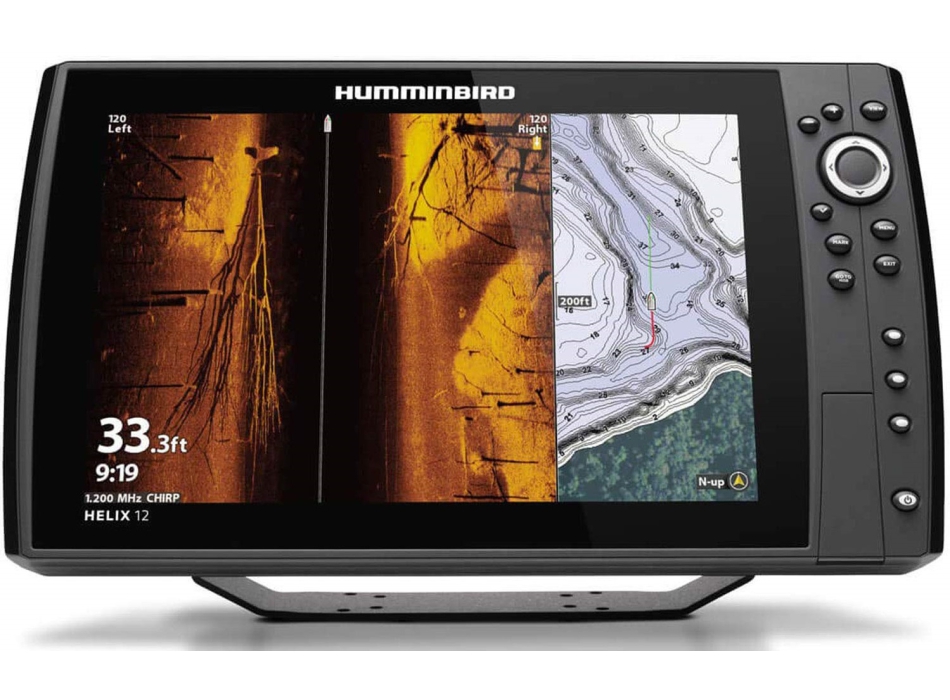

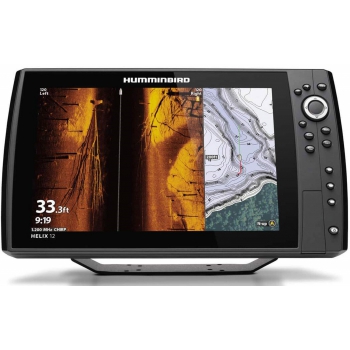

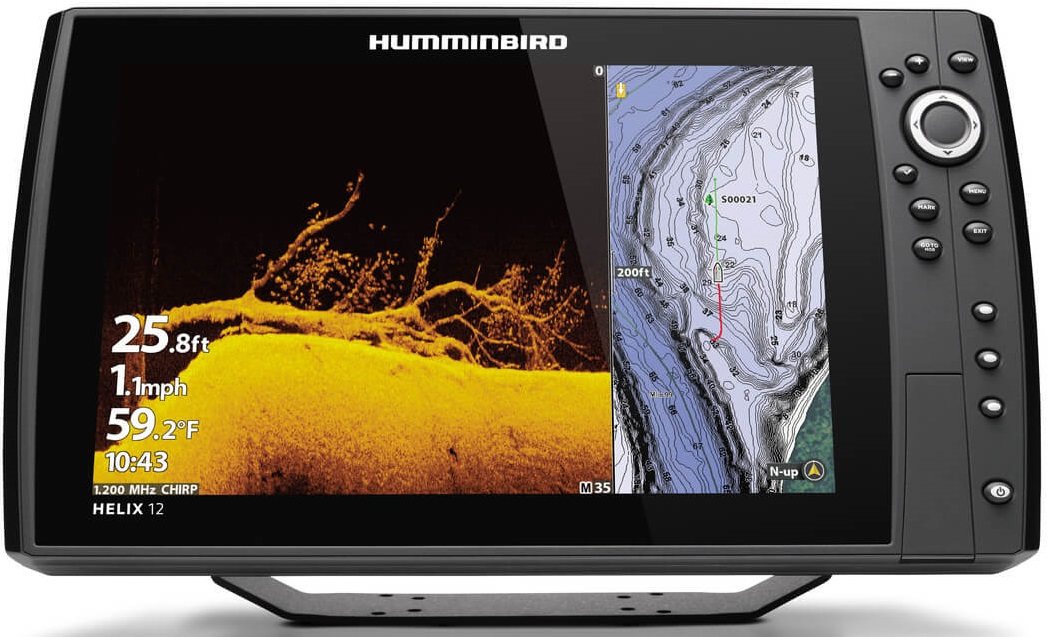

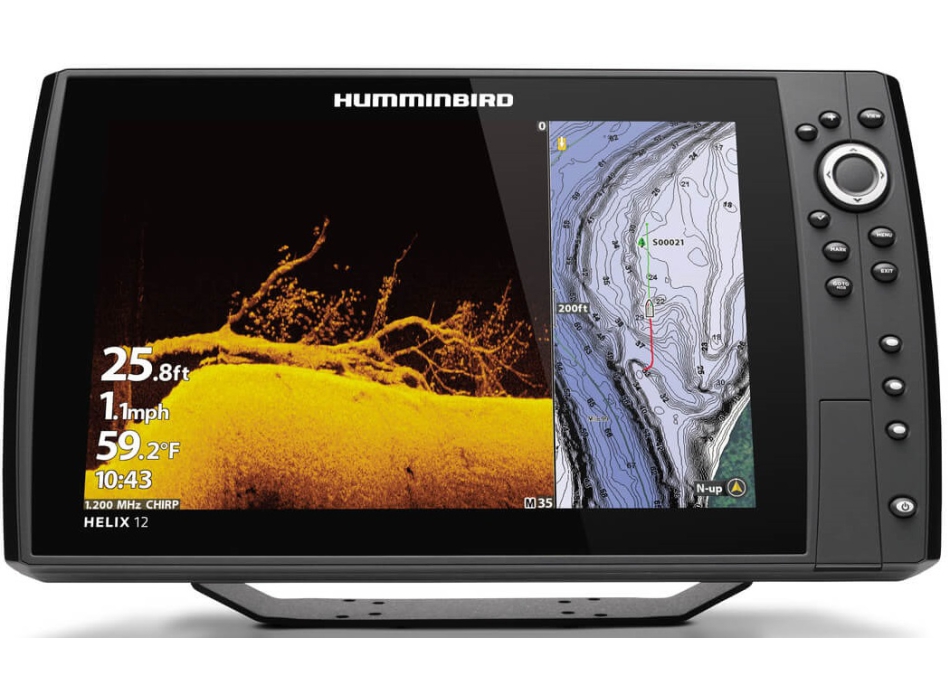

Sometimes, every possible weapon at your disposal is needed. On days like these it is time to think about the HELIX ™ 12 CHIRP GPS SI G4 with its full arsenal of amazing technologies, including Mega Side Imaging®, Mega Down Imaging® and Dual Spectrum® Sonar. With the large twelve-inch screen, you will be able to divide the screen into several pages both echo and GPS and you will be allowed to store your favorite fishing Markers. The single card slot allows you to insert Navionics® charts.
Cutting edge technology has never been more within reach than it is now.

Compatible with AutoChart Live

Now you can create detailed maps of your favorite fishing spots in real time with Humminbird® AutoChart® Live's patent.
You will be able to "map" the water as you drive the boat, with eight hours of recording. No added costs. There is no need to upload data for the world to see.
The future of digital charting has arrived.



Humminbird brand
Helix series
Display Size 12.1 "
Resolution 1280 × 800
Touchscreen No.
RMS power (W) 1,000
2D Chirp DS technology
2D Meters 360/700 *
Down Imaging Tech Chirp MDI +
Down Imaging 120 meters
Side Imaging Tech Chirp MSI +
Side Imaging 120 meters
XM9HWMSIT transducer
Networking Yes
Internal GPS Yes
Live auto-chart Yes
Veg. & Hardness Yes
SD / Micro card 2
NMEA2000 Yes, via included NMEA2000 port
WiFi Yes
* with optional XD transducer. Attention: The maximum depth data is indicative as it depends on various factors (in particular the density of the water and the type of seabed).


Sei interessato ad una offerta privata?
D. Salve vorrei ricevere informazione e sapere se c’è la possibilità di aggiungere una sondo per il bolentino di profondità
R. 12-02-24<br /> Buongiorno, eventualmente può acquistare una sonda XD freq. 50-200khz, al posto della MSI:<br /> https://www.painestore.it/humminbird_trasduttore_di_poppa_xnt9db74t_50/200khz<br /> Le prestazioni in termini di profondità saranno superiori a discapito però della definizione trattandosi di trasduttore standard 50-200khz.<br /> Cordiali saluti.<br /> Luigi Bianchi
D. buonasera , volevo sapere può fare da radar aggiungendo antenna sia il 10 che il 12 pollici grazie saluti.
R. 03-12-23 Buonasera, sì cero entrambi sono compatibili con Radar Humminbird: https://www.painestore.it/humminbird_antenna_2kw_chirp Cordiali saluti. Luigi Bianchi
D. Buonasera, vorrei conoscere le dimensioni esterne e l'eventuale tempo di consegna del prodotto grazie
R. 01-07-2021 Buon pomeriggio, per le dimensioni, nella sezione Documenti, potrà scaricare la Brochure completa. Disponibili a stock le versioni Helix 12 MSI, quindi consegna in ca 2/4 giorni lavorativi. Di seguito Coupon per sconto extra 5%: idyxv37q Cordiali saluti. Luigi Bianchi
D. E' compatibile con un radar Raymarine che prima era collegato ad un Raymarine e80? (ora non ho il modello del radar)
R. 08-02-2021 Buonasera, purtroppo no, gli Helix sono compatibili solo con antenna Radar Humminbird: https://www.painestore.it/humminbird_antenna_2kw_chirp Cordiali saluti. Luigi Bianchi
