Humminbird HELIX 7 G4N CHIRP eco / GPS

Select the version with DS, MDI and MSI transducer from the drop-down menu

The new G4N series include:
2 Slot for Micro Sd Card
Ethernet port
NMEA 2000 port
3 Programmable function keys
  • Code: 411630-1
€ 929,00 € 1.099,00 -15%
you chose:

Helix 7 CHIRP Sonar Gps G4N


Three options available:
. DS version with eco Chirp Dual Spectrum stern transducer

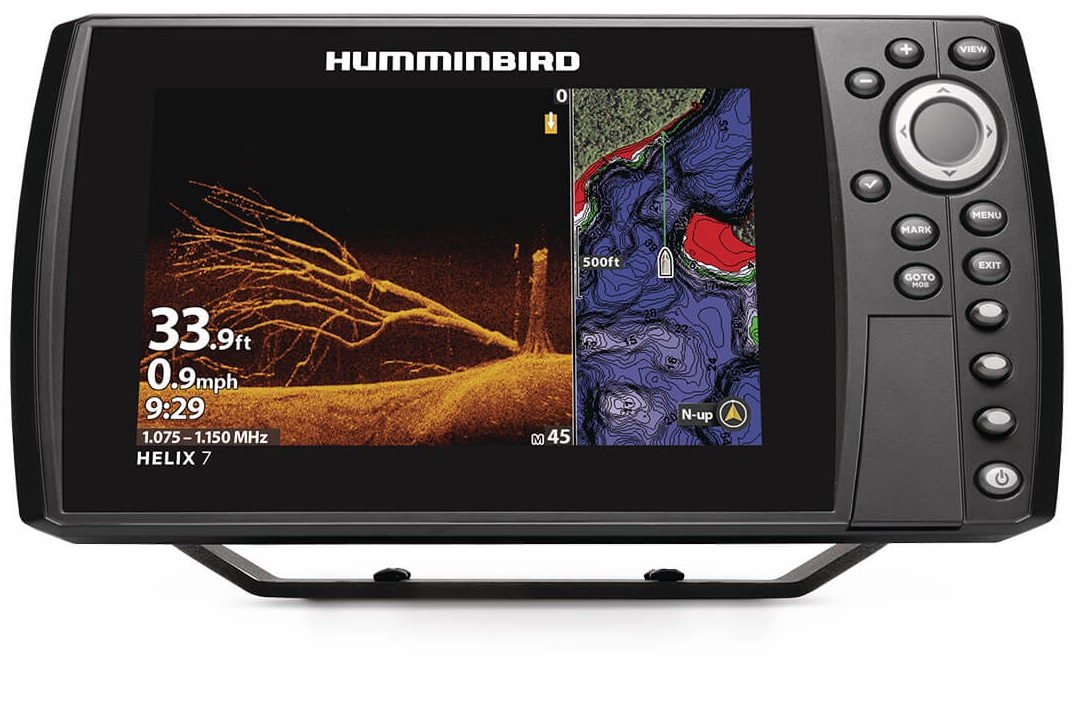

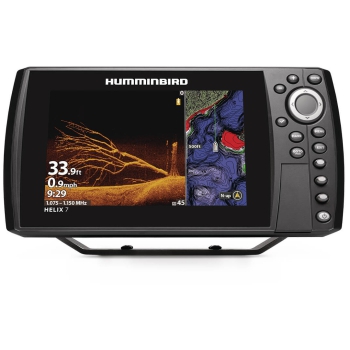

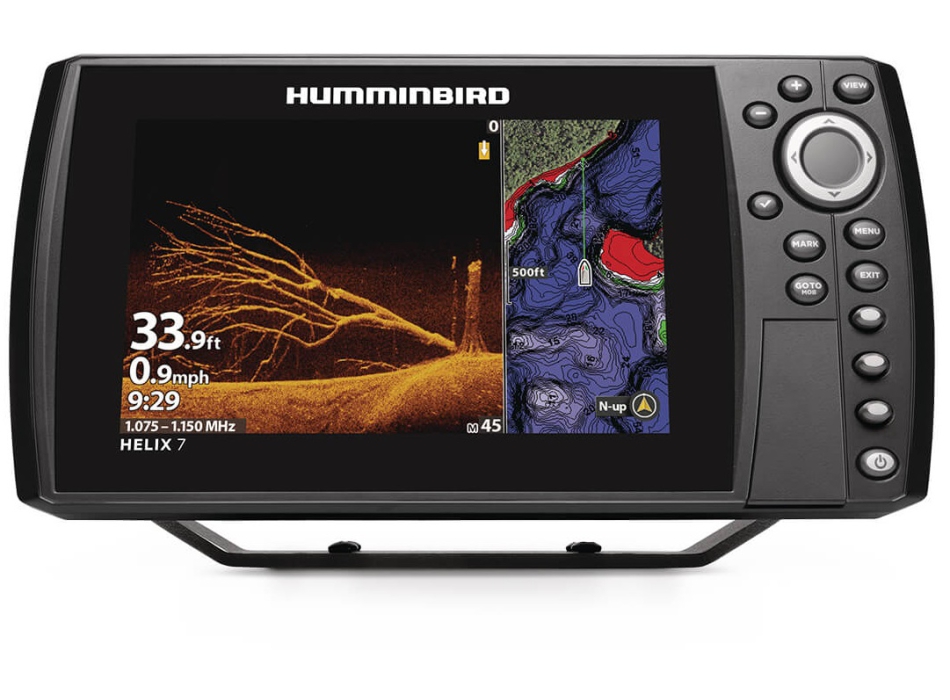

. MDI version with Mega Down Imaging eco Chirp DS and Mega Down Imaging transom transducer

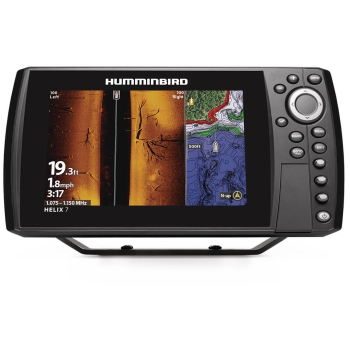

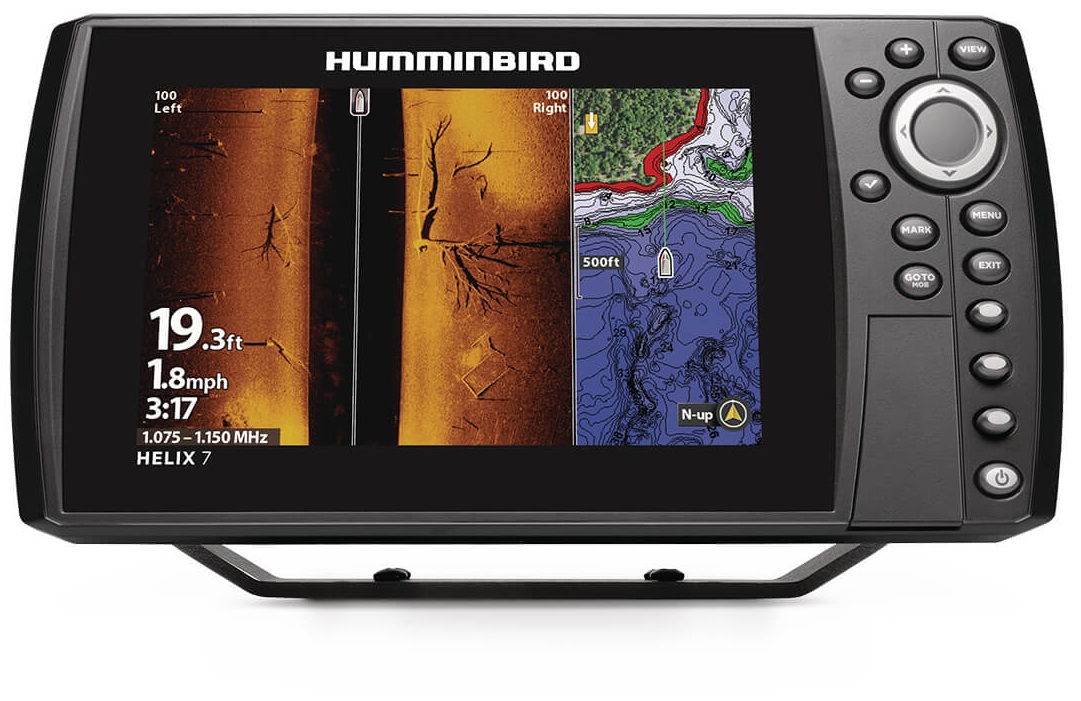

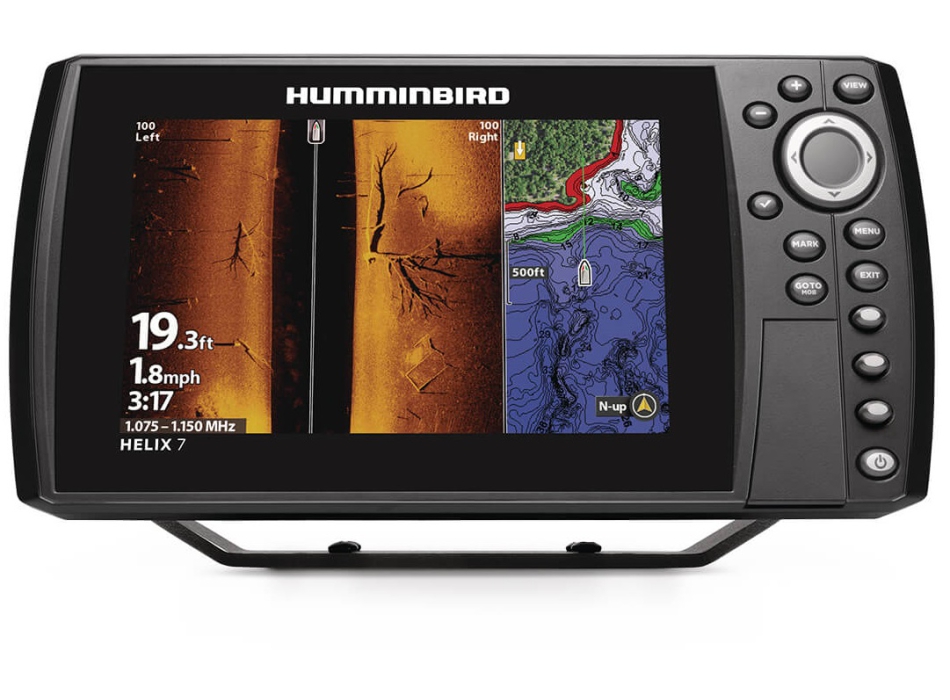

. MSI version with Mega side Imaging echo Chirp DS, Mega Side and Down Imaging transom transducer

All fishing enthusiasts, at any level, have enjoyed the Humminbird Helix series fish finders since their first appearance on the market. The fourth generation Helix G4N now offers even more technology, truly top performance, ease of use and display up to 15 ", adapting to any type of fishing, both in inland waters and at sea, thanks to the possibility of choosing between various transducers.

The transducers of the Helix models are designed and manufactured by Humminbird itself to create a perfect match between the sonar and the transducer, thus optimizing the performance of both and obtaining an unbeatable quality / price ratio.

The new Helix 7 G4N offers the angler Humminbird's most innovative and unique sonar technologies, the accuracy of a state-of-the-art built-in GPS, Navionics' basic and detailed cartography (optional), innovative features such as AutoChart Live and much more. even more. All this in a beautiful 7 ”display, super bright and with an exceptional resolution (1024 x 600 pixels), so as not to lose any detail and no prey.

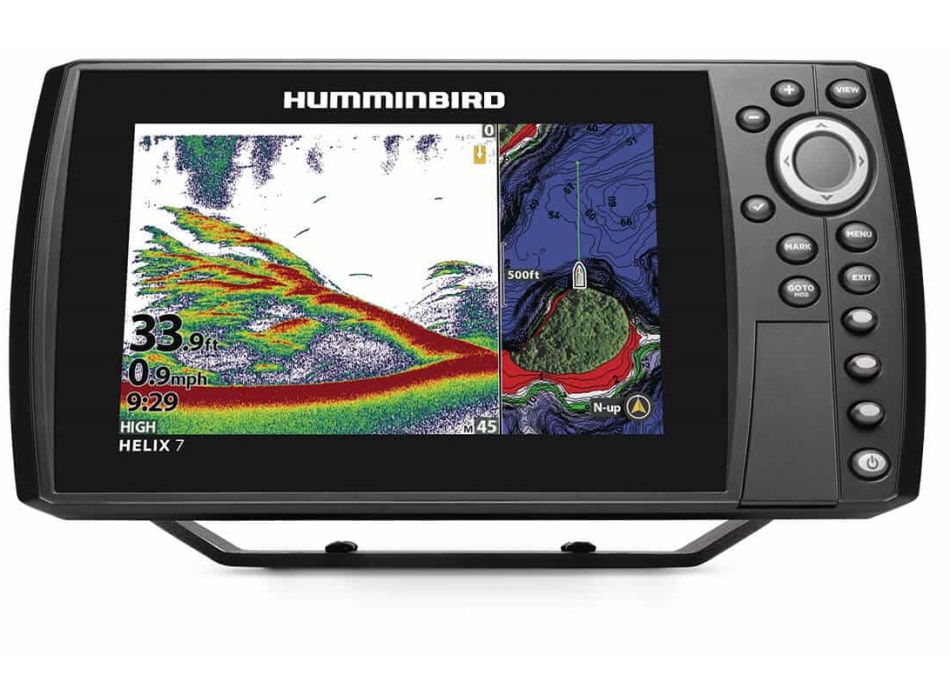

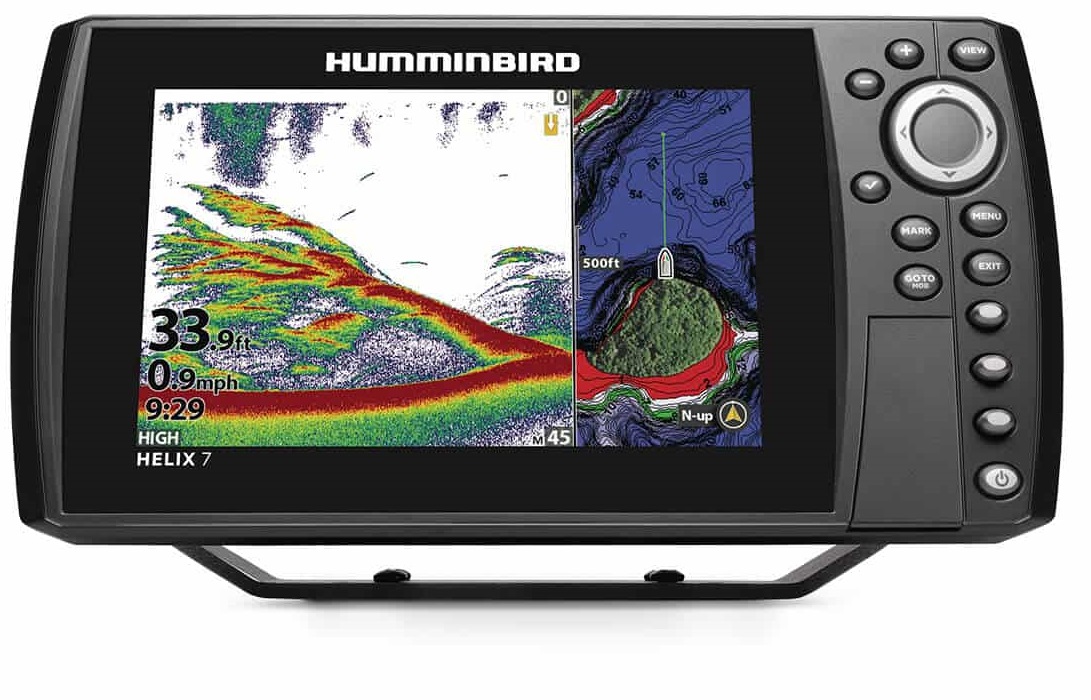

Humminbird's Dual Spectrum CHIRP Sonar technology, standard in this model, provides classic 2D viewing up to over 300 meters *, with exceptional fish response (arches) and excellent target separation. For deep fishing enthusiasts (up to 700m) *, a Humminbird XD transducer (optional) can be selected.

All Helix models with GPS include the AutoChart Live feature, to create your own live bottom maps. By simply activating the function, it is possible to admire the depths and the definition of the structure of the bottom that materialize on the display.

Helix G4N models are capable of interfacing with other accessories via NMEA 2000 and Wi-Fi. Thanks to the dedicated NMEA 2000 port, information from other instruments with NMEA2000 output present on the boat, such as engine data, can be viewed on the Helix display. Instead, Wi-Fi allows you to use, for example, the Navionics Plotter Sync function, and lends itself to many future evolutions.

Through the Ethernet network and the Bluetooth connection, the Helix G4N models can be perfectly integrated into the One-Boat Network project. This exclusive system connects Humminbird products with MinnKota and Cannon products, providing the possibility to have the Helix G4N fish finder communicate with MinnKota i-Pilot® Link ™ electric motors, with MinnKota (Talon and Raptor) shallow water anchoring systems. ), with Cannon Optimum electric sinkers and more.

  • 7 ″ display (1024 x 600 pixels)
  • Keyboard control
  • Internal GPS and optional external GPS antenna
  • Navionics compatibility
  • AutoChart Live
  • Ethernet port for connections to A second unit such as a second display, Chirp Radar antenna, Minn-Kota i-Pilot link engine, etc. . A dedicated Hub allows you to increase the number of peripherals when needed.
  • NMEA 0183 port for an external GPS receiver and NMEA 0183 accessories.
  • NMEA 2000 network supporting virtually all NMEA 2000 data and accessories, including navigation data, as well as Engine Data, fuel level and on-board electrical data.
  • Bluetooth and Wi-Fi communication supporting Humminbird, Minn Kota and Cannon accessories, as well as Navionics Plotter Sync functionality.
  • One Boat Network provides exclusive integration and control of MinnKota motors with i-Pilot Link, Talon and Raptor surface anchoring systems, or Cannon Optimum electric sinkers.
  • Compatible with Humminbird CHIRP Radar, autopilot.

* The maximum depth that can be reached depends on many factors including the density of the water, the type of seabed, etc. Therefore the maximum depth data is indicative and reachable in optimal conditions. Contact us for more details about it.

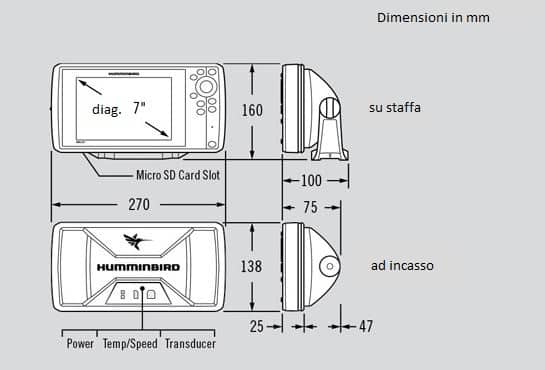

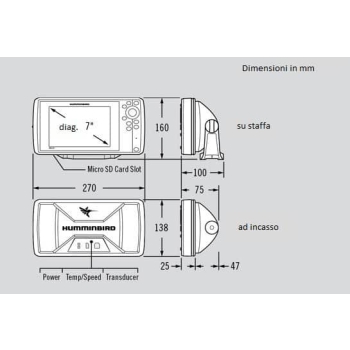

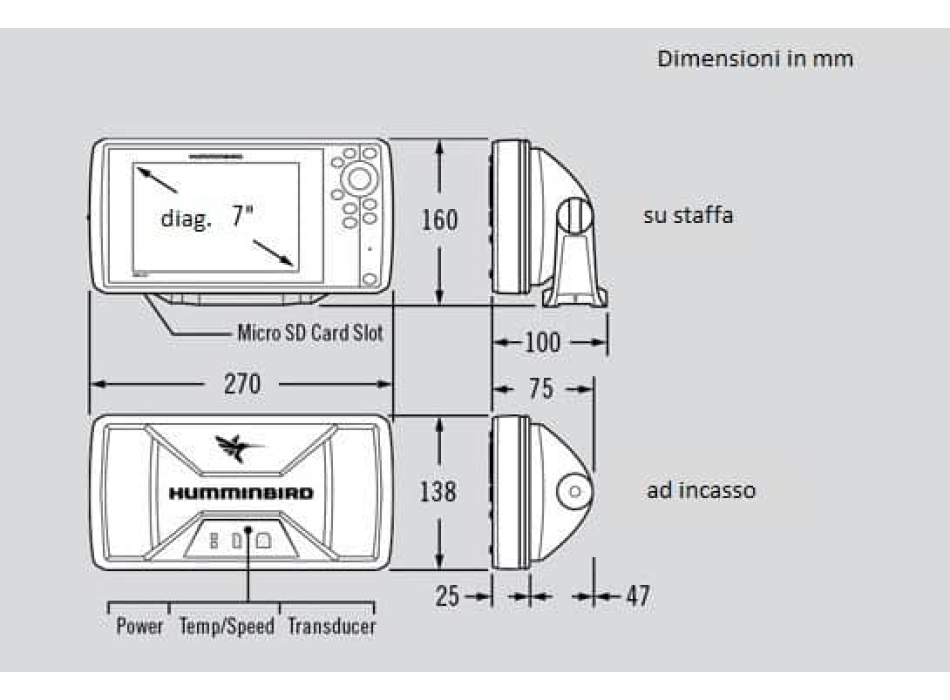

Display Size 7 "
Resolution 1024 × 600
Touchscreen No.
RMS power (W) 500

Available versions:
Chirp DS 2D Technology
2D Meters 360/700 *
XNT9HWT transducer

Chirp MDI 2D DS Technology and Down Imaging Tech
Down Imaging Meters 100
XNT9HWMDI75T transducer

Chirp MSI 2D DS Technology, Down Imaging Tech and Side Imaging Tech
Side Imaging 60 meters
XNT 9 HW MSI 150 T transducer

Networking Yes
Internal GPS Yes
Live auto-chart Yes
Veg. & Hardness Yes
SD / Micro card 2M
NMEA2000 Yes, via optional NMEA2000 Black Box
WiFi No

* with optional XD transducer. Attention: The maximum depth data is indicative as it depends on various factors (in particular the density of the water and the type of seabed).
