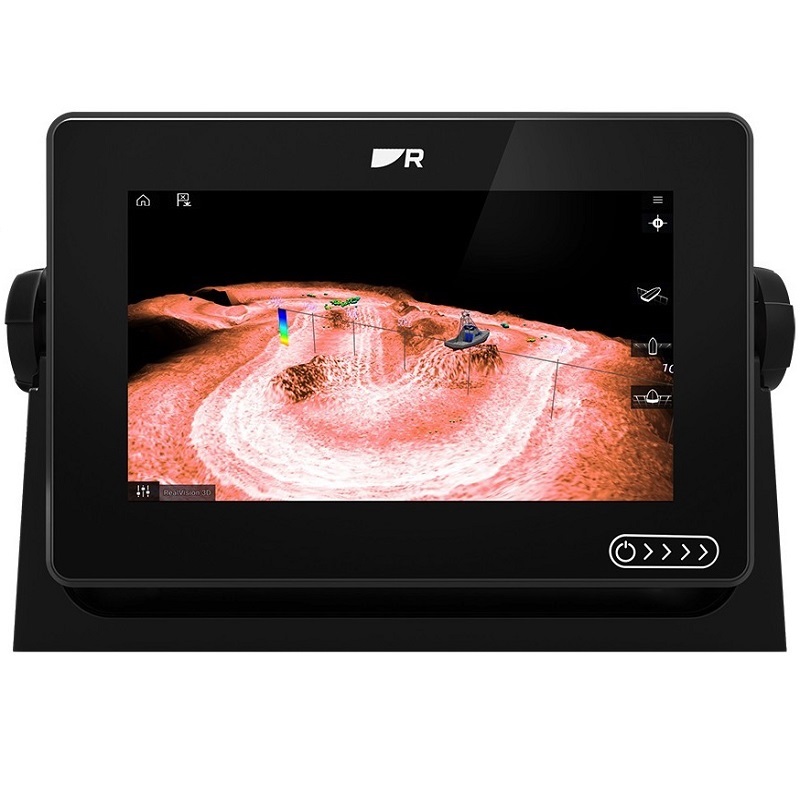

Raymarine AXIOM+ 7RV Display 7" eco/GPS

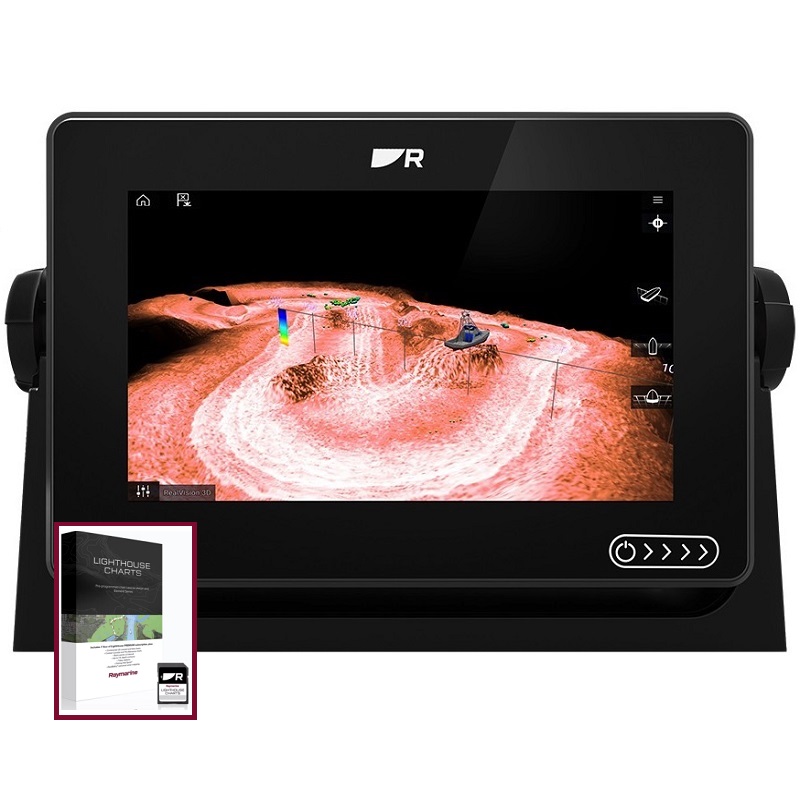

Select the option with or without cartography from the drop-down menu.
  • Code: E70635
€ 1.162,00 € 1.335,90 -13%
CHART OPTION
you chose:
Raymarine AXIOM+ 7RV eco/GPS

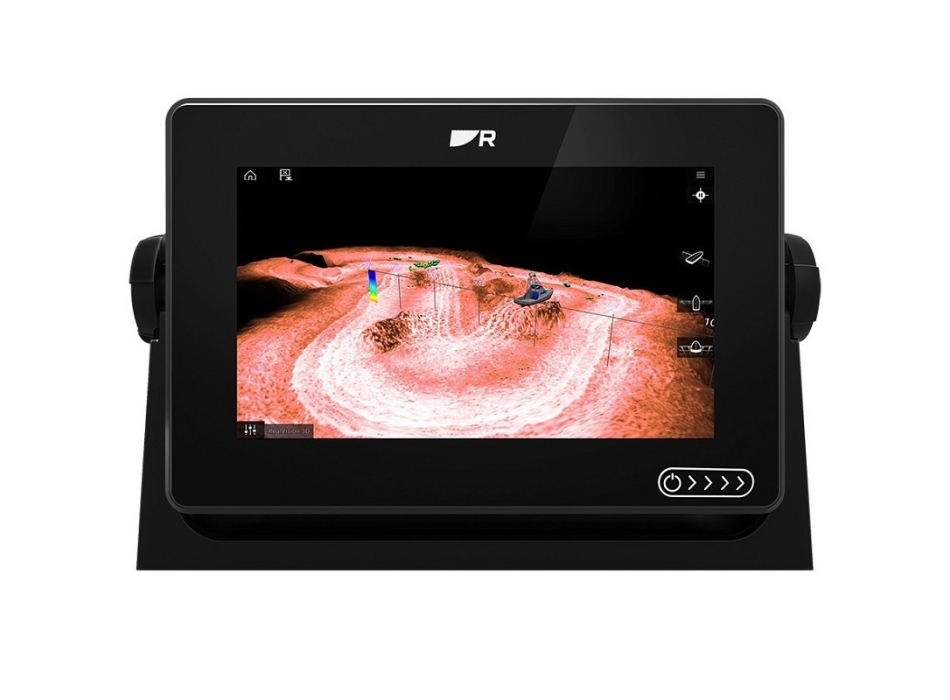

Designed to ensure the highest performance, Axiom®+ is the NEW generation of Raymarine's award-winning multifunction display. Optimized for speed, Axiom Plus features a powerful, industry-leading quad-core processor for responsiveness and processing power, giving you the ability to redraw maps, navigate with augmented reality, and experience RealVision sonar ™ 3D seamless.

The new high-resolution IPS display provides 25% more brightness and the new day/night color tables offer greater visibility in any lighting condition. Axiom Plus supports the renowned LightHouse 3, the most powerful and easy-to-use operating system for Raymarine multifunction displays.

OPTIMIZED FOR HIGH PERFORMANCE

Fast, responsive and designed to support new features.
Smooth and fast loading of Navionics and C-Map maps.
Powerful quad-core processor, with more onboard memory for personal data and apps.

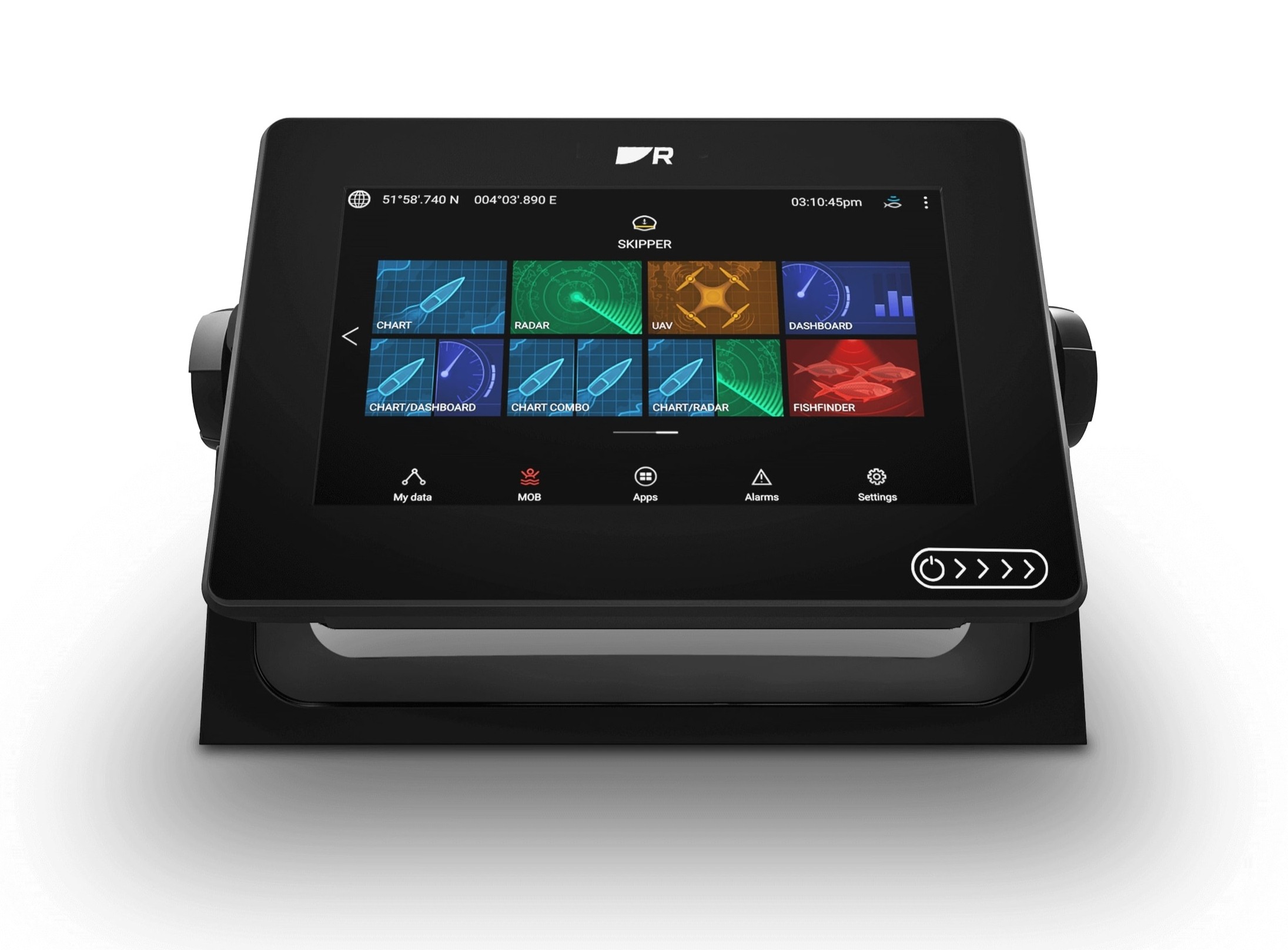

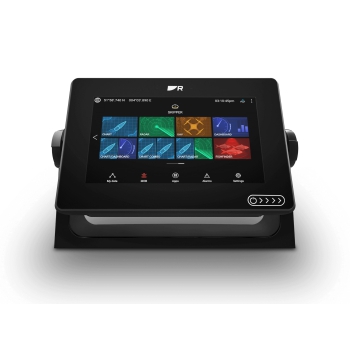

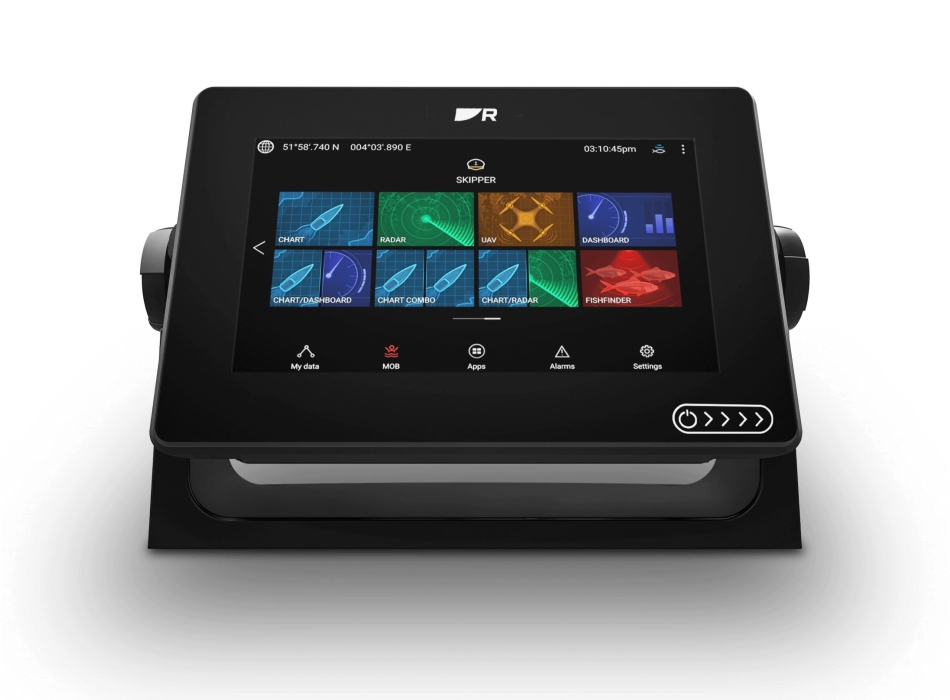

Smart and intuitive, the LightHouse 3 operating system makes navigation easy.

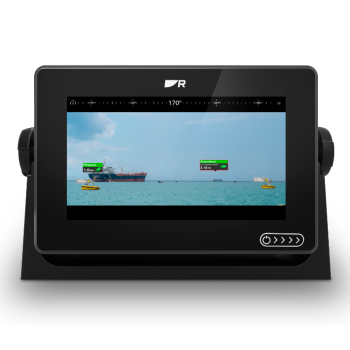

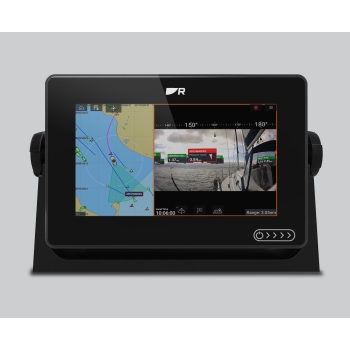

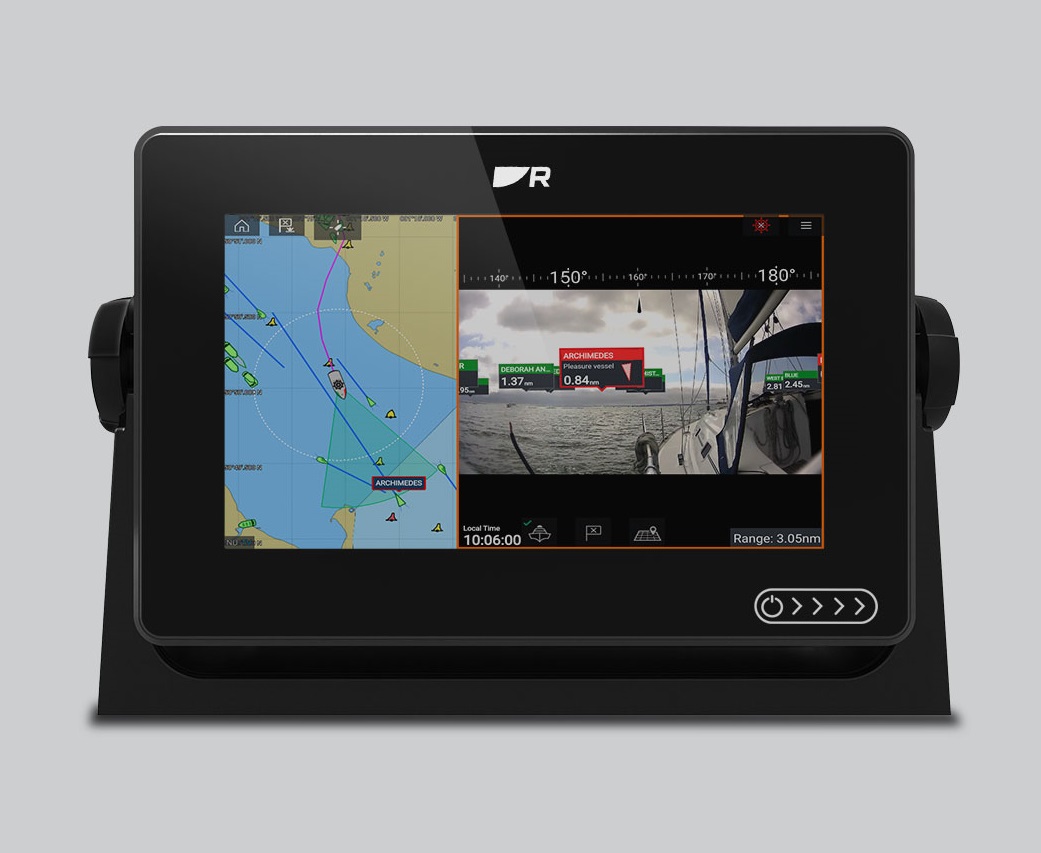

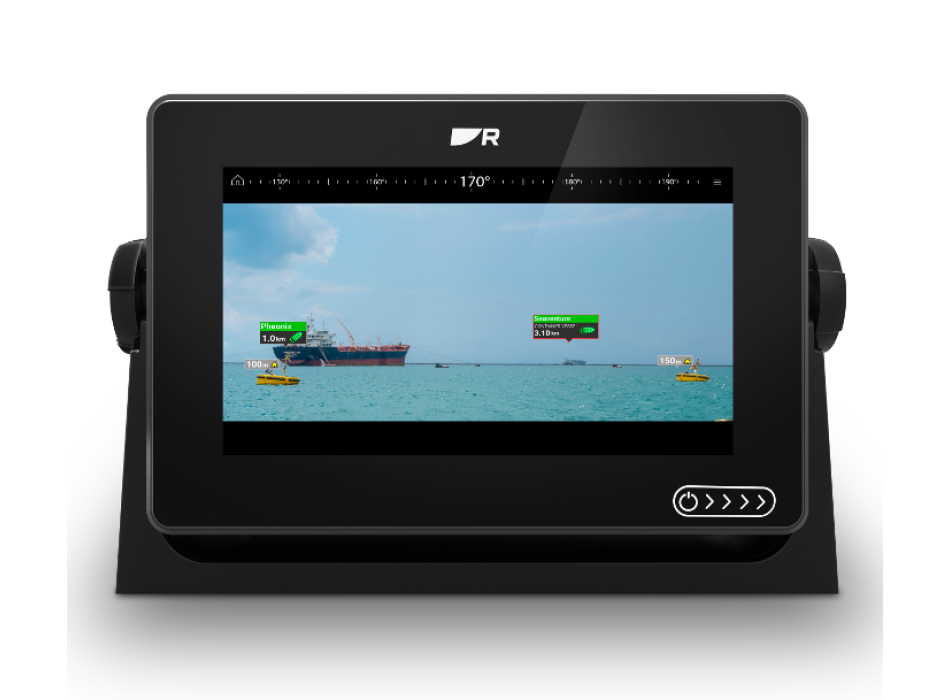

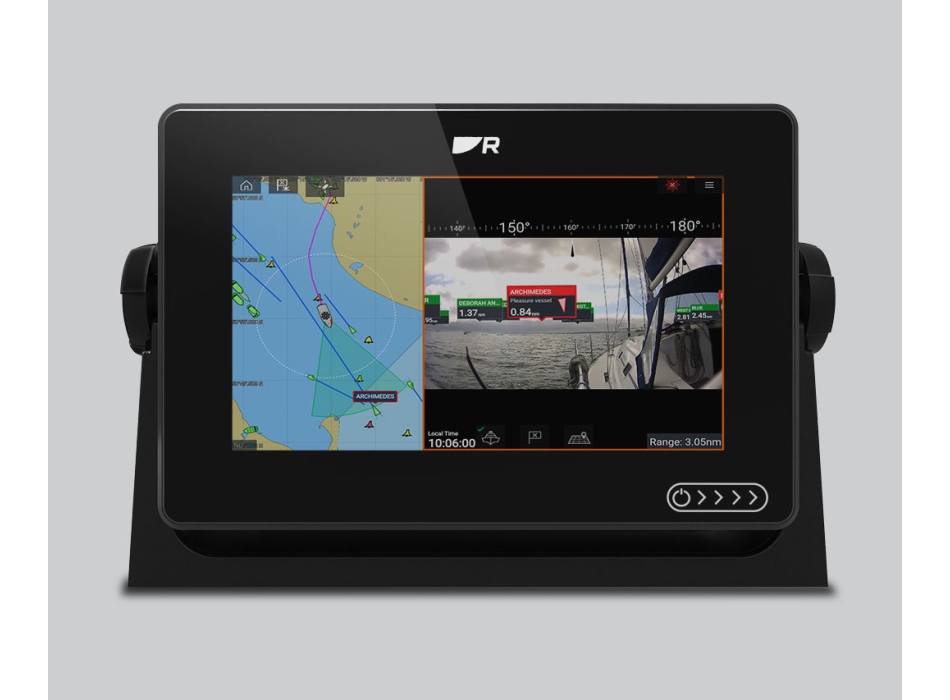

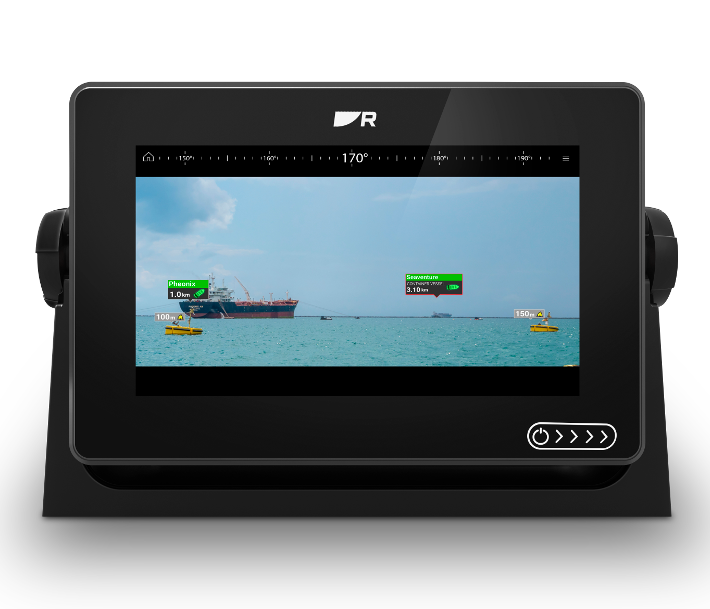

ClearCruise™ Augmented Reality helps you make smarter navigation decisions.



HYDROTOUGH™ DISPLAY
The glass screen is coated with nanotechnology materials, resists impacts and repels water, oil and smudges for better viewing and accurate touch controls.

BRIGHTER
The 7-, 9-, and 12-inch all-weather displays are 25% brighter (up to 1,800 nits).




CLEARER
IPS display technology offers wider viewing angles and sharp contrast, with double the resolution of traditional displays.
AXIOM+ 7 SPECIFICATIONS
Screen size 7.0" High Density IPS
Display resolution 1024 x 600 (WSVGA)
Multitouch screen type with hydrophobic HydroTough™ coating
Brightness 1,500 nits
Viewing angles 85° from top, bottom, right, left
Dimensions
W x H x D 210 x 142 x 77mm
IPX6 / IPX7 waterproof

ECHO SOUNDER
Sonar Depth High CHIRP Sonar Sonar = 274 m (900 ft) | DownVision™ = 183 m (600 ft) | SideVision™ = 91 m (300 ft) | RealVision™ 3D = 91 m (300 ft)
Note: the indications of the maximum depth may vary based on the characteristics and salinity of the water

CONNECTIVITY
Ethernet 1 x 10/100 Mbit/s network port (RayNet)
NMEA0183 No
NMEA2000 NMEA2000 via DeviceNet connector. SeaTalkng compatible with optional adapter
SeaTalkNG Requires DeviceNet (F) adapter cable (A06079 120mm adapter cable included in box)
USB 1 x USB microAB
Wi-Fi WiFi - 802.11 a/b/g/n
BlueTooth Bluetooth v4.0

NAVIGATION
Cartography Compatible with Lighthouse, Navionics, and C-MAP maps
Waypoints/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 groups of wpts / 150 rts - 250 wpts max / 16 tracks - Max 10,000 trk pts




Caratteristiche

Sei interessato ad una offerta privata?
D. Buongiorno, volevo sapere se l' Axiom 7" o 9" ma anche gli Element sono compatibili con le sonde Furuno 520-5PSD o 520-5MSD, grazie
R. 05-01-22 Buon pomeriggio, purtroppo no, nessuno dei due è compatibile con le sonde Furuno. Le consiglierei eventualmente Furuno 1871F o 1971F: https://www.painestore.it/furuno_gp-1871f_gps/eco_7_touchscreen_600/1kw https://www.painestore.it/furuno_gp-1971f_gps/eco_9_touchscreen_600/1kw Cordiali saluti. Luigi Bianchi
D. Quale è la profondità necessaria per l'installazione su staffa considerando l'attacco per l'alimentazione e quello per il trasduttore ? Sul piano della consolle ho uno spazio di circa 14 cm. Dal manuale leggo che ne occorrono almeno 22. Lo spinotto e la curvatura necessitano di almeno 14,5 cm ?
R. 16-04-2021 Buongiorno, ho inserito nella sezione Documenti nell'articolo in oggetto, i manuali in italiano per installazione e utente, oltre al disegno tecnico con le dimensioni. Cordiali saluti. Luigi Bianchi
D. Buonasera. A proposito del chartplotter Axiom + 7 con ecoscandaglio/GPS non mi è chiara una cosa: per montarlo mi pare di aver capito che va acquistato anche il trasduttore Real Vision (320 €)...ma dove e come va installato quest'ultimo? Sono necessari nuovi fori nello scafo o si puo' sfruttare quelli già esistenti (esempio quello del log o del vecchio profondimetro già installato)? Grazie.
R. 01-03-2021 Buongiorno, dobbiamo nel Suo caso capire se la Sua è una barca a motore o vela. L'Axiom 7RV viene proposto in due varianti, senza trasduttore e con trasduttore RV-100 di poppa; quindi se si tratta di imbarcazione a motore con un motore fuori bordo, può essere consigliato di acquistare direttamente la versione con RV-100. Diversamente è possibile scegliere la versione senza trasduttore ed abbinare un trasduttore passante plastica RV-300 o bronzo RV-200 per avere tutte le funzionalità eco, ovvero: eco standard, Down, Side Vision e 3D: https://www.painestore.it/blog/side_down_clearvu_ Nel caso in cui si voglia sfruttare il foro esistente del trasduttore eco, è possibile la sostituzione con un P319 per solo eco standard: https://www.painestore.it/trasduttore_da_poppa_p319_1 Cordiali saluti. Luigi Bianchi
D. DOVE POSSO TROVARE IL MANUALI IN ITALIANO DI QUESTO STRUMENTO. GRAZIE
R. 10-02-2021 Buonasera, al seguente link troverà il manuale, scaricabile solo da PC: https://raymarine.app.box.com/s/3t839g2xf6nko4n0h9re535140rknnpz/folder/27940570295 Cordiali saluti. Luigi Bianchi
D. Volevo sapere con quale trasduttore passante è compatibile l’apparato axiom+ RV 7”. Grazie. Paolo
R. Buongiorno, se vuole mantenere le funzionalità di RealVision e SideVision è indispensabile mettere un trasduttore come questo: https://www.painestore.it/raymarine_rv-200_per_axiom_trasd_pass_bronzo Se invece le sono sufficienti le funzioni tradizionali dell'ecoscandaglio si può optare anche per trasduttori meno invasivi tipo questo, sommato ad un adattatore: https://www.painestore.it/trasduttore_da_poppa_p319_1 https://www.painestore.it/raymarine_axiom_cavo_adattatore_rv_a_trasduttori_cp-370 Cordiali saluti barbara/PAINE SNC
D. Sono interessato all'acquisto del ecoscandaglio eco/gpsCodice : E70635 il software è aggiornato al sistema operativo LightHouse 3?
R. 09-01-2021 Buonasera, certamente sì, aggiornato all'ultima versione software. Cordiali saluti. Luigi Bianchi
