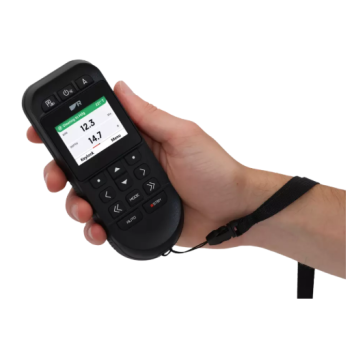

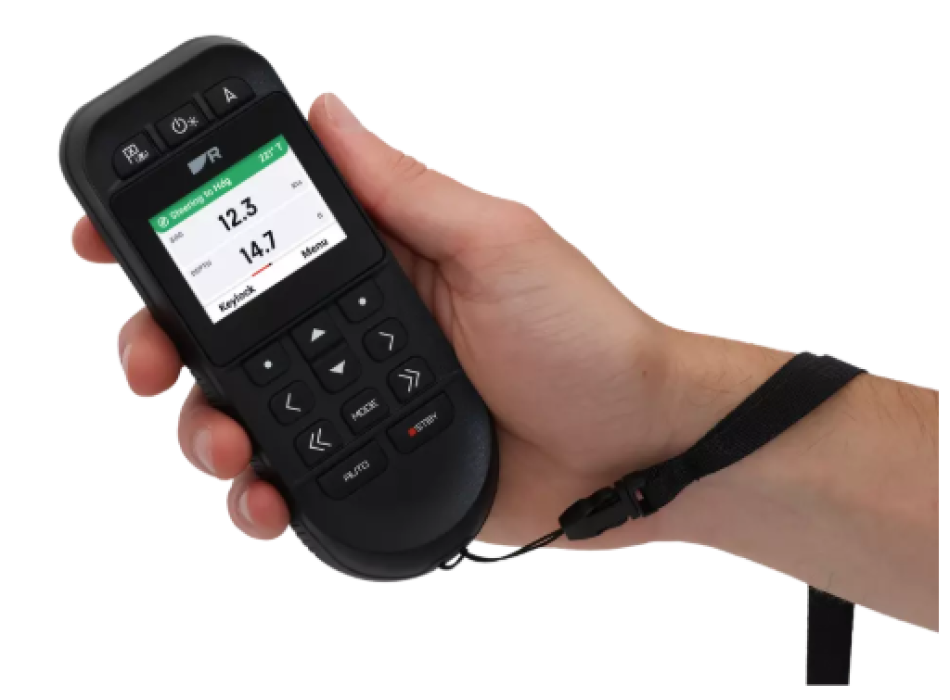

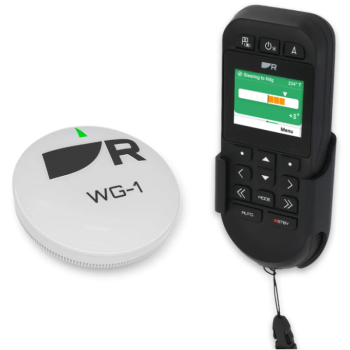

1 | RCU-1 Autopilot Remote Control |
2 | Support (housing) |
3 | 2 AA batteries |
4 | 2 self-tapping screws |
5 | Documentation |
6 | Cord |
| Physical characteristics | |
|---|---|
| Height (laptop only) | 150.87 mm (5.94 in) |
| Width (laptop only) | 59.83 mm (2.36 in) |
| Depth (portable only) | 31.51 mm (1.24 in) |
| Product weight (remote control and batteries) | 190 g (6.70 oz) |
| Drums | |
|---|---|
| Size | AA |
| Types | Alkaline |
| Environmental specifications | |
|---|---|
| Operating temperature range | From -25°C (-13°F) to +55°C (131°F) |
| Storage temperature range | From -30°C (-22°F) to +70°C (158°F) |
| Humidity | up to 95% at 40 C (104°F) |
| Protection against water ingress | IP67 |
| Installation position | Above the bridges Below Deck |
| AHRS | |
|---|---|
| AHRS | 3-axis accelerometer |
| Magnetic compass accuracy | Static = ±1° RMS |
| Pitch, roll and yaw accuracy | ±1° |
| Heading, pitch, roll and rotation rate update rates | 10 Hz |
| Bluetooth | |
|---|---|
| Bluetooth version | 5.1 |
| Connection interval | Up to 30 m (98.43 ft) with clear line of sight |
