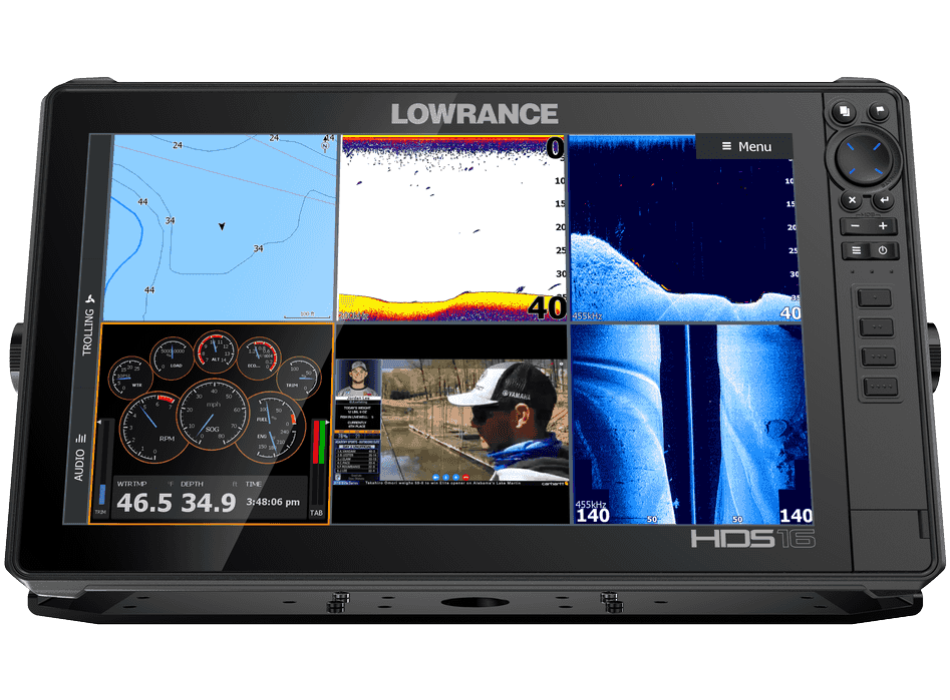

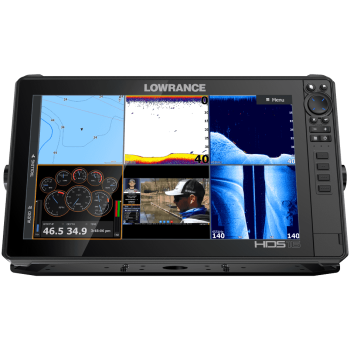

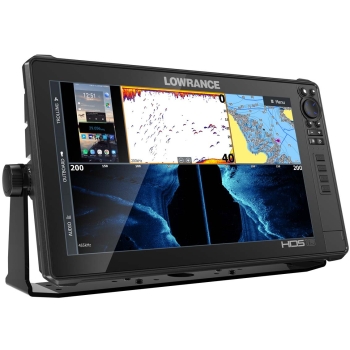

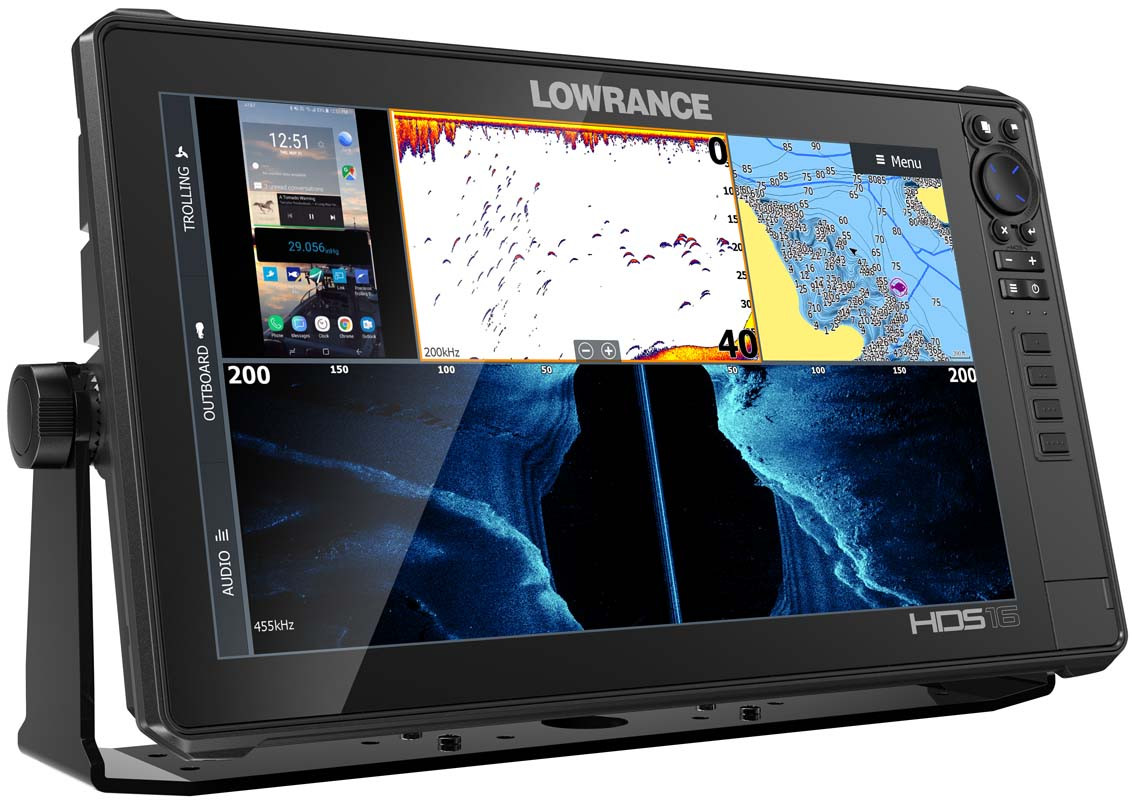

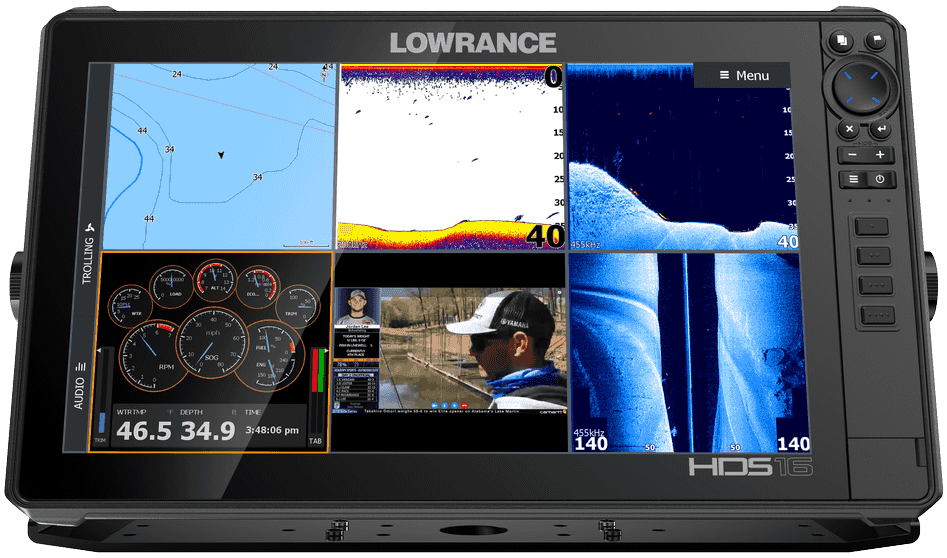

Lowrance HDS 16 Live Touch Display 16 "Active Imaging

  • Code: 000-14436-001
€ 2.599,00 € 4.756,00 -45%
you chose:

Transducerless - With Active Imaging ™ 3-in-1 transom transducer

High Definition SolarMAX ™ Full HD Multi-Touch Screen - Preloaded C-MAP® US Advanced Mapping. Compatible with Active Imaging ™, StructureScan® 3D with Active Imaging and LiveSight ™ Real Time Sonar. Includes wireless connectivity, Ethernet, NMEA 2000®, LiveCast ™ smartphone integration + maximum integration capability. No transducer model
Year after year, more fishing tour professionals use HDS than all other fishfinder brands combined. HDS LIVE is ready to carry on that tradition behind excellent performance and the best collection of innovative features available for sonar - from the new Active Imaging ™ and StructureScan® 3D with Active Imaging to FishReveal ™ and LiveSight ™ real-time sonar - you will experience a new level of fishfinding performance with HDS LIVE. Navigating to your favorite fishing spot or finding a new one has never been easier, behind the best suite of navigation features ever built into the HDS Live display, including preloaded C-MAP® US Enhanced mapping with 1 foot outlines on over 4,000 lakes, C-MAP® Easy Routing, Navionics® Autorouting and C-MAP Genesis Live mapping. HDS LIVE also simplifies your time on the water with on-screen text messages and call notifications, plus the LiveCast ™ smartphone connection, which allows you to view video, Google Maps and fishing data on the sonar display

Main features
Active Imaging 3-in-1 transducer required (not included)
Active Imaging ™ 3-in-1 (CHIRP / SideScan / DownScan)
Active Imaging 2-in-1 ready
Compatible with LiveSight ™ Real Time Sonar
Notifications from smartphones
C-MAP Genesis Live Screen Mapping
StructureScan® 3D with Active Imaging Enhancements - Coming Fall 2018
High performance quad-core processor
FishReveal Smart targeted visualization
Full high definition SolarMAX ™ HD HDS multi-touch screen with the widest range of viewing angles, also visible through polarized sunglasses
C-MAP® US Enhanced papers preloaded with 1 foot contours on over 4,000 lakes
C-MAP Easy Routing, Navionics Autorouting capability
Dual Channel CHIRP: Double coverage of the sonar range from the same transducer
Live Net Sonar - Covers more water and marks fish targets more clearly from a network of CHIRP sonar transducers
Wireless and Bluetooth® connectivity
The Heat Map feature allows anglers to see trends in water temperature changes to quickly locate key fishing areas
Improved surface clarity allows you to see more fish targets close to the surface
The Quick Access Control Bar provides one-touch access to system controls
Integrated CHIRP and Broadband Sounder ™
SmartSteer ™ control for Xi5 trolling motor and outboard pilot
SonicHub®2 radar and audio server connectivity
NMEA 2000® engine support
Optional mapping updates include C-MAP, Navionics® and more

  • 1920 x 1080 resolution
  • Brightness> 1200 nit
  • Type 16 "IPS
  • Multitouch Touch Screen
  • Viewing angle 80 ° up / down, 80 ° left / right
  • Dual Max output power 1 kW RMS
  • Sonar Connections One connector for LiveSight, DownScan and CHIRP; Second connector for Active Imaging SideScan, DownScan and CHIRP
  • Active Imaging 3-in-1 DownScan Imaging ™ at 455kHz: Max 300ft / 91m: SideScan Imaging at 455kHz: Max 300ft / 91m on each side
  • High-range CHIRP sonar (160-240kHz) / 200kHz: 1000ft / 305m
  • CHIRP Med (60-100kHz) / 83kHz Sonar Range: 1000ft / 305m
  • Low Range (40-60kHz) / 50kHz CHIRP Sonar: 3000ft / 900m
  • Available Sonar Frequencies Low / Medium / High CHIRP, 50/83/200 kHz Wideband, 455/800 kHz SideScan / DownScan Imaging
  • Depth alarm
  • Superficial alarm
  • Temperature readings
  • Transducer type Double 9-pin connection; Multiple selections of Lowrance® and Airmar® transducers
  • Supply voltage 12 V DC (10 - 17 V DC min - max)
  • Power Consumption - MAX 67.62W (4.9A @ 13.8VDC)
  • Recommended fuse 6.5 A
  • Operating temperature range -15 ° C to + 55 ° C (5 ° F to 131 ° F)
  • Storage temperature range -20 ° C to + 60 ° C (4 ° F to 140 ° F)
  • IPX6 and IPX7 waterproof rating

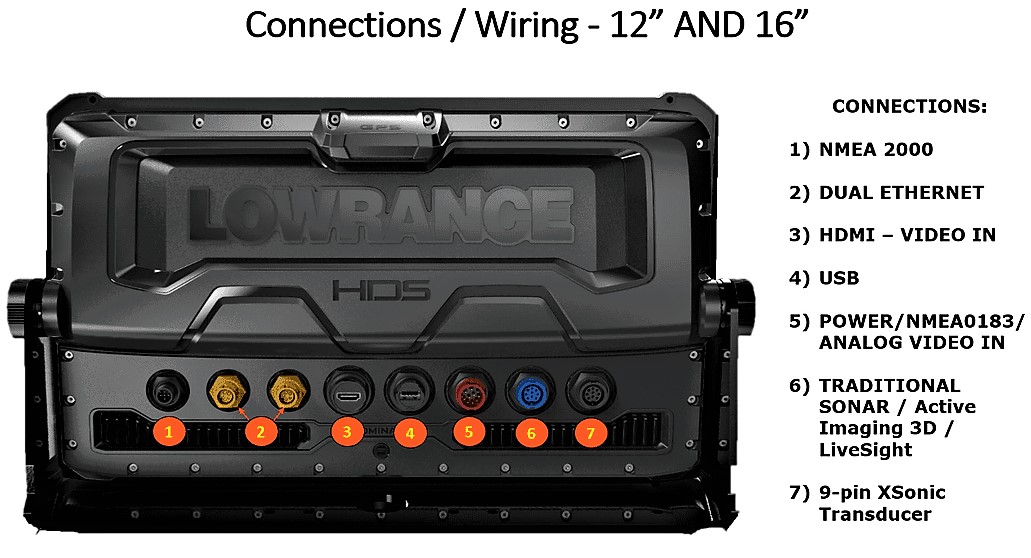

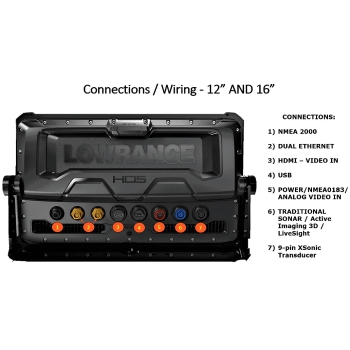

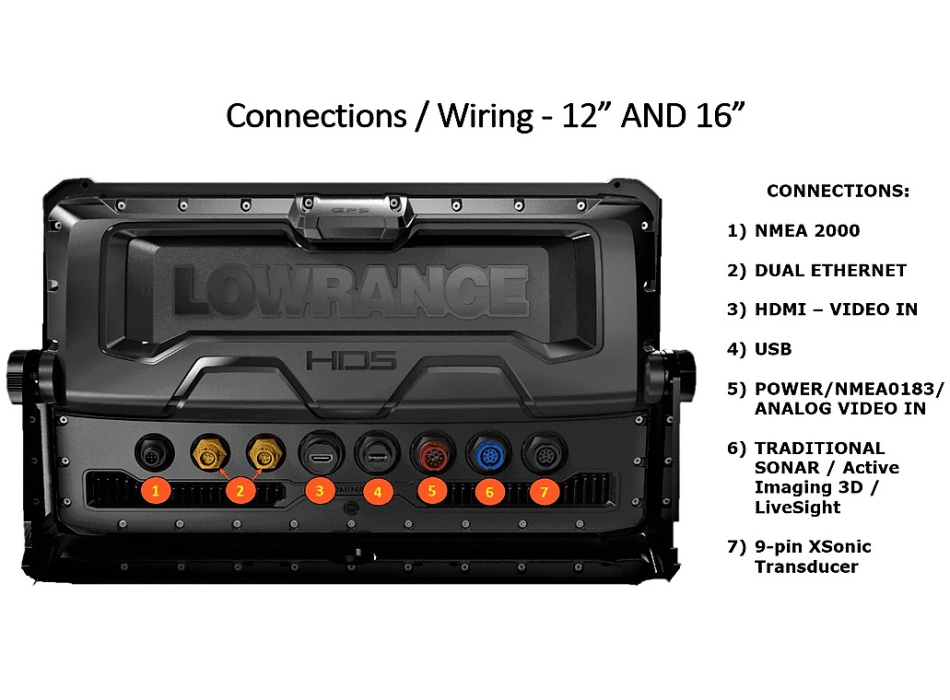

  • NMEA 2000 1 port (Micro-C)
  • NMEA 0183 1 port (in the power cable)
  • 2 port Ethernet
  • HDMI Video In 1 Port
  • 1 port analog video input (optional cable)
  • USB 1 port (USB-A 5V DC, 1.5A)
  • Card slot 2 microSD slots
  • Integrated wireless 802.11 b / g / n Bluetooth
  • Bluetooth 4.0 with support for Bluetooth Classic


Sei interessato ad una offerta privata?
D. salve sono interessato all'acquisto del HDS Live 16. ci sarebbe la possibilità di ritiro del mio ecoscandaglio sempre HDS Live 12 ( come Nuovo)? saluti
R. 23-05-24<br /> Buonasera, siamo disponibili a queste richieste.<br /> Il problema purtroppo è la valutazione del suo HDS 12, dato che abbiamo ancora stock di qualche HDS 12 Live nuovo. Oltretutto lo ha acquistato da noi e quando?<br /> Grazie.<br /> Cordiali saluti.<br /> Luigi Bianchi
D. Buonasera sono interessato al Lowrance HDS 16 Live Touch Display 16" Active Imaging vorrei sapere se voi ritirate l'ecoscandaglio Simrad 2009 in permuta, acquistato sempre dal vostro sito lo strumento è completo di scatola ed è in ottimo stato Ho 2 trasduttori montati un TM 260 e un B150 sono adatti per questo strumento? Saluti Vincenzo Melis
R. 21-05-24<br /> Buongiorno,<br /> confermo la compatibilità con entrambi i trasduttori per quanto riguarda il collegamento con HDS Live. Saranno necessari poi cavi di adattamento da connettore 7 PIN Blu a xSonic:<br /> https://www.painestore.it/simrad_7pin_blue_xdcr_to_9pin_black_adapter_1<br /> Cordiali saluti.<br /> Luigi Bianchi
D. Salve, io vorrei acquistare questo prodotto...sarebbe possibile pagare 2460 subito ed il resto in 3 rate con paypall?
R. 03-04-23 Buonasera, sì certo è possibile, se vuole passi l'ordine con pagamento con bonifico bancario, poi provvediamo a modificarlo, grazie. Cordiali saluti. Luigi Bianchi
D. oltre al trasduttore di poppa 3 in 1 quali altri trasduttori sono compatibili per montaggio diretto? per un trasduttore da 1 kW, ad esempio, è necessario un modulo aggiuntivo? Grazie in anticipo
R. 03-05-22 Buonasera, non è necessario un kit aggiuntivo per il collegamento di un trasduttore da 1kw, compatibile con tutti i trasduttori Lowrance da 1kw che trova sul sito. https://www.painestore.it/cerca?keywords=lowrance+1kw Cordiali saluti. Luigi Bianchi
